LANKABLE Catalogue
CONSOLIDATED B2B PORTFOLIO | 2026 EDITION
LANKABLEWIRE & CABLE SYSTEMS
Official Catalogue 2026
Product Portfolio
Complete Cabling Systems
High performance electrical conductors, data communication lines, and optical fibers engineered for modern networks and industrial infrastructure.
High-Performance Wire & Cable Systems
Reliable Connectivity. Engineered for Performance.
LANKABLEWIRE & CABLE SYSTEMS
Corporate Overview
Page 02
Our Story
We design and manufacture high-conductivity copper and fiber optic systems that form the physical backbone of critical enterprise networks. Since our founding, we have prioritized first-principles engineering and material purity above all else.

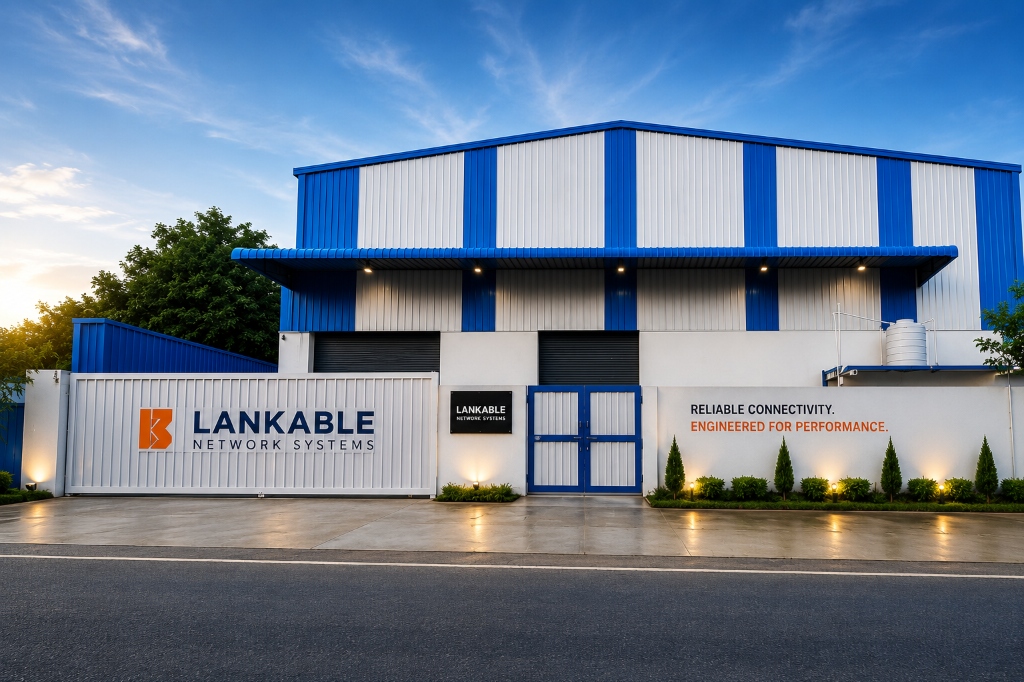

Our state-of-the-art facilities in Jaipur utilize advanced German extrusion and stranding machinery to achieve ultra-fine dimensional tolerances. This allows us to supply high-purity copper and optical media to demanding sectors like data centers, defense, telecom operators, and solar PV farms.

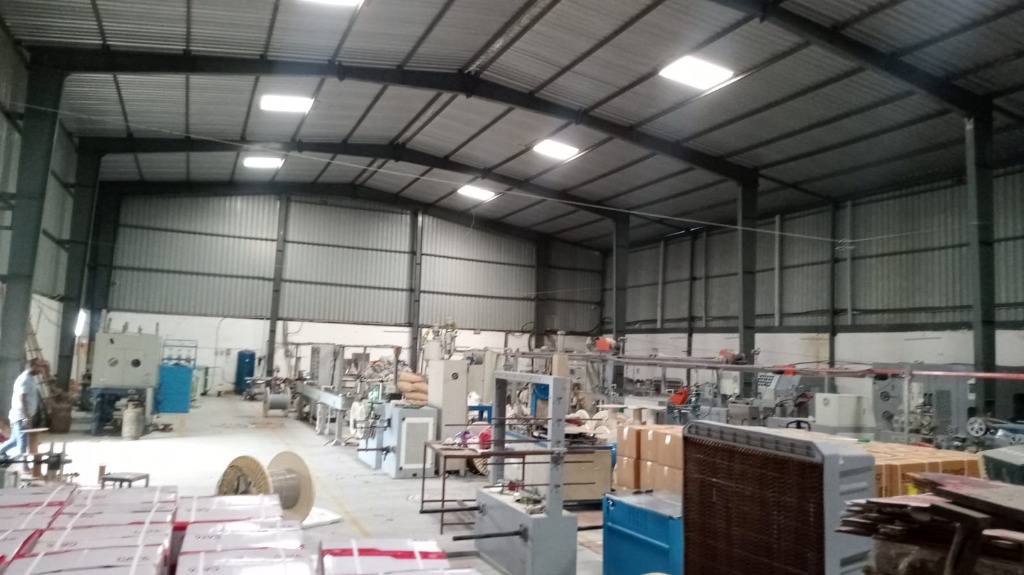

Manufacturing Capacity & Infrastructure
200,000+ Sq. Ft.
Production Facility
100% In-House
Lab Testing
50+ Countries
Export Capacity
Engineered Trust
Every reel that leaves our facility has undergone continuous spark testing and high-frequency parameter scans, ensuring long-term field stability.
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 02
LANKABLEWIRE & CABLE SYSTEMS
Corporate Values
Page 03
Our Mission
To engineer world-class cabling infrastructure that powers critical networks across every continent with zero failure rates and maximum electrical efficiency.
Our Vision
To be the most trusted cable manufacturing partner for enterprises, utility grid developers, defence institutions, and telecom operators globally.
Core Principles
Engineering Excellence
We design every product with first-principles thinking, rigorous testing, and zero tolerance for shortcuts.
Innovation
From 400G switching to AI-driven RF optimization, we invest 20% of revenue annually in R&D.
Reliability
Our products are deployed where failure is not an option. We design for 99.999% uptime from day one.
Customer Obsession
We measure success by our customers' network uptime, not our quarterly revenue.
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 03
LANKABLEWIRE & CABLE SYSTEMS
Catalogue Index
Page 04
Table of Contents
Complete index of standard product offerings
05. LANKABLE Single-Mode Armored Fiber Optic CablePg 5
06. LANKABLE Multi-Mode OM3/OM4 Fiber Optic CablePg 6
07. LANKABLE FTTH Drop Fiber Optic CablePg 7
08. LANKABLE Tactical Ruggedized Fiber Optic CablePg 8
09. LANKABLE MPO/MTP High-Density Trunk CablePg 9
10. LANKABLE Armored Outdoor Fiber Optic CablePg 10

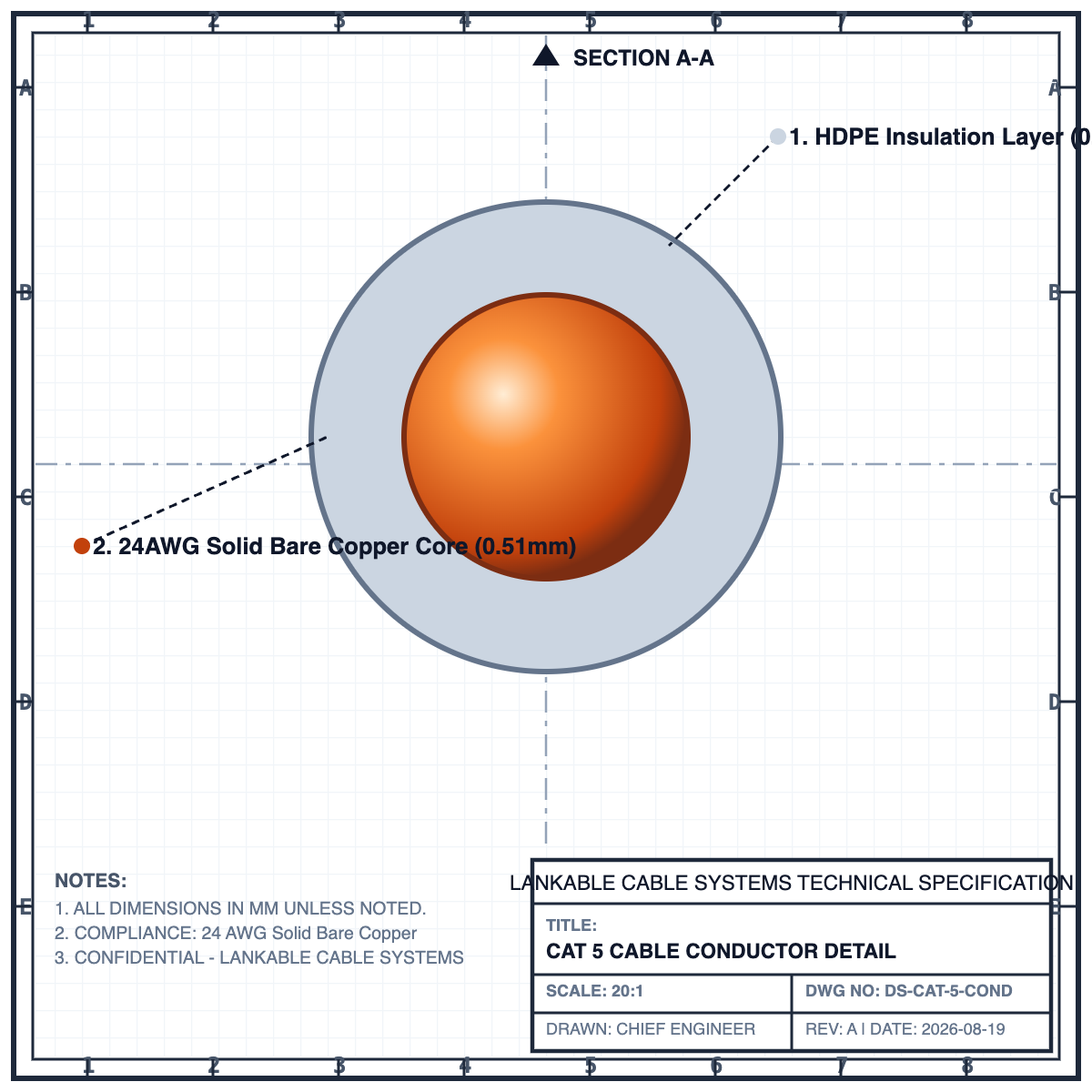

11. LANKABLE Cat 5 CablePg 11

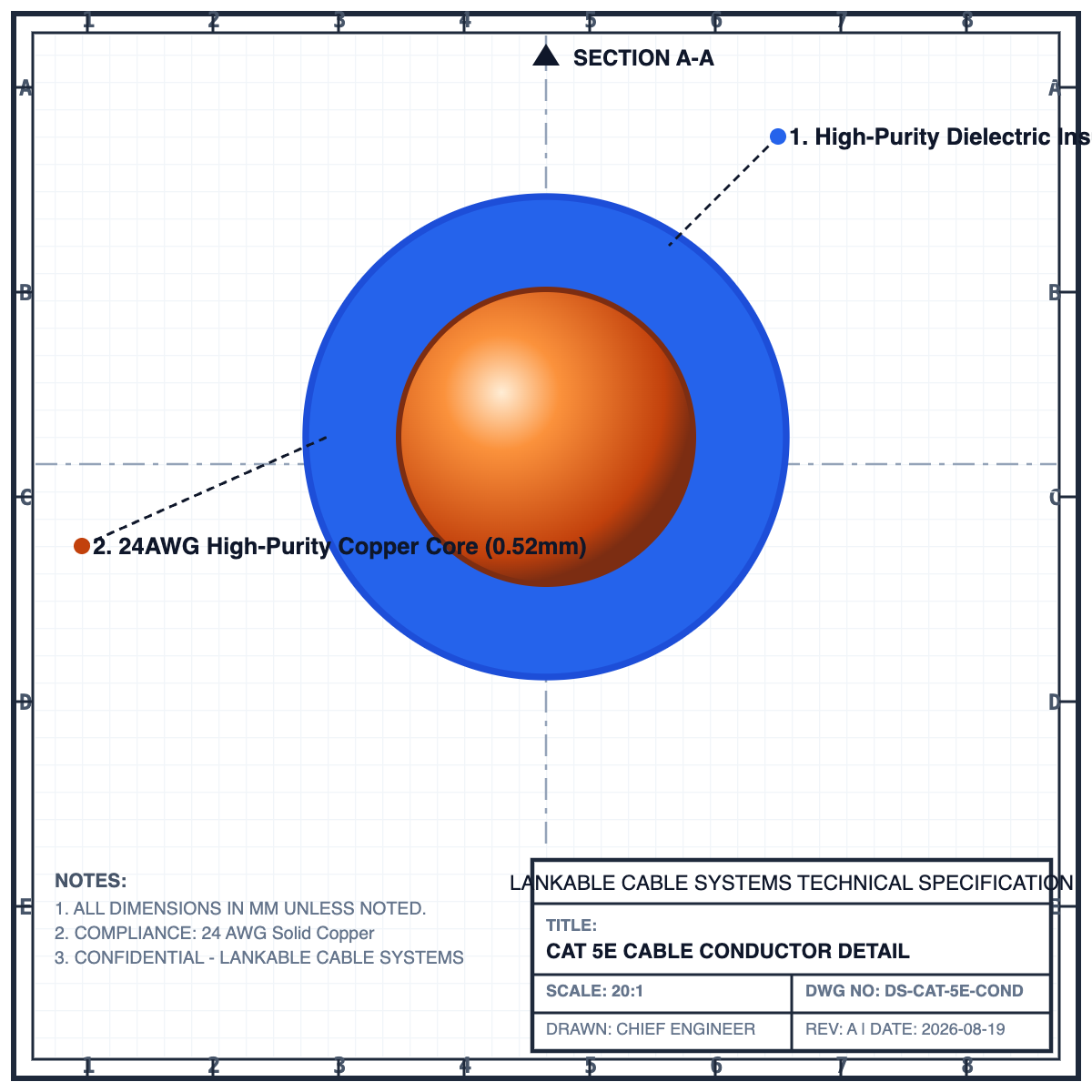

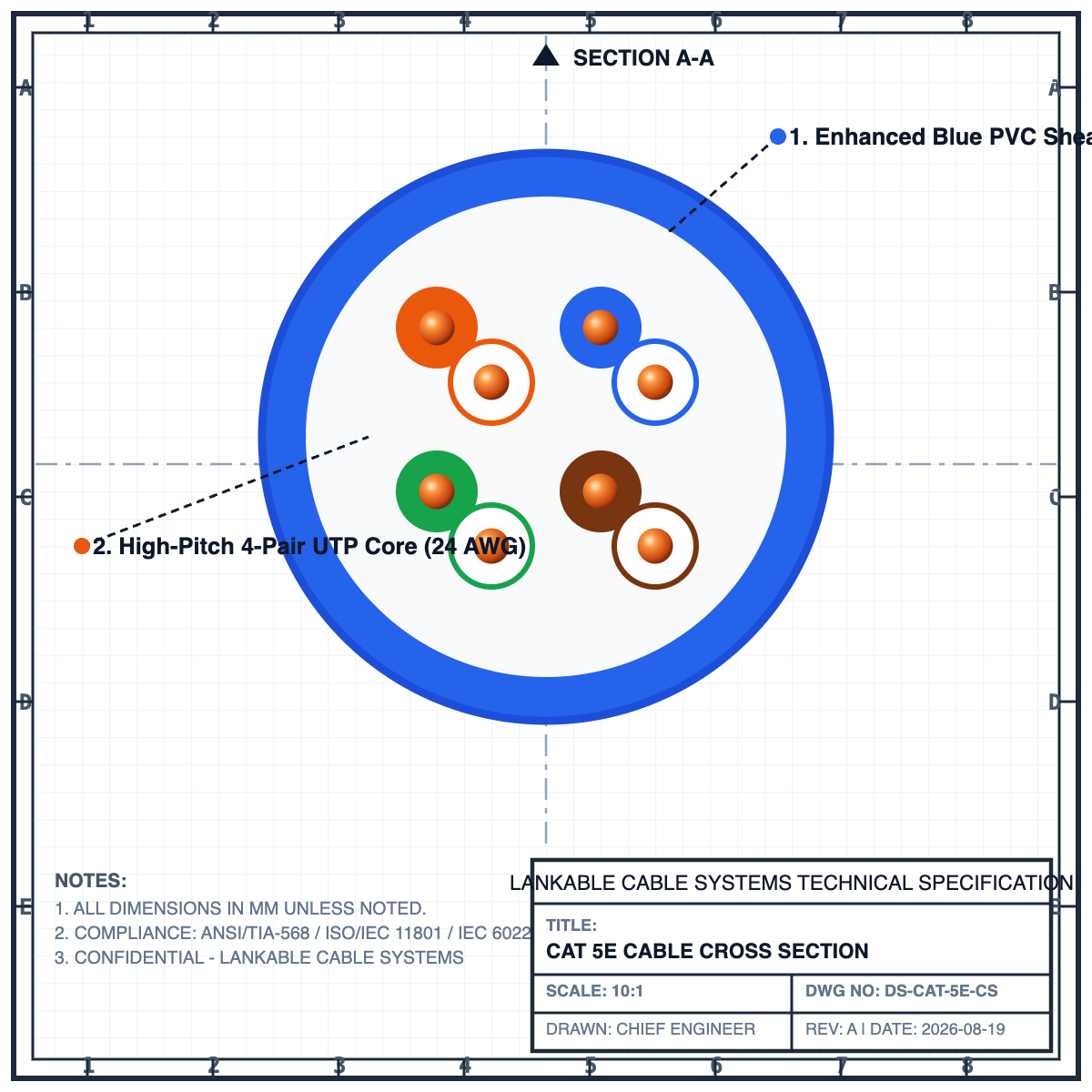

12. LANKABLE Cat 5e CablePg 12

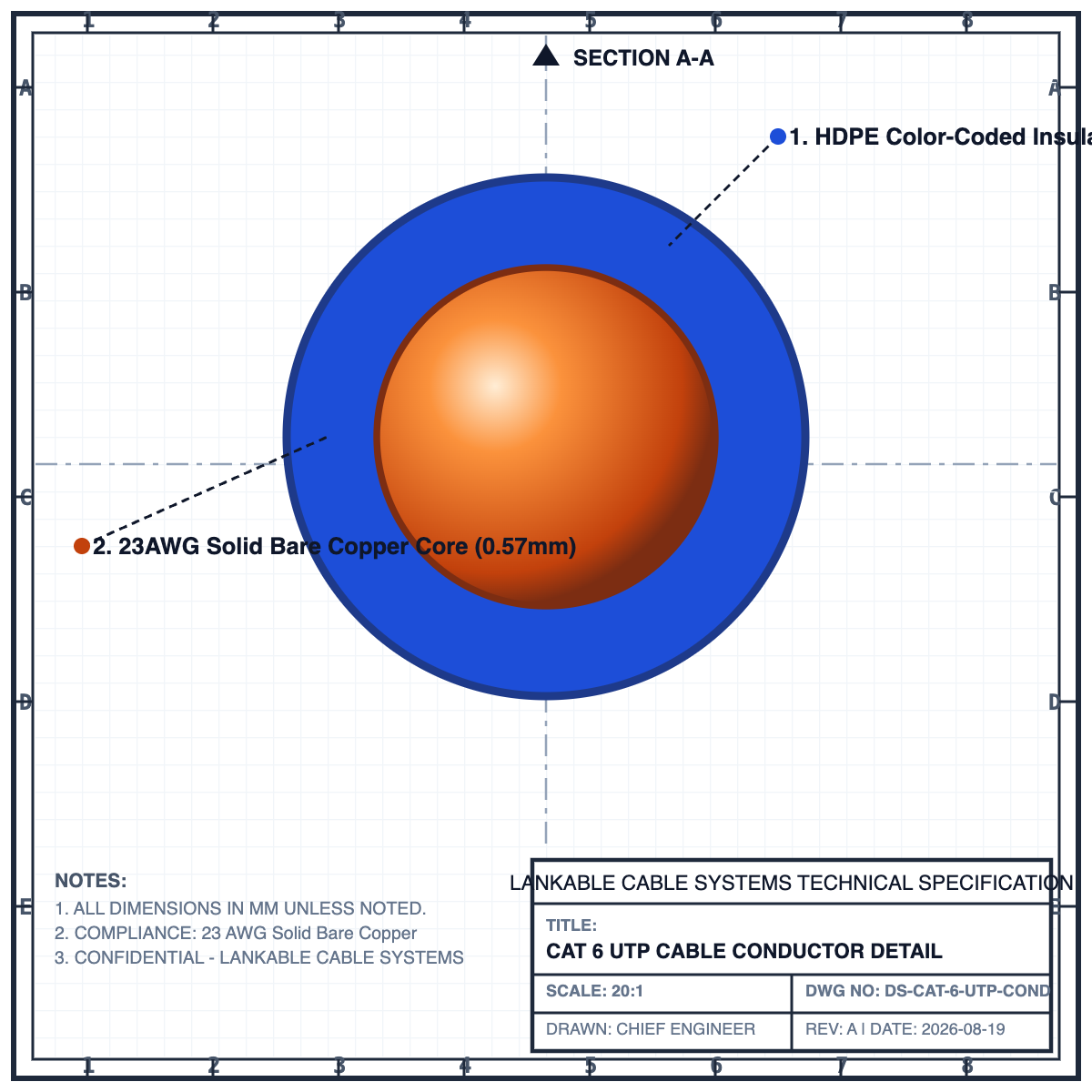

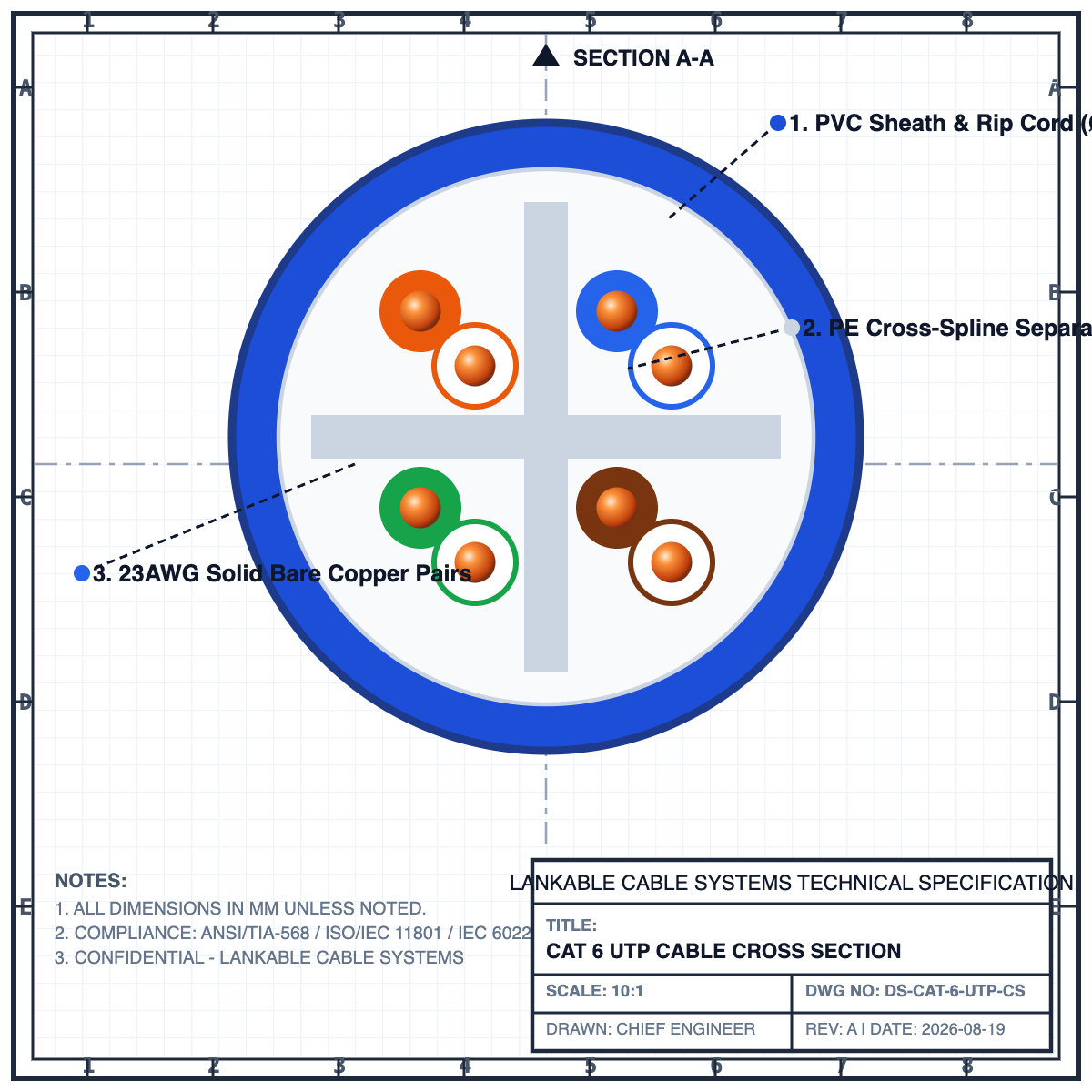

13. LANKABLE Cat 6 UTP CablePg 13

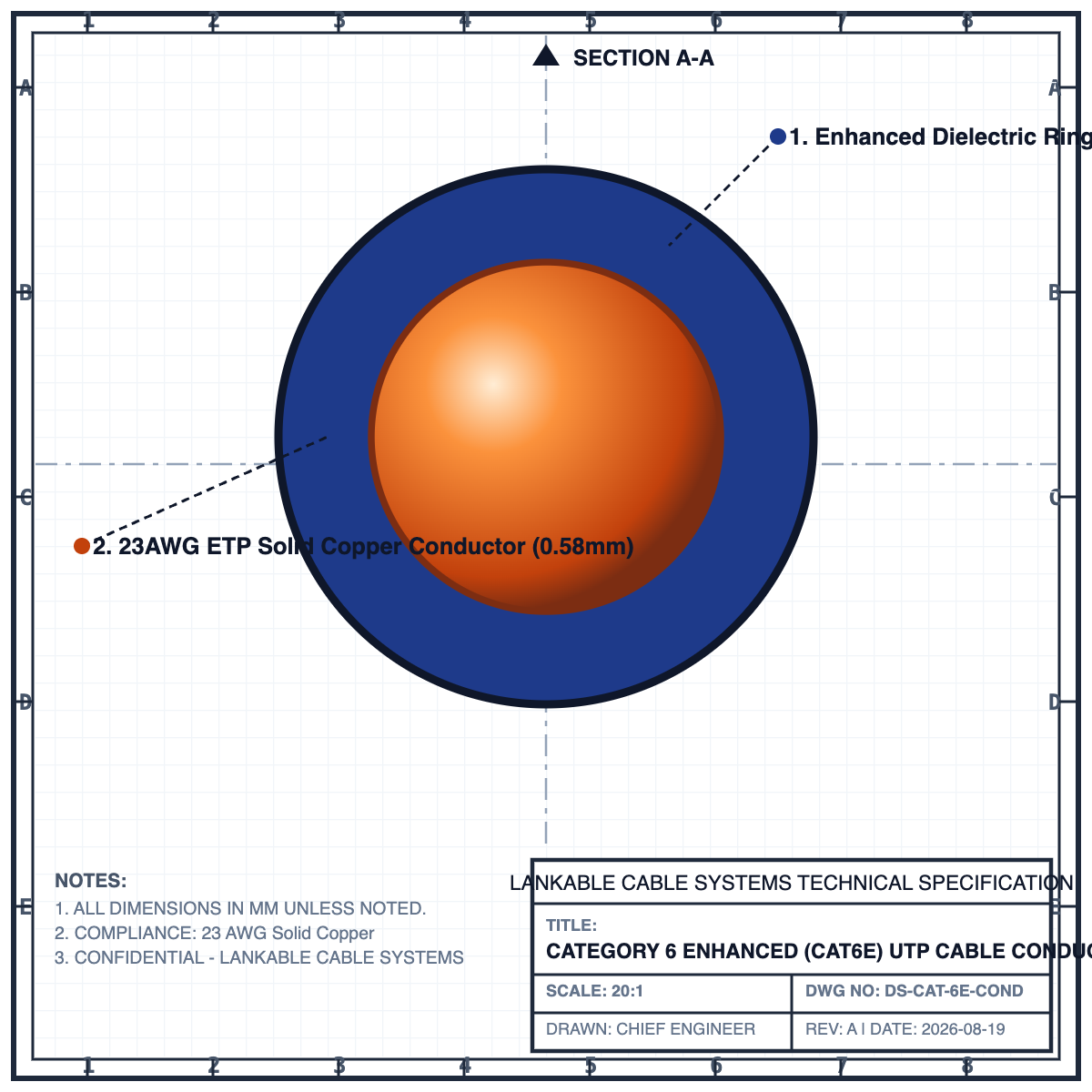

14. LANKABLE Cat 6e CablePg 14

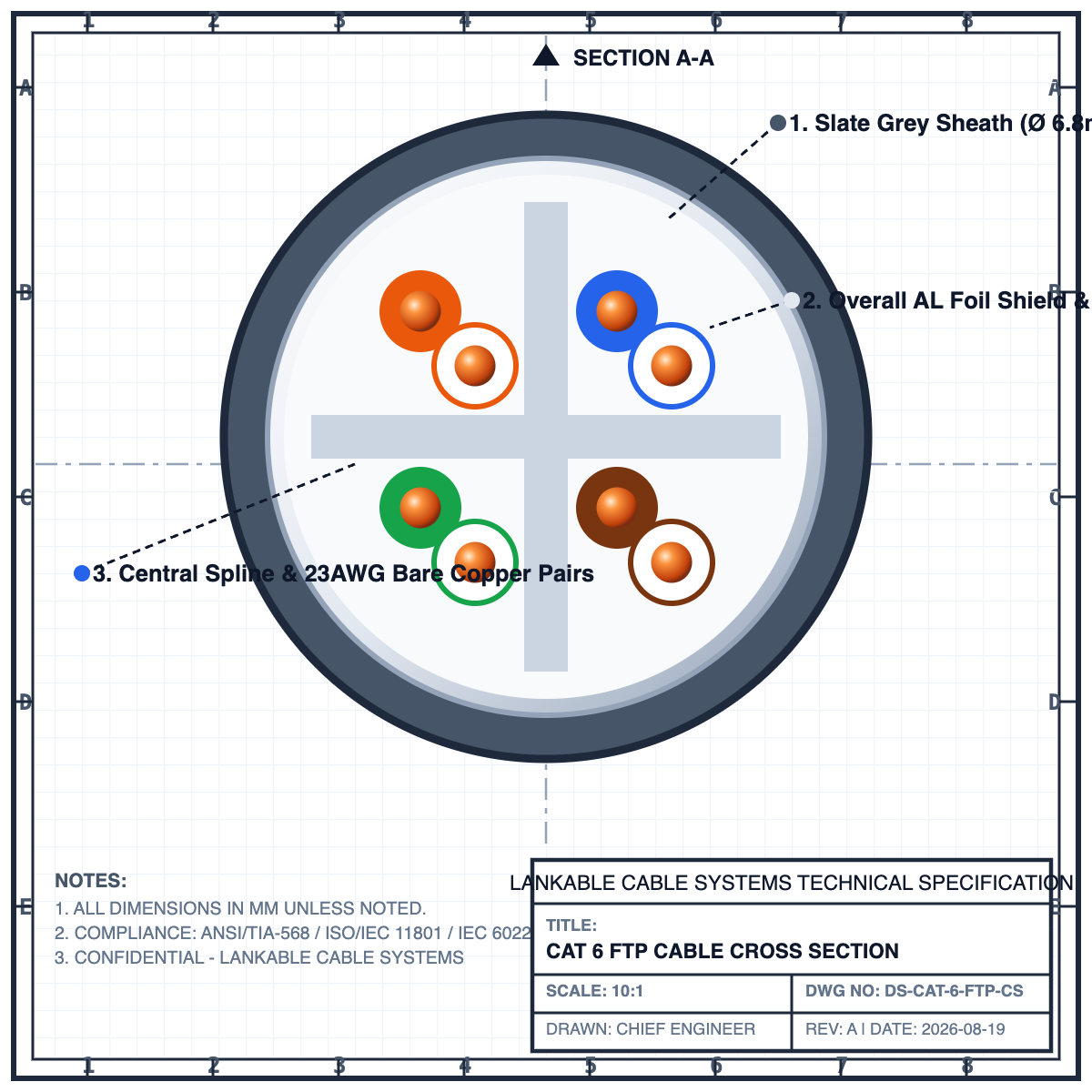

15. LANKABLE Cat 6 FTP CablePg 15

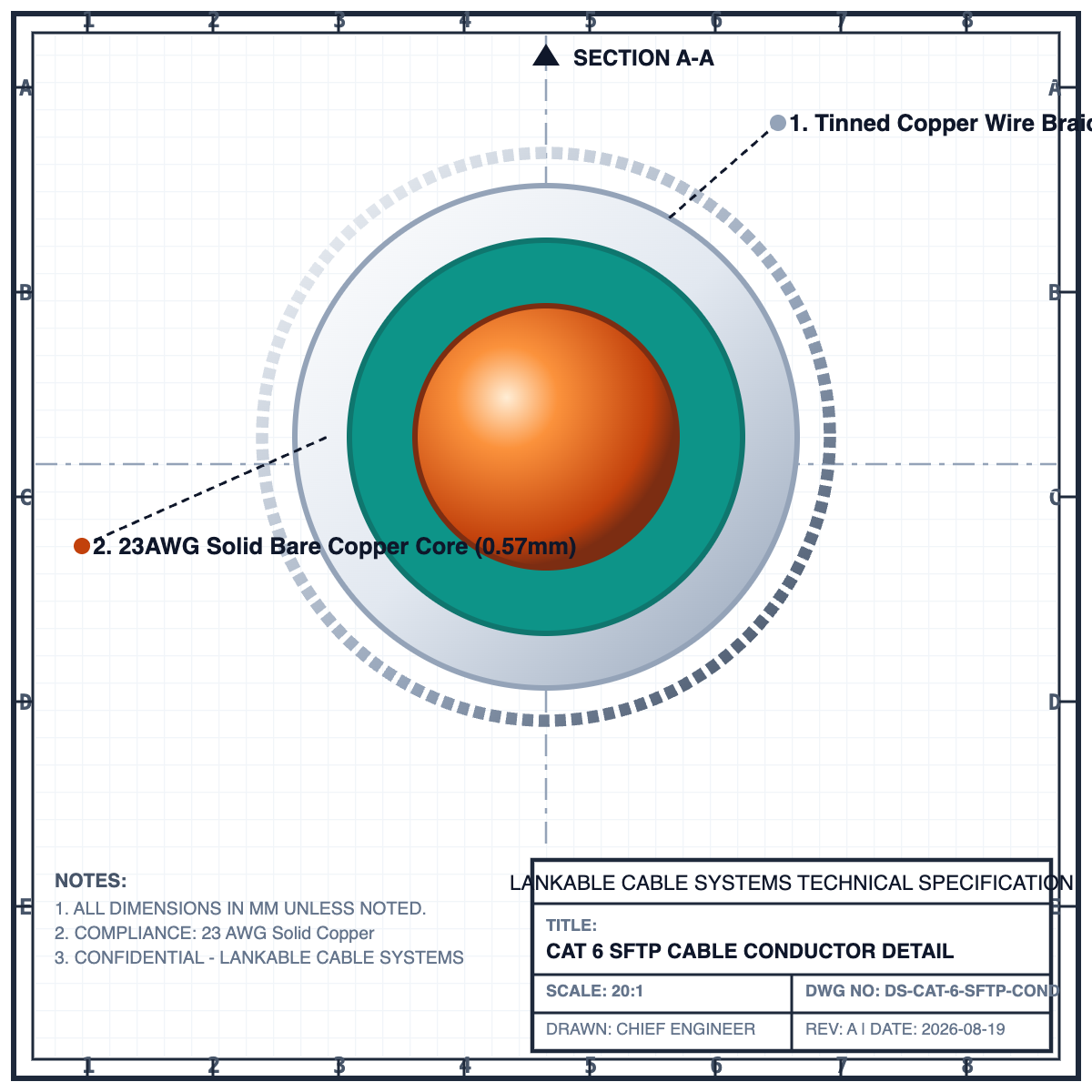

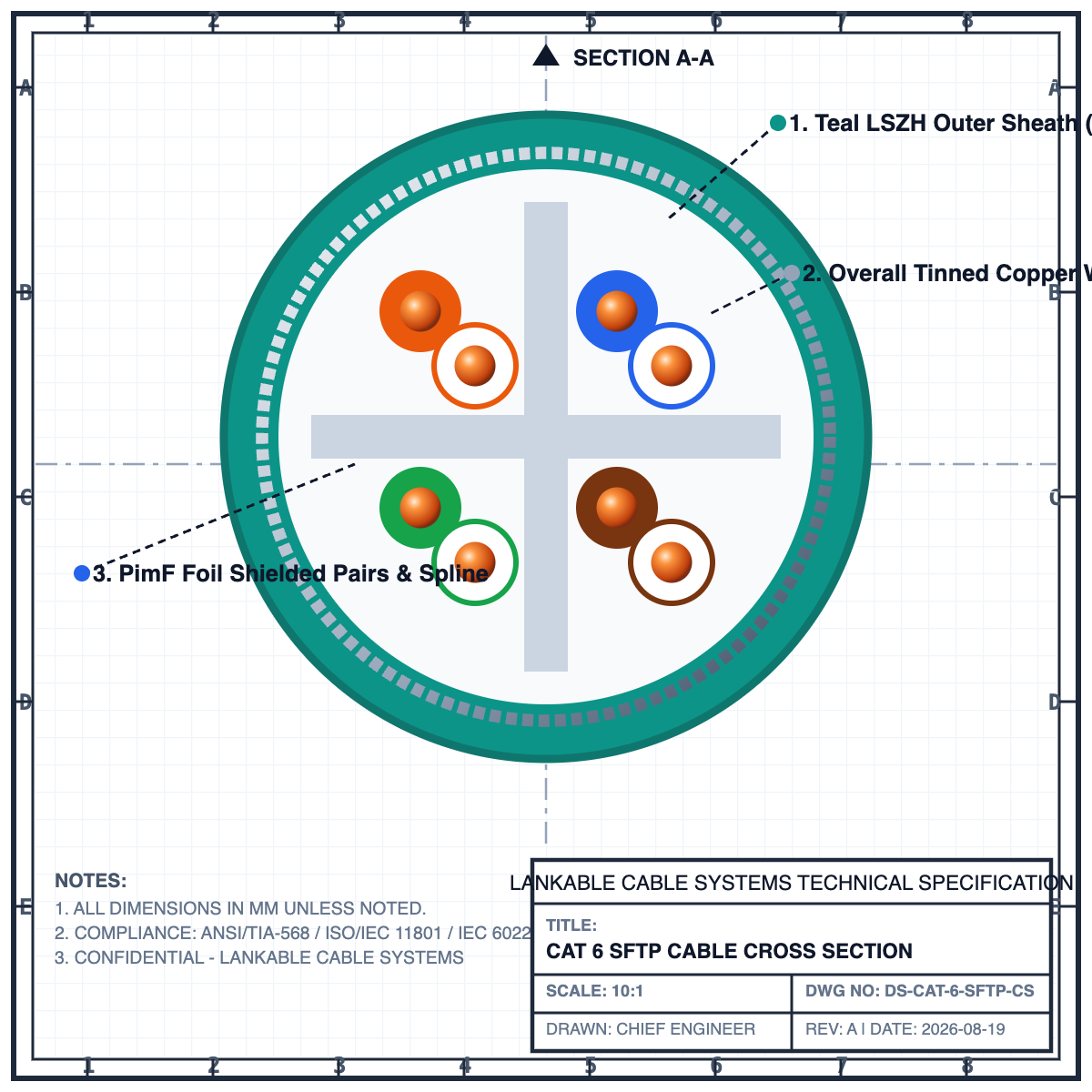

16. LANKABLE Cat 6 SFTP CablePg 16
17. LANKABLE Armoured SFTP CablePg 17

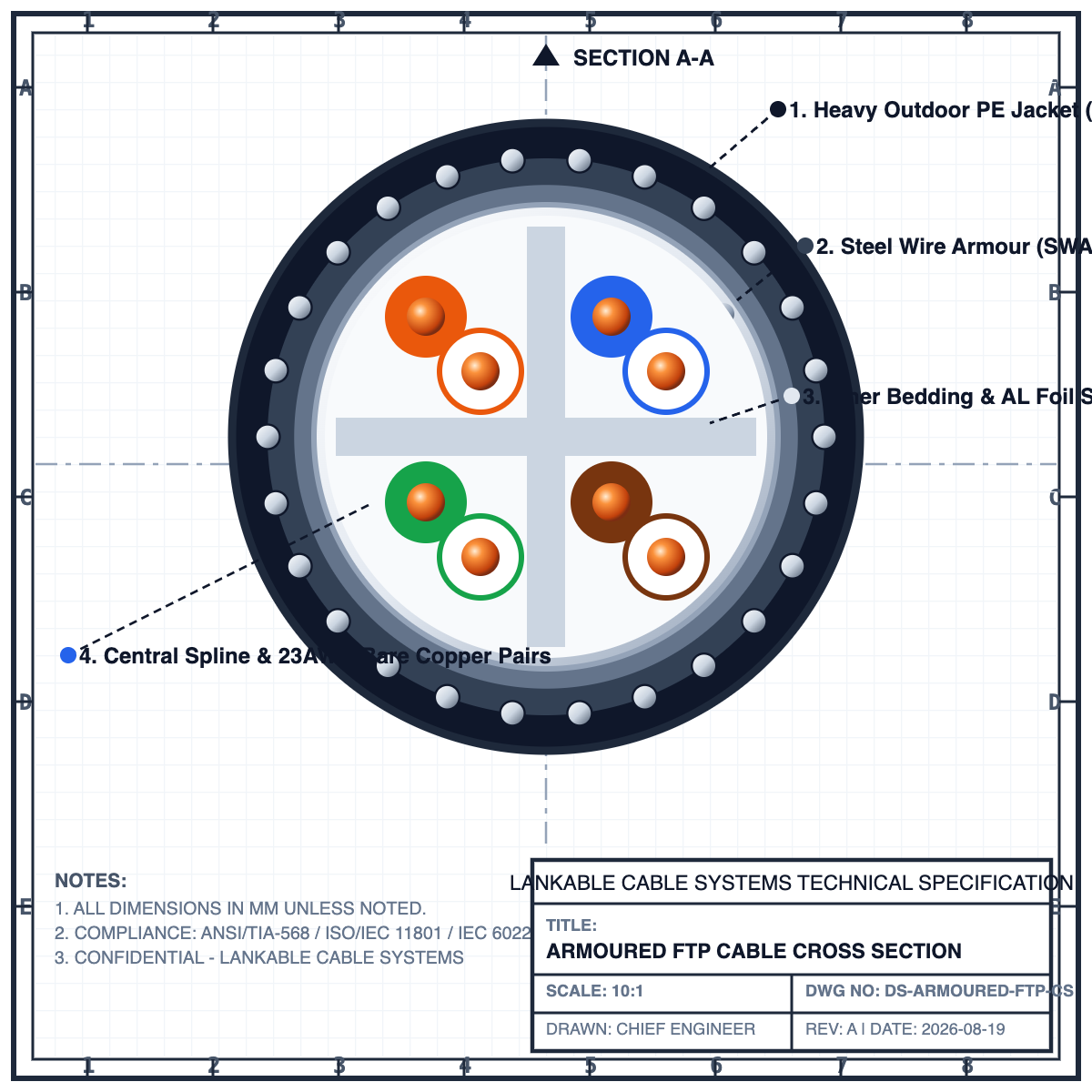

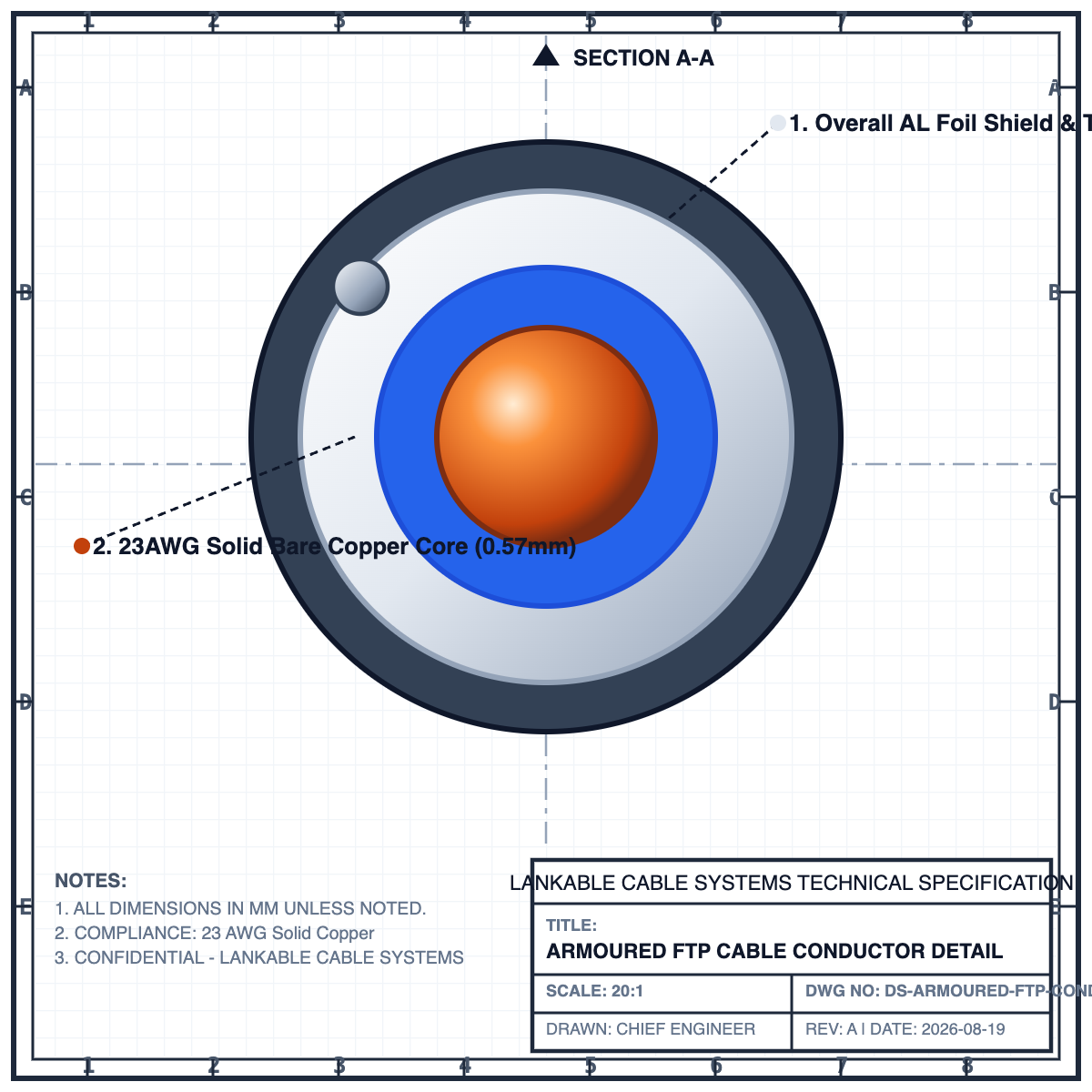

18. LANKABLE Armoured FTP CablePg 18

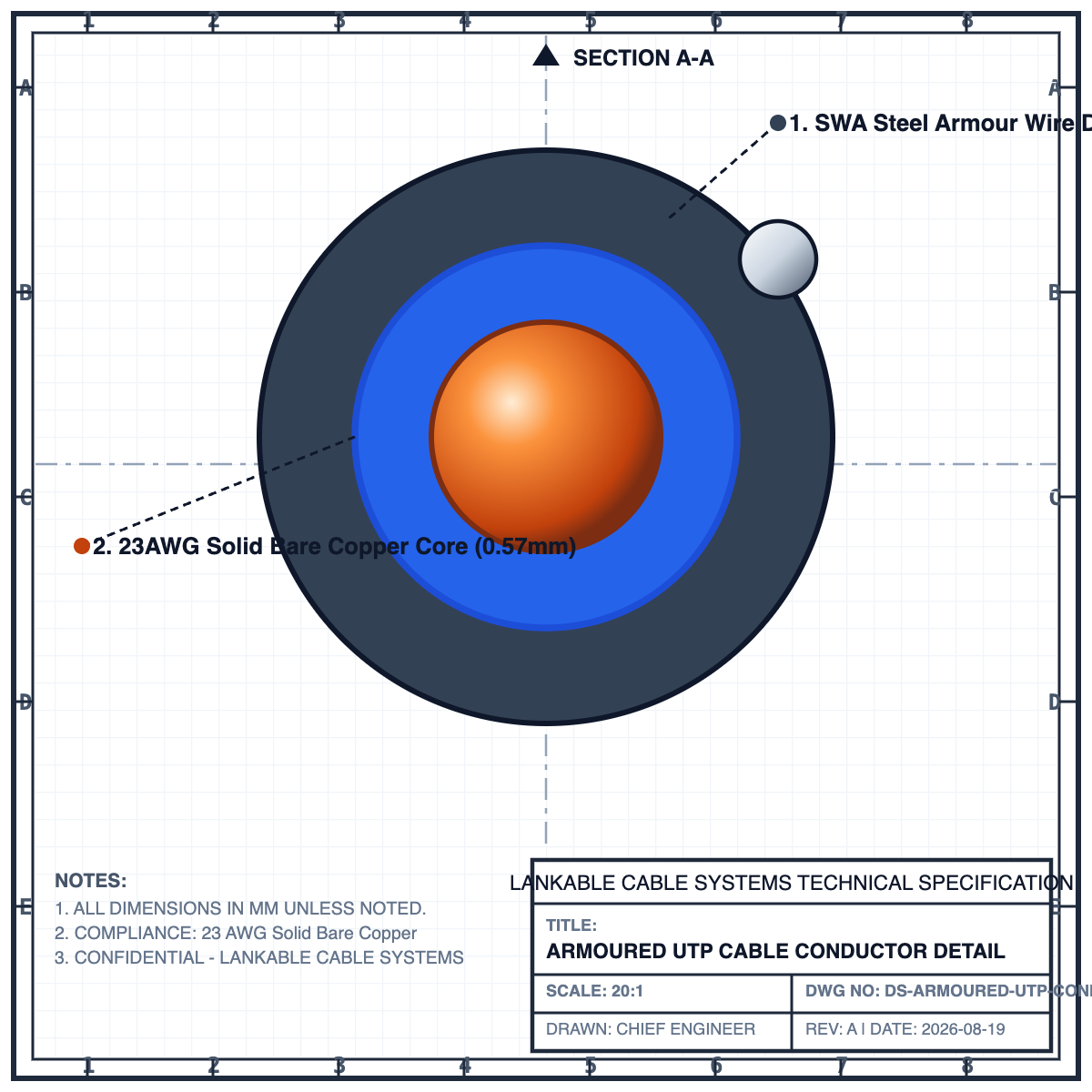

19. LANKABLE Armoured UTP CablePg 19

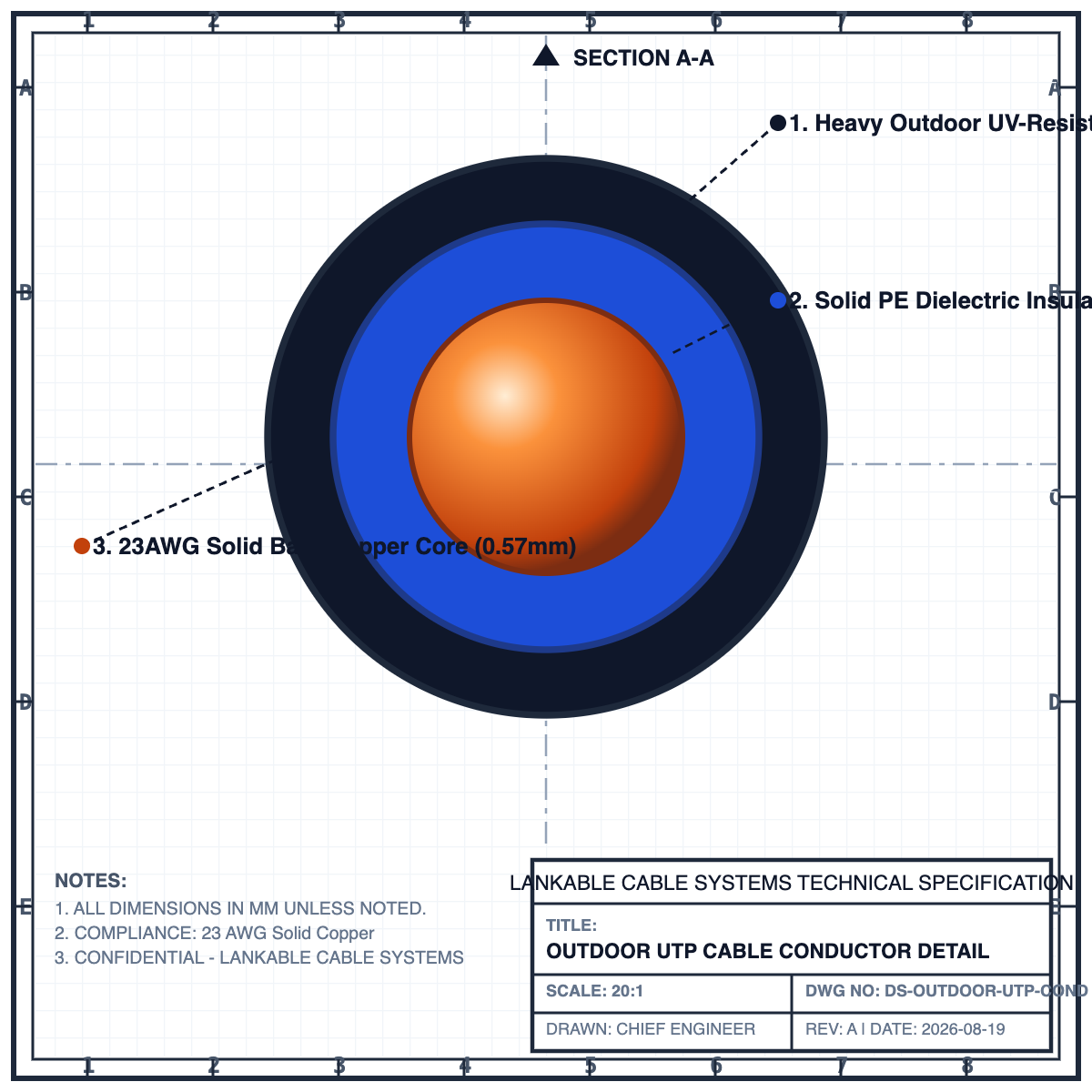

20. LANKABLE Outdoor UTP CablePg 20

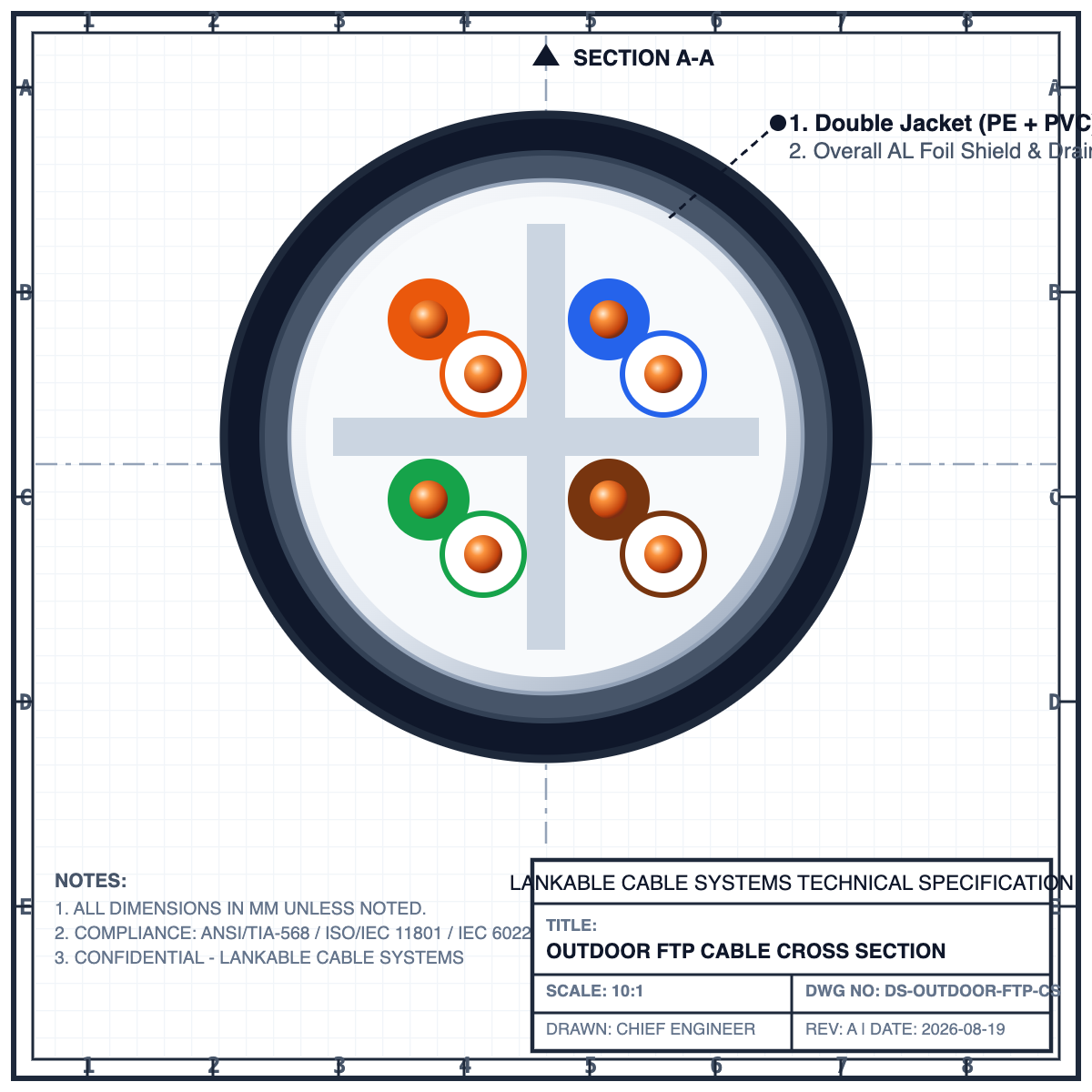

21. LANKABLE Outdoor FTP CablePg 21

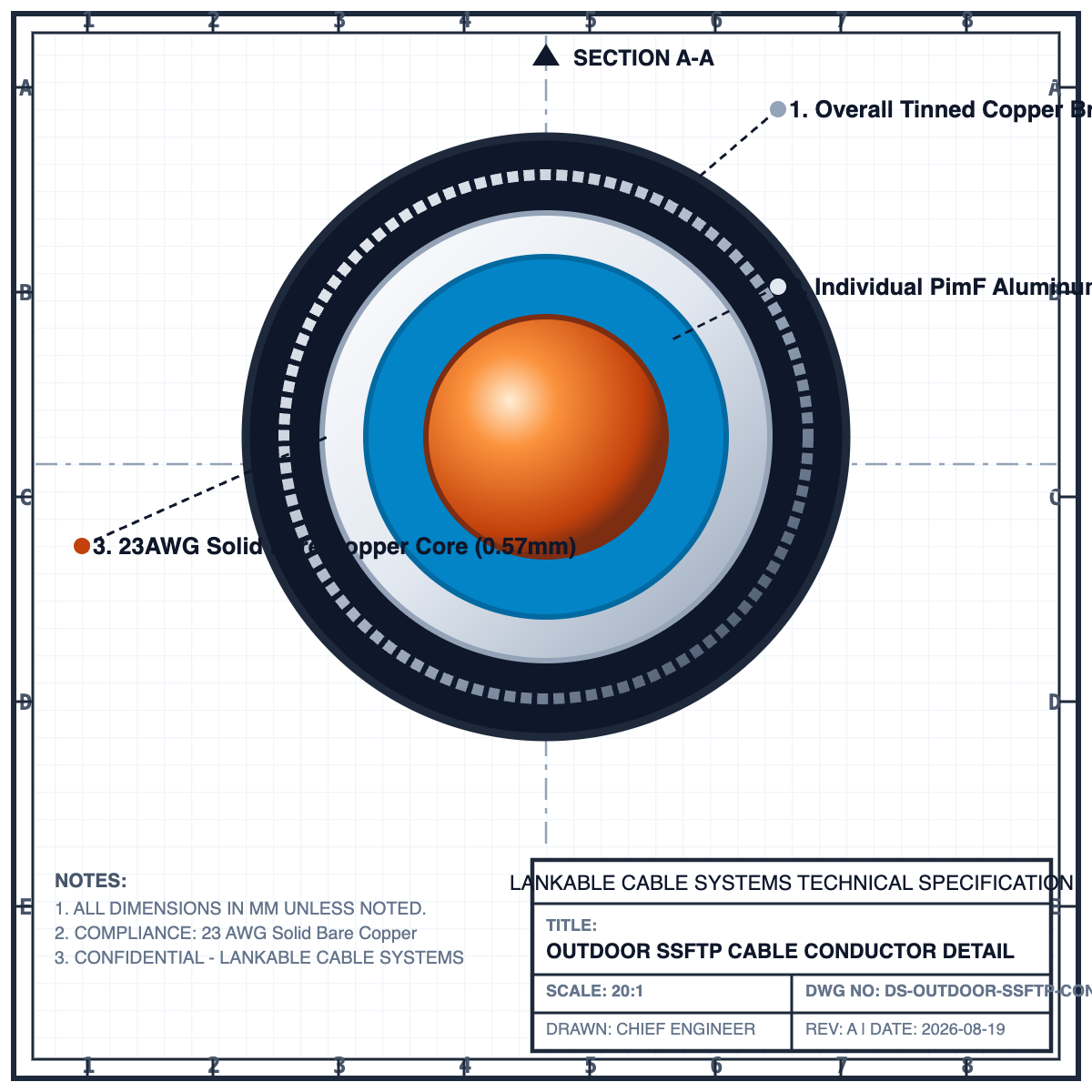

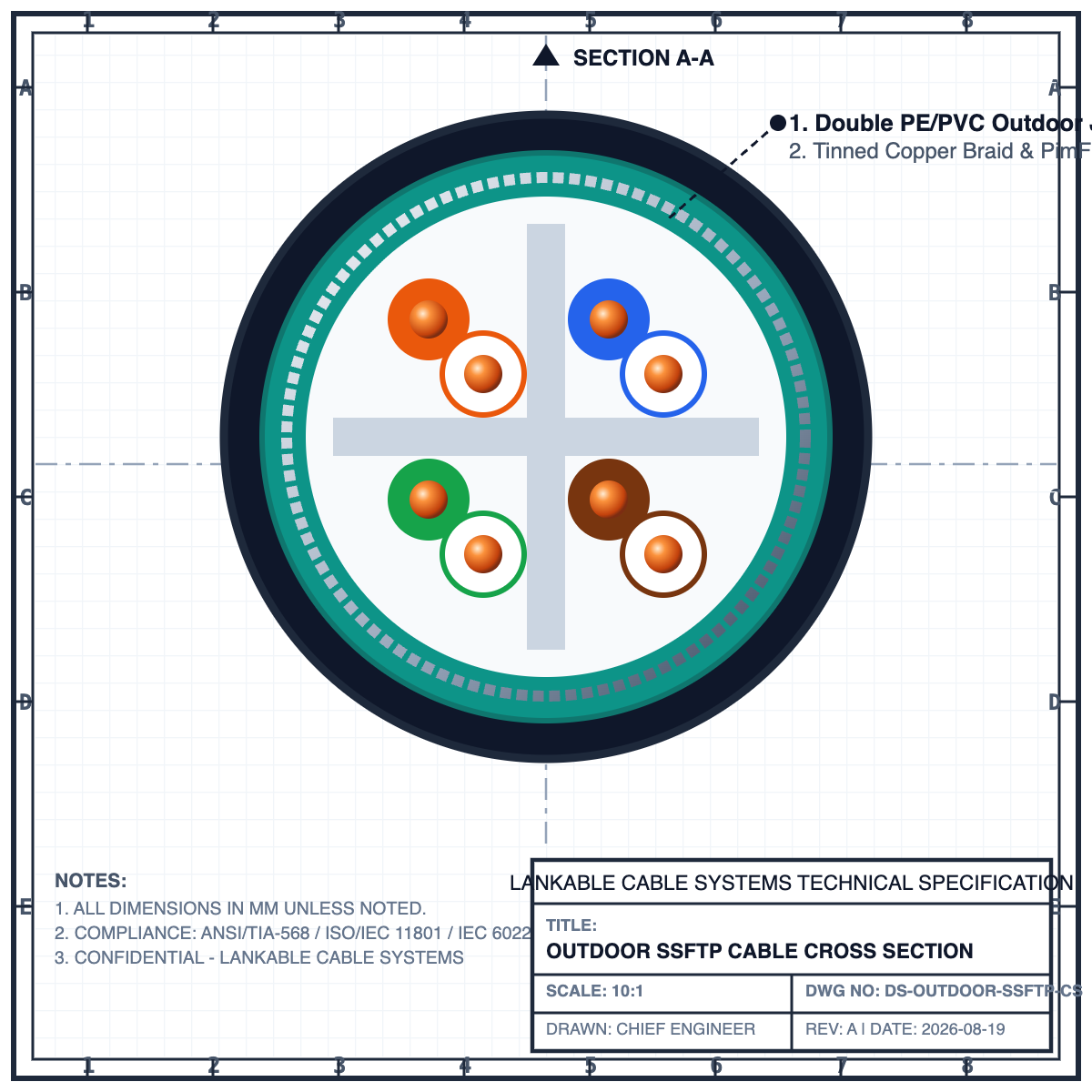

22. LANKABLE Outdoor SSFTP CablePg 22
23. LANKABLE ZHFR (Zero Halogen Flame Retardant) House WiresPg 23
24. LANKABLE Multi-strand Copper WiresPg 24
25. LANKABLE Single Core Industrial CablePg 25
26. LANKABLE LT (Low Tension) Aluminum Armored CablesPg 26
27. LANKABLE Copper Armoured CablesPg 27
28. LANKABLE XLPE Insulated Armoured CablesPg 28

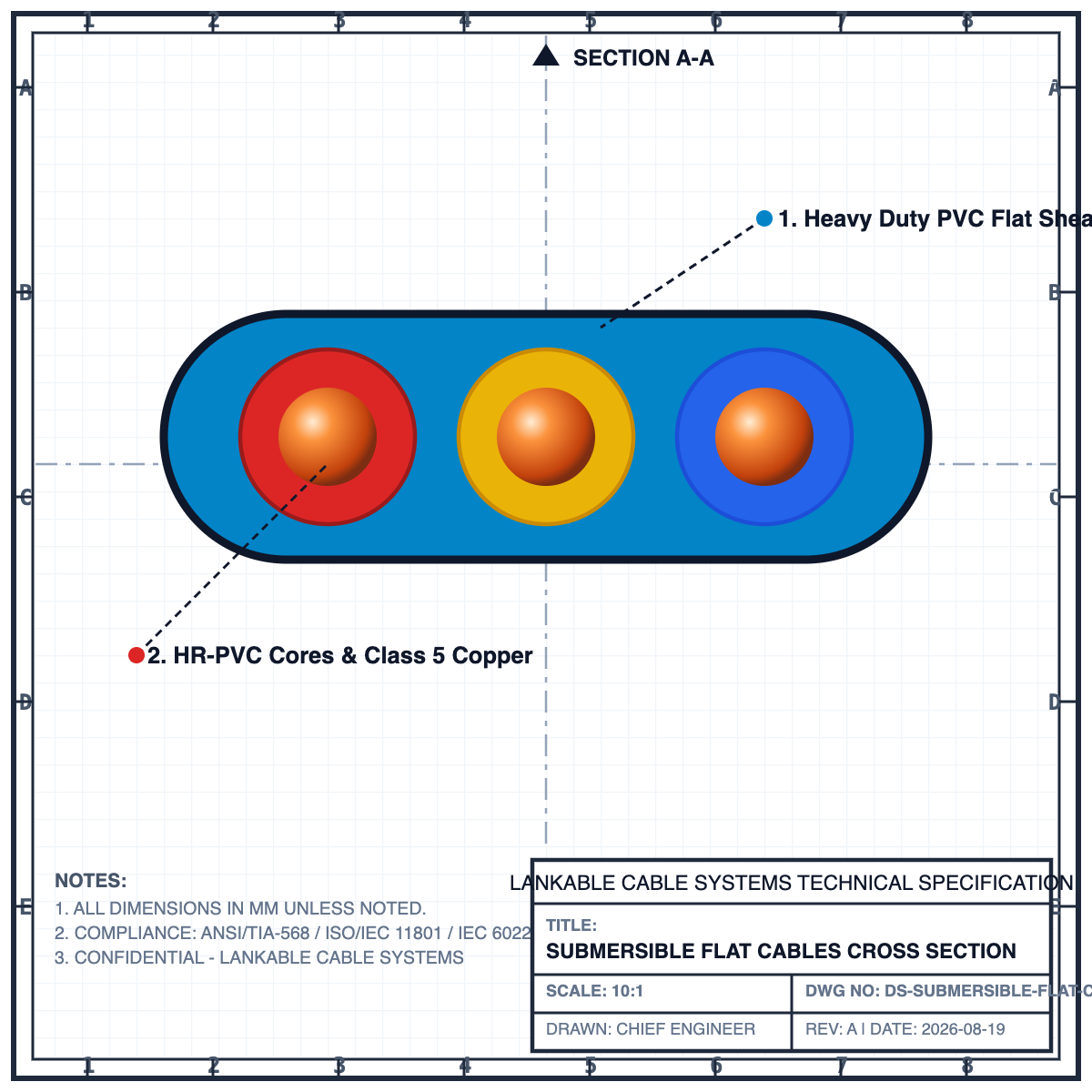

29. LANKABLE Submersible Flat CablesPg 29
30. LANKABLE PVC Insulated Aluminum Unarmored CablesPg 30
31. LANKABLE Multi-core Control CablesPg 31
32. LANKABLE Shielded Instrumentation CablesPg 32
33. LANKABLE Pair/Triad CablesPg 33

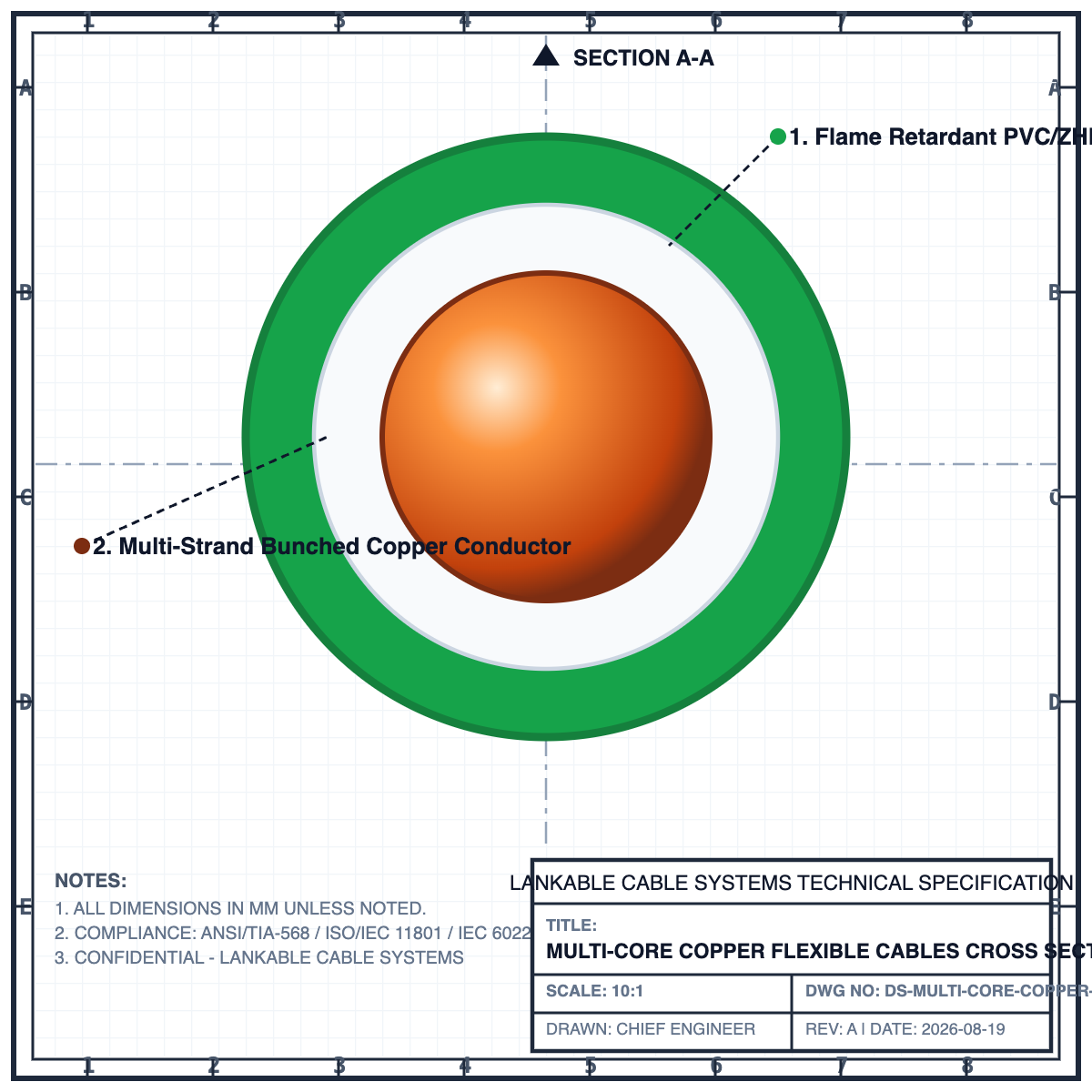

34. LANKABLE Multi-core Copper Flexible CablesPg 34
35. LANKABLE CAT5e LAN CablesPg 35
36. LANKABLE CAT6 LAN CablesPg 36
37. LANKABLE UTP (Unshielded Twisted Pair) LAN CablesPg 37
38. LANKABLE FTP (Foiled Twisted Pair) LAN CablesPg 38

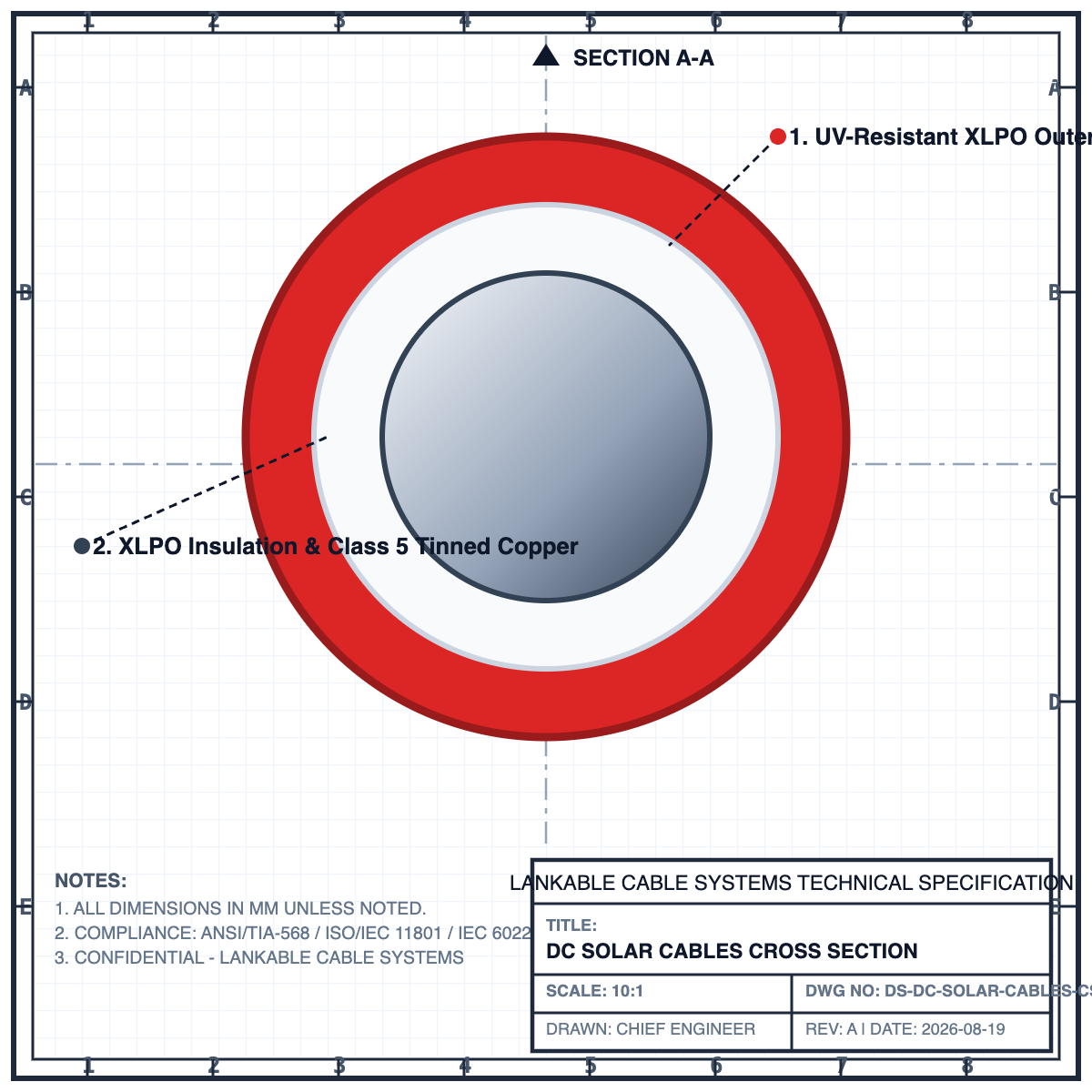

39. LANKABLE DC Solar CablesPg 39
40. LANKABLE H05V-K CablesPg 40
41. LANKABLE IS 694Pg 41

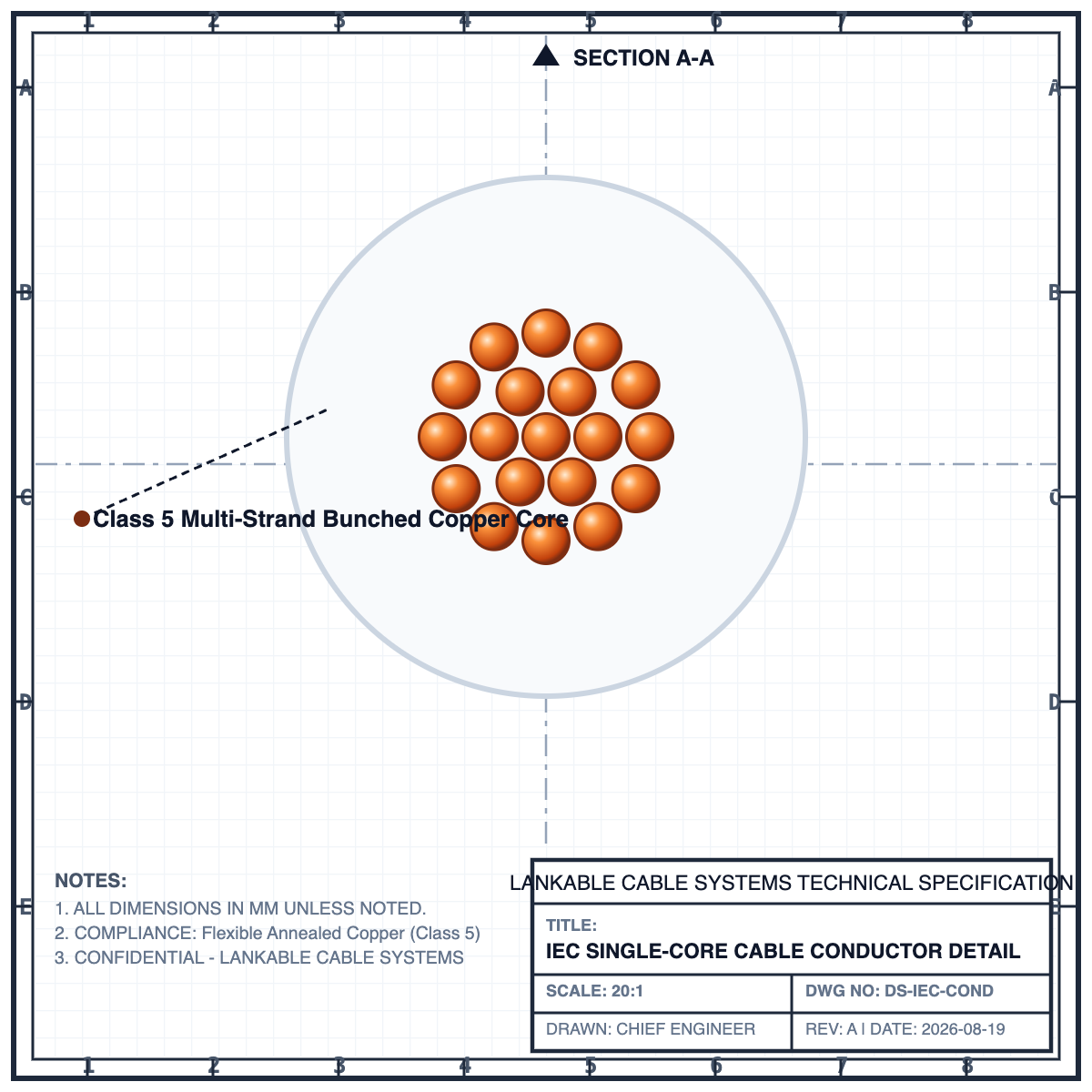

42. LANKABLE IECPg 42
43. LANKABLE H07V-K CablesPg 43

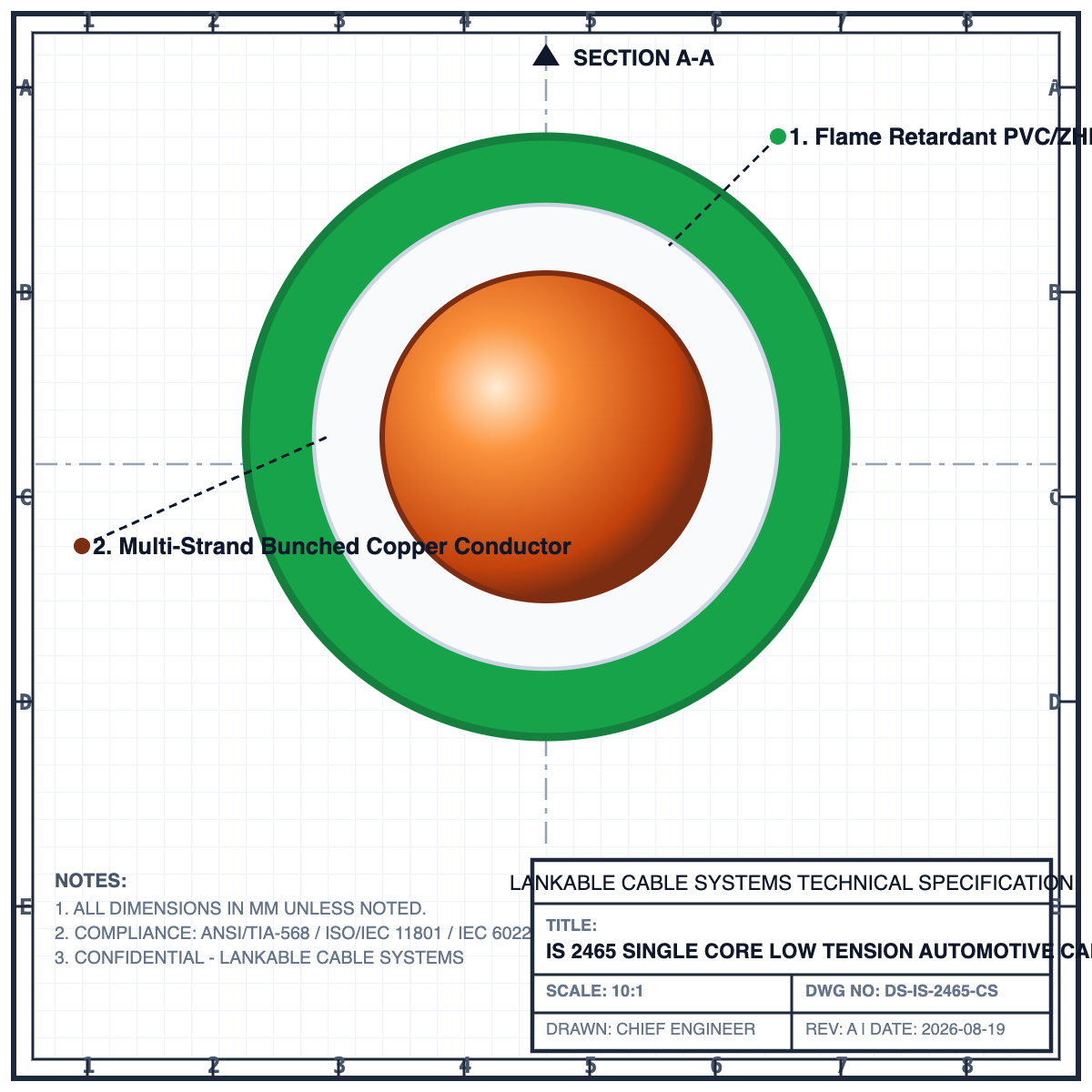

44. LANKABLE IS 2465Pg 44
45. LANKABLE WTAPg 45
46. LANKABLE GPTPg 46

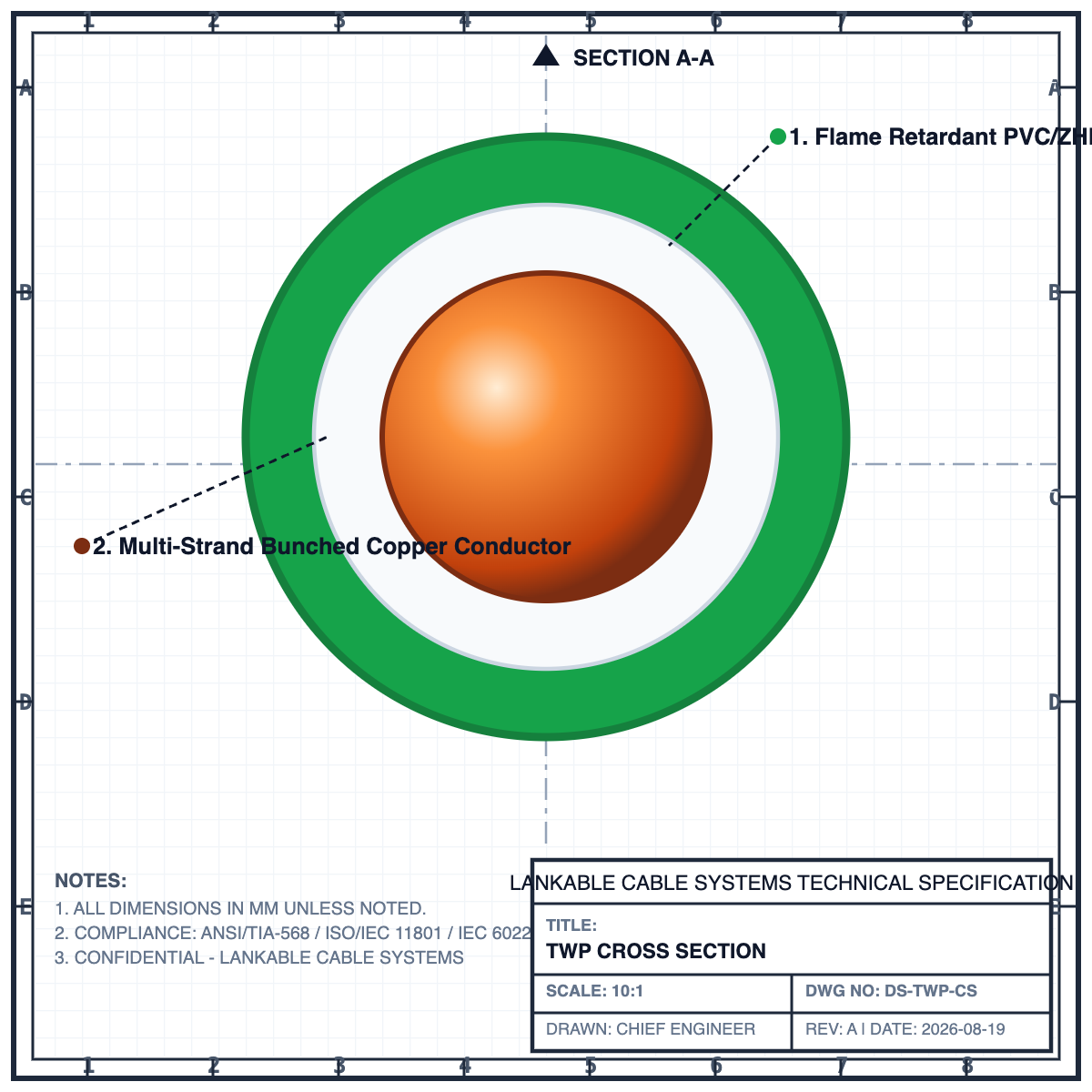

47. LANKABLE TWPPg 47
48. LANKABLE AVSSPg 48
49. LANKABLE AVSPg 49
50. LANKABLE AVPg 50
51. LANKABLE EBPg 51

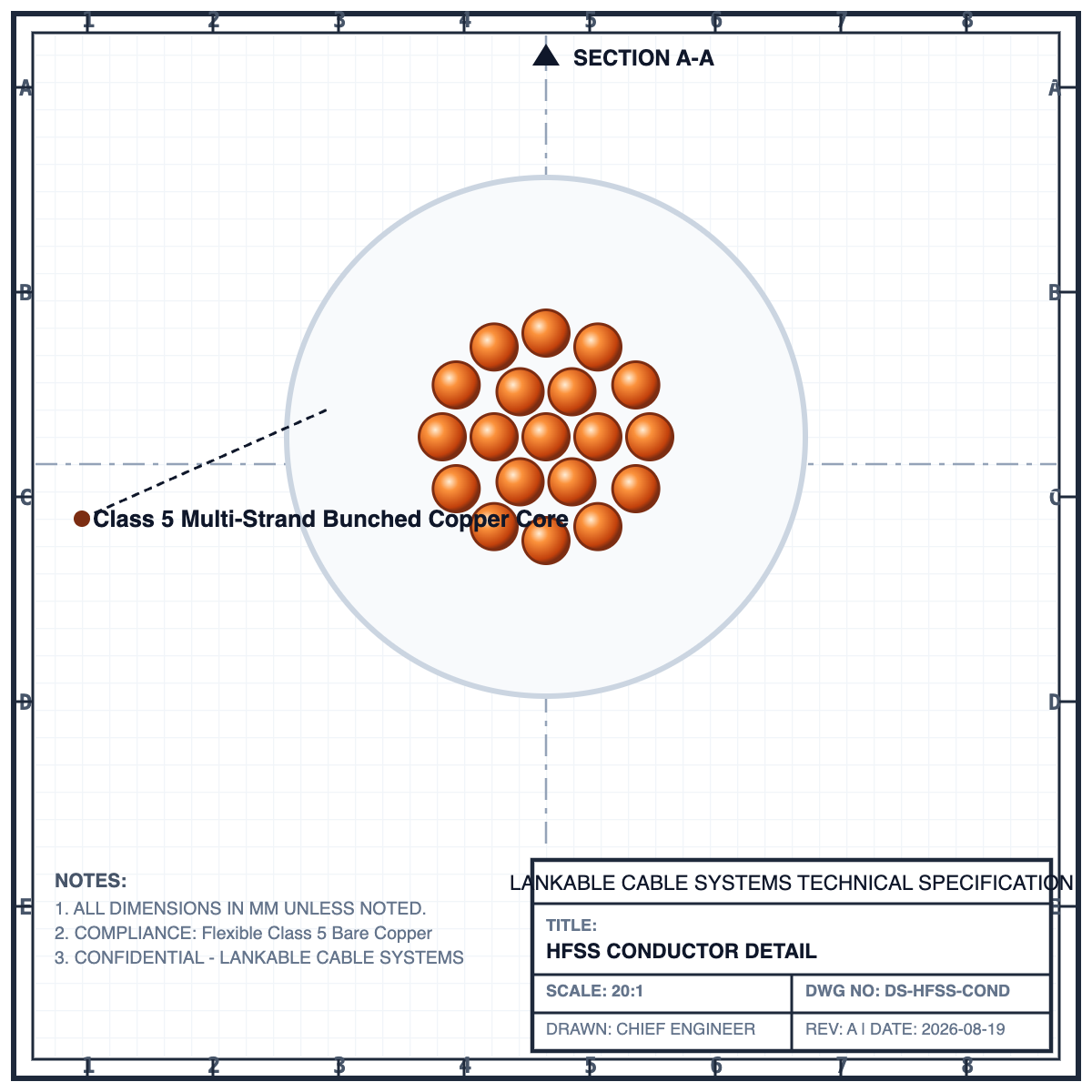

52. LANKABLE HFSSPg 52
53. LANKABLE HFPg 53
54. LANKABLE AVSSHPg 54
55. LANKABLE FLUYPg 55
56. LANKABLE FLRYHPg 56
57. LANKABLE FLRYKPg 57
58. LANKABLE FLYKPg 58
59. LANKABLE FLYYPg 59
60. LANKABLE GXLPg 60
61. LANKABLE TXLPg 61
62. LANKABLE Truck ApplicationsPg 62
63. LANKABLE Safety ApplicationsPg 63
64. LANKABLE Control ApplicationsPg 64
65. LANKABLE Power ApplicationsPg 65
66. LANKABLE Comfort ApplicationPg 66
67. LANKABLE Sensor ApplicationsPg 67
68. LANKABLE 3 Core Submersible Flat Cable, XLPE/PVC InsulatedPg 68

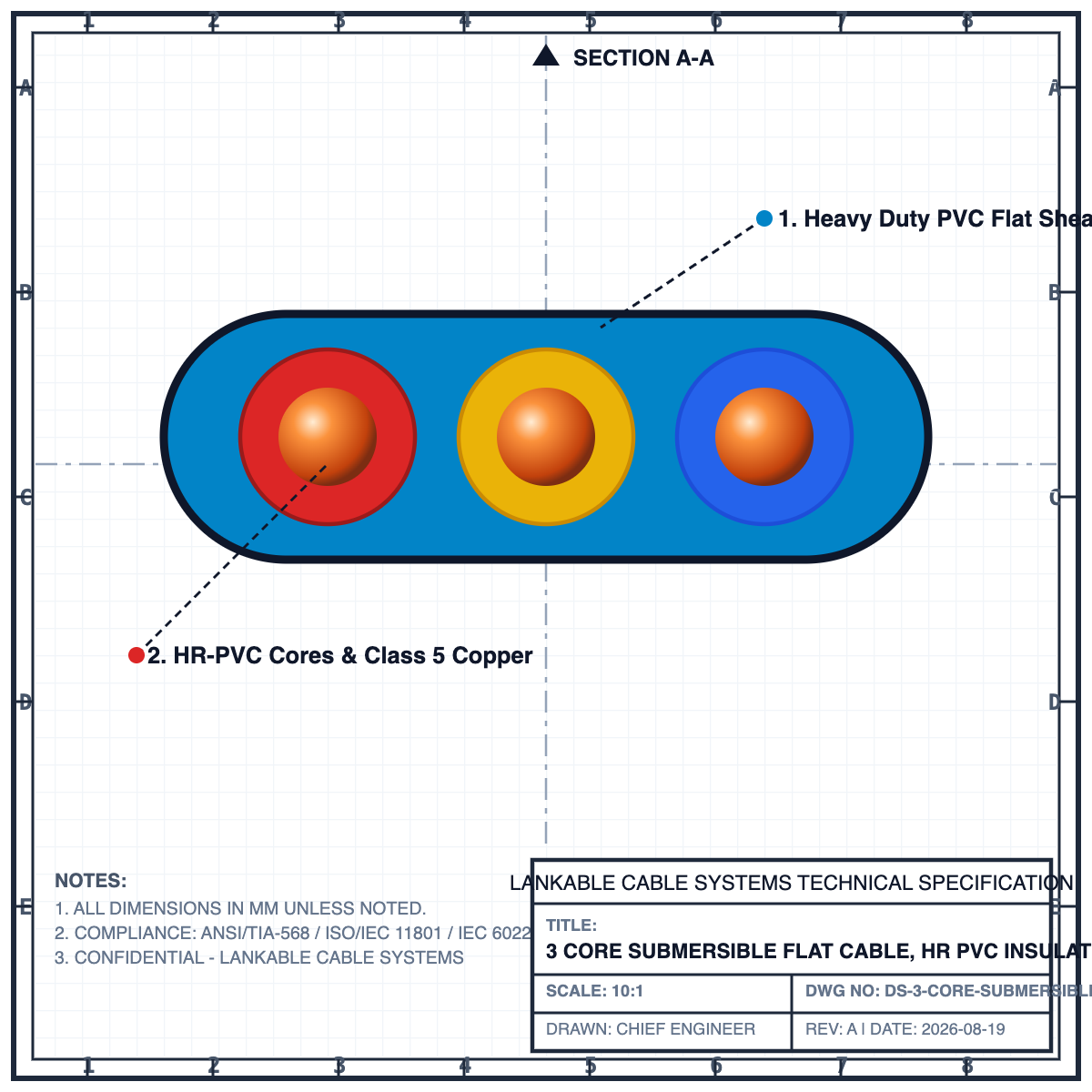

69. LANKABLE 3 Core Submersible Flat Cable, HR PVC Insulated 85°CPg 69
70. LANKABLE LSZHPg 70
71. LANKABLE Speaker Cable, 2-Core PVC InsulatedPg 71
72. LANKABLE SGR CablePg 72
73. LANKABLE SGX Insulated CablePg 73

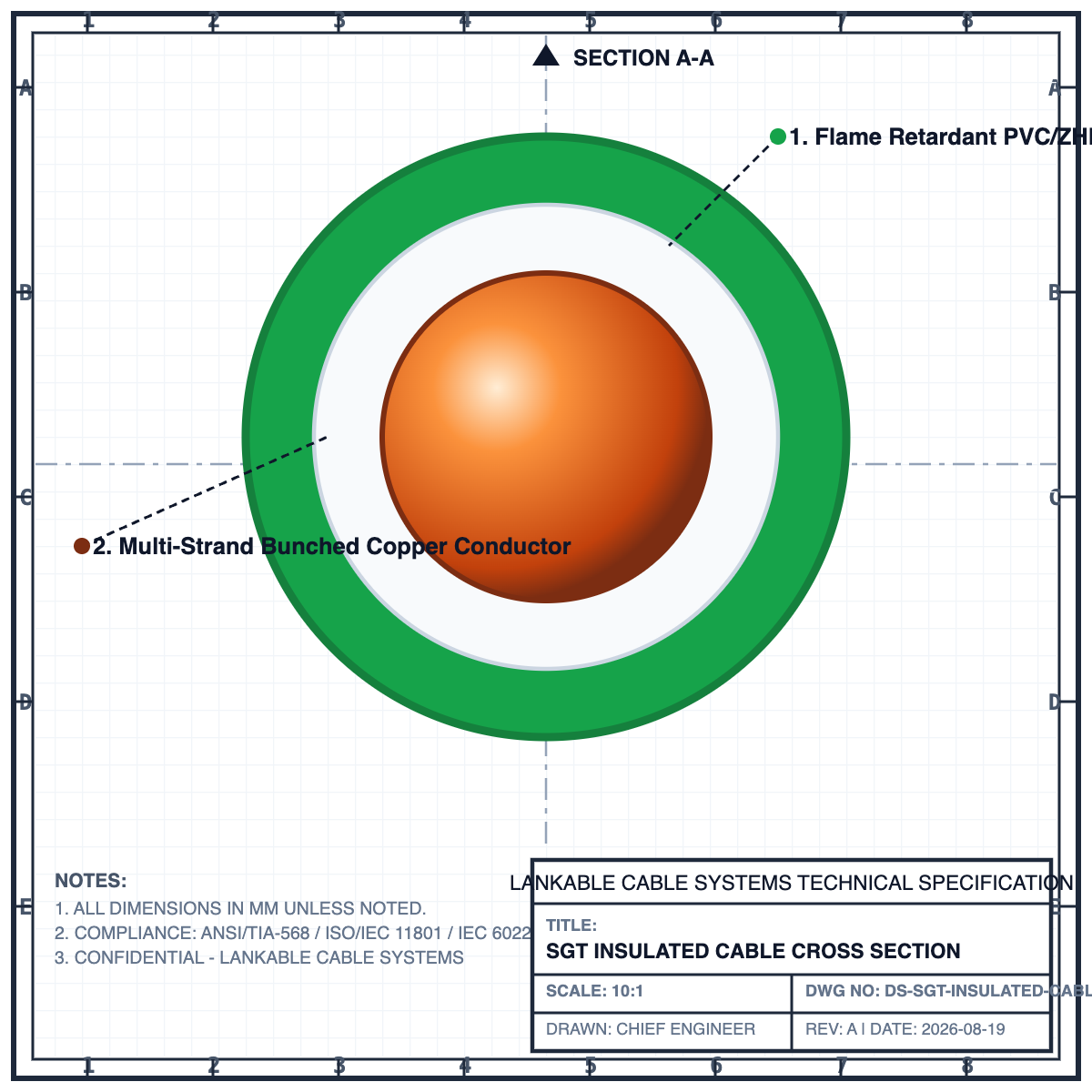

74. LANKABLE SGT Insulated CablePg 74
75. LANKABLE SXKB CablePg 75
76. LANKABLE B PVC Insulated CablePg 76
77. LANKABLE Communication Cables (range)Pg 77
78. LANKABLE SGXPg 78
79. LANKABLE SGTPg 79
80. LANKABLE Twisted PairPg 80
81. LANKABLE SGRPg 81
82. LANKABLE GXLPg 82
83. LANKABLE GPTPg 83
84. LANKABLE SXLPg 84
85. LANKABLE TXLPg 85
86. LANKABLE 2C Bonded CablePg 86
87. LANKABLE Charging CablesPg 87
88. LANKABLE High Voltage EV CablesPg 88
89. LANKABLE Shielding BraidsPg 89
90. LANKABLE Round and Square BraidsPg 90
91. LANKABLE FRC (Ribbon Cables)Pg 91
92. LANKABLE Stranded Copper WirePg 92
93. LANKABLE Bare Copper WirePg 93
94. LANKABLE Tinned Copper WirePg 94
95. LANKABLE Bunched Copper WirePg 95
96. LANKABLE Wire Harness (Custom Division)Pg 96
97. LANKABLE Power Cords (Custom Division)Pg 97
98. LANKABLE RG-6 Coaxial CablePg 98

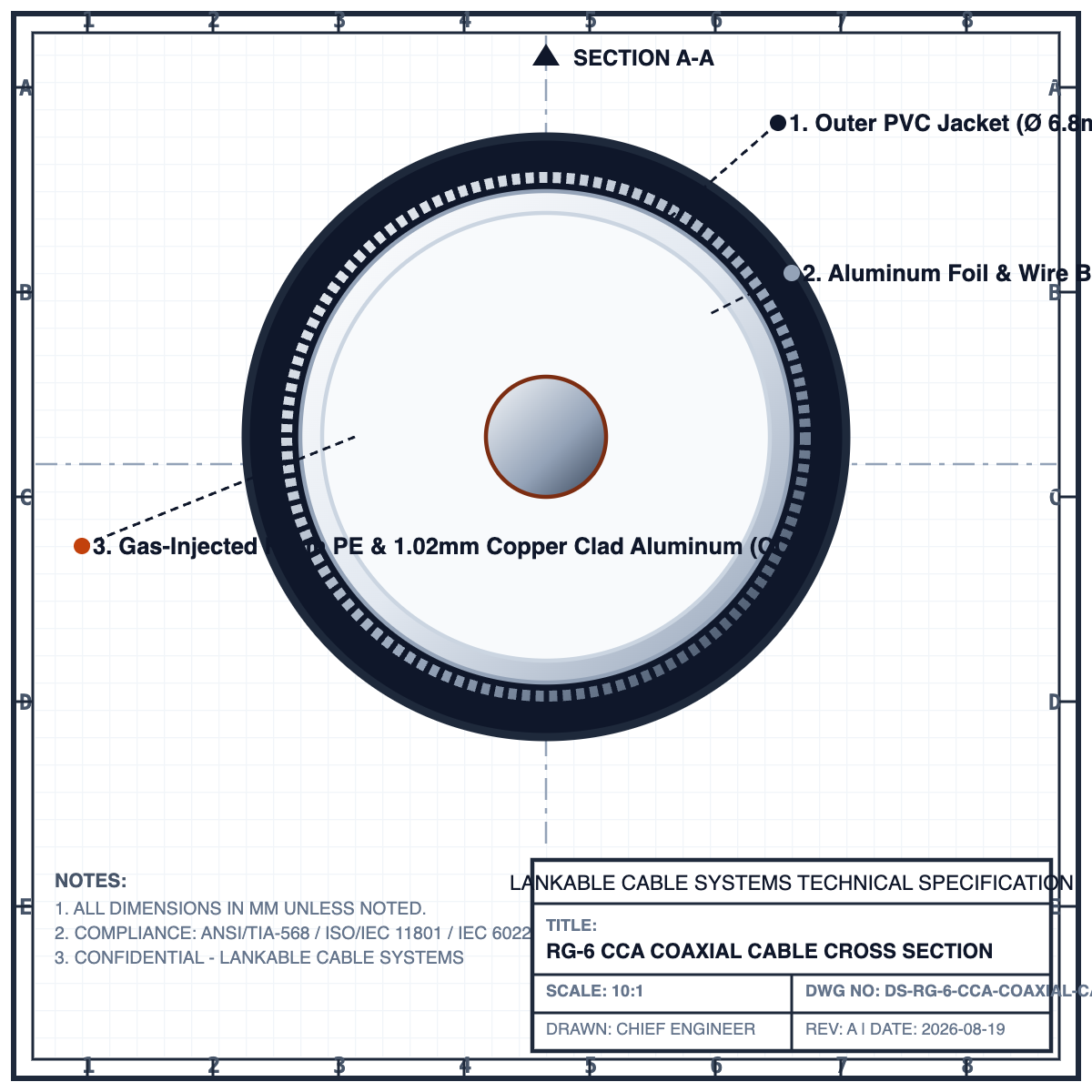

99. LANKABLE RG-6 CCA Coaxial CablePg 99
100. LANKABLE 3 + 1 Power & Control CablePg 100
Custom sizing and metallurgy are available on request
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 04
LANKABLEWIRE & CABLE SYSTEMS
Armored Fiber
DS-FIB-SINGLE-MODE-ARMORED-FIBER-OPTIC-CABLE-05 | Pg 5
Armored Fiber
LANKABLE Single-Mode Armored Fiber Optic Cable
High-core count G.652.D single-mode fiber optic cable encased in corrugated steel tape armor and double PE jacket for direct burial and harsh outdoor conditions.
Product Build Up (Schematics)
Visual Render
Sheathing

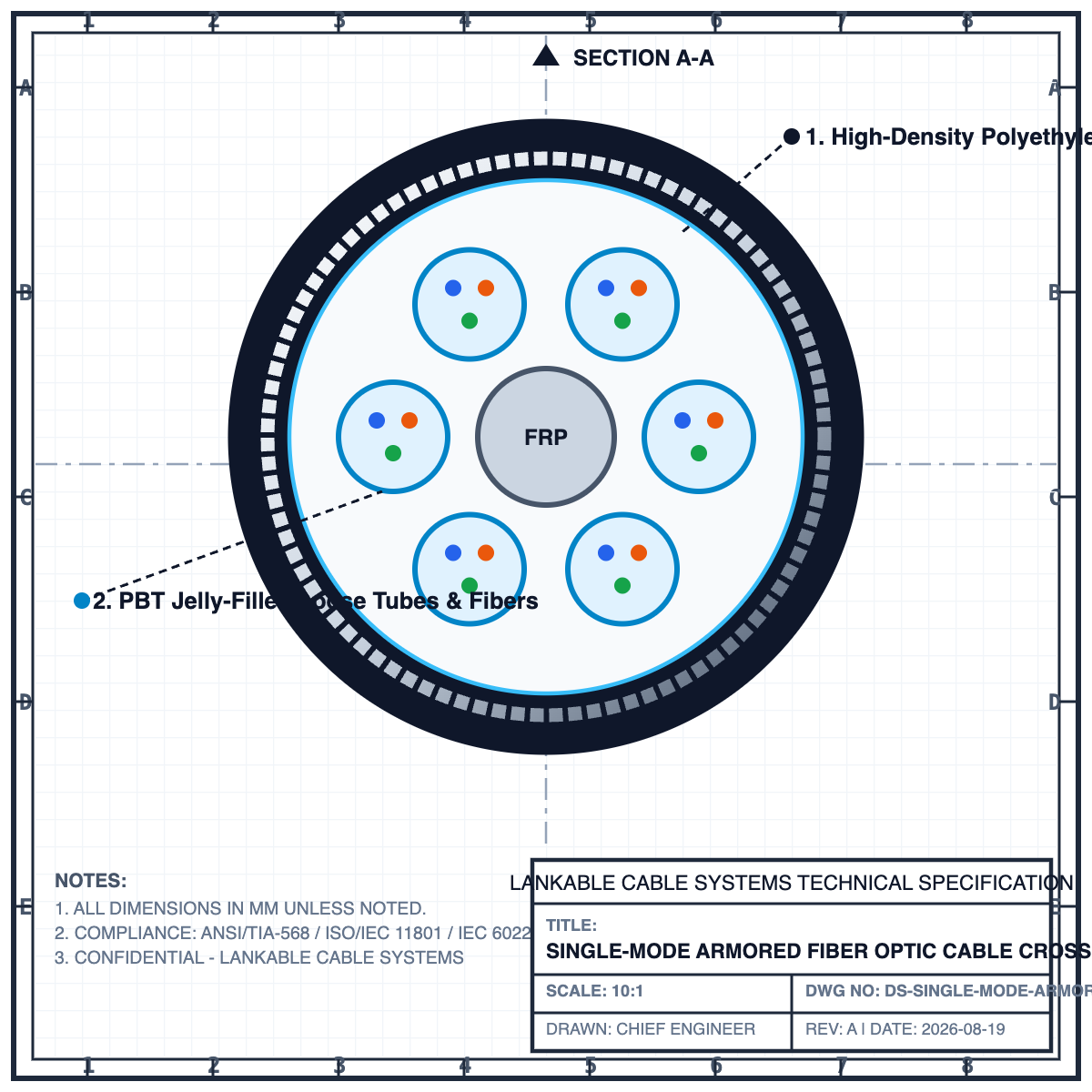

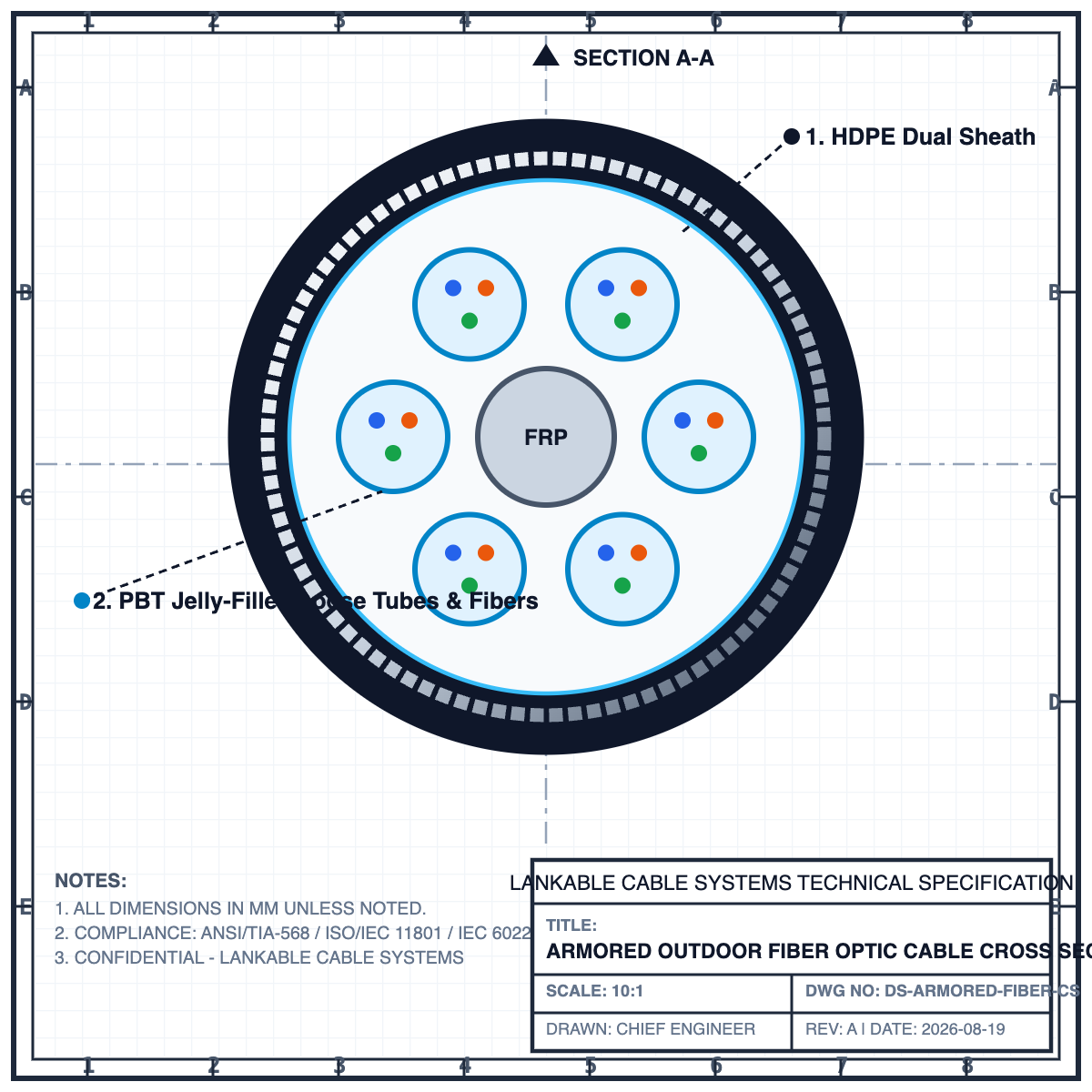

CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Corrugated steel tape (CST) armoring for rodent & crush protection
- ✓Water-blocking gel-filled central tube layout
- ✓Low attenuation OS2 single-mode optical core
- ✓UV and moisture resistant dual high-density polyethylene sheath
Applications
Direct Burial ISP NetworksInter-Building Campus BackbonesMetropolitan Optical RingsIndustrial Field Telemetry
Dimension Characteristics
| Fiber Count | Nominal OD | Nominal Weight | Max Tensile Load |
|---|---|---|---|
| 6 Core | 8.2 mm | 75 kg/km | 1500 N |
| 12 Core (Recommended) | 8.5 mm | 82 kg/km | 1500 N |
| 24 Core | 9.2 mm | 95 kg/km | 1500 N |
Technical Data & Approvals
Materials & Physical Properties
- Fiber Type
- Single-Mode G.652.D / G.657.A1
- Strength Member
- FRP Strength Member + Steel Wire
- Bending Radius (Fixed)
- 10 x Cable OD
- Bending Radius (Dynamic)
- 20 x Cable OD
Electrical Parameters & Compliance
- Attenuation @ 1310nm
- ≤ 0.36 dB/km (SM)
- Attenuation @ 1550nm
- ≤ 0.22 dB/km (SM)
- ITU Standards
- ITU-T G.652.D / G.657.A1 or ITU-T G.651.1
- Test Standards
- IEC 60793, IEC 60794-1-2
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 05
LANKABLEWIRE & CABLE SYSTEMS
Multi-Mode Fiber
DS-FIB-MULTI-MODE-OM3-OM4-FIBER-OPTIC-CABLE-06 | Pg 6
Multi-Mode Fiber
LANKABLE Multi-Mode OM3/OM4 Fiber Optic Cable
Laser-optimized 50/125µm OM3/OM4 multi-mode fiber cable designed for 10G, 40G, and 100G high-density data center backbone backbones.
Product Build Up (Schematics)
Visual Render
Sheathing

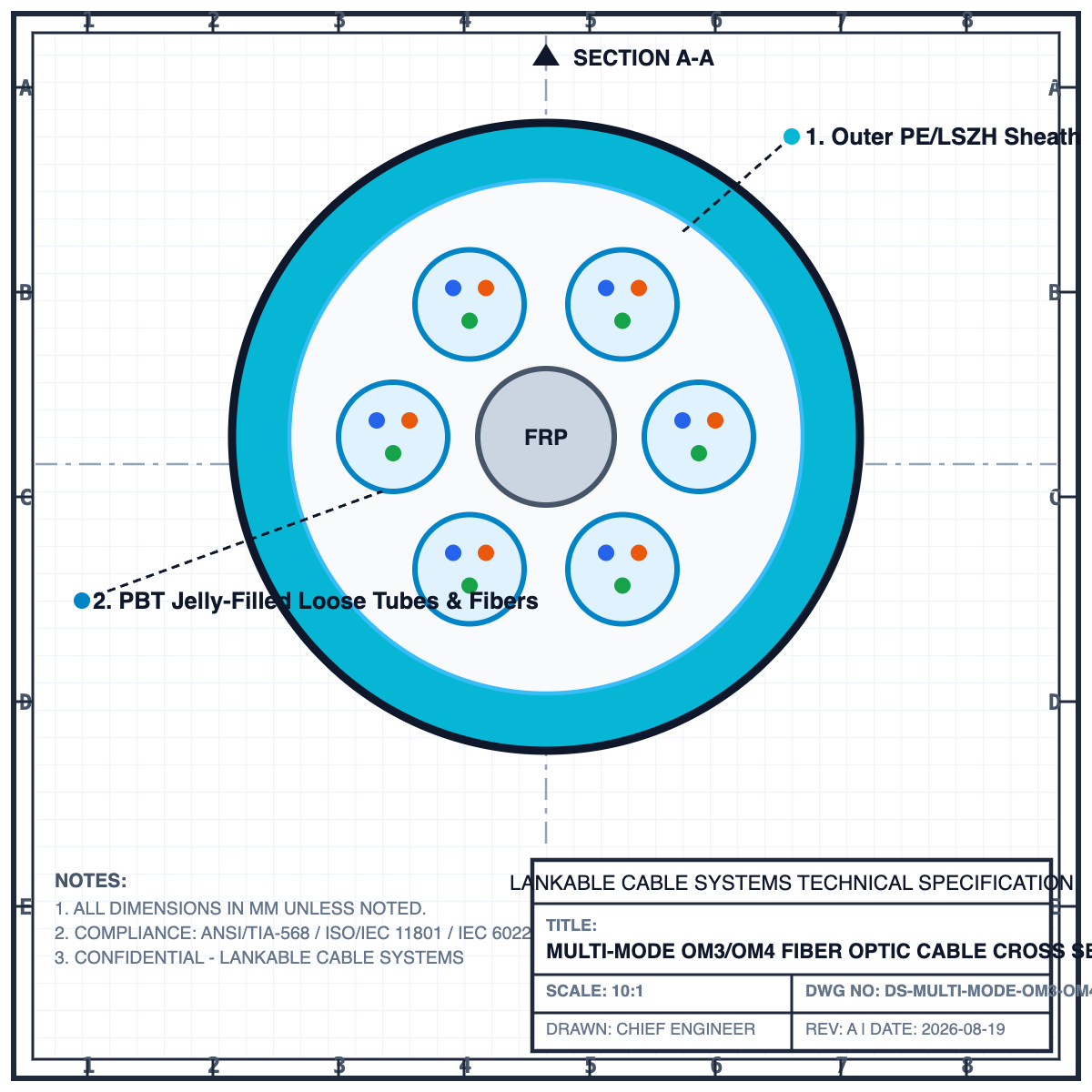

CAD Cross-Section
Internal Core

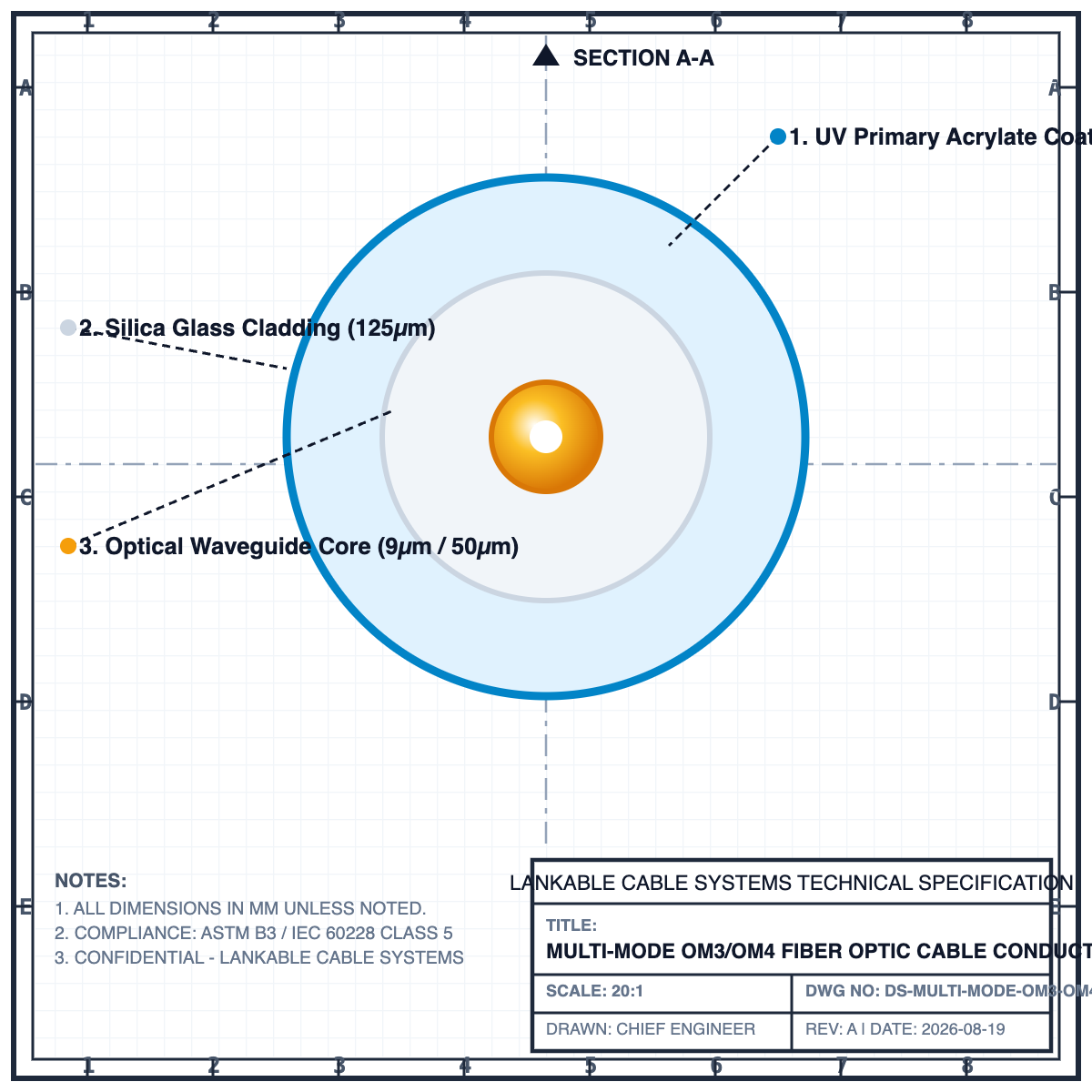

Conductor Detail
Conductor Gauge
Product Features
- ✓50/125µm laser-optimized multi-mode fiber (OM3/OM4)
- ✓Low Smoke Zero Halogen (LSZH) flame retardant sheath
- ✓Supports 40G and 100G Ethernet up to 150m
- ✓High-density multi-tube compact construction
Applications
Datacenter SAN & Server CabinetsEnterprise High-Speed Backbones10G/40G Switch AggregationHyperscale Cloud Architecture
Dimension Characteristics
| Fiber Count | Nominal OD | Nominal Weight | Max Tensile Load |
|---|---|---|---|
| 6 Core | 5.8 mm | 28 kg/km | 600 N |
| 12 Core (Recommended) | 6.2 mm | 32 kg/km | 600 N |
| 24 Core | 7.0 mm | 40 kg/km | 600 N |
Technical Data & Approvals
Materials & Physical Properties
- Fiber Type
- Multi-Mode OM3/OM4 (50/125 µm)
- Strength Member
- Aramid Yarn (Kevlar) / FRP
- Bending Radius (Fixed)
- 10 x Cable OD
- Bending Radius (Dynamic)
- 20 x Cable OD
Electrical Parameters & Compliance
- Attenuation @ 1310nm
- ≤ 0.36 dB/km (SM)
- Attenuation @ 1550nm
- ≤ 0.22 dB/km (SM)
- ITU Standards
- ITU-T G.652.D / G.657.A1 or ITU-T G.651.1
- Test Standards
- IEC 60793, IEC 60794-1-2
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 06
LANKABLEWIRE & CABLE SYSTEMS
FTTH Fiber
DS-FIB-FTTH-DROP-FIBER-OPTIC-CABLE-07 | Pg 7
FTTH Fiber
LANKABLE FTTH Drop Fiber Optic Cable
Bow-type 1-4 core FTTH drop cable with FRP strength members and LSZH sheath, engineered for last-mile residential broadband connections.
Product Build Up (Schematics)
Visual Render
Sheathing

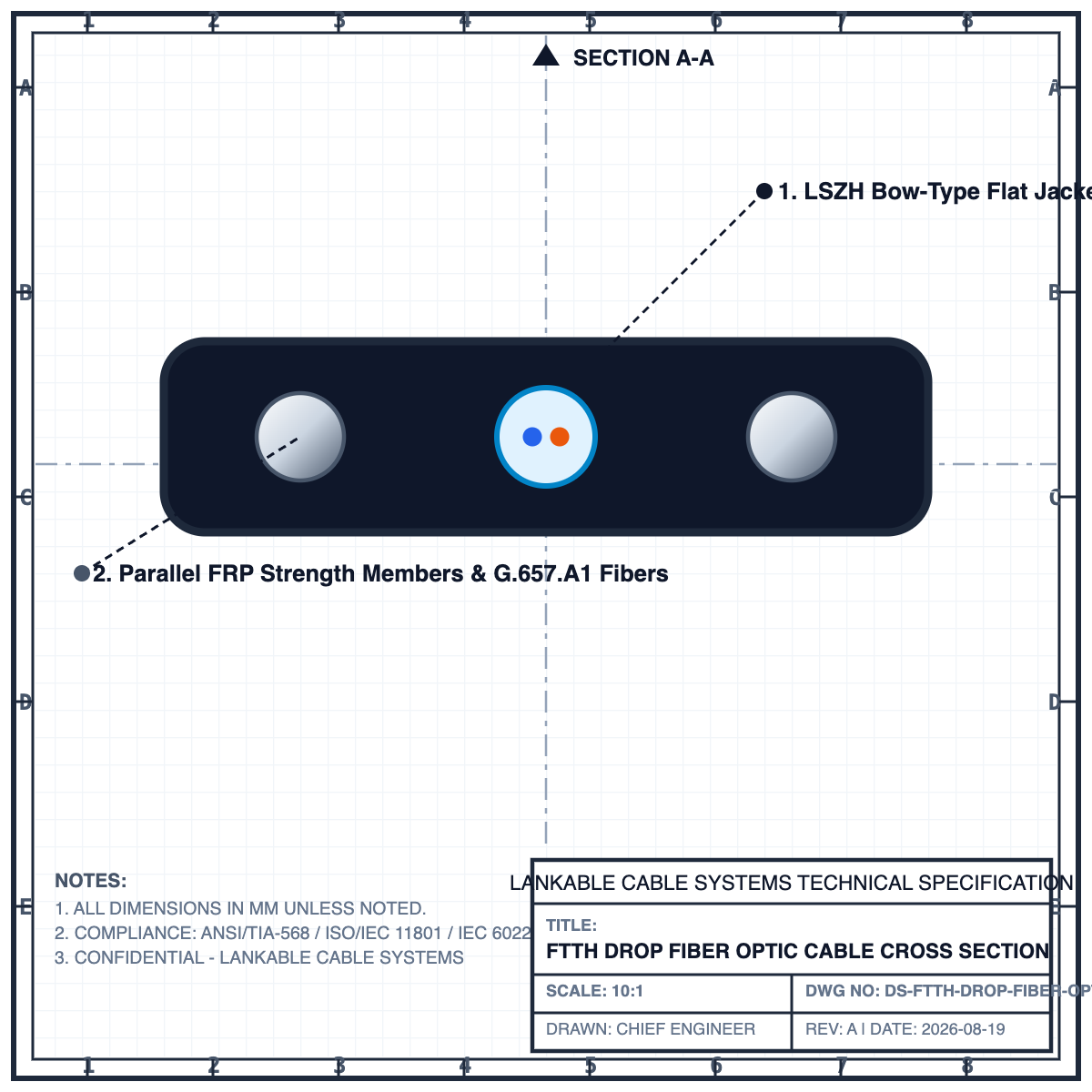

CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Bend-insensitive G.657.A1/A2 single-mode optical fiber
- ✓Dual parallel FRP (Fiber Reinforced Plastic) strength members
- ✓Low Smoke Zero Halogen (LSZH) flame retardant jacket
- ✓Compact 2x3mm flat bow construction for indoor/outdoor routing
Applications
FTTH Last-Mile Broadband DropsIndoor Riser & Wall Conduit RunsCustomer Premise Terminal BoxesResidential Fiber Access
Dimension Characteristics
| Fiber Count | Cable Dimensions | Nominal Weight | Max Tensile Load |
|---|---|---|---|
| 1 Core (Standard) | 2.0 mm x 3.0 mm | 8.5 kg/km | 80 N |
| 2 Core (Recommended) | 2.0 mm x 3.0 mm | 9.0 kg/km | 80 N |
| 4 Core | 2.0 mm x 3.0 mm | 10.2 kg/km | 80 N |
Technical Data & Approvals
Materials & Physical Properties
- Fiber Type
- Single-Mode G.652.D / G.657.A1
- Strength Member
- FRP (Fiber Reinforced Plastic) / Steel Wire
- Bending Radius (Fixed)
- 10 x Cable OD
- Bending Radius (Dynamic)
- 20 x Cable OD
Electrical Parameters & Compliance
- Attenuation @ 1310nm
- ≤ 0.36 dB/km (SM)
- Attenuation @ 1550nm
- ≤ 0.22 dB/km (SM)
- ITU Standards
- ITU-T G.652.D / G.657.A1 or ITU-T G.651.1
- Test Standards
- IEC 60793, IEC 60794-1-2
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 07
LANKABLEWIRE & CABLE SYSTEMS
Tactical Fiber
DS-FIB-TACTICAL-RUGGEDIZED-FIBER-OPTIC-CABLE-08 | Pg 8
Tactical Fiber
LANKABLE Tactical Ruggedized Fiber Optic Cable
Military-grade, crush-proof polyurethane jacketed fiber optic cable built for temporary field deployment, broadcast vans, and defence links.
Product Build Up (Schematics)
Visual Render
Sheathing

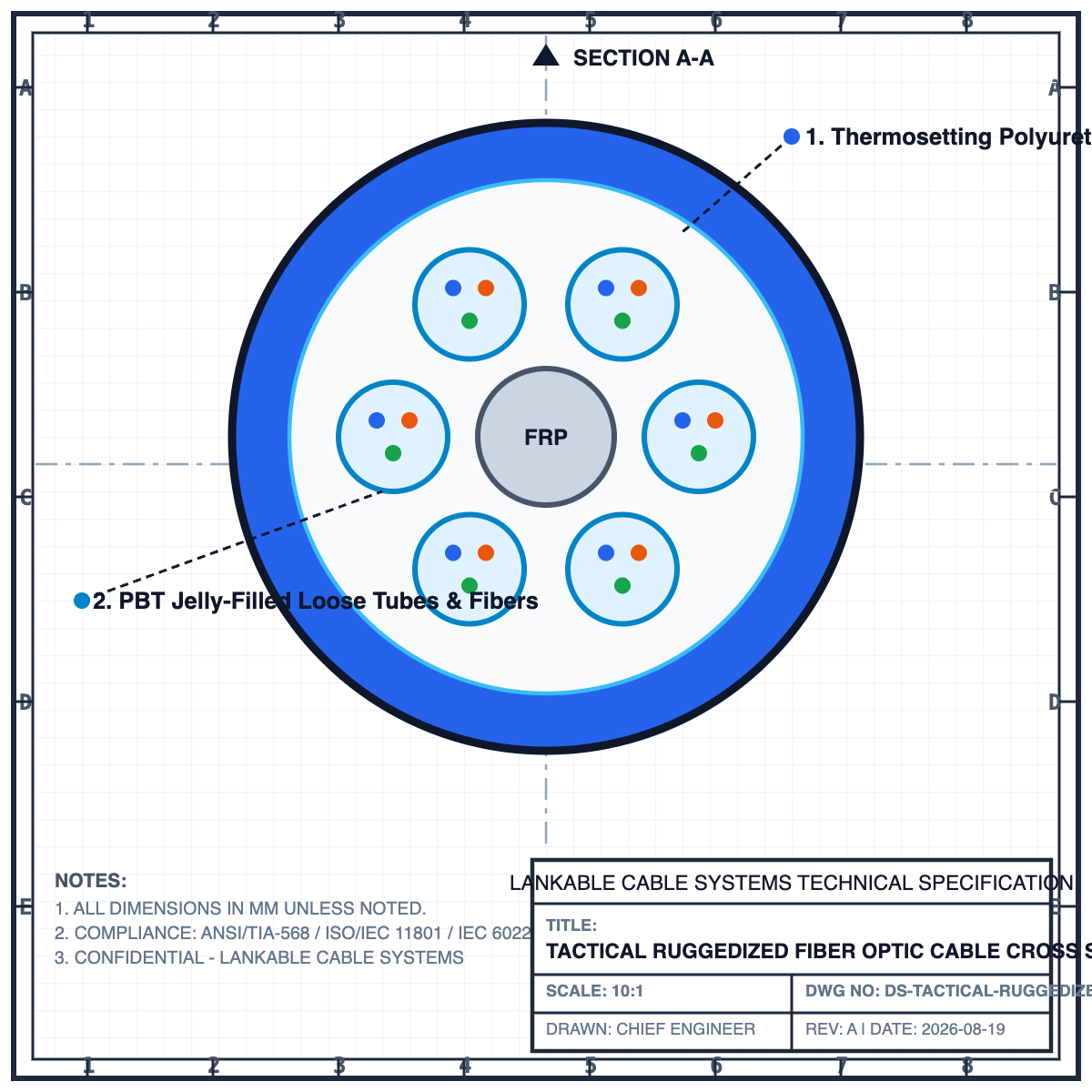

CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Abrasion and chemical resistant polyurethane outer sheath
- ✓High-tensile aramid yarn strength member core
- ✓Flexible tight-buffered fiber construction
- ✓Repeated deploy and retrieve capability for field broadcast/defence
Applications
Military Field TelecommunicationsOutdoor Broadcast OB VansMining & Industrial Mobile LinksRapid-Deployment Emergency Communications
Dimension Characteristics
| Fiber Count | Nominal OD | Nominal Weight | Max Tensile Load |
|---|---|---|---|
| 6 Core | 5.8 mm | 28 kg/km | 600 N |
| 12 Core (Recommended) | 6.2 mm | 32 kg/km | 600 N |
| 24 Core | 7.0 mm | 40 kg/km | 600 N |
Technical Data & Approvals
Materials & Physical Properties
- Fiber Type
- Single-Mode G.652.D / G.657.A1
- Strength Member
- Aramid Yarn (Kevlar) / FRP
- Bending Radius (Fixed)
- 10 x Cable OD
- Bending Radius (Dynamic)
- 20 x Cable OD
Electrical Parameters & Compliance
- Attenuation @ 1310nm
- ≤ 0.36 dB/km (SM)
- Attenuation @ 1550nm
- ≤ 0.22 dB/km (SM)
- ITU Standards
- ITU-T G.652.D / G.657.A1 or ITU-T G.651.1
- Test Standards
- IEC 60793, IEC 60794-1-2
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 08
LANKABLEWIRE & CABLE SYSTEMS
High-Density Fiber
DS-FIB-MPO-MTP-HIGH-DENSITY-TRUNK-CABLE-09 | Pg 9
High-Density Fiber
LANKABLE MPO/MTP High-Density Trunk Cable
Pre-terminated 12/24/48-fiber MPO/MTP assembly for ultra-high-density SAN/LAN patching and 400G datacenter switch interconnects.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core

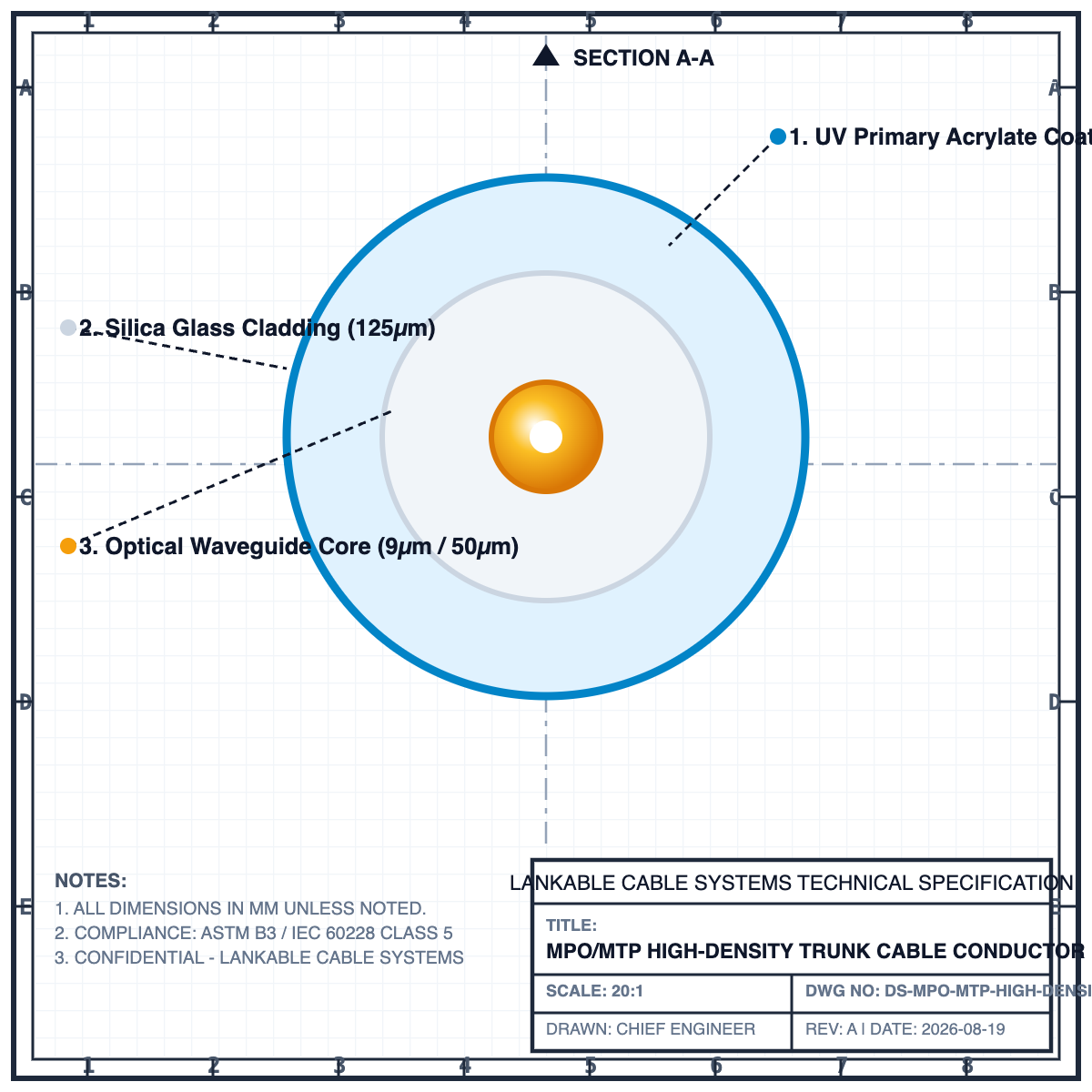

Conductor Detail
Conductor Gauge
Product Features
- ✓Pre-terminated US Conec MTP/MPO connectors
- ✓Micro-cable round jacket construction for reduced tray congestion
- ✓Factory tested for ultra-low insertion loss (< 0.25 dB)
- ✓OFNP Plenum / LSZH fire rated jacket
Applications
Datacenter 40G/100G/400G FabricHigh-Density Fiber Patch PanelsCore Switch InterconnectsCloud Infrastructure Racks
Dimension Characteristics
| Fiber Count | Nominal OD | Nominal Weight | Max Tensile Load |
|---|---|---|---|
| 6 Core | 5.8 mm | 28 kg/km | 600 N |
| 12 Core (Recommended) | 6.2 mm | 32 kg/km | 600 N |
| 24 Core | 7.0 mm | 40 kg/km | 600 N |
Technical Data & Approvals
Materials & Physical Properties
- Fiber Type
- Single-Mode G.652.D / G.657.A1
- Strength Member
- Aramid Yarn (Kevlar) / FRP
- Bending Radius (Fixed)
- 10 x Cable OD
- Bending Radius (Dynamic)
- 20 x Cable OD
Electrical Parameters & Compliance
- Attenuation @ 1310nm
- ≤ 0.36 dB/km (SM)
- Attenuation @ 1550nm
- ≤ 0.22 dB/km (SM)
- ITU Standards
- ITU-T G.652.D / G.657.A1 or ITU-T G.651.1
- Test Standards
- IEC 60793, IEC 60794-1-2
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 09
LANKABLEWIRE & CABLE SYSTEMS
Armored Fiber
DS-FIB-ARMORED-FIBER-10 | Pg 10
Armored Fiber
LANKABLE Armored Outdoor Fiber Optic Cable
Double-jacketed steel armored loose tube fiber optic cable designed for campus backbones and direct burial ISP infrastructure.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Double HDPE sheath with steel tape armor layers
- ✓Gel-filled loose tubes for moisture resistance
- ✓High tensile steel central strength member
- ✓Operating range -40°C to +70°C
Applications
Direct Burial ISP NetworksCampus Backbone InfrastructureSubway & Rail Tunnel CablingSevere Weather Communications
Dimension Characteristics
| Fiber Count | Nominal OD | Nominal Weight | Max Tensile Load |
|---|---|---|---|
| 6 Core | 8.2 mm | 75 kg/km | 1500 N |
| 12 Core (Recommended) | 8.5 mm | 82 kg/km | 1500 N |
| 24 Core | 9.2 mm | 95 kg/km | 1500 N |
Technical Data & Approvals
Materials & Physical Properties
- Fiber Type
- Single-Mode G.652.D / G.657.A1
- Strength Member
- FRP Strength Member + Steel Wire
- Bending Radius (Fixed)
- 10 x Cable OD
- Bending Radius (Dynamic)
- 20 x Cable OD
Electrical Parameters & Compliance
- Attenuation @ 1310nm
- ≤ 0.36 dB/km (SM)
- Attenuation @ 1550nm
- ≤ 0.22 dB/km (SM)
- ITU Standards
- ITU-T G.652.D / G.657.A1 or ITU-T G.651.1
- Test Standards
- IEC 60793, IEC 60794-1-2
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 10
LANKABLEWIRE & CABLE SYSTEMS
LAN Copper Cables
DS-COP-CAT-5-11 | Pg 11
LAN Copper Cables
LANKABLE Cat 5 Cable
Standard Cat 5 structured cable designed for basic network connections. Ideal for legacy networks, telephony, and low-speed IP applications.
Product Build Up (Schematics)
Visual Render
Sheathing

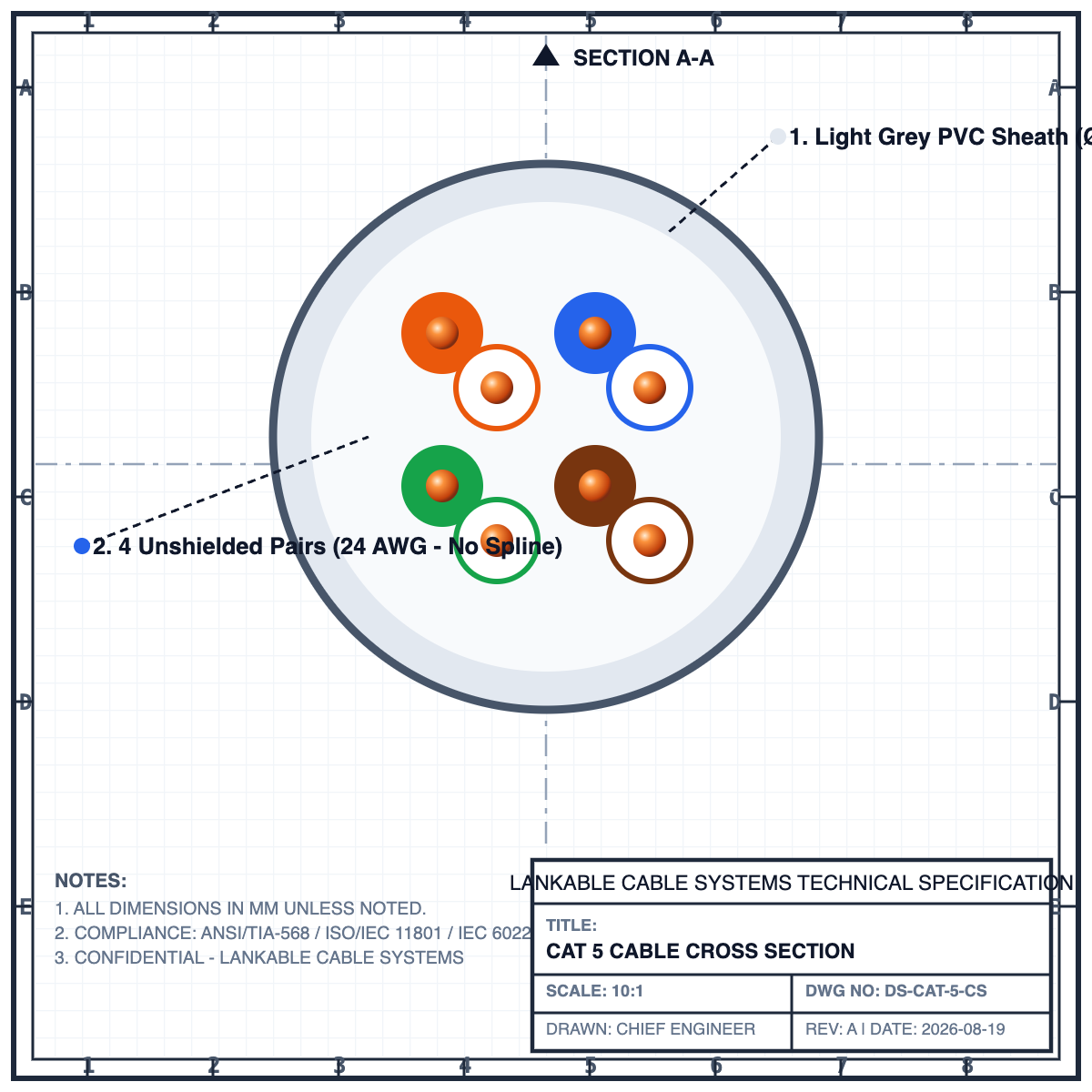

CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓24 AWG solid bare copper conductors
- ✓High-density polyethylene (HDPE) insulation
- ✓Flame retardant PVC jacket
- ✓Supports speeds up to 100 Mbps
Applications
Fast Ethernet NetworksIP Telephony (VoIP)Analog CCTV CCTV SystemsBasic Control Circuits
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 11
LANKABLEWIRE & CABLE SYSTEMS
LAN Copper Cables
DS-COP-CAT-5E-12 | Pg 12
LAN Copper Cables
LANKABLE Cat 5e Cable
Enhanced Category 5e LAN cable supporting Gigabit Ethernet rates. Engineered with tight twist layouts to reduce crosstalk and ensure signal integrity.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓24 AWG solid copper conductors
- ✓Gigabit Ethernet support up to 100m
- ✓Low smoke zero halogen (LSZH) jacket option
- ✓Exceeds ANSI/TIA-568.2-D specifications
Applications
Gigabit Ethernet (1000BASE-T)PoE (Power over Ethernet)Residential Structured WiringEnterprise Networks
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 12
LANKABLEWIRE & CABLE SYSTEMS
LAN Copper Cables
DS-COP-CAT-6-UTP-13 | Pg 13
LAN Copper Cables
LANKABLE Cat 6 UTP Cable
High-performance Category 6 Unshielded Twisted Pair cable. Features a physical internal spline separator to eliminate Near-End Crosstalk (NEXT) and support gigabit transmission.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid bare copper conductors
- ✓Internal PE cross spline separator
- ✓Low Smoke Zero Halogen (LSZH) jacket
- ✓Supports 1GBASE-T and 10GBASE-T (up to 55m)
Applications
High-speed LAN InfrastructurePoE+ (Power over Ethernet Plus)Smart Office CablingCommercial Data Drops
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 13
LANKABLEWIRE & CABLE SYSTEMS
LAN Copper Cables
DS-COP-CAT-6E-14 | Pg 14
LAN Copper Cables
LANKABLE Cat 6e Cable
Extended performance Category 6e cable. Tested up to 500 MHz, providing higher signal-to-noise margins for demanding networks.
Product Build Up (Schematics)
Visual Render
Sheathing

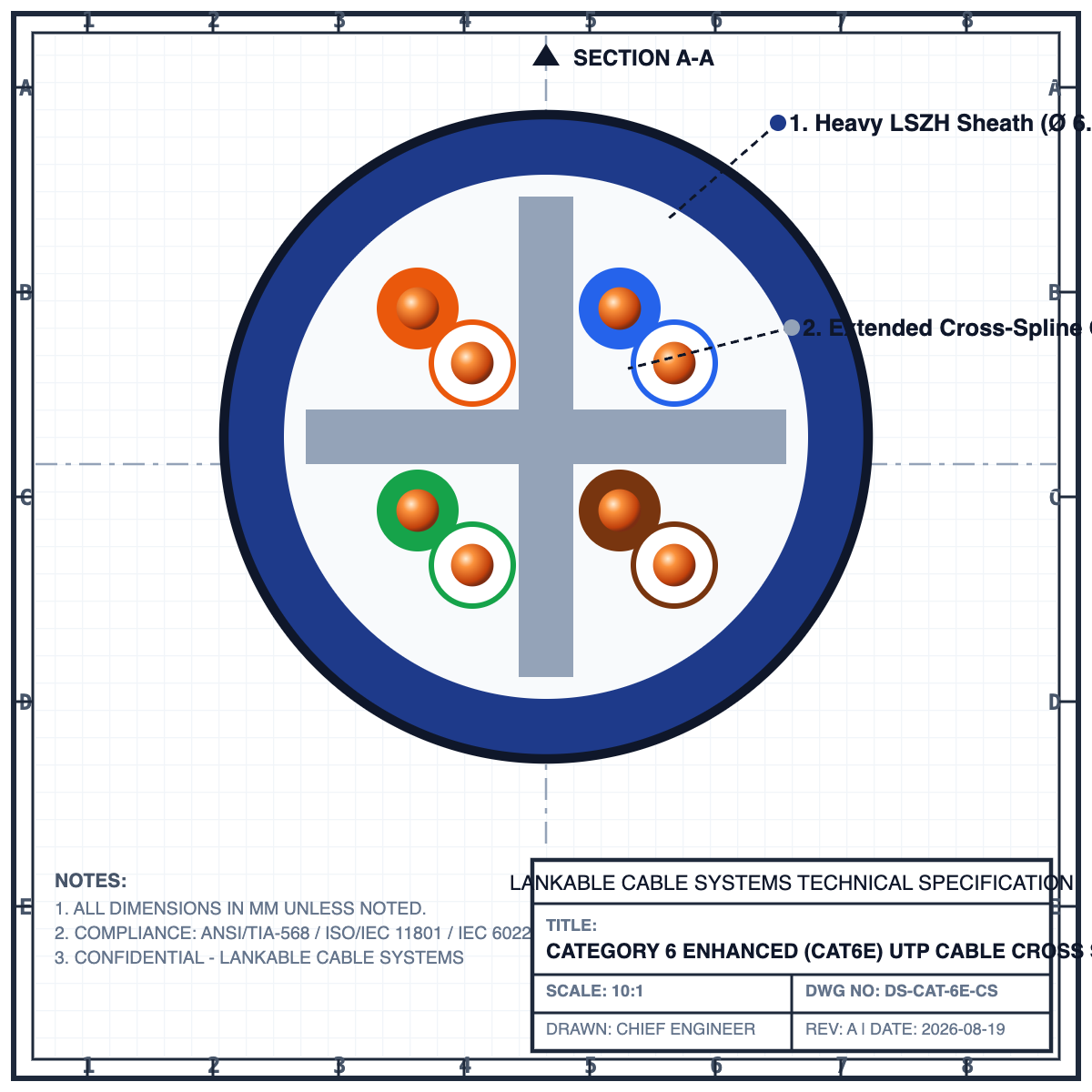

CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid copper conductors
- ✓Optimized twist ratios for low attenuation
- ✓High performance cross spline separator
- ✓LSZH flame retardant sheath
Applications
Data CentersPoE++ High Power DevicesBroadband Video TransmissionVoIP & Gigabit Networks
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 14
LANKABLEWIRE & CABLE SYSTEMS
LAN Copper Cables
DS-COP-CAT-6-FTP-15 | Pg 15
LAN Copper Cables
LANKABLE Cat 6 FTP Cable
Foil Shielded twisted pair (F/UTP) Category 6 cable. Wrapped in a continuous aluminum-mylar foil shield with drain wire to eliminate external EMI.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core

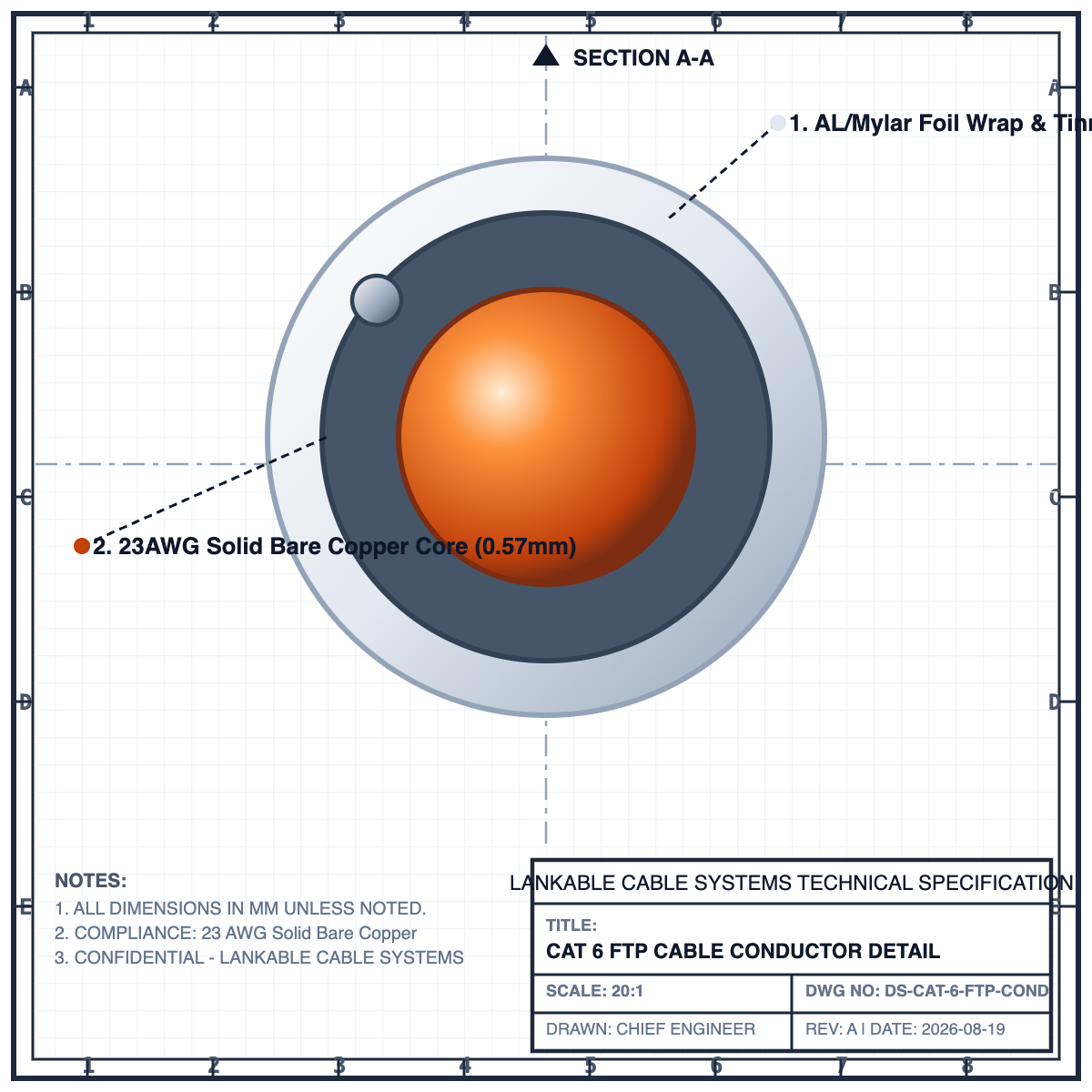

Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid bare copper
- ✓Overall aluminum foil shield (F/UTP) with tinned copper drain
- ✓Eliminates Alien Crosstalk (ANEXT) in tight bundles
- ✓LSZH jacket for public safety installations
Applications
High-EMI Industrial PlantsCo-located Network BundlesGovernment Secure FacilitiesServer Rooms
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 15
LANKABLEWIRE & CABLE SYSTEMS
LAN Copper Cables
DS-COP-CAT-6-SFTP-16 | Pg 16
LAN Copper Cables
LANKABLE Cat 6 SFTP Cable
Shielded Foil Twisted Pair (SF/UTP) Category 6 cable. Combines an overall braided copper screen and foil wrap for ultimate electromagnetic immunity.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid copper conductors
- ✓Overall braid screen + inner foil shield
- ✓Maximum protection against heavy industrial EMI
- ✓Low smoke zero halogen jacket
Applications
Industrial Control RoomsBroadcast and AV StudiosDefence CommunicationsPower Transmission Substations
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 16
LANKABLEWIRE & CABLE SYSTEMS
Armoured Cables
DS-COP-ARMOURED-SFTP-17 | Pg 17
Armoured Cables
LANKABLE Armoured SFTP Cable
Double-shielded, galvanized steel wire braided (SWB) armoured Category 6 cable. Engineered to withstand extreme mechanical stress, crush forces, and rodent damage.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core

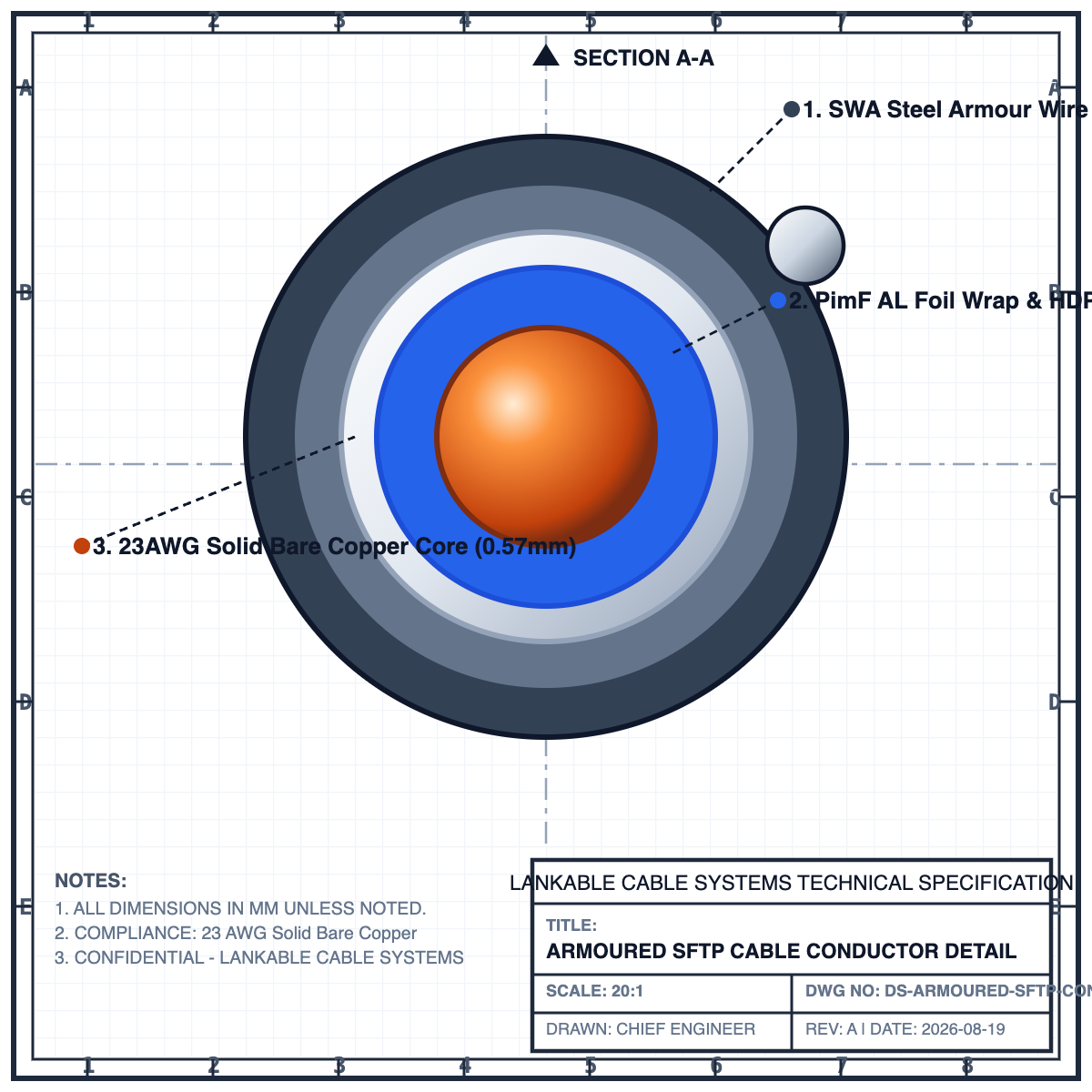

Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid bare copper
- ✓Galvanized steel wire armouring
- ✓Overall tinned copper braid + aluminum foil shield
- ✓Heavy duty double HDPE/LSZH jacket
Applications
Direct Burial InstallationsPetrochemical Industrial FloorsRailway & Subway InfrastructureMining & Outdoor Operations
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 17
LANKABLEWIRE & CABLE SYSTEMS
Armoured Cables
DS-COP-ARMOURED-FTP-18 | Pg 18
Armoured Cables
LANKABLE Armoured FTP Cable
Foil shielded armoured Cat 6 cable featuring a steel tape armour core. Protects the internal data conductors from heavy mechanical compression and chemical exposure.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid copper conductors
- ✓Corrugated steel tape armouring
- ✓Continuous aluminum foil shield wrap with drain wire
- ✓Double HDPE outer jacket
Applications
Underground Conduit SystemsRodent-Prone SitesHeavy Automation PlantsOil & Gas Refineries
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 18
LANKABLEWIRE & CABLE SYSTEMS
Armoured Cables
DS-COP-ARMOURED-UTP-19 | Pg 19
Armoured Cables
LANKABLE Armoured UTP Cable
Steel tape armoured unshielded twisted pair Cat 6 cable. Provides strong mechanical and rodent protection without shielding requirements.
Product Build Up (Schematics)
Visual Render
Sheathing

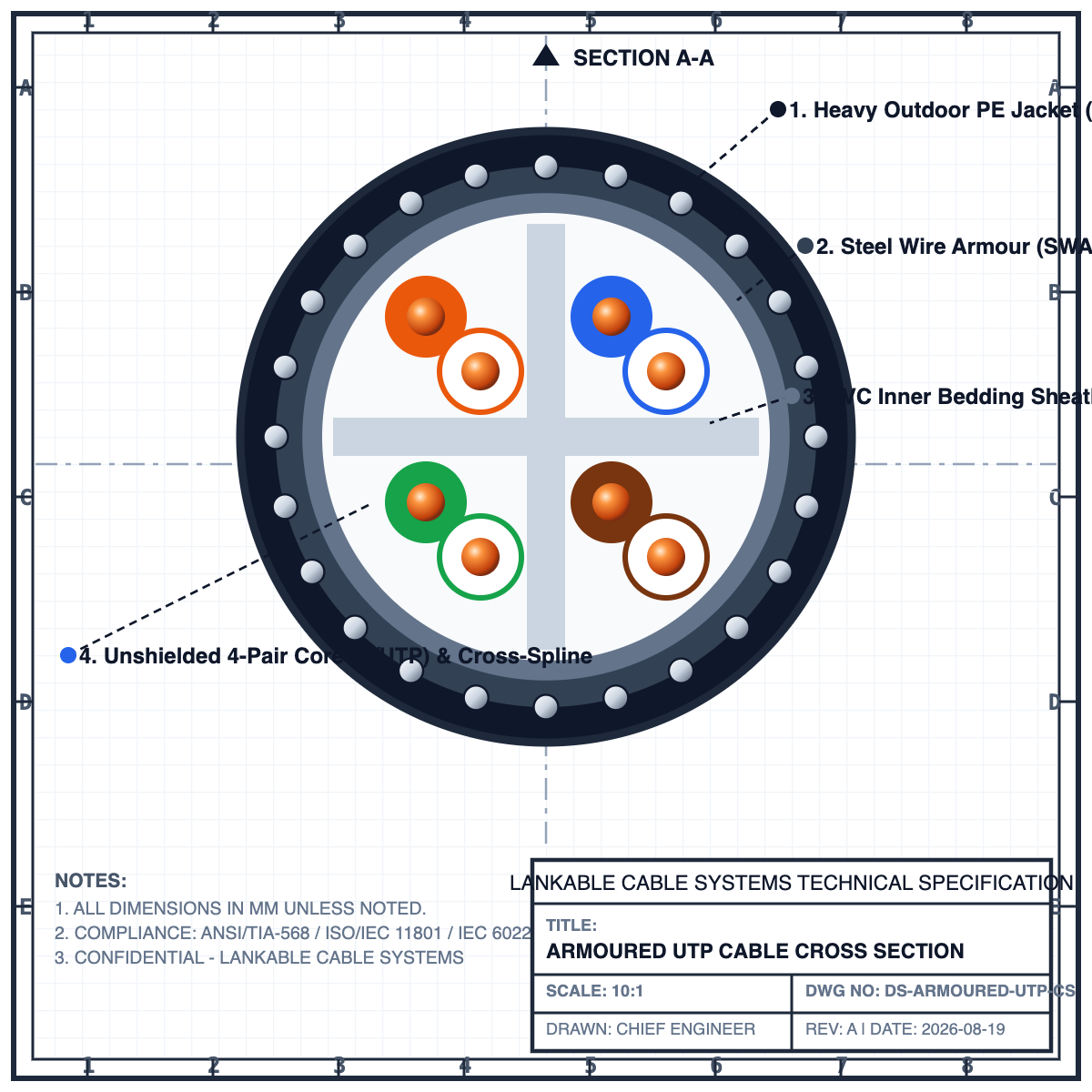

CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid bare copper
- ✓Corrugated steel tape armour layer
- ✓Internal spline pair separator
- ✓Double HDPE outer jacket
Applications
Direct Burial LandscapingOutdoor Duct SystemsSecurity Camera RunsCampus Infrastructure
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 19
LANKABLEWIRE & CABLE SYSTEMS
Outdoor Cables
DS-COP-OUTDOOR-UTP-20 | Pg 20
Outdoor Cables
LANKABLE Outdoor UTP Cable
Weather-resistant, UV-proof outdoor Cat 6 UTP cable. Built with a tough HDPE jacket and water-blocking gel to survive climate extremes without conduit protection.
Product Build Up (Schematics)
Visual Render
Sheathing

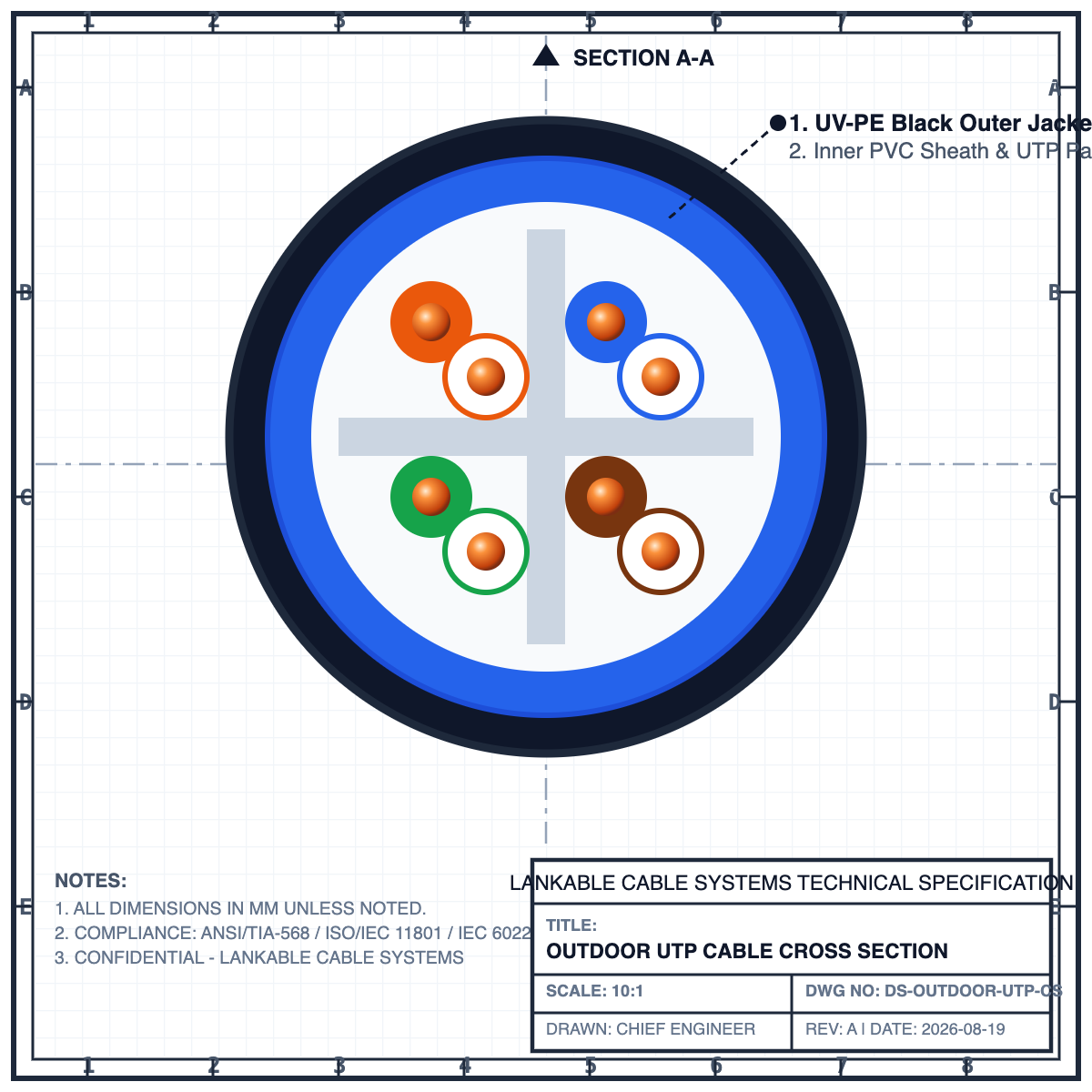

CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid copper conductors
- ✓Weather and UV-resistant HDPE jacket
- ✓Water-blocking gel-filled core or swellable tape
- ✓Internal spine separator
Applications
Outdoor CCTV Camera RunsBuilding-to-Building AerialsDirect Duct RoutingSolar Farm Monitoring Systems
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 20
LANKABLEWIRE & CABLE SYSTEMS
Outdoor Cables
DS-COP-OUTDOOR-FTP-21 | Pg 21
Outdoor Cables
LANKABLE Outdoor FTP Cable
Foil shielded outdoor Category 6 cable. Keeps signals clean and isolates noise in high-power substation towers, cellular towers, and outdoor arrays.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core

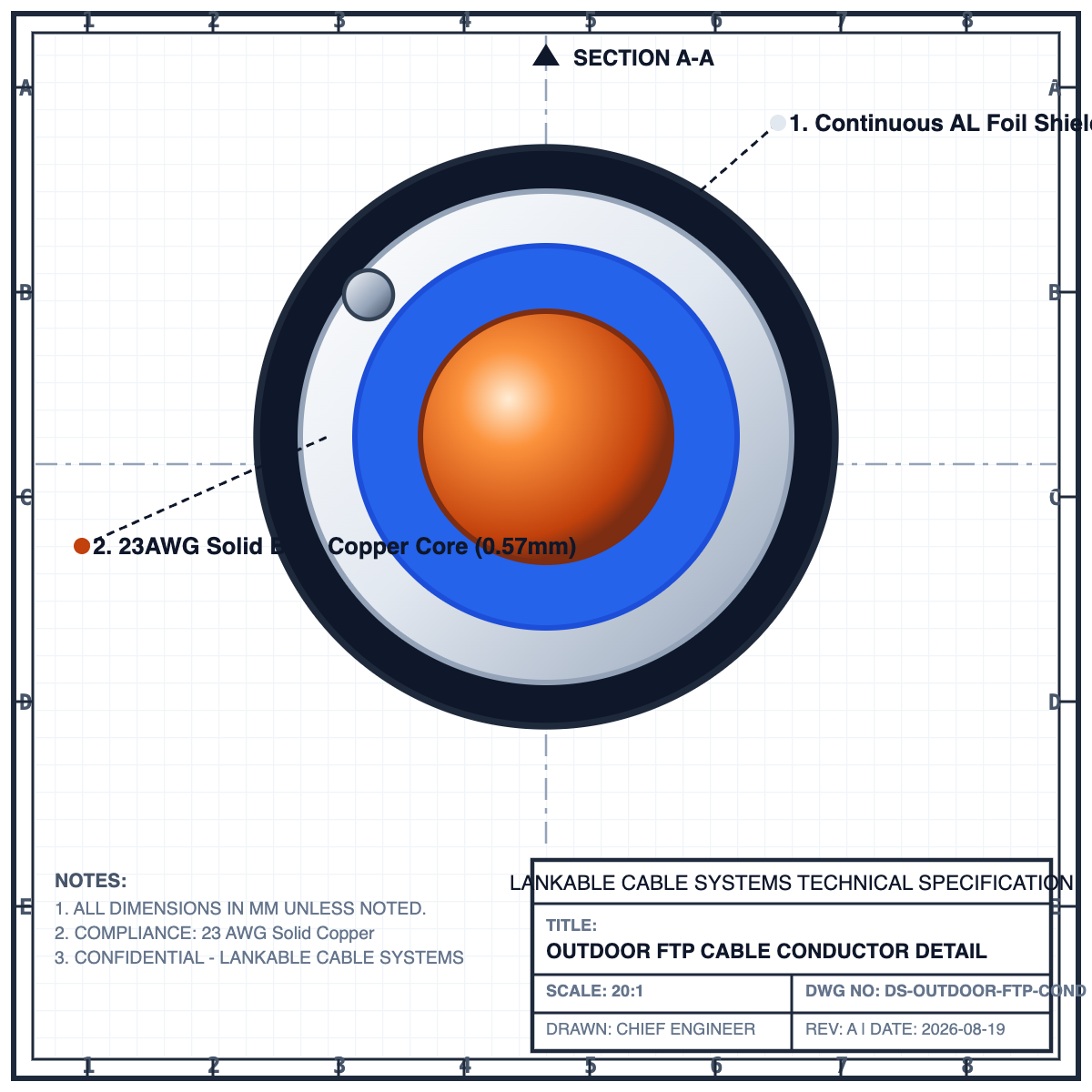

Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid copper conductors
- ✓Continuous aluminum foil shield wrap with drain wire
- ✓UV-proof, black HDPE outer jacket
- ✓Water-blocking dry core tape
Applications
Cellular Base StationsWireless Access Points on TowersSubstation AutomationHigh-EMI Outdoor Environments
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 21
LANKABLEWIRE & CABLE SYSTEMS
Outdoor Cables
DS-COP-OUTDOOR-SSFTP-22 | Pg 22
Outdoor Cables
LANKABLE Outdoor SSFTP Cable
Double-shielded, heavy-duty outdoor Cat 6A SFTP cable. Features individual foil-screened pairs and an overall tinned copper braid for high-throughput networks.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓23 AWG solid bare copper
- ✓Individual foil shield on pairs + overall copper braid
- ✓Double HDPE black outer jacket for weathering
- ✓Water-blocking dry core wrapping
Applications
High-speed Outdoor LinksMilitary Mobile Tactical UnitsWind Turbine Generator NetworksRailway Signal Lines
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 250 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 22
LANKABLEWIRE & CABLE SYSTEMS
House Wires
DS-POW-ZHFR-ZERO-HALOGEN-FLAME-RETARDANT-HOUSE-WIRES-23 | Pg 23
House Wires
LANKABLE ZHFR (Zero Halogen Flame Retardant) House Wires
High-conductivity PVC insulated wire designed for residential and commercial housing electrification. Manufactured with 99.97% pure electrolytic grade copper to ensure minimal power loss and safety.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Dimension Characteristics
| Nominal Area (sq mm) | Conductor Layout | Current Rating (in Conduit) | Max DC Resistance @ 20°C |
|---|---|---|---|
| 1.5 sq mm | 22 Strands x 0.3 mm | 15 Amps | 12.1 Ω/km |
| 2.5 sq mm (Recommended) | 36 Strands x 0.3 mm | 20 Amps | 7.41 Ω/km |
| 4.0 sq mm | 56 Strands x 0.3 mm | 26 Amps | 4.95 Ω/km |
Technical Data & Approvals
Materials & Physical Properties
- Conductor Metallurgy
- Class 5 Flexible Bare Copper
- Insulation
- ZHFR
- Bend Radius (Fixed)
- 6 x OD
- Toxicity Index
- Halogen Gas < 0.5%
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 23
LANKABLEWIRE & CABLE SYSTEMS
House Wires
DS-POW-MULTI-STRAND-COPPER-WIRES-24 | Pg 24
House Wires
LANKABLE Multi-strand Copper Wires
High-conductivity PVC insulated wire designed for residential and commercial housing electrification. Manufactured with 99.97% pure electrolytic grade copper to ensure minimal power loss and safety.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Dimension Characteristics
| Nominal Area (sq mm) | Conductor Layout | Current Rating (in Conduit) | Max DC Resistance @ 20°C |
|---|---|---|---|
| 1.5 sq mm | 22 Strands x 0.3 mm | 15 Amps | 12.1 Ω/km |
| 2.5 sq mm (Recommended) | 36 Strands x 0.3 mm | 20 Amps | 7.41 Ω/km |
| 4.0 sq mm | 56 Strands x 0.3 mm | 26 Amps | 4.95 Ω/km |
Technical Data & Approvals
Materials & Physical Properties
- Conductor Metallurgy
- Class 5 Flexible Bare Copper
- Insulation
- FR-PVC
- Bend Radius (Fixed)
- 6 x OD
- Toxicity Index
- N/A
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 24
LANKABLEWIRE & CABLE SYSTEMS
House Wires
DS-POW-SINGLE-CORE-INDUSTRIAL-CABLE-25 | Pg 25
House Wires
LANKABLE Single Core Industrial Cable
High-conductivity PVC insulated wire designed for residential and commercial housing electrification. Manufactured with 99.97% pure electrolytic grade copper to ensure minimal power loss and safety.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 25
LANKABLEWIRE & CABLE SYSTEMS
Armored Cables
DS-POW-LT-LOW-TENSION-ALUMINUM-ARMORED-CABLES-26 | Pg 26
Armored Cables
LANKABLE LT (Low Tension) Aluminum Armored Cables
Low tension armored power and control cable designed for heavy industrial installations, direct underground burial, and outdoor electrical networks. Corrugated steel/aluminum wire armouring provides superior crush and mechanical protection.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 26
LANKABLEWIRE & CABLE SYSTEMS
Armored Cables
DS-POW-COPPER-ARMOURED-CABLES-27 | Pg 27
Armored Cables
LANKABLE Copper Armoured Cables
Low tension armored power and control cable designed for heavy industrial installations, direct underground burial, and outdoor electrical networks. Corrugated steel/aluminum wire armouring provides superior crush and mechanical protection.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 27
LANKABLEWIRE & CABLE SYSTEMS
Armored Cables
DS-POW-XLPE-INSULATED-ARMOURED-CABLES-28 | Pg 28
Armored Cables
LANKABLE XLPE Insulated Armoured Cables
Low tension armored power and control cable designed for heavy industrial installations, direct underground burial, and outdoor electrical networks. Corrugated steel/aluminum wire armouring provides superior crush and mechanical protection.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 28
LANKABLEWIRE & CABLE SYSTEMS
Agricultural Cables
DS-SPE-SUBMERSIBLE-FLAT-CABLES-29 | Pg 29
Agricultural Cables
LANKABLE Submersible Flat Cables
Specialized water-resistant flat cables engineered to connect submersible water pump motors under severe moisture conditions. Features high-quality water-impermeable insulation sheathing.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Dimension Characteristics
| Core Configuration | Nominal Area | Current Rating | Nominal Outer Dimensions |
|---|---|---|---|
| 3 Core Flat | 1.5 sq mm | 16 Amps | 5.0 mm x 11.2 mm |
| 3 Core Flat (Recommended) | 2.5 sq mm | 22 Amps | 5.8 mm x 13.0 mm |
Technical Data & Approvals
Materials & Physical Properties
- Conductor Metallurgy
- Class 5 Flexible Bare Copper
- Insulation
- FR-PVC
- Bend Radius (Fixed)
- 6 x OD
- Toxicity Index
- N/A
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 29
LANKABLEWIRE & CABLE SYSTEMS
Agricultural Cables
DS-SPE-PVC-INSULATED-ALUMINUM-UNARMORED-CABLES-30 | Pg 30
Agricultural Cables
LANKABLE PVC Insulated Aluminum Unarmored Cables
Specialized water-resistant flat cables engineered to connect submersible water pump motors under severe moisture conditions. Features high-quality water-impermeable insulation sheathing.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 30
LANKABLEWIRE & CABLE SYSTEMS
Control & Instrumentation Cables
DS-IND-MULTI-CORE-CONTROL-CABLES-31 | Pg 31
Control & Instrumentation Cables
LANKABLE Multi-core Control Cables
Multi-core copper control cables designed for signal transmission in automated CNC stations, switchgear instrumentation panels, and control panels. Equipped with high-density shielding to minimize crosstalk.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 31
LANKABLEWIRE & CABLE SYSTEMS
Control & Instrumentation Cables
DS-IND-SHIELDED-INSTRUMENTATION-CABLES-32 | Pg 32
Control & Instrumentation Cables
LANKABLE Shielded Instrumentation Cables
Multi-core copper control cables designed for signal transmission in automated CNC stations, switchgear instrumentation panels, and control panels. Equipped with high-density shielding to minimize crosstalk.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 32
LANKABLEWIRE & CABLE SYSTEMS
Control & Instrumentation Cables
DS-IND-PAIRTRIAD-CABLES-33 | Pg 33
Control & Instrumentation Cables
LANKABLE Pair/Triad Cables
Multi-core copper control cables designed for signal transmission in automated CNC stations, switchgear instrumentation panels, and control panels. Equipped with high-density shielding to minimize crosstalk.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 33
LANKABLEWIRE & CABLE SYSTEMS
Flexible Cables
DS-IND-MULTI-CORE-COPPER-FLEXIBLE-CABLES-34 | Pg 34
Flexible Cables
LANKABLE Multi-core Copper Flexible Cables
Extremely flexible multi-core cable woven from fine gauge bare copper wires. Ideal for dynamic automation setups, portable tools, and power supply lines that undergo continuous bending.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 34
LANKABLEWIRE & CABLE SYSTEMS
LAN Cables
DS-COP-CAT5E-LAN-CABLES-35 | Pg 35
LAN Cables
LANKABLE CAT5e LAN Cables
High-bandwidth structured copper communication cable designed for high-speed local area networks and database telemetry systems. Features double-shielding for optimal crosstalk reduction.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High-speed data transmission support
- ✓Twisted pair configuration to minimize crosstalk
- ✓Low attenuation and signal loss over long distances
- ✓Flame-retardant outer sheath for fire safety
Applications
Local Area Networks (LAN)Database telecommunicationsOffice IP telephonySmart home device networking
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 35
LANKABLEWIRE & CABLE SYSTEMS
LAN Cables
DS-COP-CAT6-LAN-CABLES-36 | Pg 36
LAN Cables
LANKABLE CAT6 LAN Cables
High-bandwidth structured copper communication cable designed for high-speed local area networks and database telemetry systems. Features double-shielding for optimal crosstalk reduction.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High-speed data transmission support
- ✓Twisted pair configuration to minimize crosstalk
- ✓Low attenuation and signal loss over long distances
- ✓Flame-retardant outer sheath for fire safety
Applications
Local Area Networks (LAN)Database telecommunicationsOffice IP telephonySmart home device networking
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 36
LANKABLEWIRE & CABLE SYSTEMS
LAN Cables
DS-COP-UTP-UNSHIELDED-TWISTED-PAIR-LAN-CABLES-37 | Pg 37
LAN Cables
LANKABLE UTP (Unshielded Twisted Pair) LAN Cables
High-bandwidth structured copper communication cable designed for high-speed local area networks and database telemetry systems. Features double-shielding for optimal crosstalk reduction.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High-speed data transmission support
- ✓Twisted pair configuration to minimize crosstalk
- ✓Low attenuation and signal loss over long distances
- ✓Flame-retardant outer sheath for fire safety
Applications
Local Area Networks (LAN)Database telecommunicationsOffice IP telephonySmart home device networking
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 37
LANKABLEWIRE & CABLE SYSTEMS
LAN Cables
DS-COP-FTP-FOILED-TWISTED-PAIR-LAN-CABLES-38 | Pg 38
LAN Cables
LANKABLE FTP (Foiled Twisted Pair) LAN Cables
High-bandwidth structured copper communication cable designed for high-speed local area networks and database telemetry systems. Features double-shielding for optimal crosstalk reduction.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High-speed data transmission support
- ✓Twisted pair configuration to minimize crosstalk
- ✓Low attenuation and signal loss over long distances
- ✓Flame-retardant outer sheath for fire safety
Applications
Local Area Networks (LAN)Database telecommunicationsOffice IP telephonySmart home device networking
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 38
LANKABLEWIRE & CABLE SYSTEMS
DC Solar Cables
DS-SPE-DC-SOLAR-CABLES-39 | Pg 39
DC Solar Cables
LANKABLE DC Solar Cables
TUV/EN certified DC solar cables engineered for outdoor PV solar panels. Outfitted with cross-linked halogen-free insulation (XLPE) providing 25+ years of UV and weather resistance.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Dimension Characteristics
| Nominal Area (sq mm) | Conductor Strands | Nominal Outer Diameter | Current carrying capacity |
|---|---|---|---|
| 4.0 sq mm (Standard) | 56 x 0.3 mm Tinned Cu | 5.8 mm | 55 Amps |
| 6.0 sq mm (Heavy Duty) | 84 x 0.3 mm Tinned Cu | 6.6 mm | 70 Amps |
Technical Data & Approvals
Materials & Physical Properties
- Conductor Metallurgy
- Class 5 Flexible Bare Copper
- Insulation
- XLPE
- Bend Radius (Fixed)
- 6 x OD
- Toxicity Index
- N/A
Electrical Parameters & Compliance
- Voltage Rating
- 1.8 kV DC
- Test Voltage
- 3000 V AC
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 39
LANKABLEWIRE & CABLE SYSTEMS
Appliance Wiring Materials
DS-IND-H05V-K-CABLES-40 | Pg 40
Appliance Wiring Materials
LANKABLE H05V-K Cables
Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 40
LANKABLEWIRE & CABLE SYSTEMS
Appliance Wiring Materials
DS-IND-IS-694-41 | Pg 41
Appliance Wiring Materials
LANKABLE IS 694
Designed for residential and commercial infrastructure; connecting medium in power/control panels, cabinets & switchgears.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 41
LANKABLEWIRE & CABLE SYSTEMS
Appliance Wiring Materials
DS-IND-IEC-42 | Pg 42
Appliance Wiring Materials
LANKABLE IEC
Designed for residential and commercial infrastructure; connecting medium in power/control panels, cabinets & switchgears.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 42
LANKABLEWIRE & CABLE SYSTEMS
Appliance Wiring Materials
DS-IND-H07V-K-CABLES-43 | Pg 43
Appliance Wiring Materials
LANKABLE H07V-K Cables
Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 43
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-IS-2465-44 | Pg 44
Automotive Cable Single Core
LANKABLE IS 2465
Low tension thin wall cables widely used for automobiles; starting, charging, lighting & instrument panel circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 44
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-WTA-45 | Pg 45
Automotive Cable Single Core
LANKABLE WTA
Low-voltage cable for use at nominal voltage of 60V DC / 60V AC rms on surface vehicles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 45
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-GPT-46 | Pg 46
Automotive Cable Single Core
LANKABLE GPT
General circuit wiring per SAE J1128; low tension cable at 60V DC / 25V AC.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 46
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-TWP-47 | Pg 47
Automotive Cable Single Core
LANKABLE TWP
Wire harness for low-tension electric circuits for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 47
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-AVSS-48 | Pg 48
Automotive Cable Single Core
LANKABLE AVSS
Wire harness of low-tension electric circuits for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 48
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-AVS-49 | Pg 49
Automotive Cable Single Core
LANKABLE AVS
Wire harness of low-tension electric circuits for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 49
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-AV-50 | Pg 50
Automotive Cable Single Core
LANKABLE AV
Wire harness of low-tension electric circuits for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 50
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-EB-51 | Pg 51
Automotive Cable Single Core
LANKABLE EB
Earth bond low voltage cable for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 51
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-HFSS-52 | Pg 52
Automotive Cable Single Core
LANKABLE HFSS
Wire harness of low-tension electric circuits for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 52
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-HF-53 | Pg 53
Automotive Cable Single Core
LANKABLE HF
Wire harness of low-tension electric circuits for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 53
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-AVSSH-54 | Pg 54
Automotive Cable Single Core
LANKABLE AVSSH
Heat-resistant wire harness circuits for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 54
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-FLUY-55 | Pg 55
Automotive Cable Single Core
LANKABLE FLUY
Wire harness of low-tension electric circuits for automobiles.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 55
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-FLRYH-56 | Pg 56
Automotive Cable Single Core
LANKABLE FLRYH
PVC insulated single-core cable, symmetrical conductor, thin wall; high temperature automotive/motorcycle use.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 56
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-FLRYK-57 | Pg 57
Automotive Cable Single Core
LANKABLE FLRYK
Standard wall auto cable, cold resistant, increased flexibility.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 57
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-FLYK-58 | Pg 58
Automotive Cable Single Core
LANKABLE FLYK
Standard wall auto cable, cold resistant, increased flexibility.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 58
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-FLYY-59 | Pg 59
Automotive Cable Single Core
LANKABLE FLYY
Higher current carrying capacity and mechanical strength for automotive applications.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 59
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-GXL-60 | Pg 60
Automotive Cable Single Core
LANKABLE GXL
High-temperature, durable wiring for reliable vehicle electrical systems.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 60
LANKABLEWIRE & CABLE SYSTEMS
Automotive Cable Single Core
DS-IND-TXL-61 | Pg 61
Automotive Cable Single Core
LANKABLE TXL
Lightweight, thin-wall, heat-resistant wiring for efficient vehicle performance.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 61
LANKABLEWIRE & CABLE SYSTEMS
Multicore Automotive Cables
DS-IND-TRUCK-APPLICATIONS-62 | Pg 62
Multicore Automotive Cables
LANKABLE Truck Applications
Cable to connect tractor and trailer/semi-trailer; illumination and cabling systems.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 62
LANKABLEWIRE & CABLE SYSTEMS
Multicore Automotive Cables
DS-IND-SAFETY-APPLICATIONS-63 | Pg 63
Multicore Automotive Cables
LANKABLE Safety Applications
Impact protection (airbag), restraint systems, active headrest, locking systems, chassis safety, collision avoidance.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 63
LANKABLEWIRE & CABLE SYSTEMS
Multicore Automotive Cables
DS-IND-CONTROL-APPLICATIONS-64 | Pg 64
Multicore Automotive Cables
LANKABLE Control Applications
Knock sensor, weight sensor, rain sensor, engine management sensor, fill level sensor, occupant recognition.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 64
LANKABLEWIRE & CABLE SYSTEMS
Multicore Automotive Cables
DS-IND-POWER-APPLICATIONS-65 | Pg 65
Multicore Automotive Cables
LANKABLE Power Applications
Lighting and wiring, electrical installation wiring, engine compartment wiring.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 65
LANKABLEWIRE & CABLE SYSTEMS
Multicore Automotive Cables
DS-IND-COMFORT-APPLICATION-66 | Pg 66
Multicore Automotive Cables
LANKABLE Comfort Application
Seat systems, power windows, mirror wiring, HVAC, consumer electronics, sunroof systems, park assistance.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 66
LANKABLEWIRE & CABLE SYSTEMS
Multicore Automotive Cables
DS-IND-SENSOR-APPLICATIONS-67 | Pg 67
Multicore Automotive Cables
LANKABLE Sensor Applications
Driver assistance & active safety systems, ABS/ESP sensor cables, brake wear indicator, parking brake cable.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 67
LANKABLEWIRE & CABLE SYSTEMS
Building Wires (India)
DS-POW-3-CORE-SUBMERSIBLE-FLAT-CABLE-XLPEPVC-INSULATED-68 | Pg 68
Building Wires (India)
LANKABLE 3 Core Submersible Flat Cable, XLPE/PVC Insulated
Mainly used in submersible water pump connection; also industrial applications.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Dimension Characteristics
| Core Configuration | Nominal Area | Current Rating | Nominal Outer Dimensions |
|---|---|---|---|
| 3 Core Flat | 1.5 sq mm | 16 Amps | 5.0 mm x 11.2 mm |
| 3 Core Flat (Recommended) | 2.5 sq mm | 22 Amps | 5.8 mm x 13.0 mm |
Technical Data & Approvals
Materials & Physical Properties
- Conductor Metallurgy
- Class 5 Flexible Bare Copper
- Insulation
- FR-PVC
- Bend Radius (Fixed)
- 6 x OD
- Toxicity Index
- N/A
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 68
LANKABLEWIRE & CABLE SYSTEMS
Building Wires (India)
DS-POW-3-CORE-SUBMERSIBLE-FLAT-CABLE-HR-PVC-INSULATED-85C-69 | Pg 69
Building Wires (India)
LANKABLE 3 Core Submersible Flat Cable, HR PVC Insulated 85°C
PVC insulated and sheathed 3 core flat cables mainly used in pump connections and industrial applications.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Dimension Characteristics
| Core Configuration | Nominal Area | Current Rating | Nominal Outer Dimensions |
|---|---|---|---|
| 3 Core Flat | 1.5 sq mm | 16 Amps | 5.0 mm x 11.2 mm |
| 3 Core Flat (Recommended) | 2.5 sq mm | 22 Amps | 5.8 mm x 13.0 mm |
Technical Data & Approvals
Materials & Physical Properties
- Conductor Metallurgy
- Class 5 Flexible Bare Copper
- Insulation
- FR-PVC
- Bend Radius (Fixed)
- 6 x OD
- Toxicity Index
- N/A
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 69
LANKABLEWIRE & CABLE SYSTEMS
Building Wires (India)
DS-POW-LSZH-70 | Pg 70
Building Wires (India)
LANKABLE LSZH
Domestic applications, conduit wiring; ideal for auditoriums, hospitals, hotels, schools, stadiums, public spaces.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 70
LANKABLEWIRE & CABLE SYSTEMS
Building Wires (India)
DS-POW-SPEAKER-CABLE-2-CORE-PVC-INSULATED-71 | Pg 71
Building Wires (India)
LANKABLE Speaker Cable, 2-Core PVC Insulated
Recommended for speakers, public address systems; clear, distortion-free voice with low dB loss.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 71
LANKABLEWIRE & CABLE SYSTEMS
Battery Cables
DS-POW-SGR-CABLE-72 | Pg 72
Battery Cables
LANKABLE SGR Cable
Low-tension electric wire for automobiles; heat-resistant circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 72
LANKABLEWIRE & CABLE SYSTEMS
Battery Cables
DS-POW-SGX-INSULATED-CABLE-73 | Pg 73
Battery Cables
LANKABLE SGX Insulated Cable
Low-tension electric wire for automobiles; general purpose, heat-resistant circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 73
LANKABLEWIRE & CABLE SYSTEMS
Battery Cables
DS-POW-SGT-INSULATED-CABLE-74 | Pg 74
Battery Cables
LANKABLE SGT Insulated Cable
Low-tension electric wire for automobiles; general purpose, heat-resistant circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 74
LANKABLEWIRE & CABLE SYSTEMS
Battery Cables
DS-POW-SXKB-CABLE-75 | Pg 75
Battery Cables
LANKABLE SXKB Cable
Intended for use as battery cable.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 75
LANKABLEWIRE & CABLE SYSTEMS
Battery Cables
DS-POW-B-PVC-INSULATED-CABLE-76 | Pg 76
Battery Cables
LANKABLE B PVC Insulated Cable
Low tension thin wall cables for automobiles; starting, charging, lighting & instrument panel circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 76
LANKABLEWIRE & CABLE SYSTEMS
Communication Cable
DS-COP-COMMUNICATION-CABLES-RANGE-77 | Pg 77
Communication Cable
LANKABLE Communication Cables (range)
Specialized cables designed to transmit data, voice, or video signals between devices, short or long distances.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High-speed data transmission support
- ✓Twisted pair configuration to minimize crosstalk
- ✓Low attenuation and signal loss over long distances
- ✓Flame-retardant outer sheath for fire safety
Applications
Local Area Networks (LAN)Database telecommunicationsOffice IP telephonySmart home device networking
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 77
LANKABLEWIRE & CABLE SYSTEMS
Primary Wires
DS-IND-SGX-78 | Pg 78
Primary Wires
LANKABLE SGX
Low-tension electric wire for automobiles; general purpose, heat-resistant circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 78
LANKABLEWIRE & CABLE SYSTEMS
Primary Wires
DS-IND-SGT-79 | Pg 79
Primary Wires
LANKABLE SGT
Low-tension electric wire for automobiles; general purpose, heat-resistant circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 79
LANKABLEWIRE & CABLE SYSTEMS
Primary Wires
DS-IND-TWISTED-PAIR-80 | Pg 80
Primary Wires
LANKABLE Twisted Pair
Low-tension electric wire for automobiles; versatile across high & low temperature conditions.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 80
LANKABLEWIRE & CABLE SYSTEMS
Primary Wires
DS-IND-SGR-81 | Pg 81
Primary Wires
LANKABLE SGR
Low-tension electric wire for automobiles; heat-resistant circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 81
LANKABLEWIRE & CABLE SYSTEMS
Primary Wires
DS-IND-GXL-PRIMARY-82 | Pg 82
Primary Wires
LANKABLE GXL
Low-tension electric wire for automobiles; heat-resistant, high voltage application.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 82
LANKABLEWIRE & CABLE SYSTEMS
Primary Wires
DS-IND-GPT-PRIMARY-83 | Pg 83
Primary Wires
LANKABLE GPT
Low-tension electric wire for automobiles; general purpose, heat-resistant circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 83
LANKABLEWIRE & CABLE SYSTEMS
Primary Wires
DS-IND-SXL-84 | Pg 84
Primary Wires
LANKABLE SXL
Low-tension electric wire for automobiles; heat-resistant, high voltage application.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 84
LANKABLEWIRE & CABLE SYSTEMS
Primary Wires
DS-IND-TXL-PRIMARY-85 | Pg 85
Primary Wires
LANKABLE TXL
Low-tension electric wire for automobiles; heat-resistant circuits.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 85
LANKABLEWIRE & CABLE SYSTEMS
Speaker Wires
DS-SPE-2C-BONDED-CABLE-86 | Pg 86
Speaker Wires
LANKABLE 2C Bonded Cable
Low-tension electric wire; works well in high & low temperature conditions.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 86
LANKABLEWIRE & CABLE SYSTEMS
EV/HV Cables
DS-SPE-CHARGING-CABLES-87 | Pg 87
EV/HV Cables
LANKABLE Charging Cables
Designed for EV charging cable applications.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 87
LANKABLEWIRE & CABLE SYSTEMS
EV/HV Cables
DS-SPE-HIGH-VOLTAGE-EV-CABLES-88 | Pg 88
EV/HV Cables
LANKABLE High Voltage EV Cables
Mainly used in hybrid vehicles; copper braid shielding to prevent electromagnetic influence; high flexibility.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 88
LANKABLEWIRE & CABLE SYSTEMS
Conductor Braids
DS-SPE-SHIELDING-BRAIDS-89 | Pg 89
Conductor Braids
LANKABLE Shielding Braids
Power distribution, telecommunication, medical, automotive industries; earth ground connections.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 89
LANKABLEWIRE & CABLE SYSTEMS
Conductor Braids
DS-SPE-ROUND-AND-SQUARE-BRAIDS-90 | Pg 90
Conductor Braids
LANKABLE Round and Square Braids
Power distribution, telecommunication, medical, automotive industries; earth ground connections.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 90
LANKABLEWIRE & CABLE SYSTEMS
FRC (Ribbon Cables)
DS-SPE-FRC-RIBBON-CABLES-91 | Pg 91
FRC (Ribbon Cables)
LANKABLE FRC (Ribbon Cables)
Flat ribbon conductor cables.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 91
LANKABLEWIRE & CABLE SYSTEMS
Copper
DS-DRA-STRANDED-COPPER-WIRE-92 | Pg 92
Copper
LANKABLE Stranded Copper Wire
In-house facility of copper drawing, converting copper rods (8mm) to fine gauges; hot dipped tinning process.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓99.97% high-purity electrolytic grade copper
- ✓Uniform conductor gauge and diameter tolerances
- ✓High electrical conductivity exceeding 101% IACS
- ✓Annealed soft temper for outstanding winding flexibility
Applications
Industrial rewinding coilsGrounding / Earth strapsCabling conductors core fabricationAppliance wiring pins
Dimension Characteristics
| Nominal Area (sq mm) | Conductor Layout | Current Rating (in Conduit) | Max DC Resistance @ 20°C |
|---|---|---|---|
| 1.5 sq mm | 22 Strands x 0.3 mm | 15 Amps | 12.1 Ω/km |
| 2.5 sq mm (Recommended) | 36 Strands x 0.3 mm | 20 Amps | 7.41 Ω/km |
| 4.0 sq mm | 56 Strands x 0.3 mm | 26 Amps | 4.95 Ω/km |
Technical Data & Approvals
Materials & Physical Properties
- Conductor Metallurgy
- Class 5 Flexible Bare Copper
- Insulation
- FR-PVC
- Bend Radius (Fixed)
- 6 x OD
- Toxicity Index
- N/A
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 92
LANKABLEWIRE & CABLE SYSTEMS
Copper
DS-DRA-BARE-COPPER-WIRE-93 | Pg 93
Copper
LANKABLE Bare Copper Wire
Hard-drawn / soft / concentric-lay-stranded copper conductor; aerial power transmission, grounding.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓99.97% high-purity electrolytic grade copper
- ✓Uniform conductor gauge and diameter tolerances
- ✓High electrical conductivity exceeding 101% IACS
- ✓Annealed soft temper for outstanding winding flexibility
Applications
Industrial rewinding coilsGrounding / Earth strapsCabling conductors core fabricationAppliance wiring pins
Dimension Characteristics
| Wire Diameter | Nominal Weight | Electrical Conductivity | Tensile Strength |
|---|---|---|---|
| 0.15 mm | 0.157 kg per 1000m | 100% IACS | 220-250 N/mm² |
| 0.20 mm (Recommended) | 0.279 kg per 1000m | 100% IACS | 220-250 N/mm² |
Technical Data & Approvals
Materials & Physical Properties
- Copper Grade
- ETP Grade
- Purity
- Min 99.97% Pure Copper
- Hardness State
- Soft Annealed
- Tensile Strength
- 200 - 250 N/mm²
Electrical Parameters & Compliance
- Conductivity
- ≥ 101.5% IACS
- Resistivity @ 20°C
- 0.017241 Ω·mm²/m
- Global Standards
- ASTM B3, BS EN 13602, IS 8130
- RoHS & REACH
- 100% Compliant
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 93
LANKABLEWIRE & CABLE SYSTEMS
Copper
DS-DRA-TINNED-COPPER-WIRE-94 | Pg 94
Copper
LANKABLE Tinned Copper Wire
Copper wire coated with tin layer for corrosion resistance and improved solderability.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓99.97% high-purity electrolytic grade copper
- ✓Uniform conductor gauge and diameter tolerances
- ✓High electrical conductivity exceeding 101% IACS
- ✓Annealed soft temper for outstanding winding flexibility
Applications
Industrial rewinding coilsGrounding / Earth strapsCabling conductors core fabricationAppliance wiring pins
Dimension Characteristics
| Wire Diameter | Nominal Weight | Electrical Conductivity | Tensile Strength |
|---|---|---|---|
| 0.15 mm | 0.157 kg per 1000m | 100% IACS | 220-250 N/mm² |
| 0.20 mm (Recommended) | 0.279 kg per 1000m | 100% IACS | 220-250 N/mm² |
Technical Data & Approvals
Materials & Physical Properties
- Copper Grade
- ETP Grade
- Purity
- Min 99.97% Pure Copper
- Hardness State
- Soft Annealed
- Tensile Strength
- 200 - 250 N/mm²
Electrical Parameters & Compliance
- Conductivity
- ≥ 100% IACS
- Resistivity @ 20°C
- 0.017241 Ω·mm²/m
- Global Standards
- ASTM B3, BS EN 13602, IS 8130
- RoHS & REACH
- 100% Compliant
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 94
LANKABLEWIRE & CABLE SYSTEMS
Copper
DS-DRA-BUNCHED-COPPER-WIRE-95 | Pg 95
Copper
LANKABLE Bunched Copper Wire
Copper wire coated with a thin layer of tin to enhance corrosion resistance and solderability in electrical/marine applications.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓99.97% high-purity electrolytic grade copper
- ✓Uniform conductor gauge and diameter tolerances
- ✓High electrical conductivity exceeding 101% IACS
- ✓Annealed soft temper for outstanding winding flexibility
Applications
Industrial rewinding coilsGrounding / Earth strapsCabling conductors core fabricationAppliance wiring pins
Dimension Characteristics
| Wire Diameter | Nominal Weight | Electrical Conductivity | Tensile Strength |
|---|---|---|---|
| 0.15 mm | 0.157 kg per 1000m | 100% IACS | 220-250 N/mm² |
| 0.20 mm (Recommended) | 0.279 kg per 1000m | 100% IACS | 220-250 N/mm² |
Technical Data & Approvals
Materials & Physical Properties
- Copper Grade
- ETP Grade
- Purity
- Min 99.97% Pure Copper
- Hardness State
- Soft Annealed
- Tensile Strength
- 200 - 250 N/mm²
Electrical Parameters & Compliance
- Conductivity
- ≥ 101.5% IACS
- Resistivity @ 20°C
- 0.017241 Ω·mm²/m
- Global Standards
- ASTM B3, BS EN 13602, IS 8130
- RoHS & REACH
- 100% Compliant
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 95
LANKABLEWIRE & CABLE SYSTEMS
Wire Harness
DS-SPE-WIRE-HARNESS-CUSTOM-DIVISION-96 | Pg 96
Wire Harness
LANKABLE Wire Harness (Custom Division)
Organized assembly of wires, cables, connectors & terminals; automotive, aerospace, industrial, consumer electronics.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Class 5/6 flexible conductor stranding for dynamic bending
- ✓Excellent resistance to oils, chemicals, and industrial acids
- ✓High shielding coverage for superior noise suppression
- ✓Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 96
LANKABLEWIRE & CABLE SYSTEMS
Power Cords
DS-POW-POWER-CORDS-CUSTOM-DIVISION-97 | Pg 97
Power Cords
LANKABLE Power Cords (Custom Division)
Electrical cables that safely connect appliances to power sources.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓High dielectric insulation strength
- ✓Corrosion-resistant copper/aluminum conductors
- ✓Self-extinguishing, flame-retardant outer sheathing
- ✓Designed to carry high current loads with minimum power loss
Applications
Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 97
LANKABLEWIRE & CABLE SYSTEMS
Coaxial Cable
DS-COP-RG-6-COAXIAL-CABLE-98 | Pg 98
Coaxial Cable
LANKABLE RG-6 Coaxial Cable
RG-6 coaxial cable for television, satellite, CCTV and broadband distribution. Construction options are selected against the required impedance, shielding and installation environment.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Coaxial construction: centre conductor, dielectric, shield and outer jacket
- ✓Solid copper conductor option available for specified applications
- ✓Shielding and jacket construction selected against project requirements
- ✓PVC jacket standard option; custom construction subject to technical review
Applications
Television distributionSatellite installationsCCTV systemsBroadband distribution
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 98
LANKABLEWIRE & CABLE SYSTEMS
Coaxial Cable - CCA
DS-COP-RG-6-CCA-COAXIAL-CABLE-99 | Pg 99
Coaxial Cable - CCA
LANKABLE RG-6 CCA Coaxial Cable
RG-6 coaxial cable with a Copper Clad Aluminium (CCA) centre conductor option for selected cost-sensitive applications. CCA is clearly identified so it is not confused with solid copper construction.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Copper Clad Aluminium (CCA) centre conductor
- ✓Cost-effective option for selected applications
- ✓Copper and CCA have different resistance and conductivity characteristics
- ✓Shielding and jacket construction selected against project requirements
Applications
Television distributionSatellite installationsSelected CCTV systemsCost-sensitive distribution projects
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation
- High-Density Polyethylene (HDPE)
- Bend Radius (Fixed)
- 4 x OD
- Temp Range
- -20°C to +70°C
Electrical Parameters & Compliance
- Bandwidth
- 100 MHz
- Impedance
- 100 ± 15 Ω
- Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 99
LANKABLEWIRE & CABLE SYSTEMS
Multicore Power Cable
DS-POW-3-PLUS-1-POWER-CONTROL-CABLE-100 | Pg 100
Multicore Power Cable
LANKABLE 3 + 1 Power & Control Cable
A 3 + 1 construction contains three primary power cores and one additional core. The additional core can be specified as an earth, neutral or control core according to the approved cable design.
Product Build Up (Schematics)
Visual Render
Sheathing
CAD Cross-Section
Internal Core
Conductor Detail
Conductor Gauge
Product Features
- ✓Three primary cores plus one additional specified core
- ✓Copper or aluminium conductor options subject to project requirement
- ✓PVC insulation and sheath standard option
- ✓Core size, identification and construction confirmed at enquiry
Applications
Power distributionEquipment and machine connectionsControl and auxiliary circuitsProject-specific installations
Technical Data & Approvals
Materials & Physical Properties
- Conductor
- Class 2 Stranded Bare Copper
- Insulation
- PVC / XLPE Insulation
- Bend Radius (Fixed)
- 12 x OD
- Flame Retardancy
- IEC 60332-1-2
Electrical Parameters & Compliance
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Certifications
- CE, RoHS Compliant, ISO 9001
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 100
LANKABLEWIRE & CABLE SYSTEMS
Get In Touch
Let's Connect
Thank You.
For technical datasheets, bulk pricing quotes, custom wire configurations, or dealer documentation, reach out to our engineering sales division.
Address
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Phone
+91 99500 52179
sales@lankable.com
Website
www.lankable.com
CE compliantRoHS certifiedISO 9001
Scan to view online catalog & details
