LANKABLE 3 Core Submersible Flat Cable, HR PVC Insulated 85°C
PVC insulated and sheathed 3 core flat cables mainly used in pump connections and industrial applications.

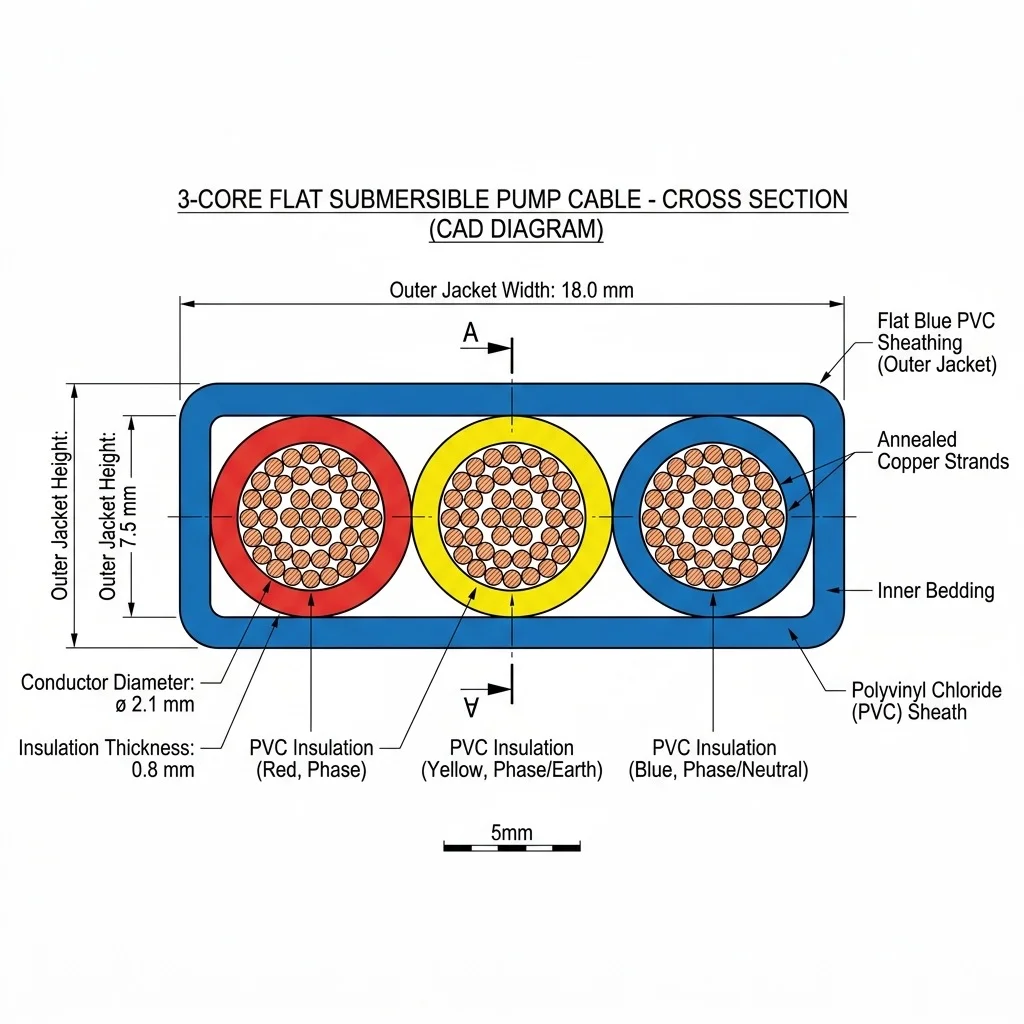

External Sheathing

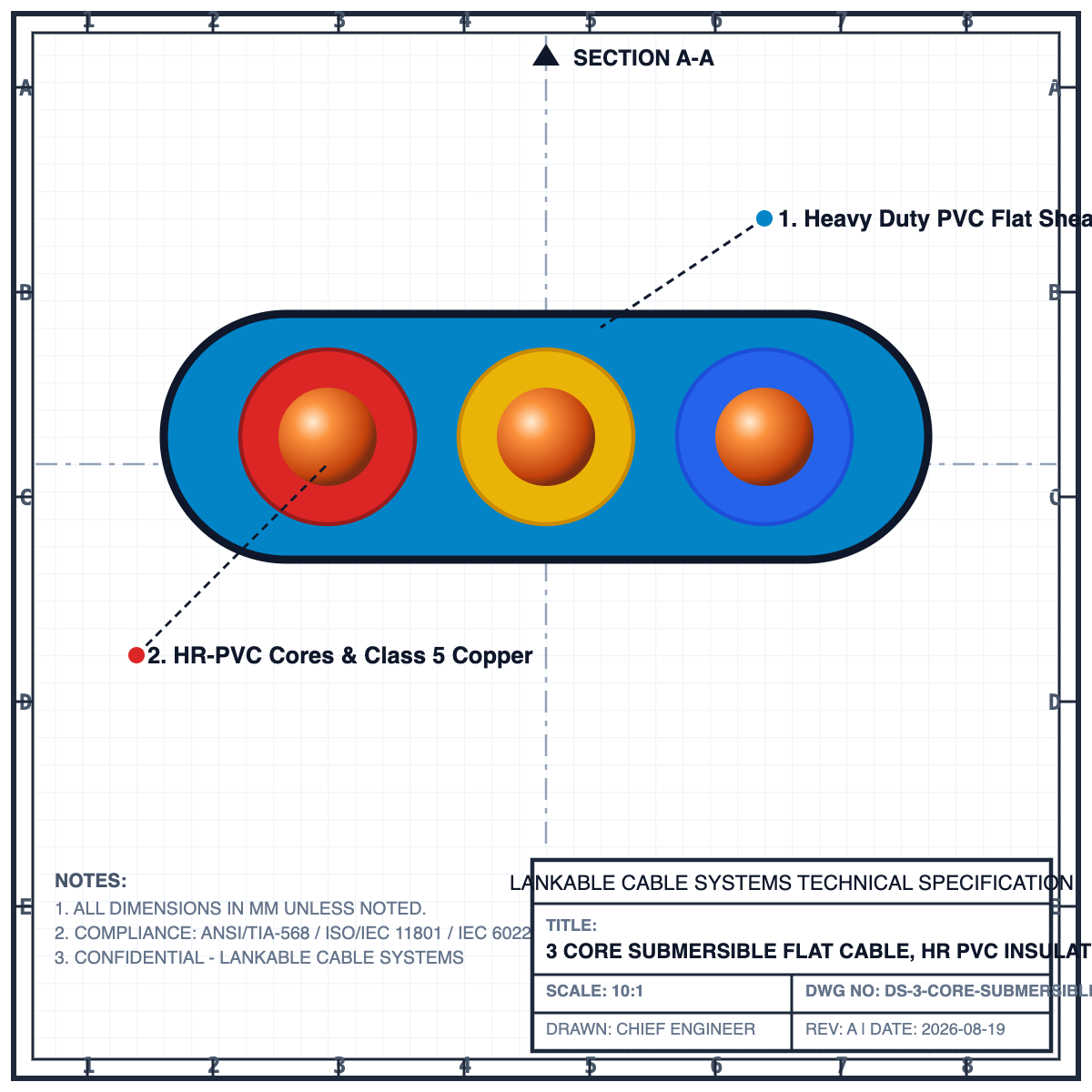

Internal Core Layout
Metallurgy Gauge
Key Features
- •High dielectric insulation strength
- •Corrosion-resistant copper/aluminum conductors
- •Self-extinguishing, flame-retardant outer sheathing
- •Designed to carry high current loads with minimum power loss
Applications
- ✓Residential building electrification
- ✓Power sub-station grids
- ✓Heavy machine electricity feeds
- ✓Outdoor streetlighting grids
Conductor Sizing & Structural Options
| Core Configuration | Nominal Area | Current Rating | Nominal Outer Dimensions |
|---|---|---|---|
| 3 Core Flat | 1.5 sq mm | 16 Amps | 5.0 mm x 11.2 mm |
| 3 Core Flat (Recommended) | 2.5 sq mm | 22 Amps | 5.8 mm x 13.0 mm |
| 3 Core Flat | 4.0 sq mm | 29 Amps | 6.6 mm x 15.2 mm |
| 3 Core Flat | 6.0 sq mm | 37 Amps | 7.5 mm x 17.5 mm |
Detailed Engineering Specifications
Materials & Construction
- Conductor Metallurgy
- Class 5 High-Conductivity Flexible Bare Copper
- Insulation Compound
- FR-PVC (Flame Retardant PVC)
- Flame Retardant Properties
- Self-extinguishing FR Grade
- Core Identification
- Red, Yellow, Blue, Black, Green/Yellow (Earth)
- Sheath Material
- None (Single Core)
Electrical Properties
- Voltage Rating (Uo/U)
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC for 5 minutes
- Insulation Resistance
- > 100 MΩ·km @ 20°C
- Max. Operating Temp
- 70°C (Continuous)
- Max. Short Circuit Temp
- 160°C (for PVC) / 250°C (for XLPE)
Mechanical & Thermal
- Bending Radius (Fixed)
- 6 x Outer Diameter
- Bending Radius (Flexing)
- 10 x Outer Diameter
- Abrasion Resistance
- Excellent
- Toxicity Index
- N/A
- Oxygen & Temp Index
- Oxygen Index > 21%
Standards & Compliance
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1, IS 10810 (Part 53)
- Certifications
- CE, RoHS Compliant, ISO 9001:2015
- Quality Seal
- 100% Spark Tested & Verified
Quality Assurance Seal
100% In-house Tested & Certified
Every batch is scanned on high-frequency network analyzers & stress chambers.
