MOQ: 1,000 MetersLANKABLE 3 Core Submersible Flat Cable, XLPE/PVC Insulated
Mainly used in submersible water pump connection; also industrial applications.

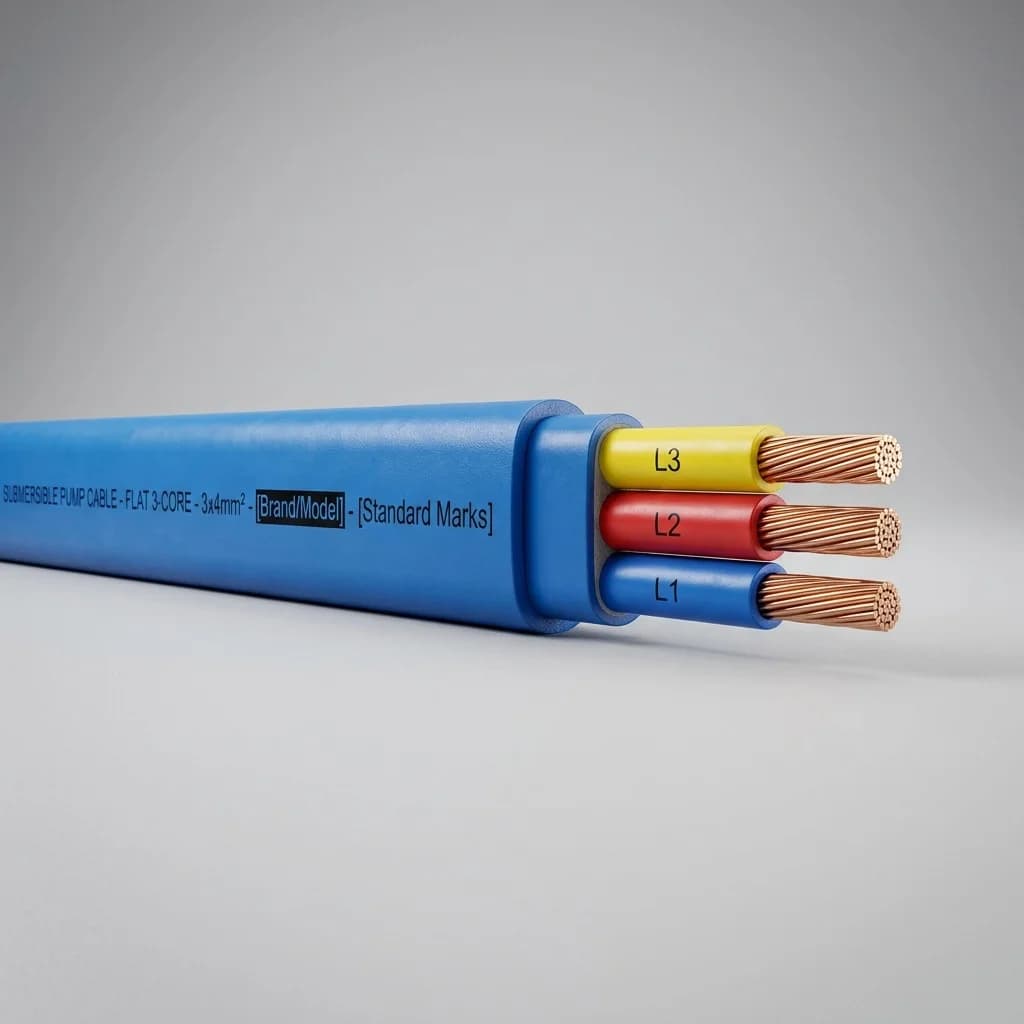

Visual Render
External Sheathing & Lay Layout

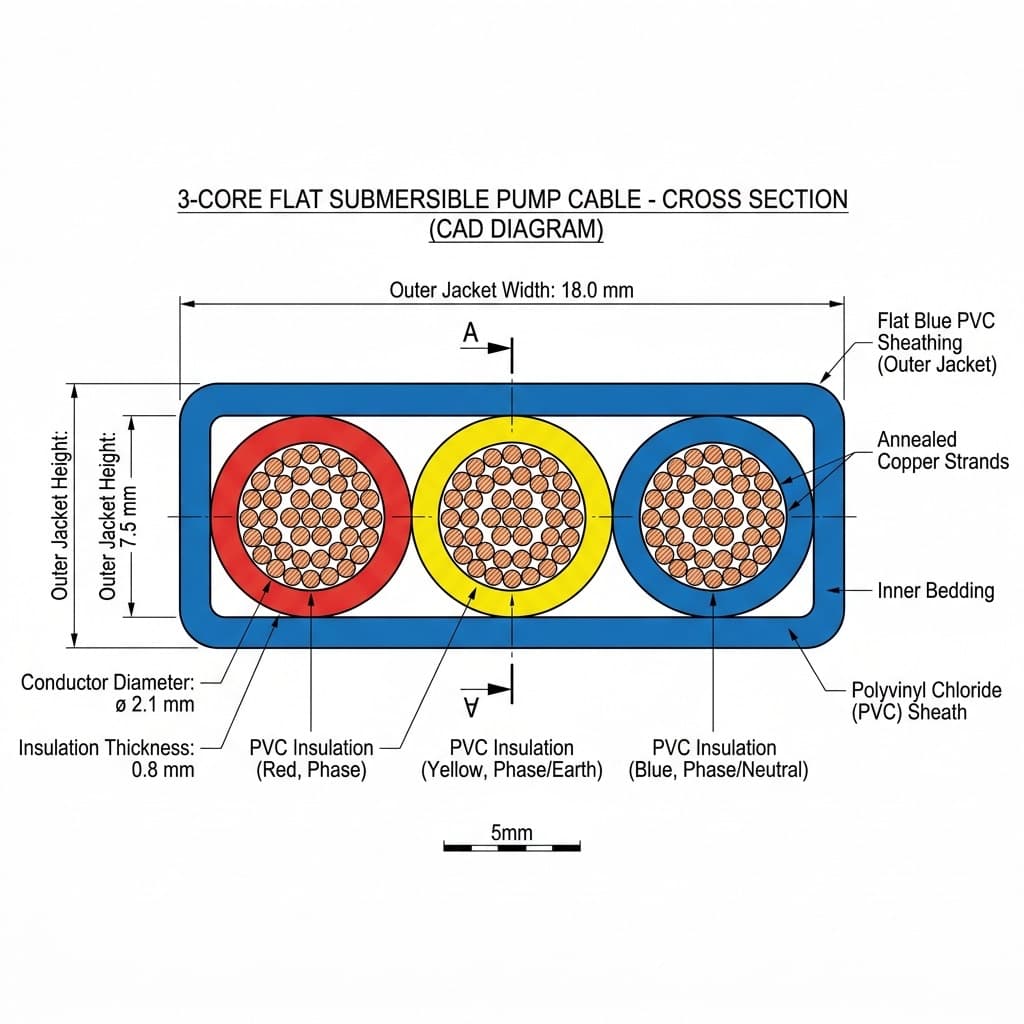

CAD Cross-Section
Internal Shielding & Core Layout
Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- High dielectric insulation strength
- Corrosion-resistant copper/aluminum conductors
- Self-extinguishing, flame-retardant outer sheathing
- Designed to carry high current loads with minimum power loss
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Flexible Class 5 Bare Copper
- Insulation
- Flame-Retardant PVC (FR-PVC)
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
- Voltage Rating
- 1100 V (1.1 kV)
- Temperature Range
- -15°C to +70°C
- Voltage Grade
- 1100V
- Core Configuration
- 3 Core Flat
- Conductor Size
- 2.5 sq mm
- Current Rating
- 22 Amps
- Nominal Dimensions
- 5.8 mm x 13.0 mm
