MOQ: 1,000 MetersLANKABLE Armored Outdoor Fiber Optic Cable
Double-jacketed steel armored loose tube fiber optic cable designed for campus backbones and direct burial ISP infrastructure.

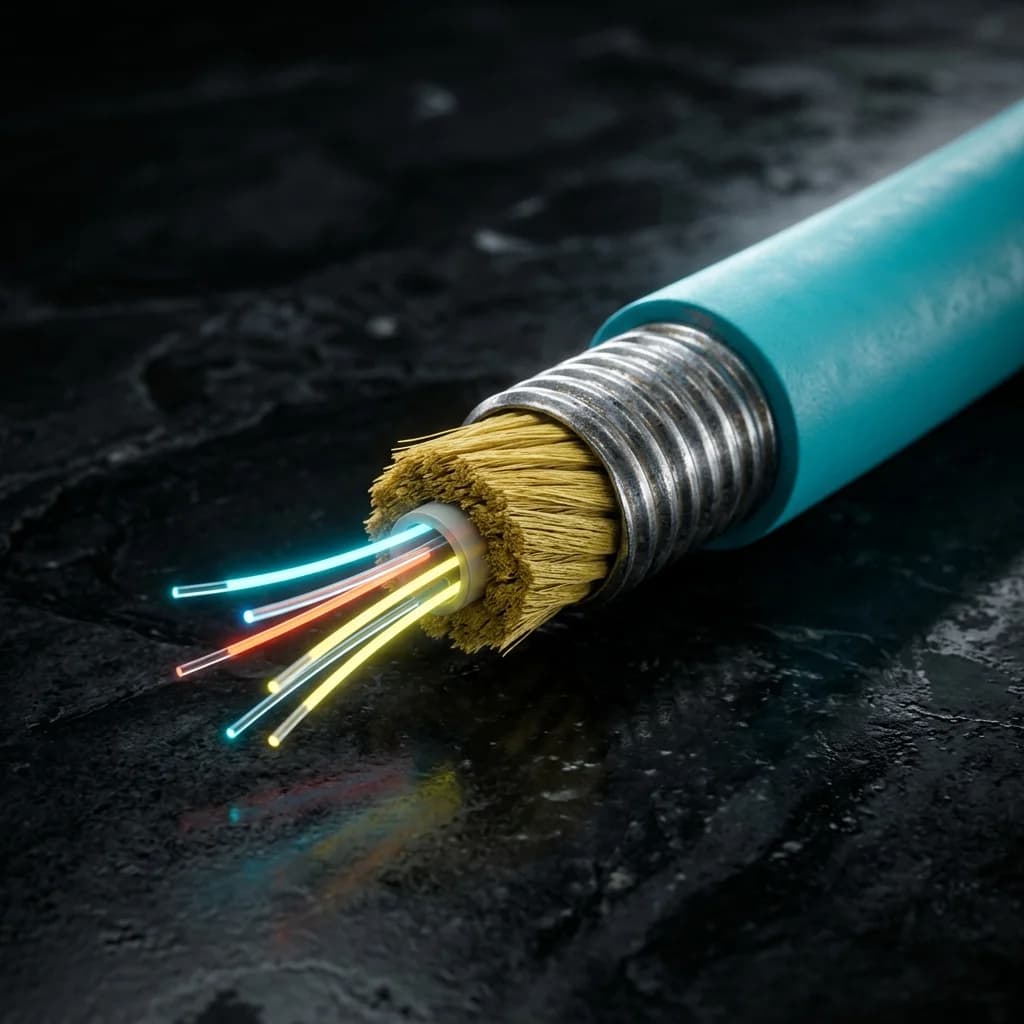

Visual Render
External Sheathing & Lay Layout

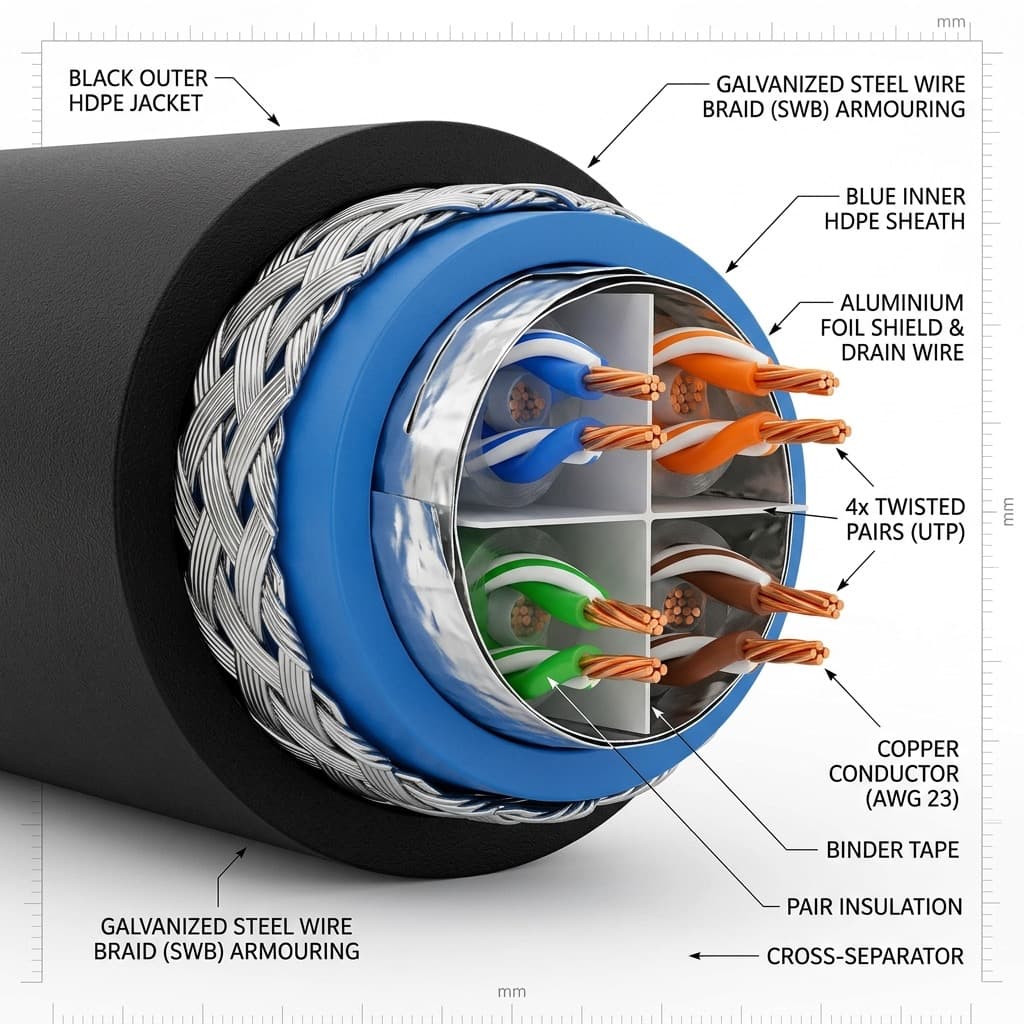

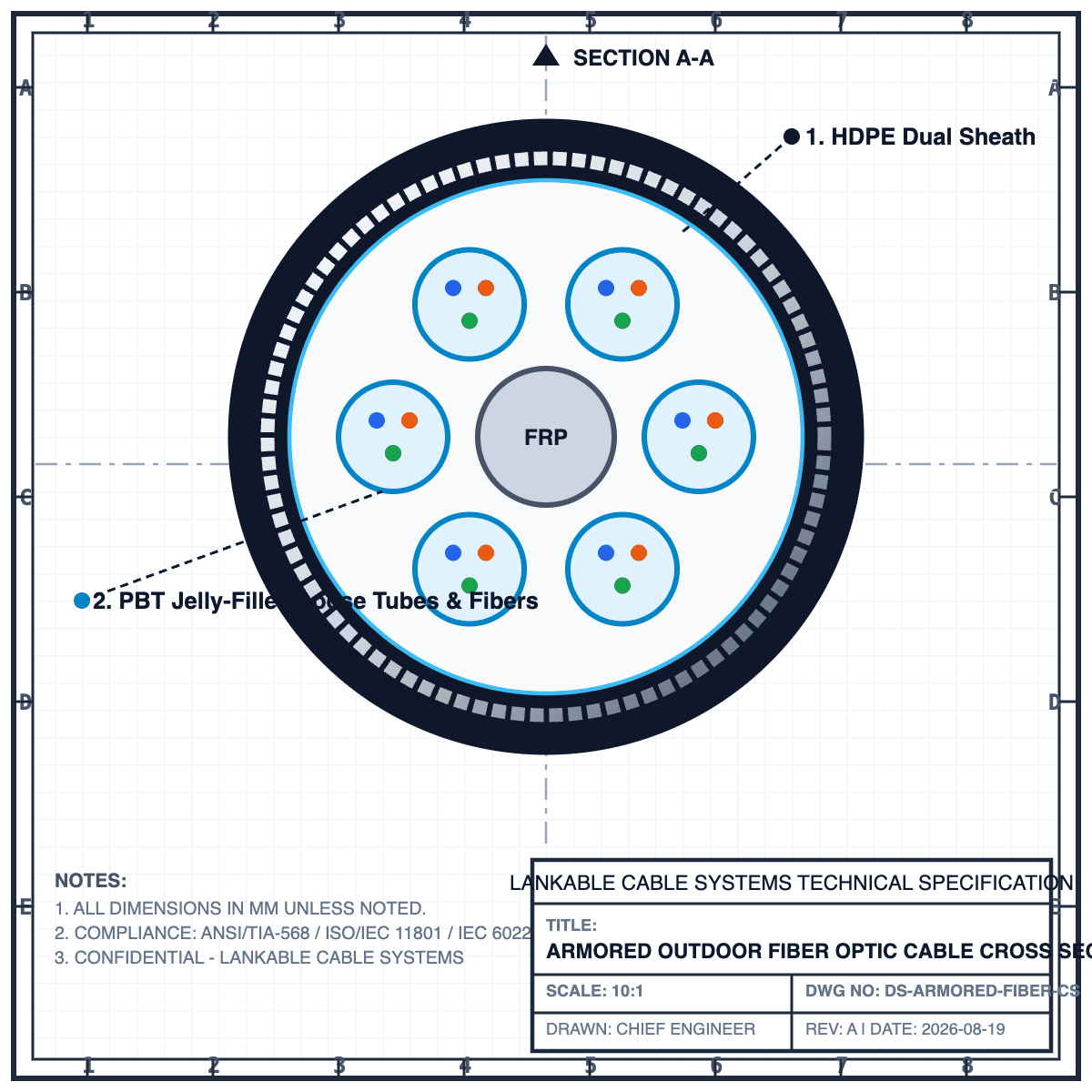

CAD Cross-Section
Internal Shielding & Core Layout
Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- Double HDPE sheath with steel tape armor layers
- Gel-filled loose tubes for moisture resistance
- High tensile steel central strength member
- Operating range -40°C to +70°C
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Fiber Type
- OS2 Single-Mode
- Core Count
- 24 Cores
- Armoring
- Double Steel Tape
- Outer Sheath
- HDPE Dual Sheath
- MOQ Quantity
- 1,000 Meters
- Nominal Outer Diameter
- 9.8 mm
- Max Tensile Strength
- 1500 N
- Min Bend Radius (Installation)
- 200 mm
Factory Inquiry & RFQ
Request Factory Quotation
Add items to your inquiry list to build a custom bulk quotation request with volume-based tier discounts.
