MOQ: 2,000 MetersLANKABLE Armoured FTP Cable
Foil shielded armoured Cat 6 cable featuring a steel tape armour core. Protects the internal data conductors from heavy mechanical compression and chemical exposure.

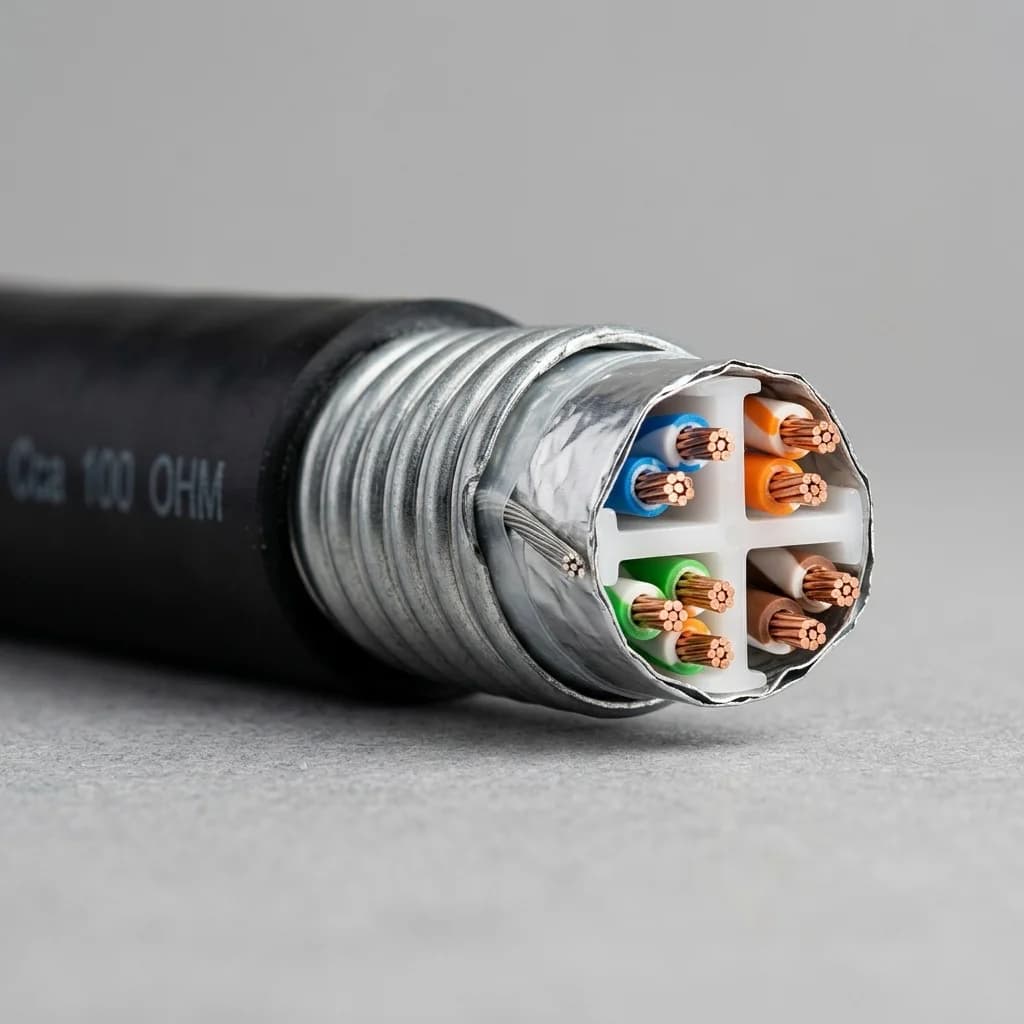

Visual Render
External Sheathing & Lay Layout

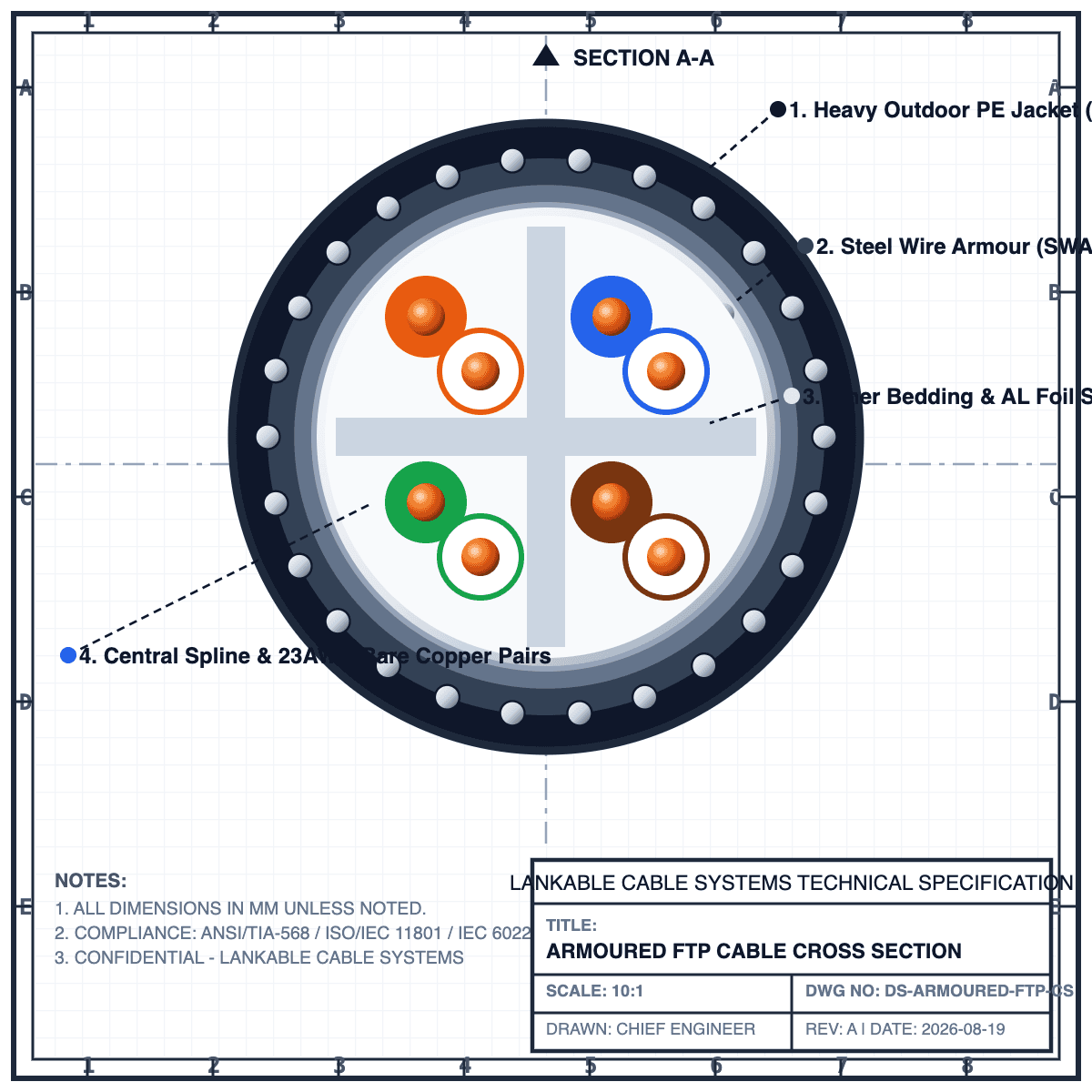

CAD Cross-Section
Internal Shielding & Core Layout

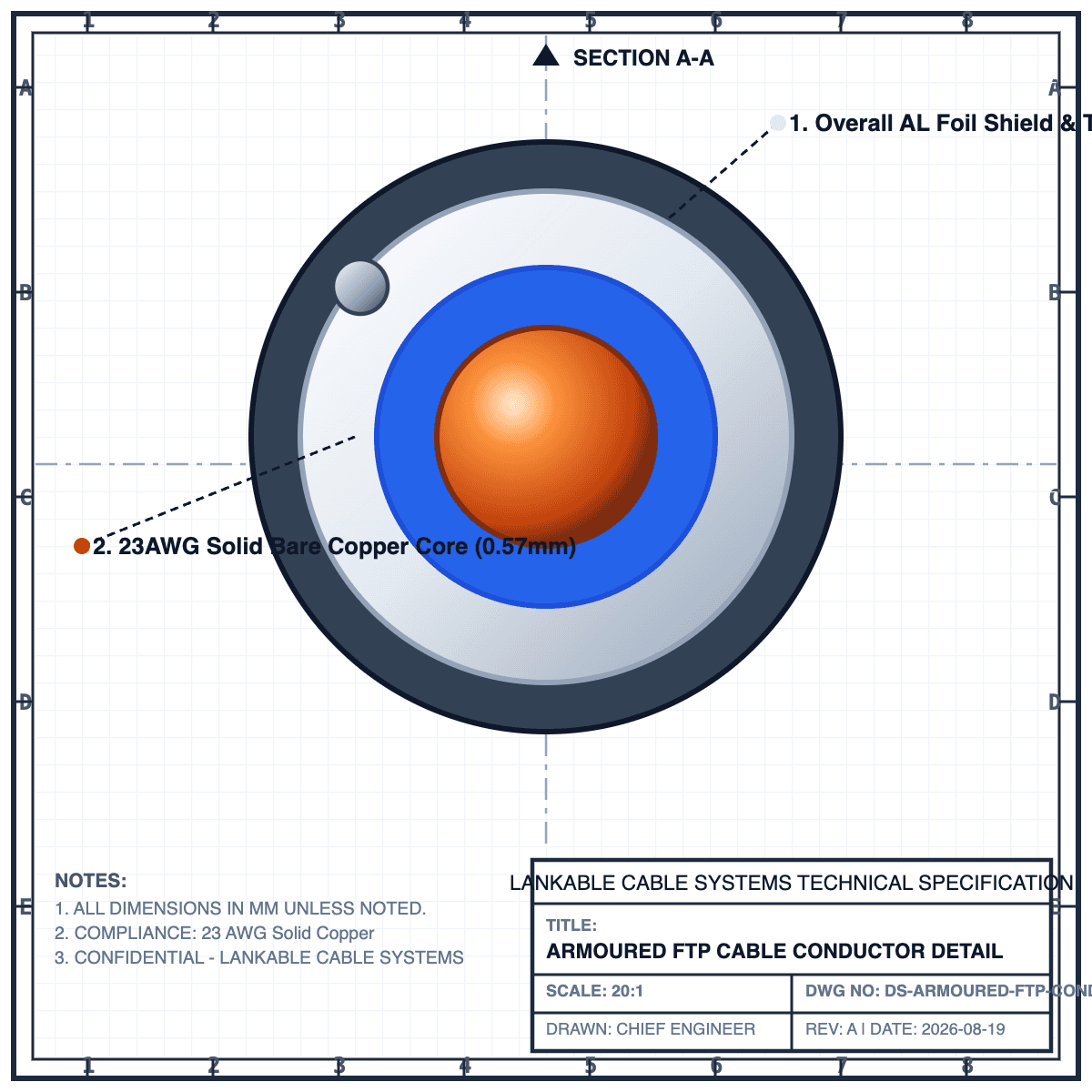

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid copper conductors
- Corrugated steel tape armouring
- Continuous aluminum foil shield wrap with drain wire
- Double HDPE outer jacket
- MOQ: 2,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Armour
- Corrugated Steel Tape
- Shielding
- F/UTP (Foil Shielded)
- Crush Resistance
- 2,500 N / 100mm
- MOQ Quantity
- 2,000 Meters
- Temperature Range
- -40°C to +80°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
