MOQ: 2,000 MetersArmoured SFTP Cable
Double-shielded, galvanized steel wire braided (SWB) armoured Category 6 cable. Engineered to withstand extreme mechanical stress, crush forces, and rodent damage.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures
External Sheathing & Lay Layout

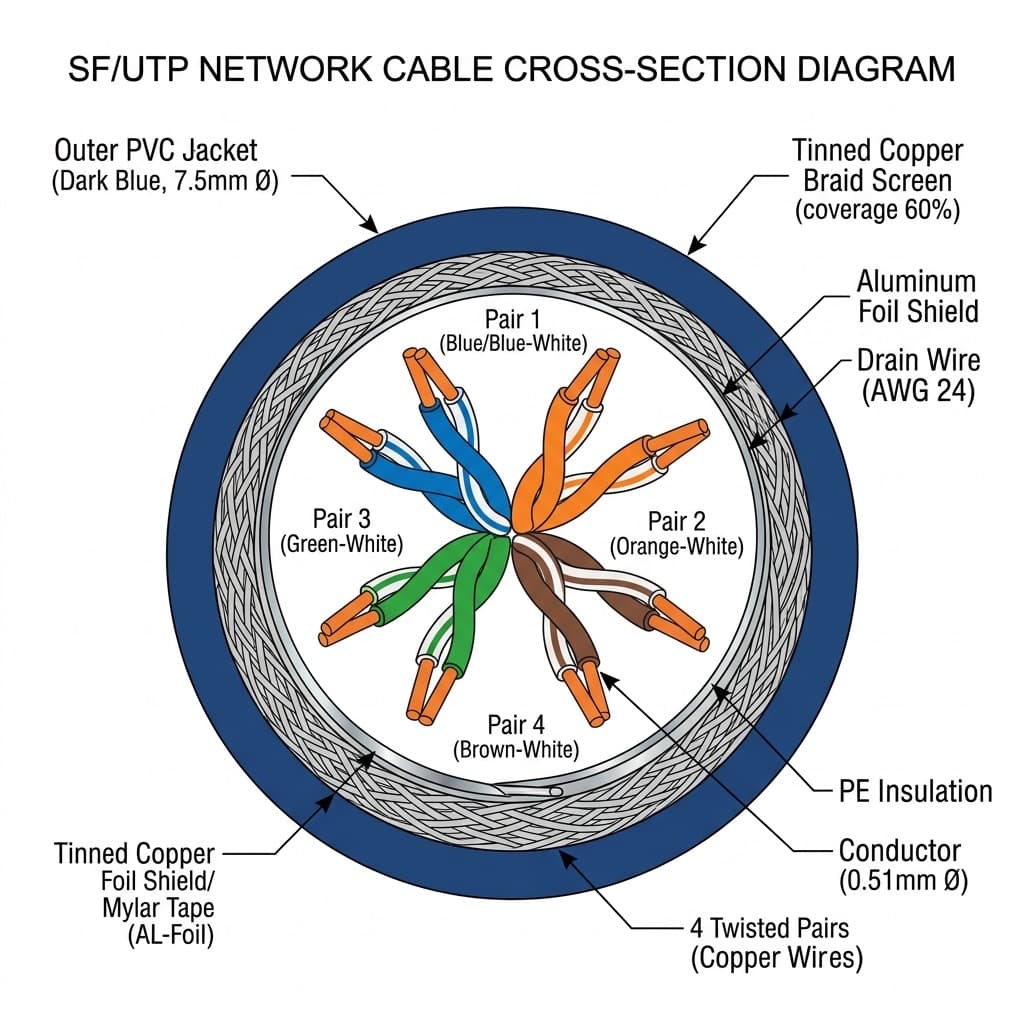

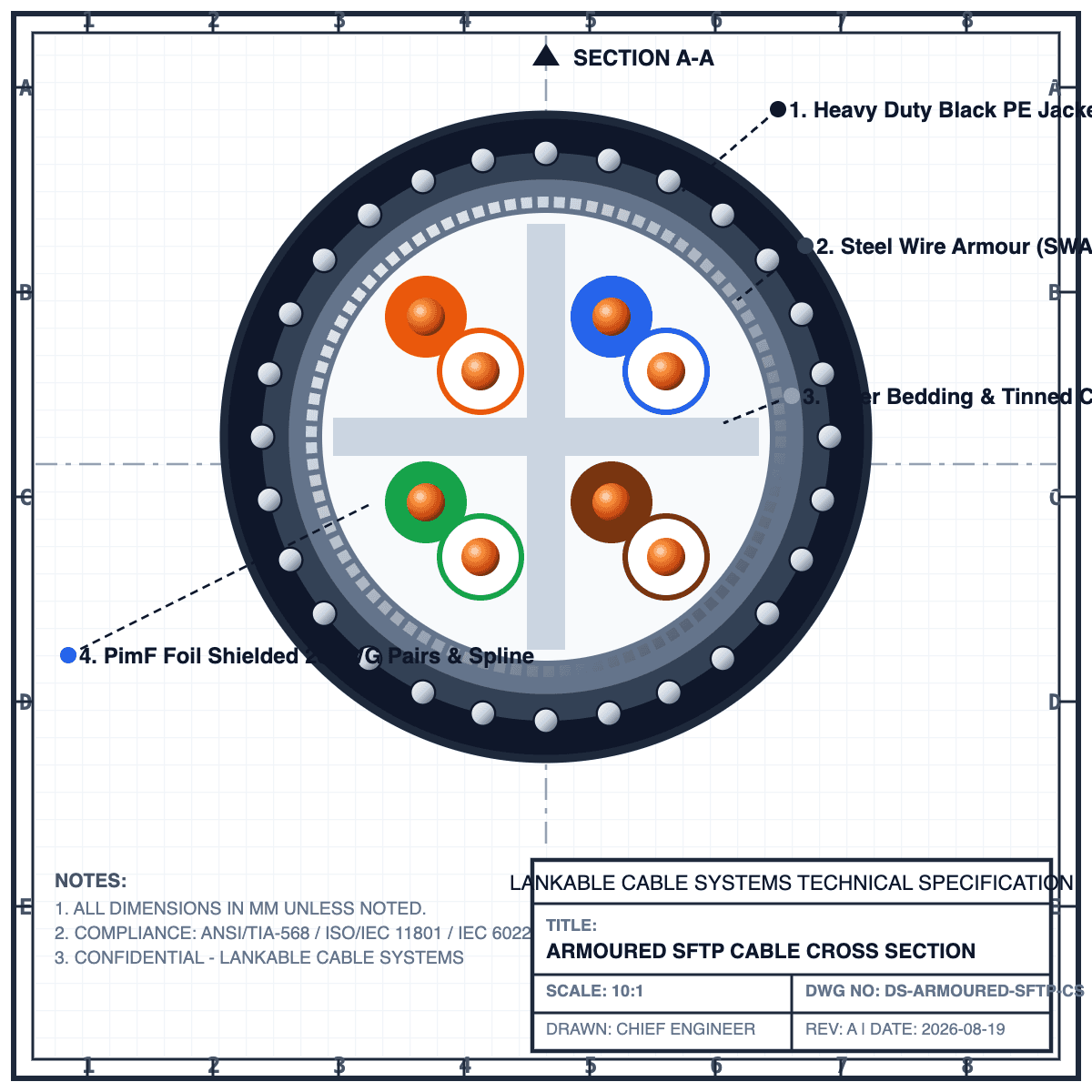

Internal Shielding & Core Layout

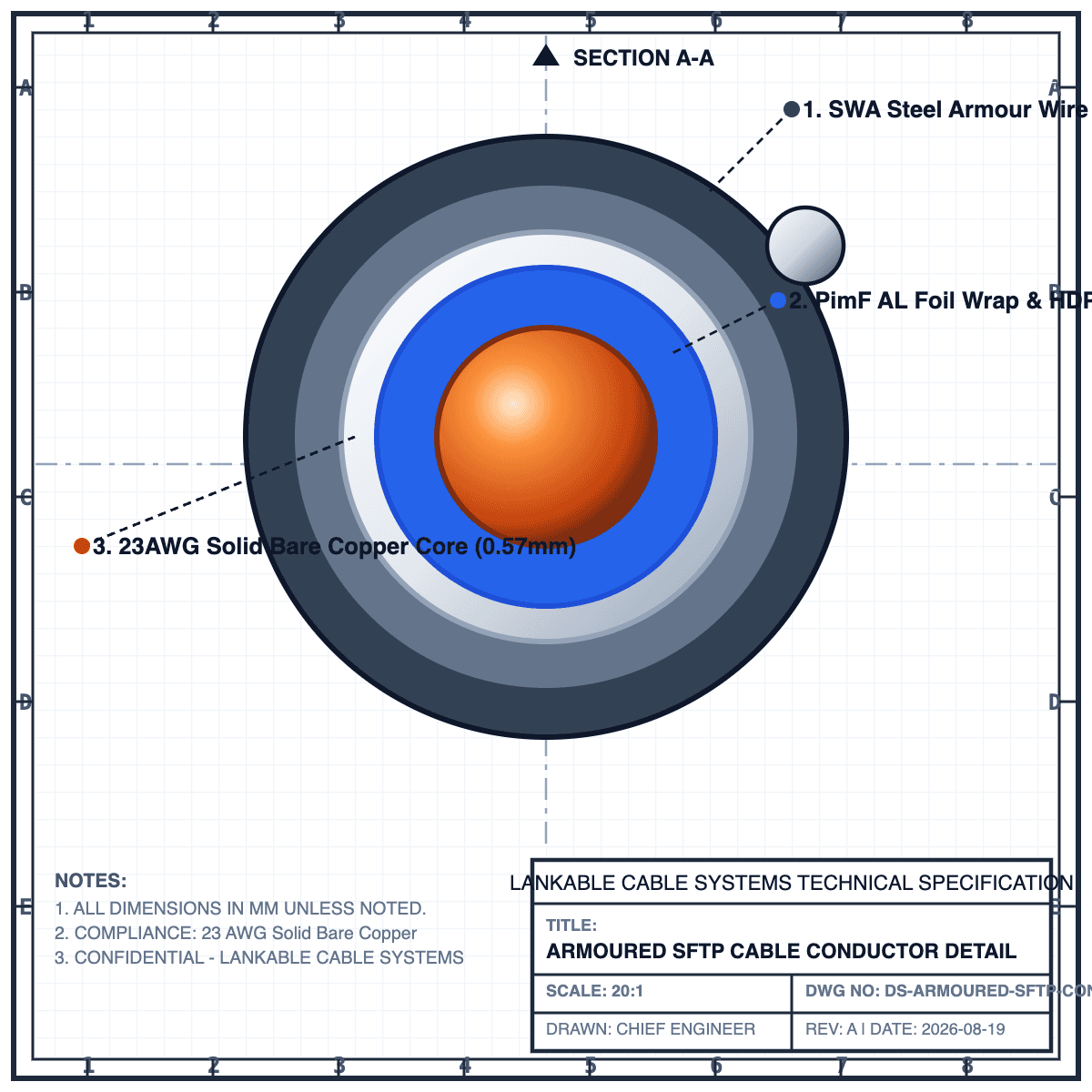

Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid bare copper
- Galvanized steel wire armouring
- Overall tinned copper braid + aluminum foil shield
- Heavy duty double HDPE/LSZH jacket
- MOQ: 2,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Armour
- Galvanized Steel Wire Braid (SWB)
- Shielding
- SF/UTP Double Shielded
- Crush Resistance
- 3,000 N / 100mm
- MOQ Quantity
- 2,000 Meters
- Temperature Range
- -40°C to +85°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
