MOQ: 2,000 MetersLANKABLE Armoured UTP Cable
Steel tape armoured unshielded twisted pair Cat 6 cable. Provides strong mechanical and rodent protection without shielding requirements.

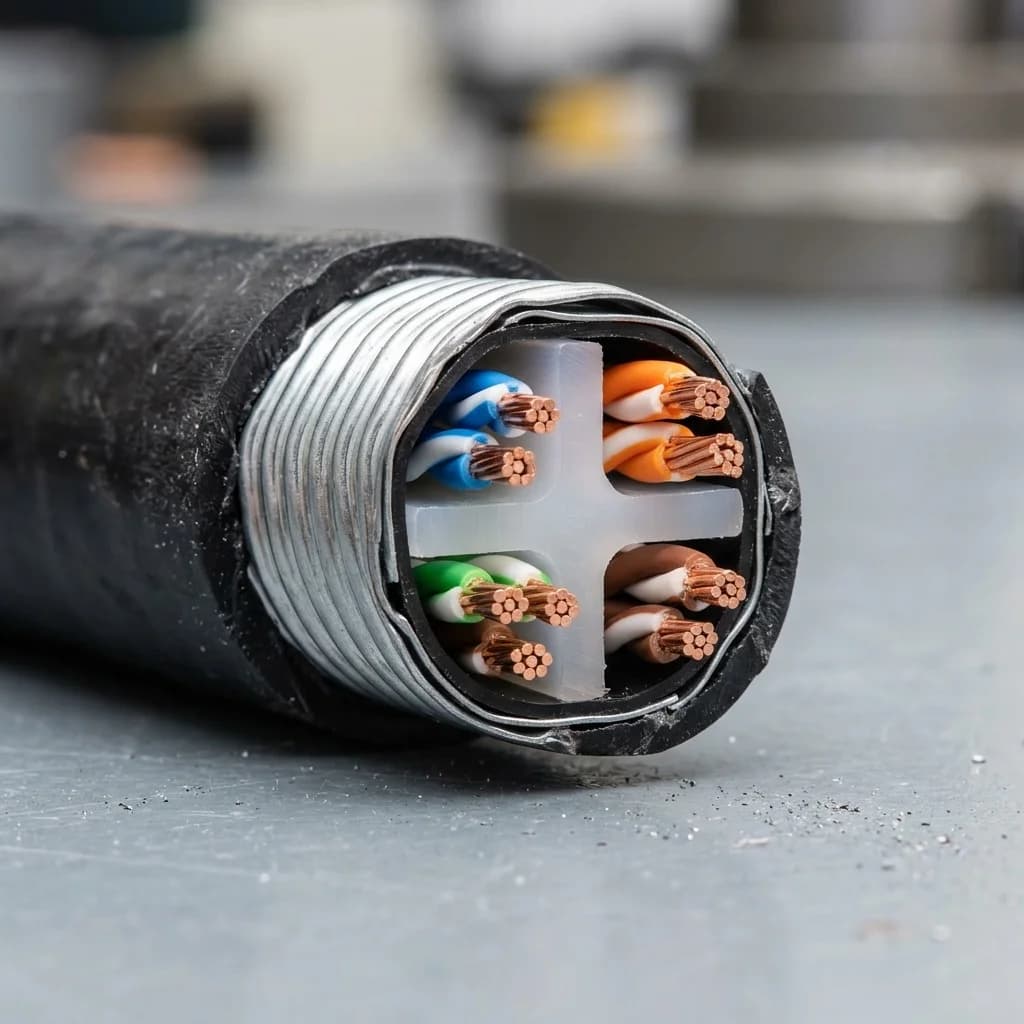

Visual Render
External Sheathing & Lay Layout

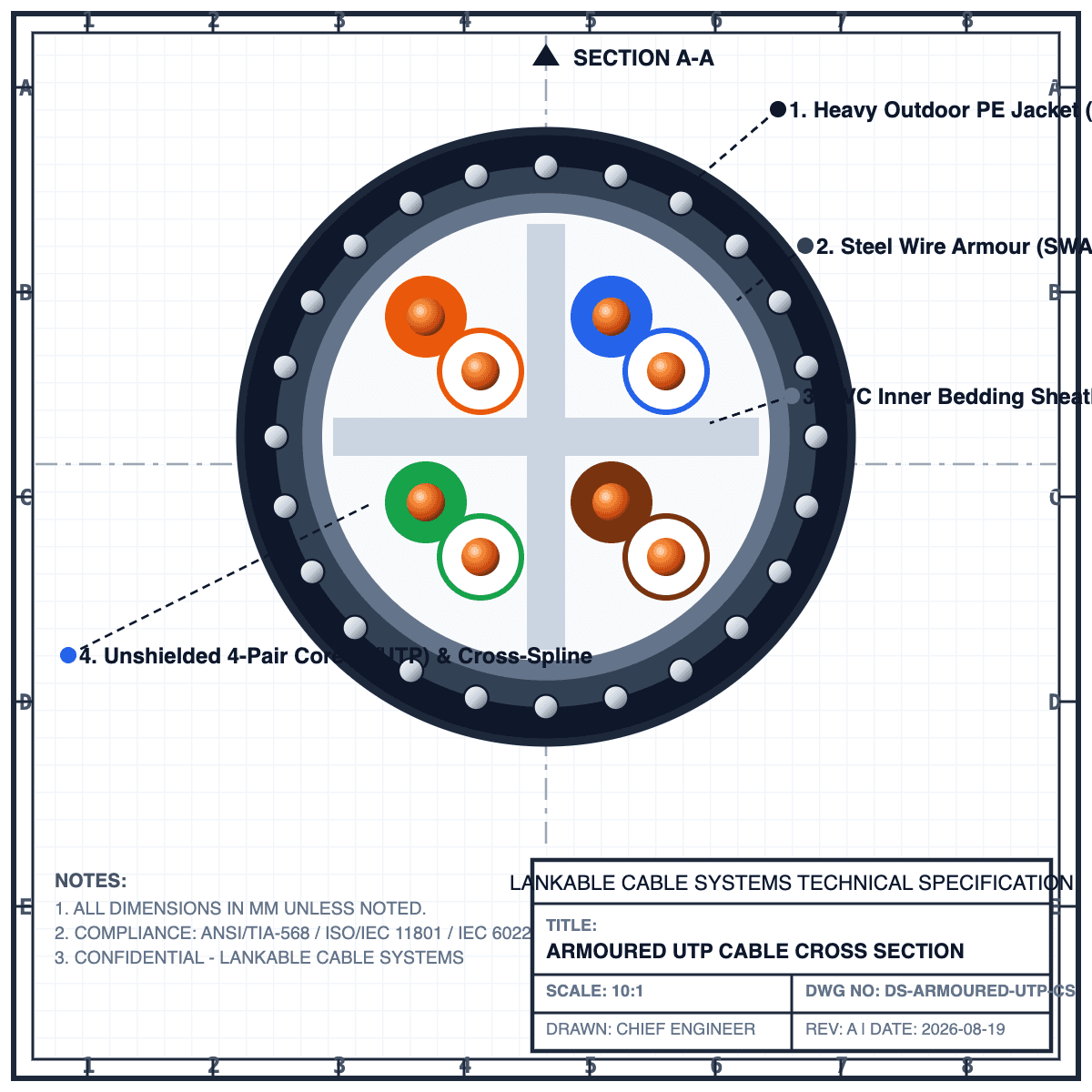

CAD Cross-Section
Internal Shielding & Core Layout

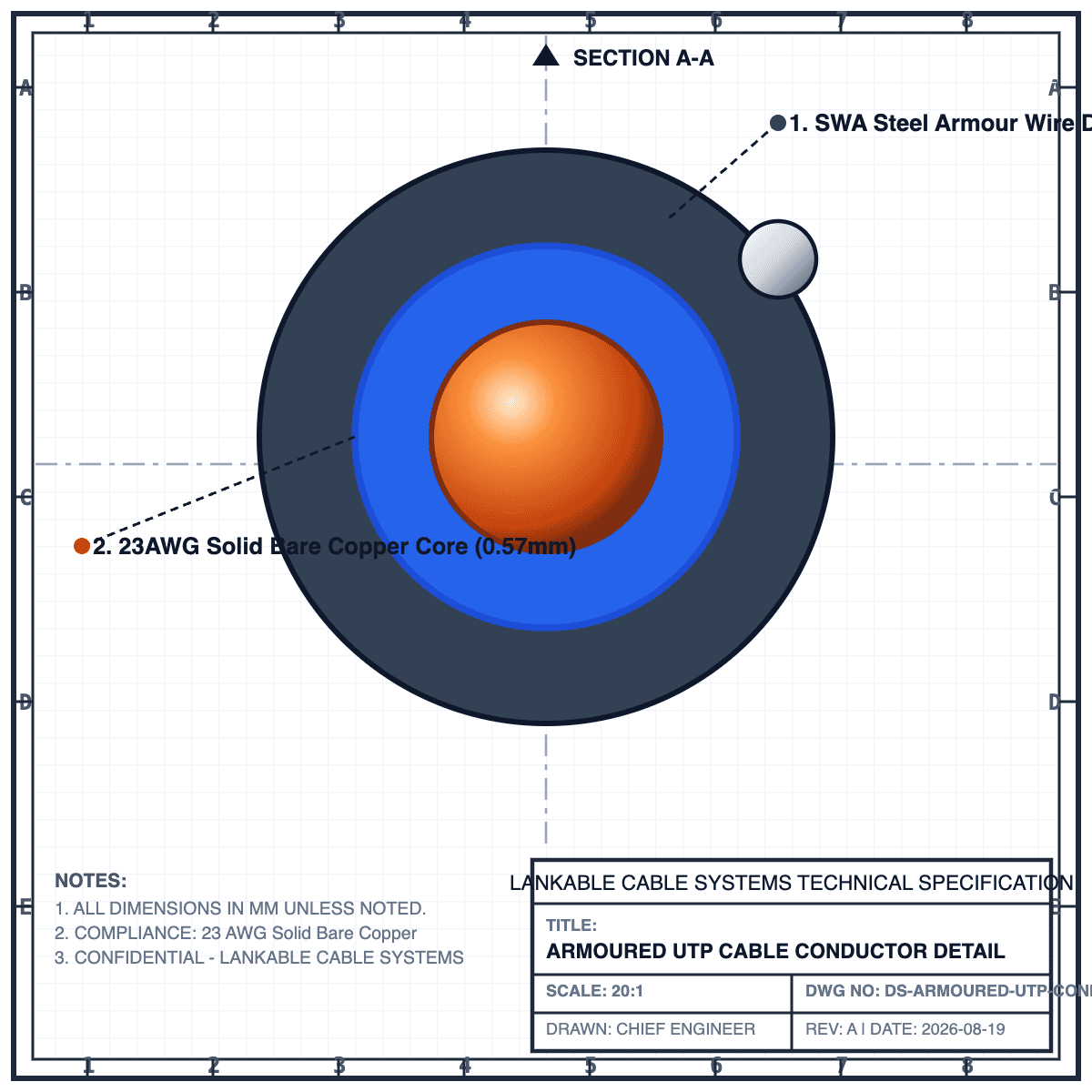

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid bare copper
- Corrugated steel tape armour layer
- Internal spline pair separator
- Double HDPE outer jacket
- MOQ: 2,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Armour
- Corrugated Steel Tape
- Shielding
- U/UTP (Unshielded)
- Crush Resistance
- 2,000 N
- MOQ Quantity
- 2,000 Meters
- Temperature Range
- -30°C to +75°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
Factory Inquiry & RFQ
Request Factory Quotation
Add items to your inquiry list to build a custom bulk quotation request with volume-based tier discounts.
