LANKABLE AV
DS-IND-AV-01 | REV 2026
UL 2835
LANKABLE
High-Performance Wire & Cable Systems
Technical Datasheet
DS-IND-AV-01
Revision: 2026.07
Automotive Cable Single Core
LANKABLE AV
Wire harness of low-tension electric circuits for automobiles.

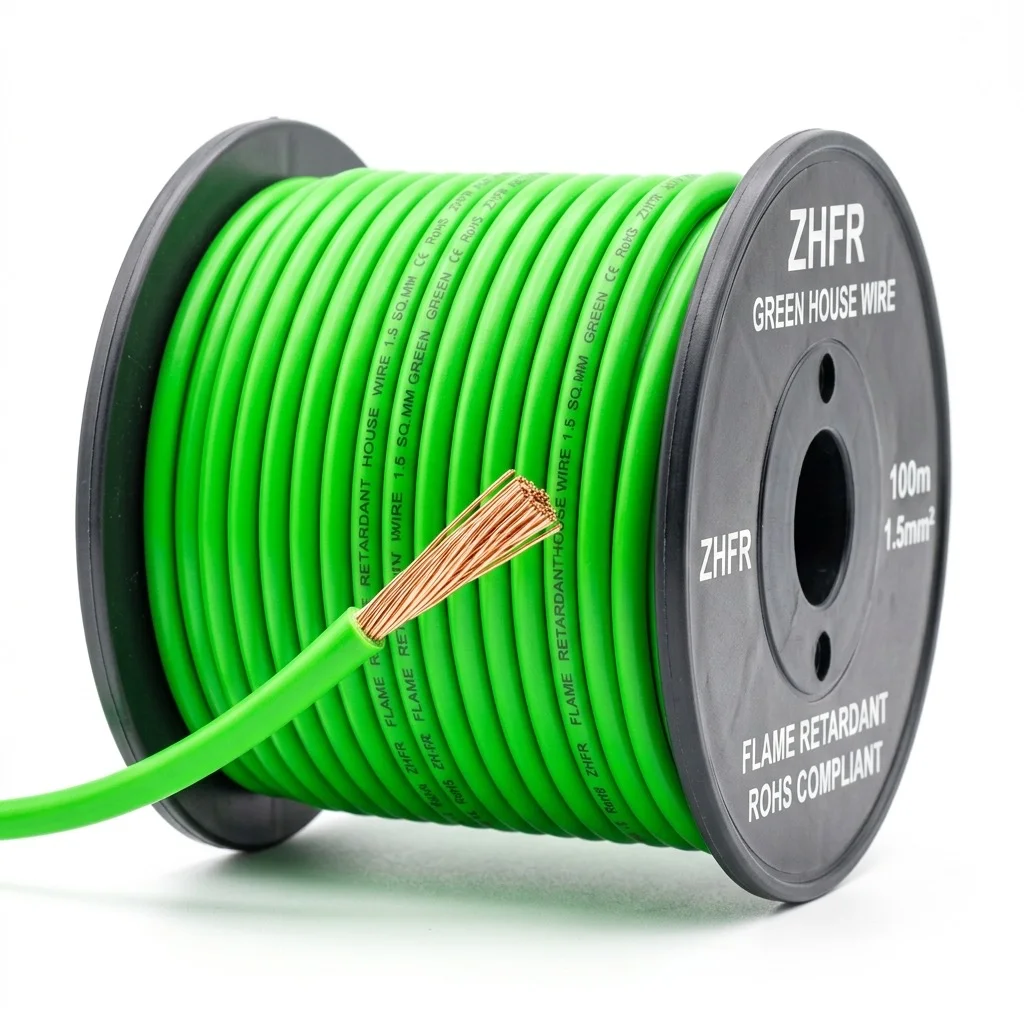

Visual Render
External Sheathing

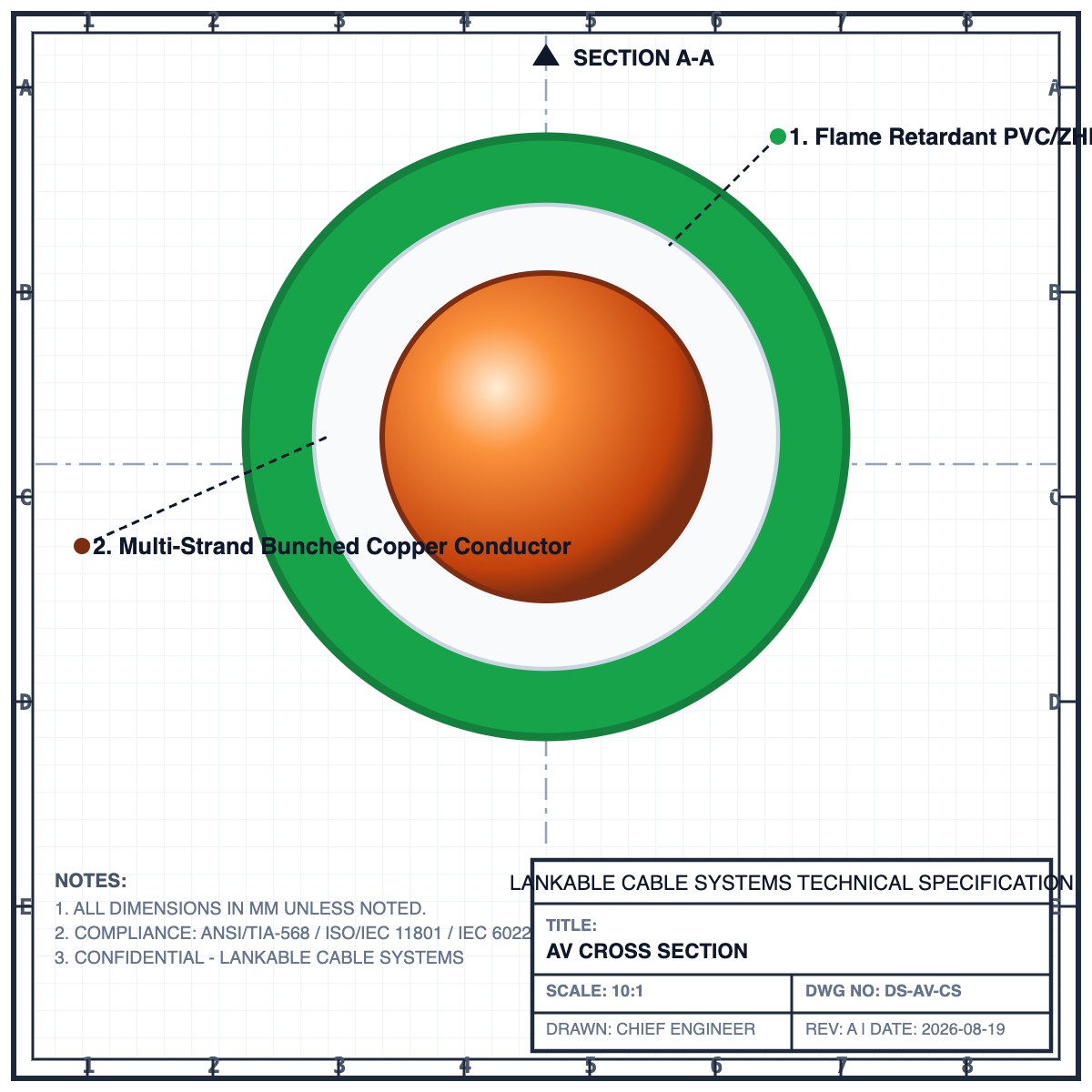

CAD Cross-Section
Internal Core Layout

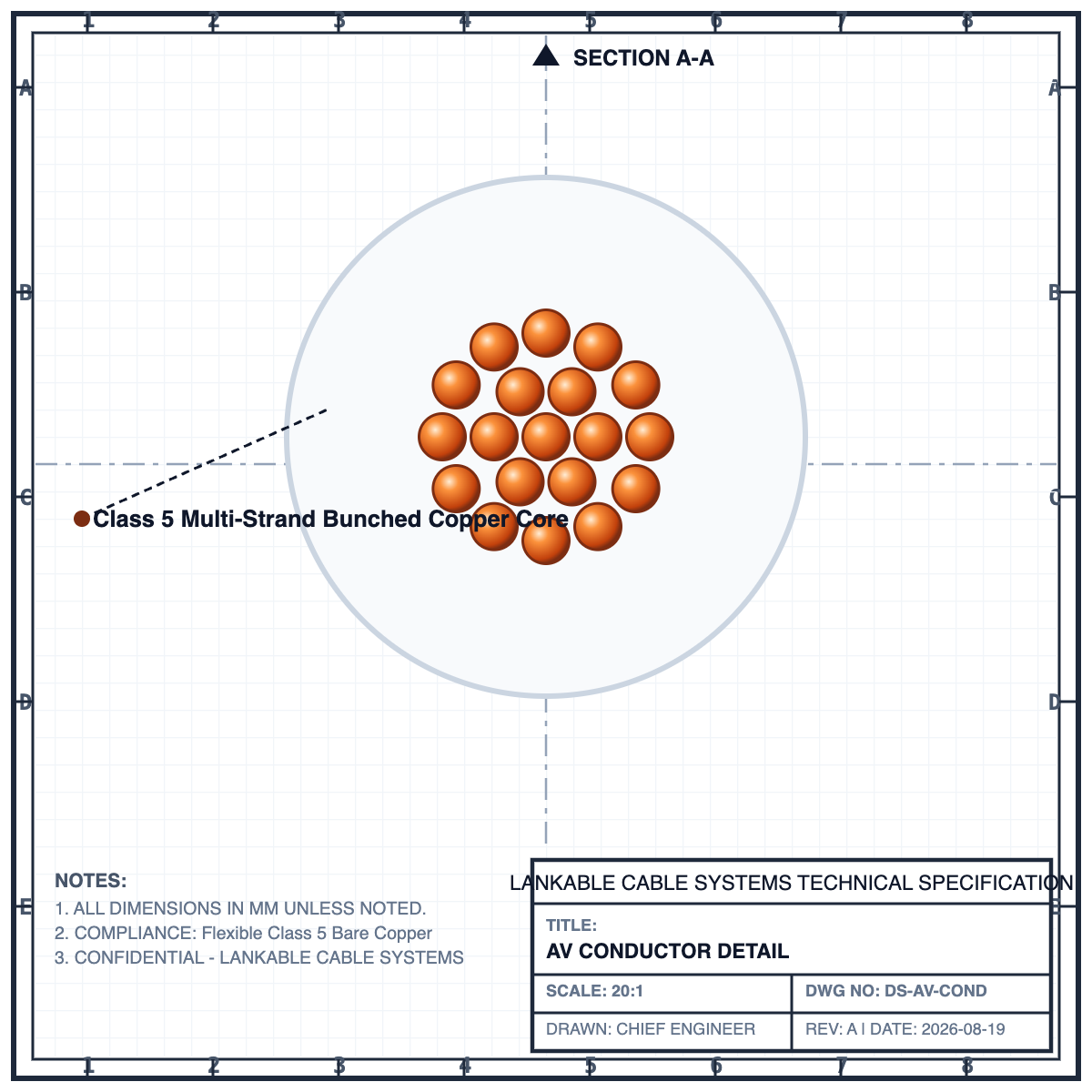

Conductor Detail
Metallurgy Gauge
Key Features
- •Class 5/6 flexible conductor stranding for dynamic bending
- •Excellent resistance to oils, chemicals, and industrial acids
- •High shielding coverage for superior noise suppression
- •Tested for continuity and high-voltage insulation stability
Applications
- ✓CNC machine automation panels
- ✓Appliance motor wiring
- ✓Switchboard control instrumentation
- ✓Industrial sensor networks
Detailed Engineering Specifications
Materials & Construction
- Conductor Metallurgy
- Class 2 Stranded Bare Copper / Aluminum
- Insulation Compound
- PVC / XLPE Insulation
- Outer Sheath
- FR-PVC (Flame Retardant PVC)
- Armouring
- Unarmoured
Electrical Properties
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Operating Temperature
- Max. 70°C (PVC) / 90°C (XLPE)
Mechanical & Thermal
- Bending Radius (Fixed)
- 12 x Outer Diameter (Armoured)
- Flame Retardancy
- IEC 60332-1-2
- Short Circuit Temp
- 160°C (for PVC) / 250°C (for XLPE)
Standards & Compliance
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Quality Certs
- CE, RoHS Compliant, ISO 9001
UL 2835 Cert
CE Compliant
RoHS Certified
ISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
Every batch is scanned on high-frequency network analyzers & stress chambers.
