MOQ: 1,000 MetersCat 5 Cable
Standard Cat 5 structured cable designed for basic network connections. Ideal for legacy networks, telephony, and low-speed IP applications.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures

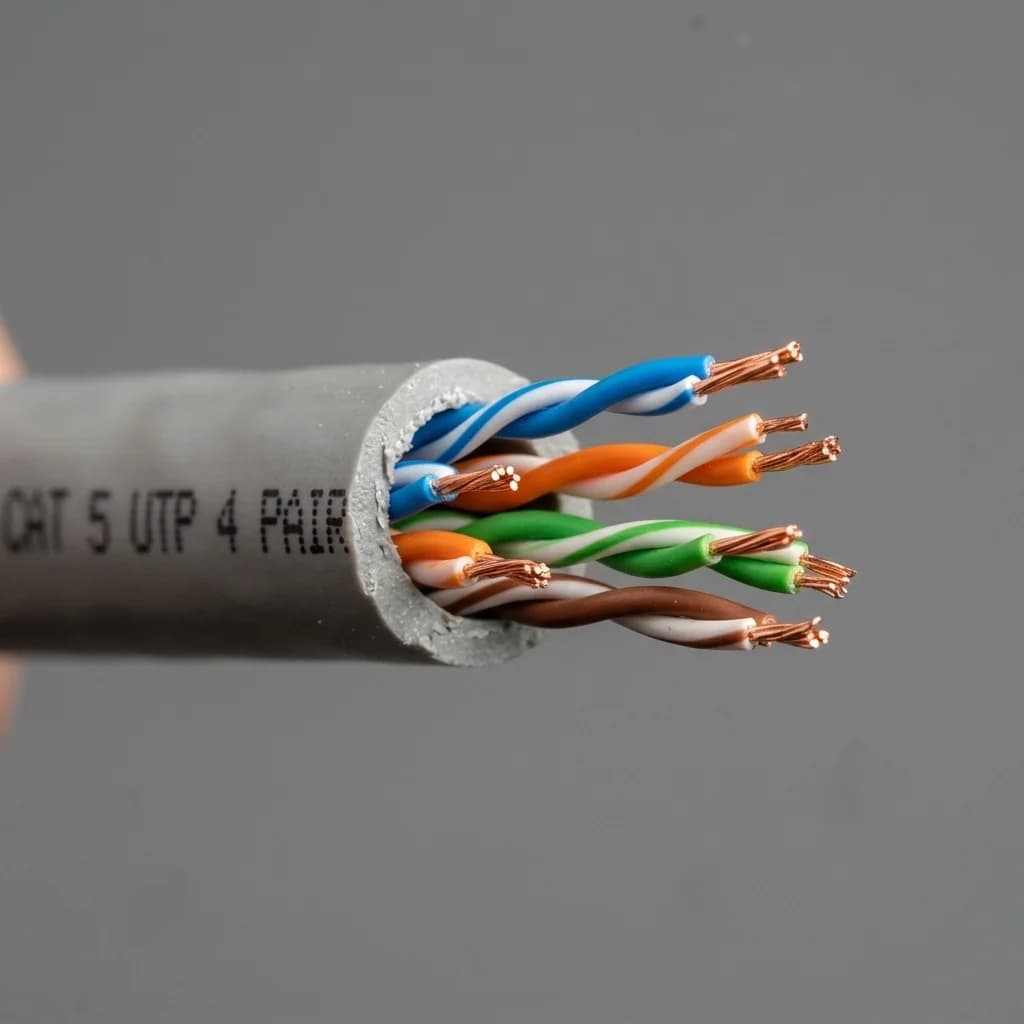

External Sheathing & Lay Layout

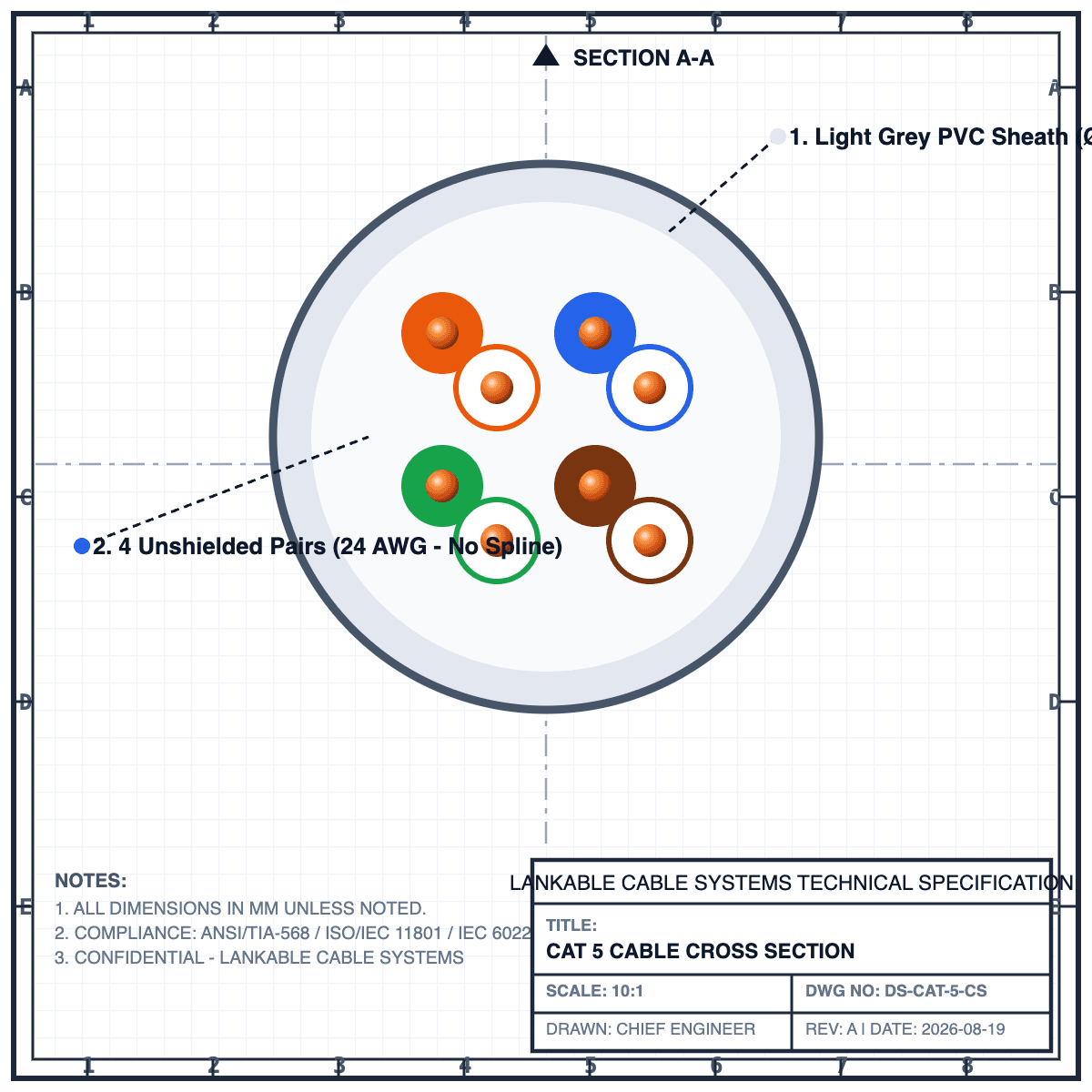

Internal Shielding & Core Layout

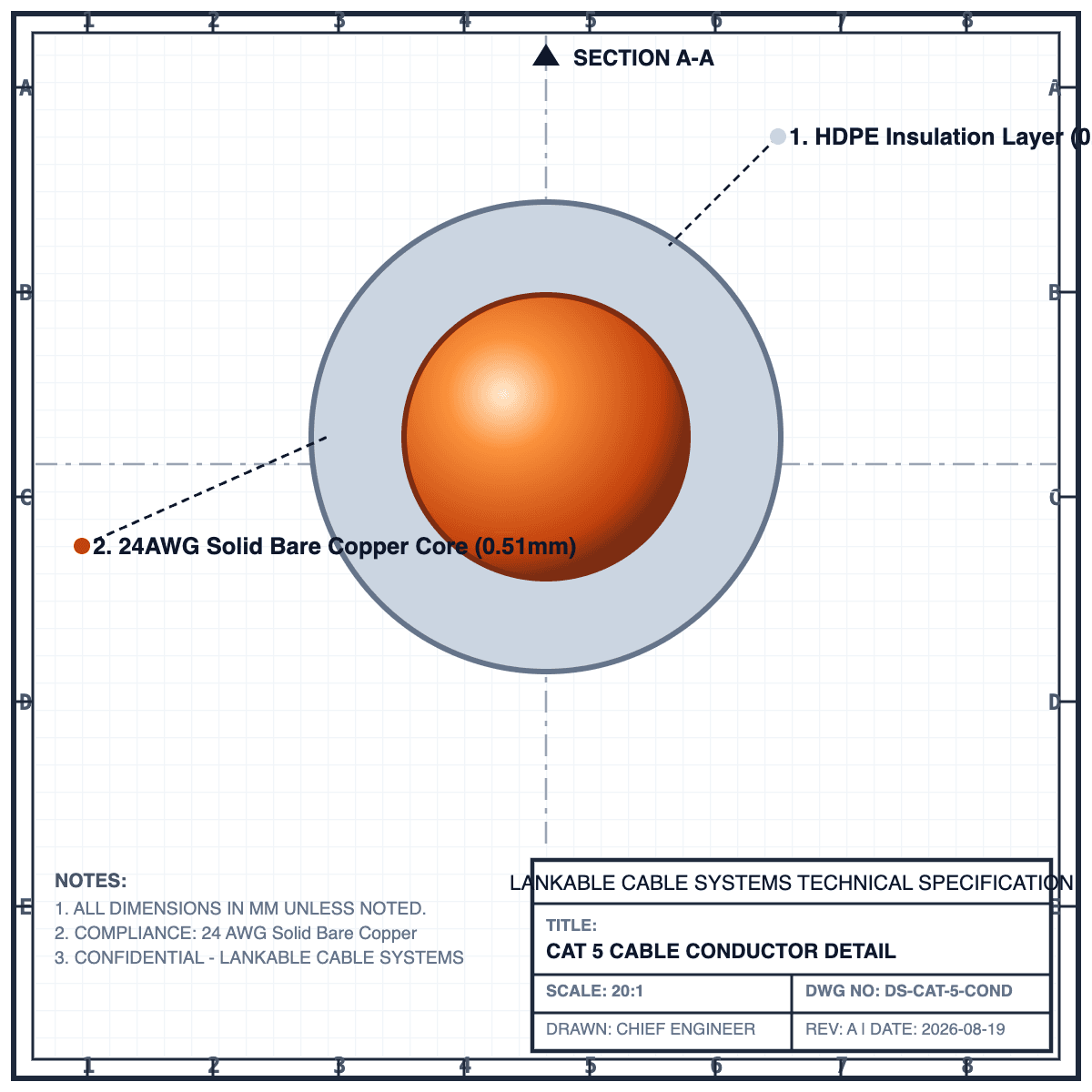

Conductor Metallurgy & Core Gauge
Key Features
- 24 AWG solid bare copper conductors
- High-density polyethylene (HDPE) insulation
- Flame retardant PVC jacket
- Supports speeds up to 100 Mbps
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Bandwidth
- 100 MHz
- Shielding
- U/UTP (Unshielded)
- Standard Packaging
- 305m Easy Pull Box
- MOQ Quantity
- 1,000 Meters
- Temperature Range
- -20°C to +60°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
Request Factory Quotation
Add items to your inquiry list to build a custom bulk quotation request with volume-based tier discounts.
