MOQ: 1,000 MetersCat 6 FTP Cable
Foil Shielded twisted pair (F/UTP) Category 6 cable. Wrapped in a continuous aluminum-mylar foil shield with drain wire to eliminate external EMI.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures

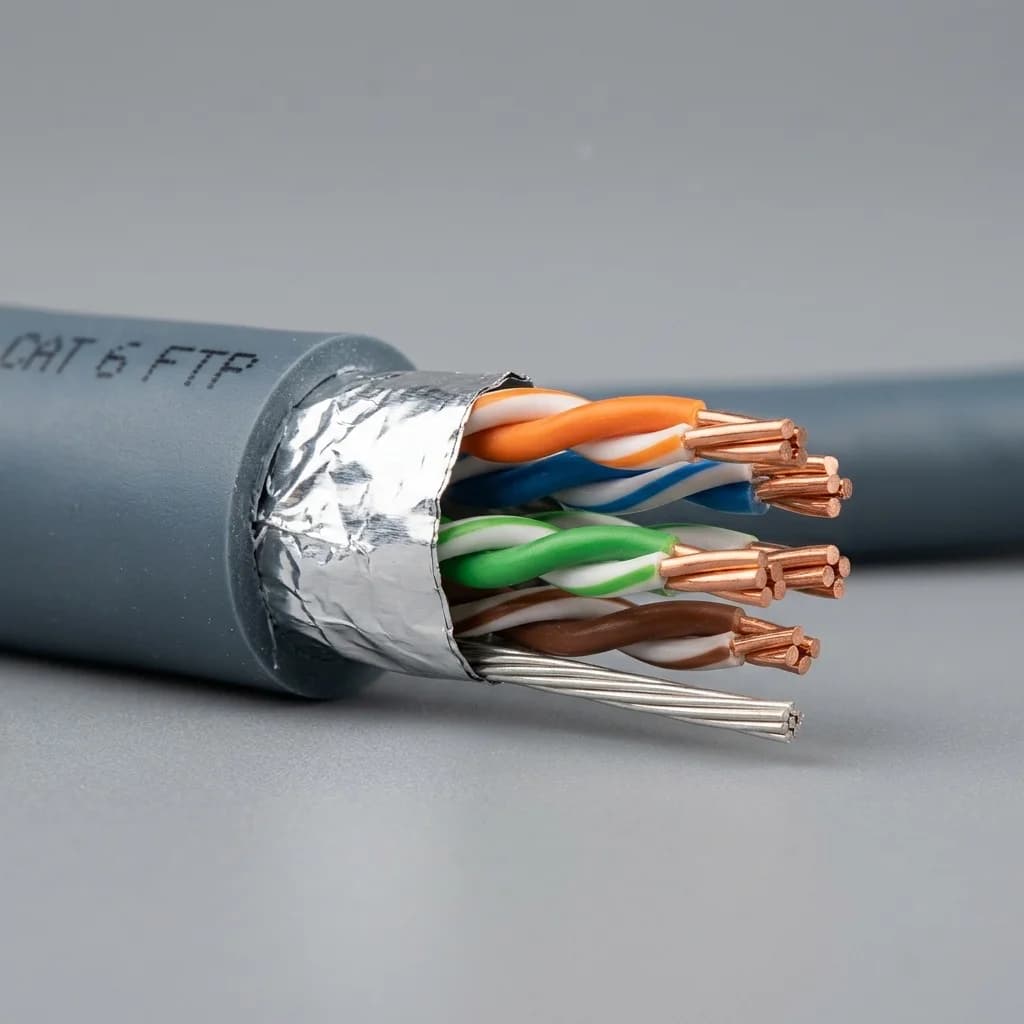

External Sheathing & Lay Layout

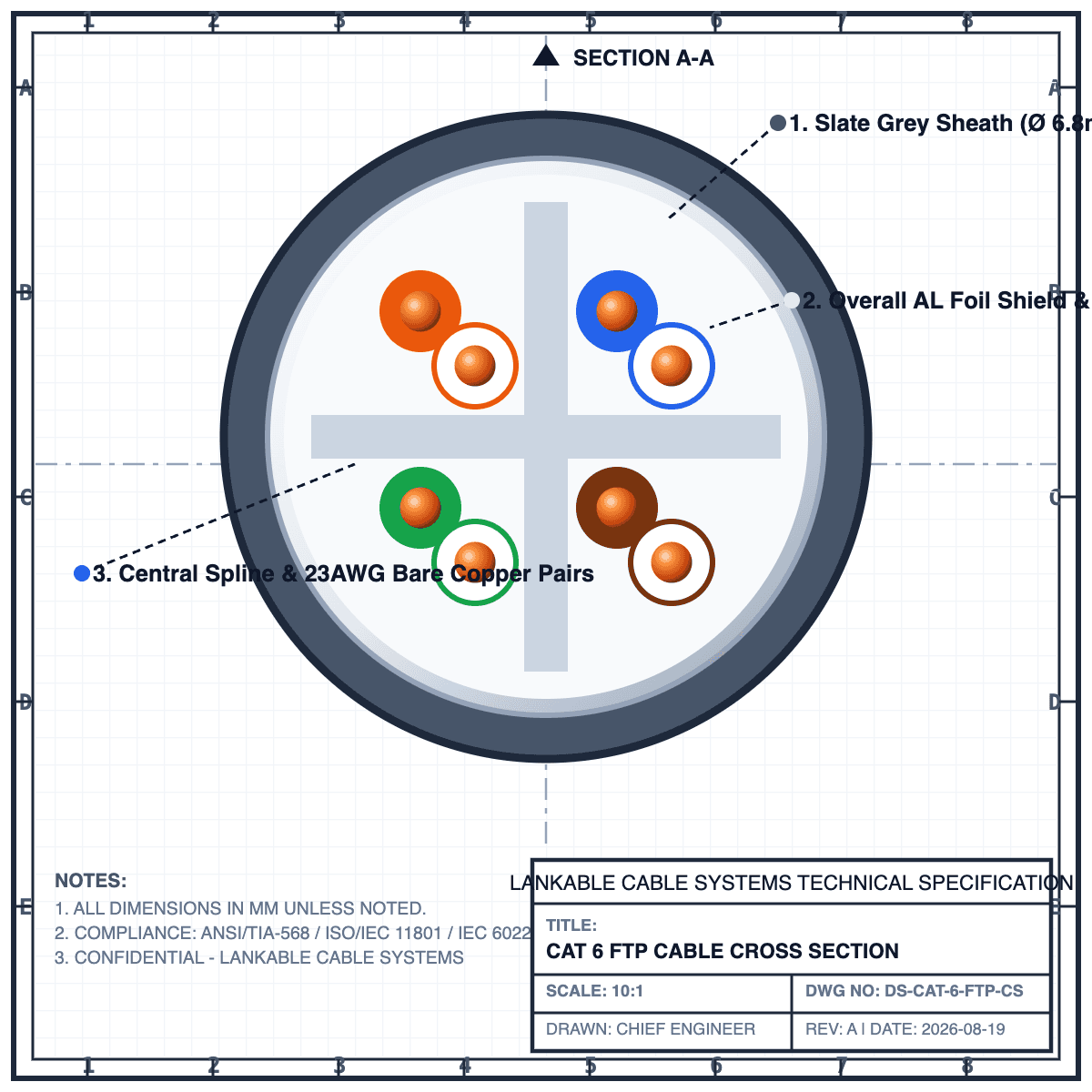

Internal Shielding & Core Layout

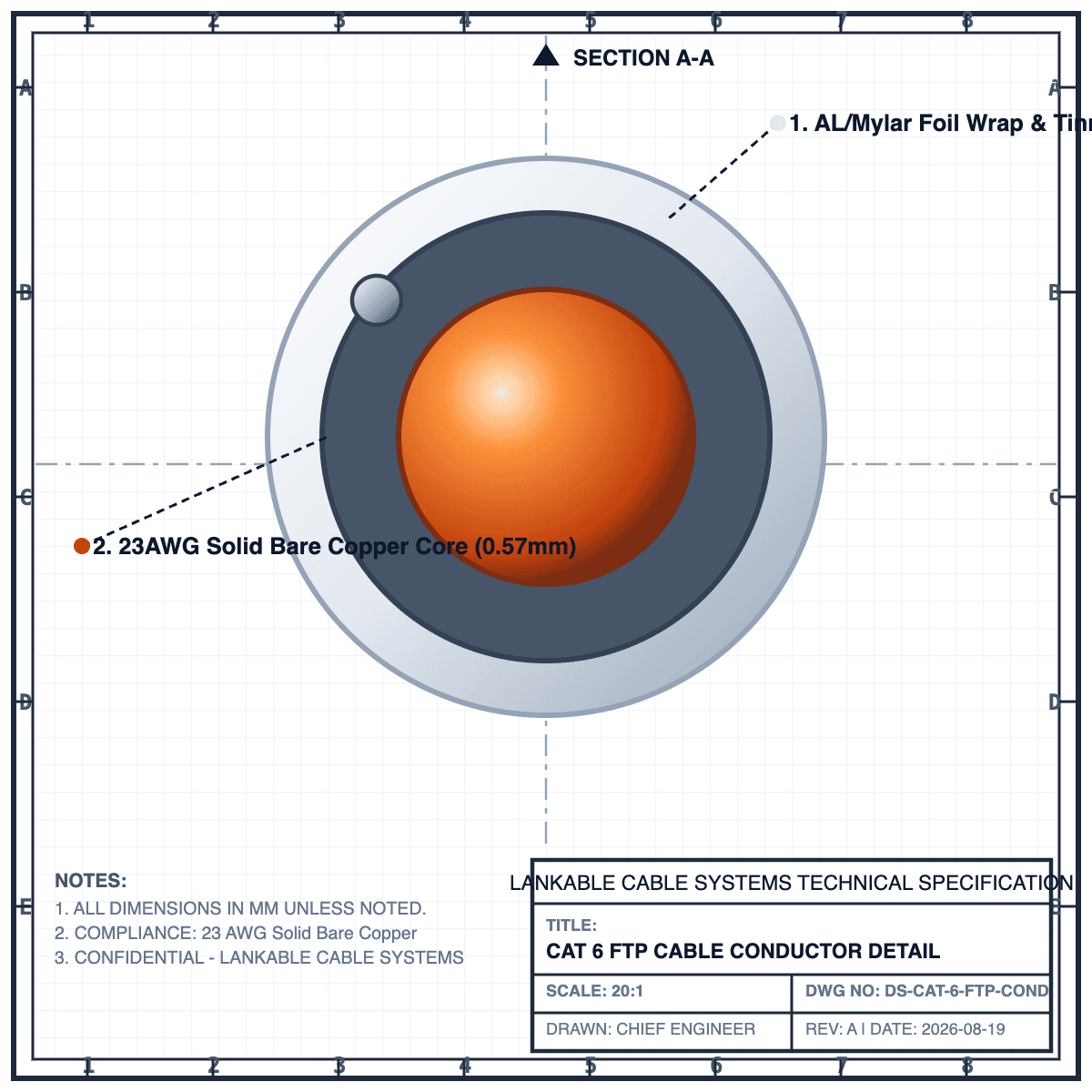

Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid bare copper
- Overall aluminum foil shield (F/UTP) with tinned copper drain
- Eliminates Alien Crosstalk (ANEXT) in tight bundles
- LSZH jacket for public safety installations
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Bandwidth
- 250 MHz
- Shielding
- F/UTP (Foil Shielded)
- Drain Wire
- Tinned Stranded Copper
- MOQ Quantity
- 1,000 Meters
- Temperature Range
- -20°C to +70°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
