MOQ: 1,000 MetersCat 6 SFTP Cable
Shielded Foil Twisted Pair (SF/UTP) Category 6 cable. Combines an overall braided copper screen and foil wrap for ultimate electromagnetic immunity.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures

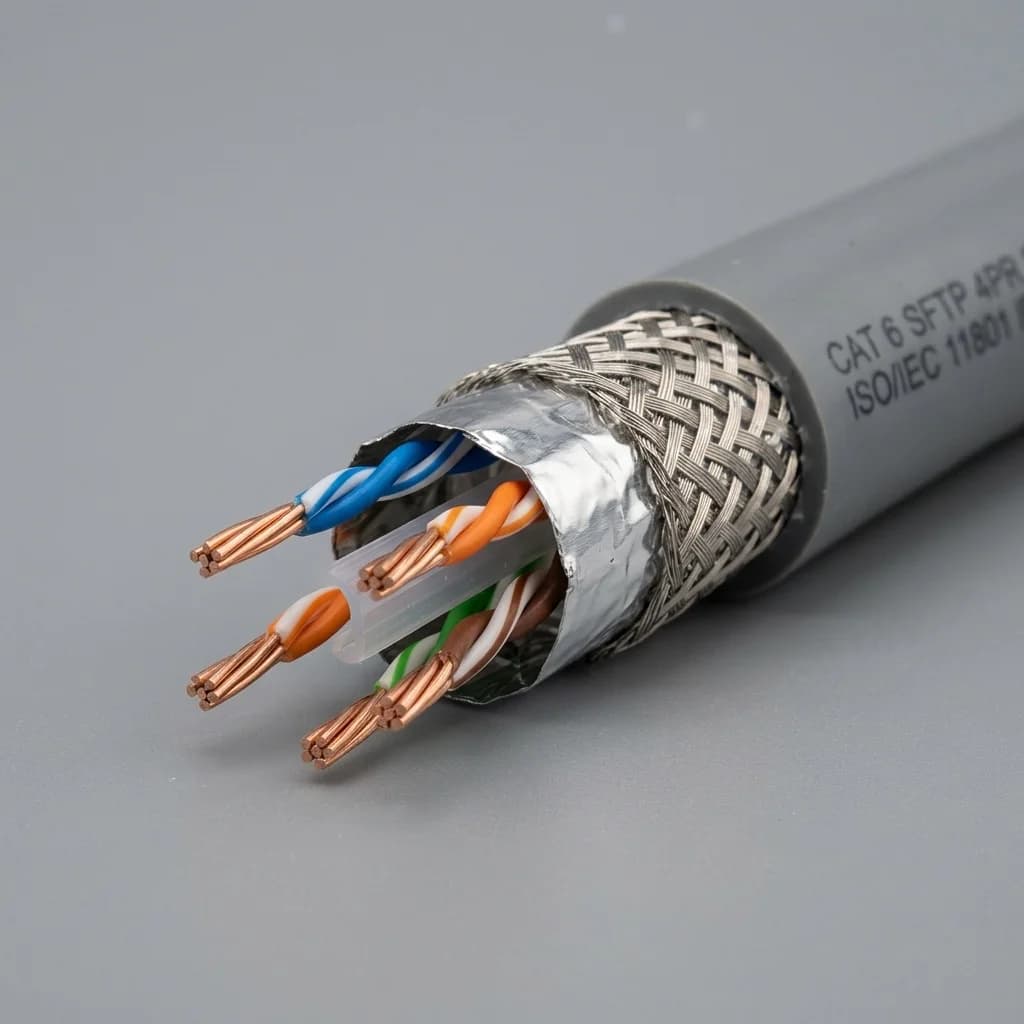

External Sheathing & Lay Layout

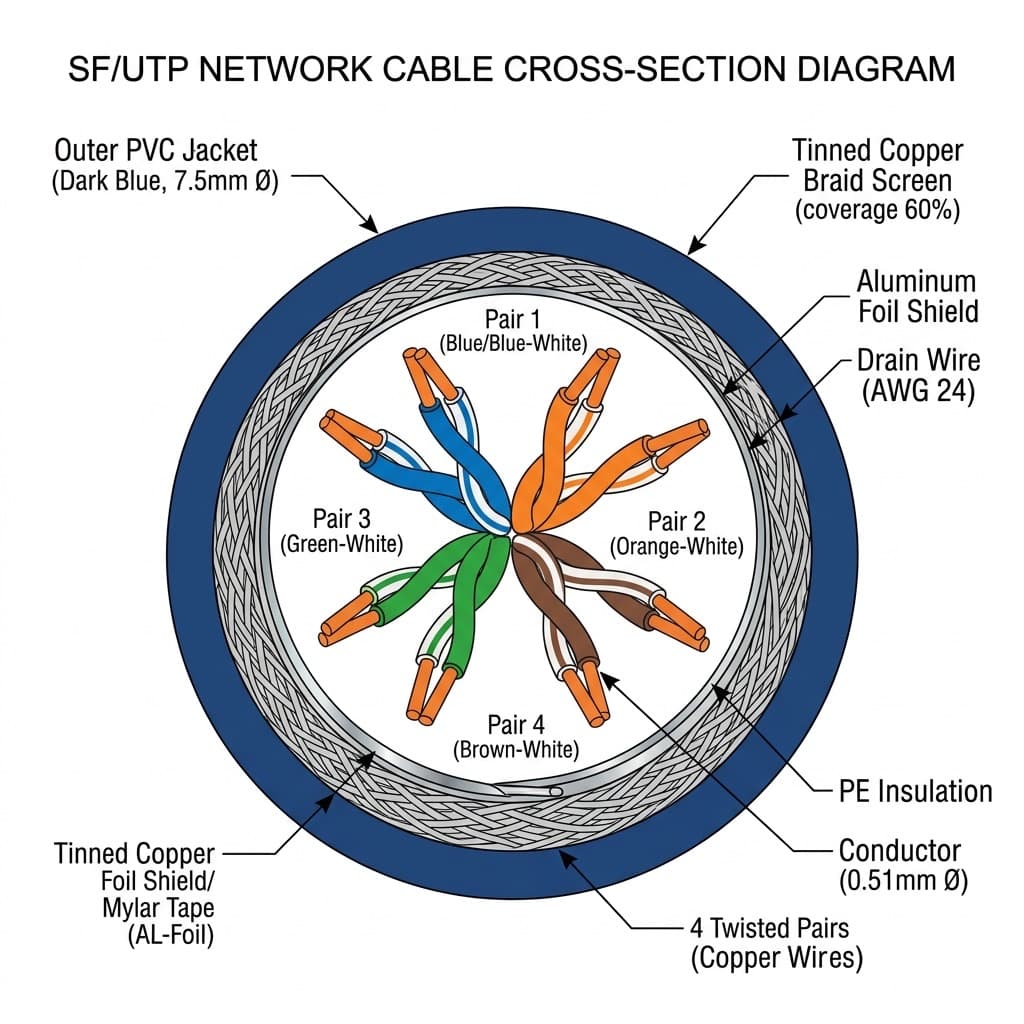

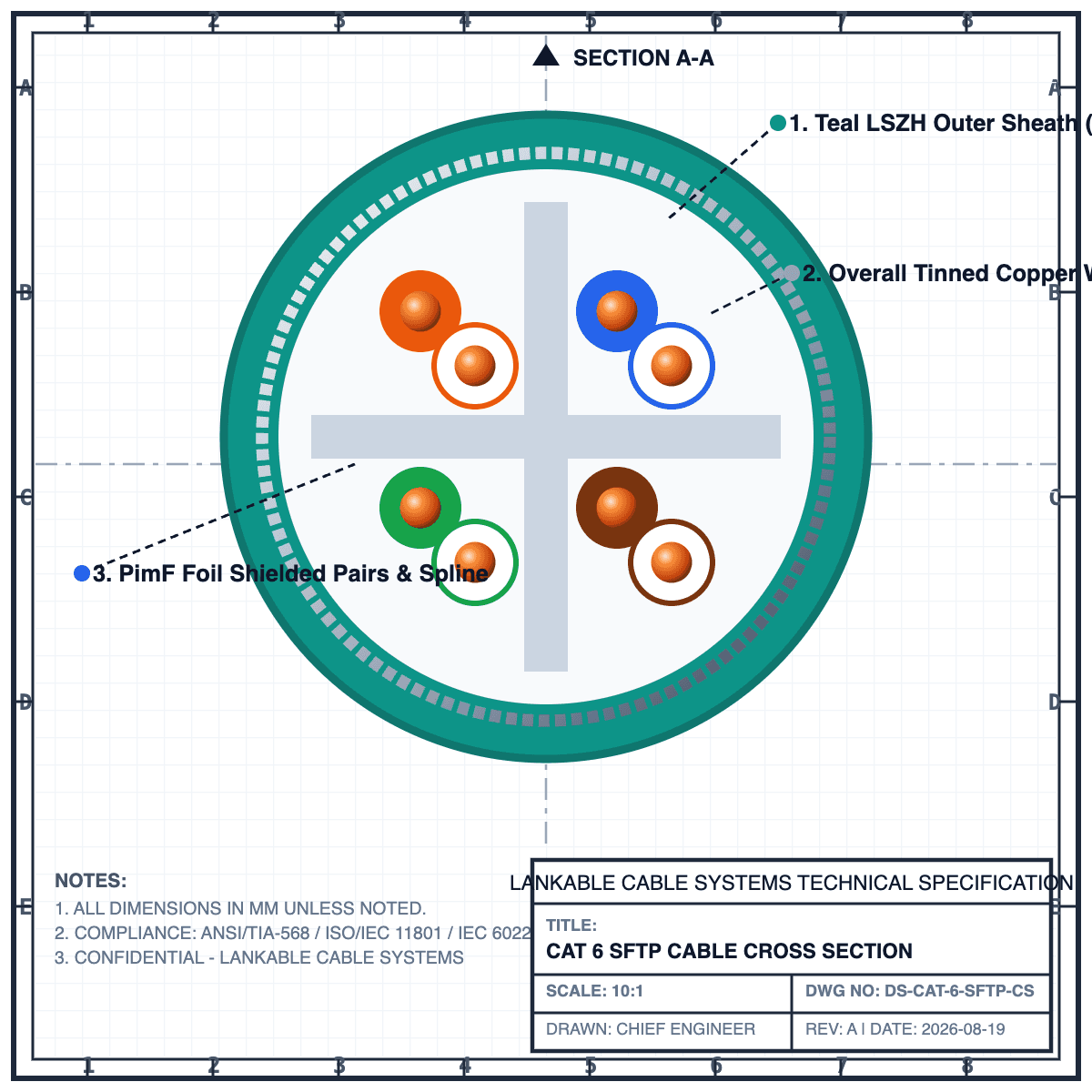

Internal Shielding & Core Layout

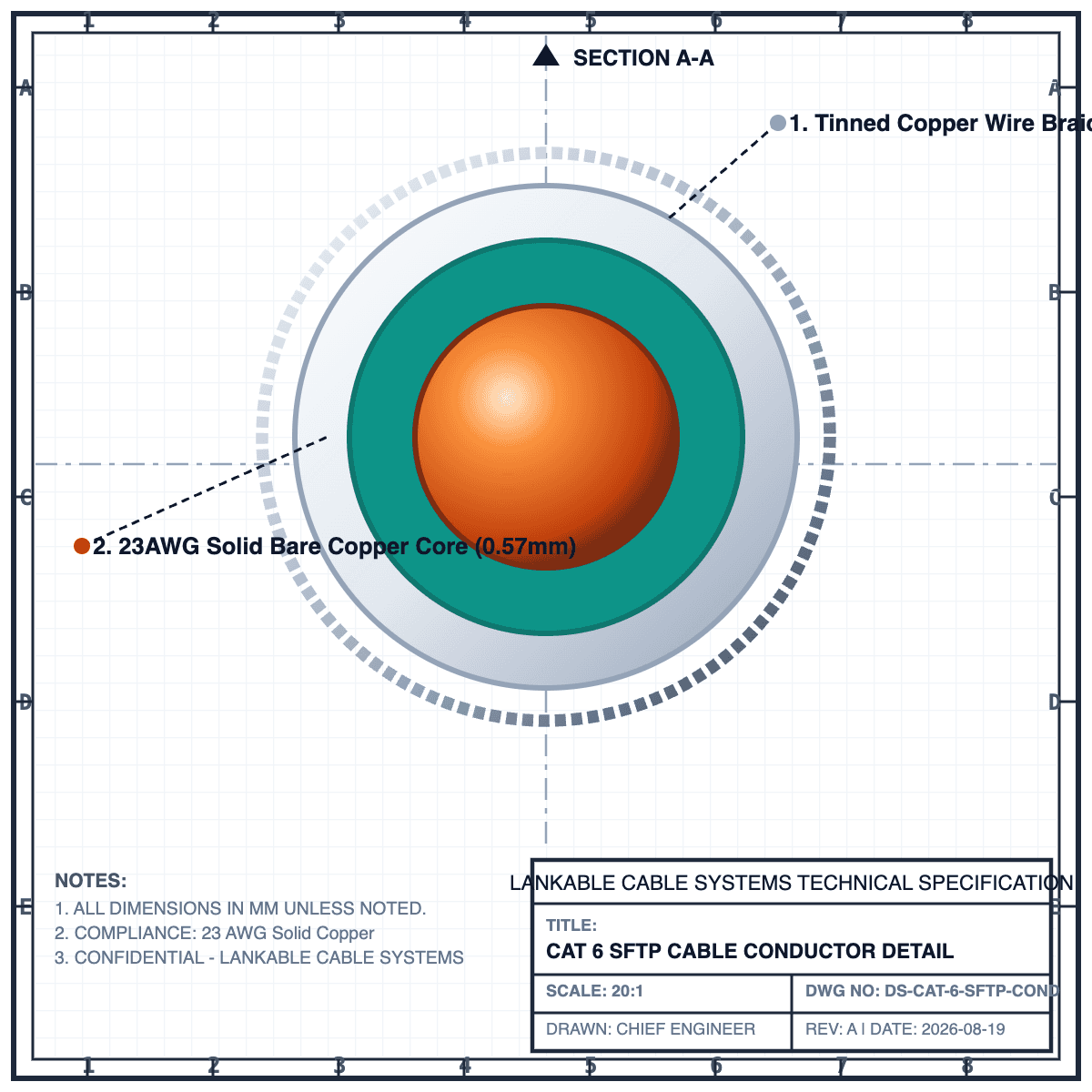

Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid copper conductors
- Overall braid screen + inner foil shield
- Maximum protection against heavy industrial EMI
- Low smoke zero halogen jacket
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Bandwidth
- 250 MHz (Supports 10 Gbps up to 55m)
- Shielding
- SF/UTP (Braid + Foil)
- Braid Coverage
- 65% Tinned Copper Braid
- MOQ Quantity
- 1,000 Meters
- Temperature Range
- -30°C to +75°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
