MOQ: 1,000 MetersLANKABLE Cat 6 UTP Cable
High-performance Category 6 Unshielded Twisted Pair cable. Features a physical internal spline separator to eliminate Near-End Crosstalk (NEXT) and support gigabit transmission.

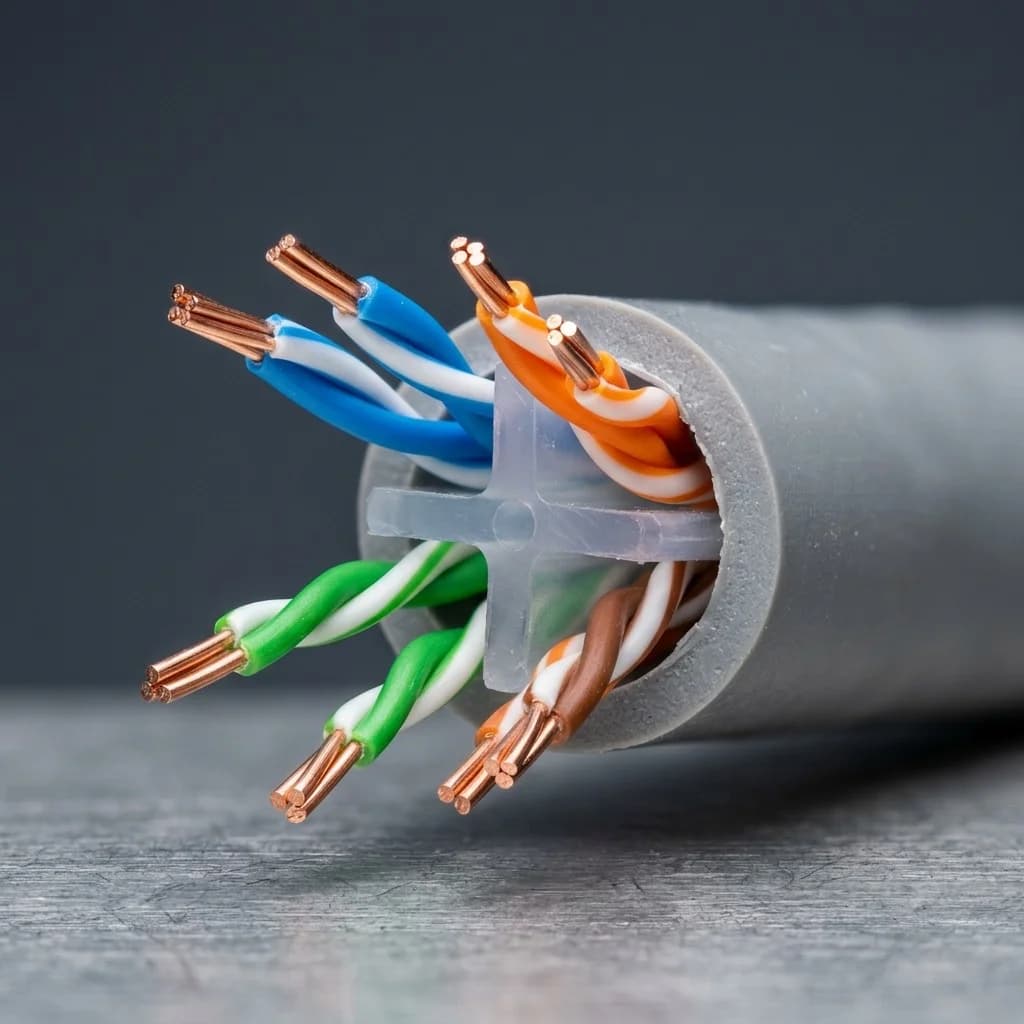

Visual Render
External Sheathing & Lay Layout

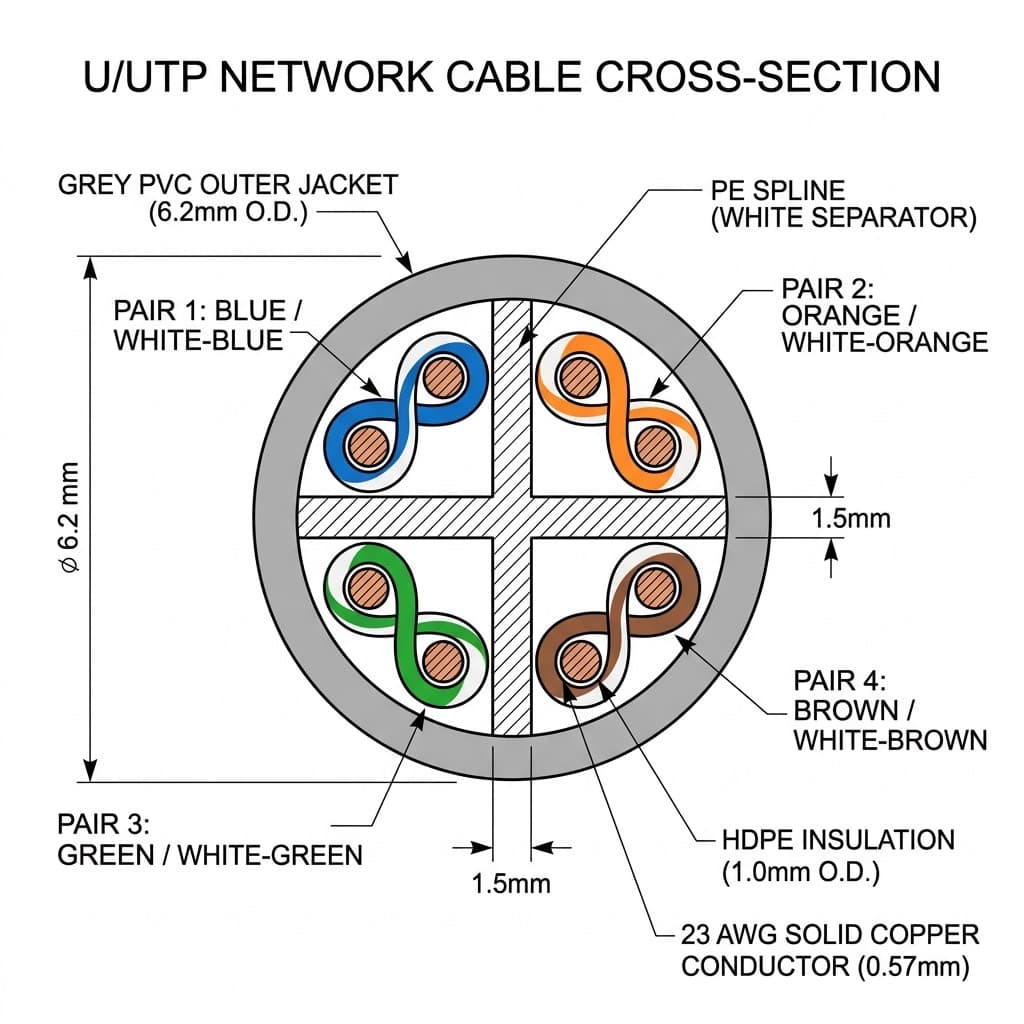

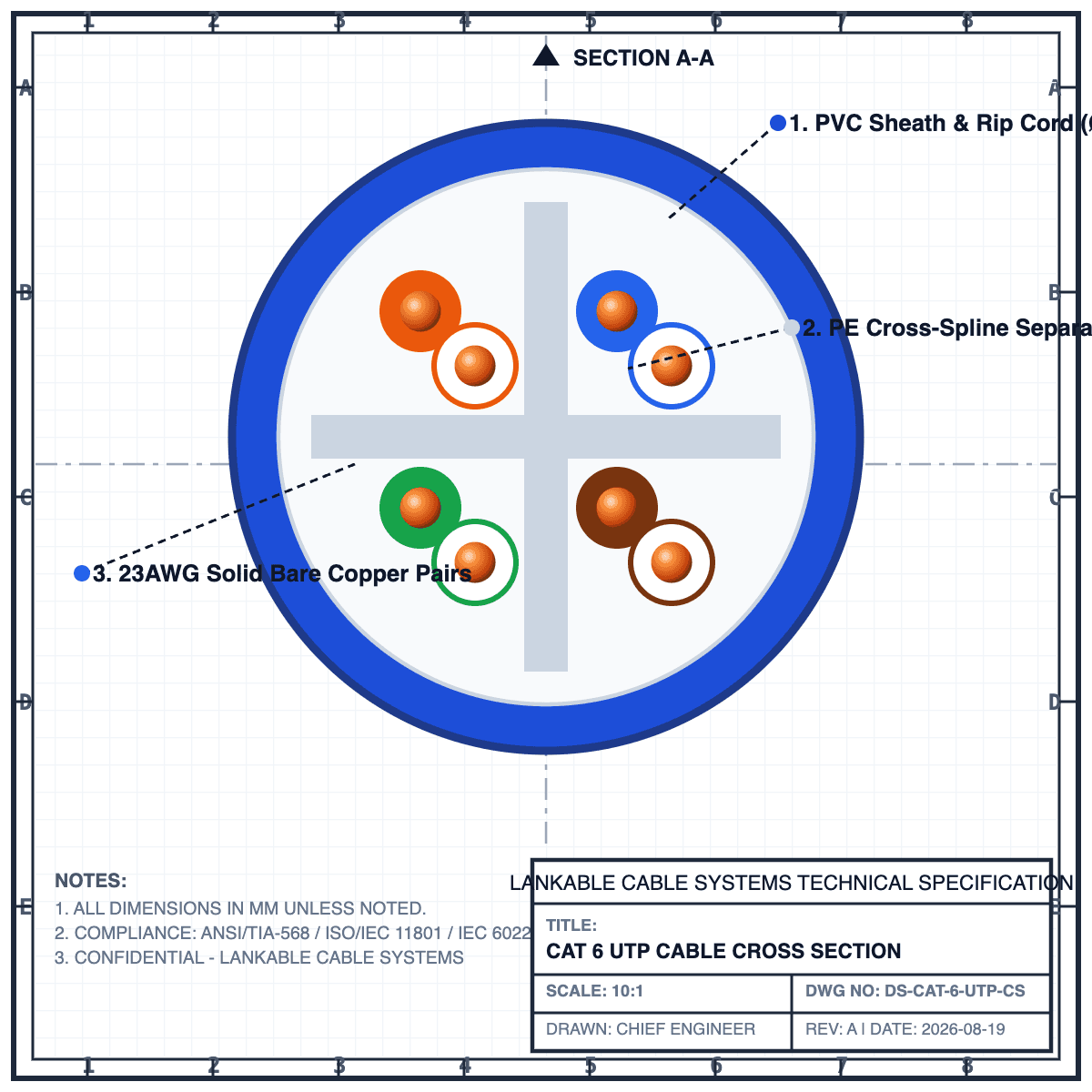

CAD Cross-Section
Internal Shielding & Core Layout

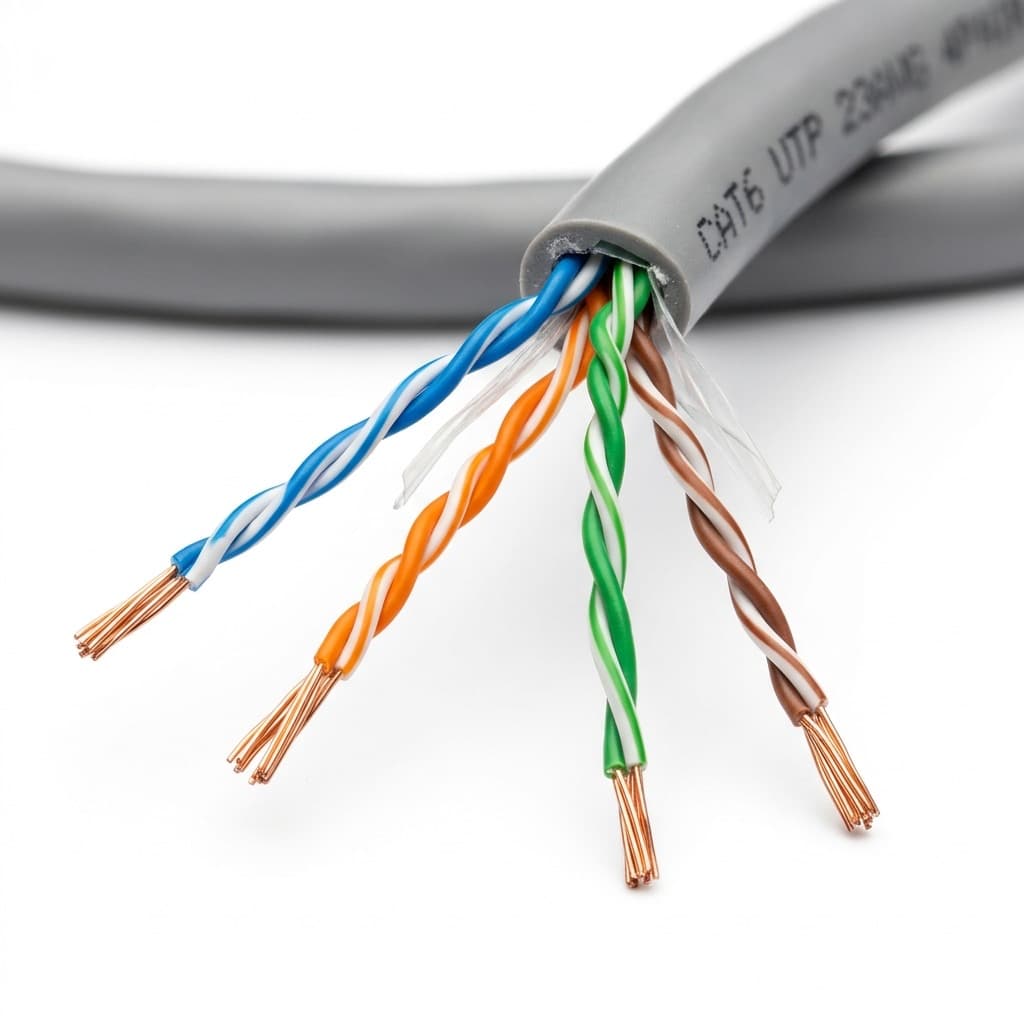

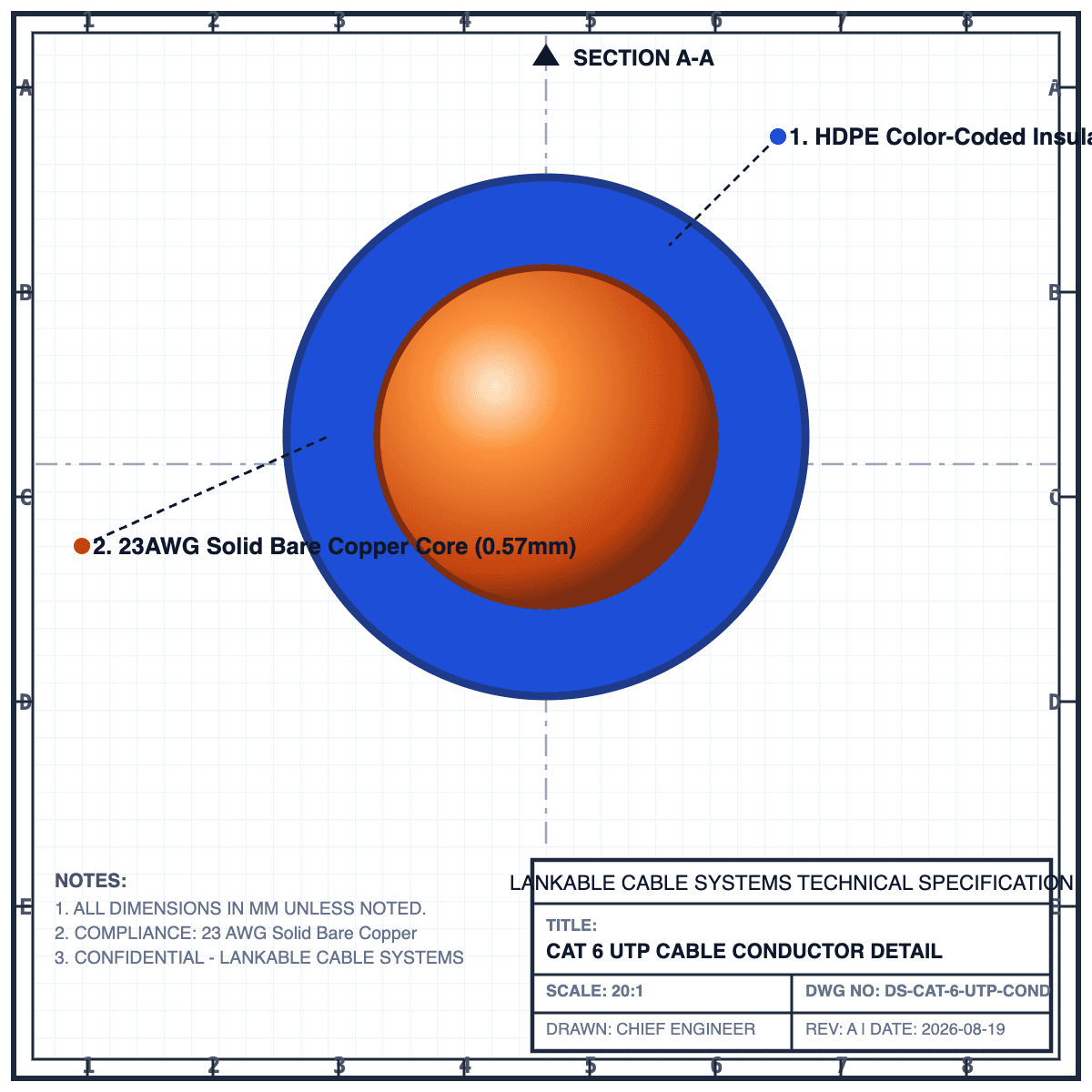

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid bare copper conductors
- Internal PE cross spline separator
- Low Smoke Zero Halogen (LSZH) jacket
- Supports 1GBASE-T and 10GBASE-T (up to 55m)
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Bandwidth
- 250 MHz
- Shielding
- U/UTP (Unshielded)
- Standard Packaging
- 305m Pull Box
- MOQ Quantity
- 1,000 Meters
- Temperature Range
- -20°C to +75°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
