MOQ: 1,000 MetersCategory 6 Enhanced (Cat6e) UTP Cable
Extended performance Category 6e cable. Tested up to 500 MHz, providing higher signal-to-noise margins for demanding networks.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures
External Sheathing & Lay Layout

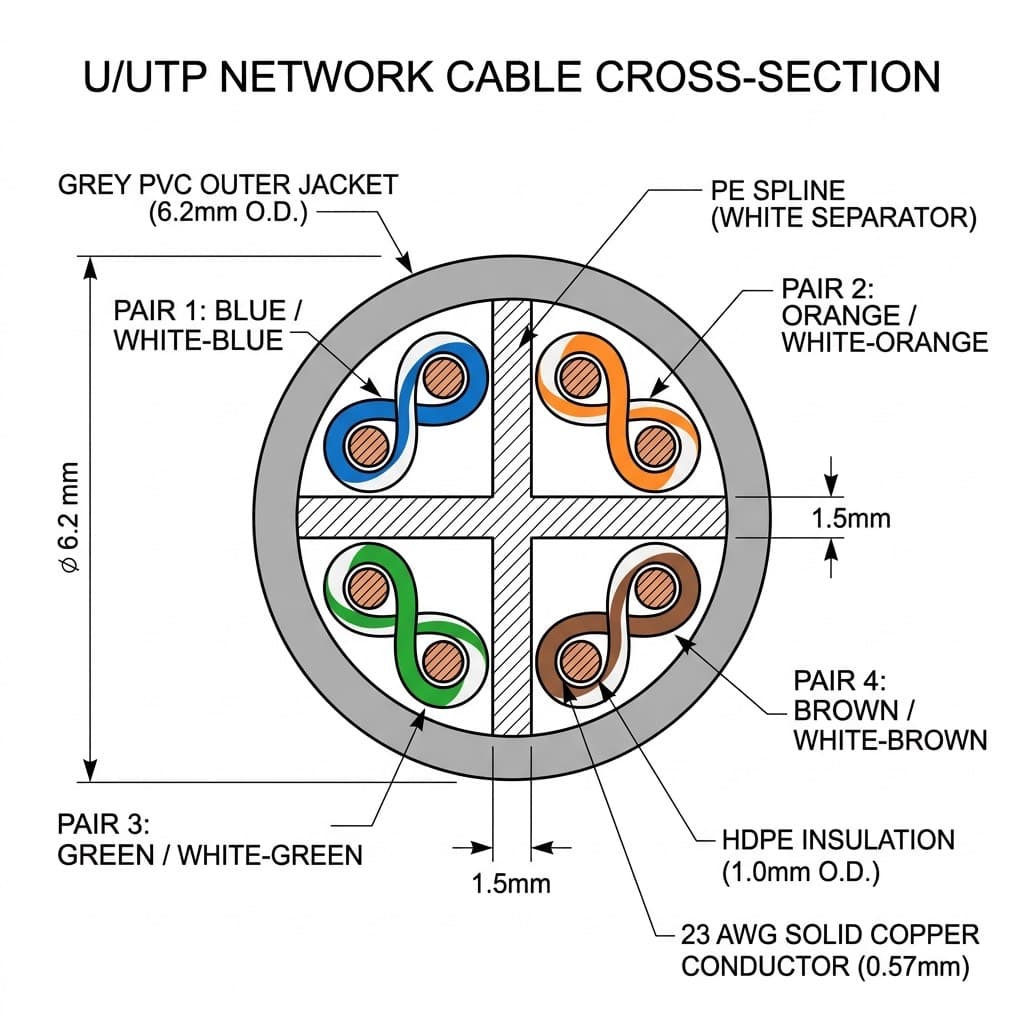

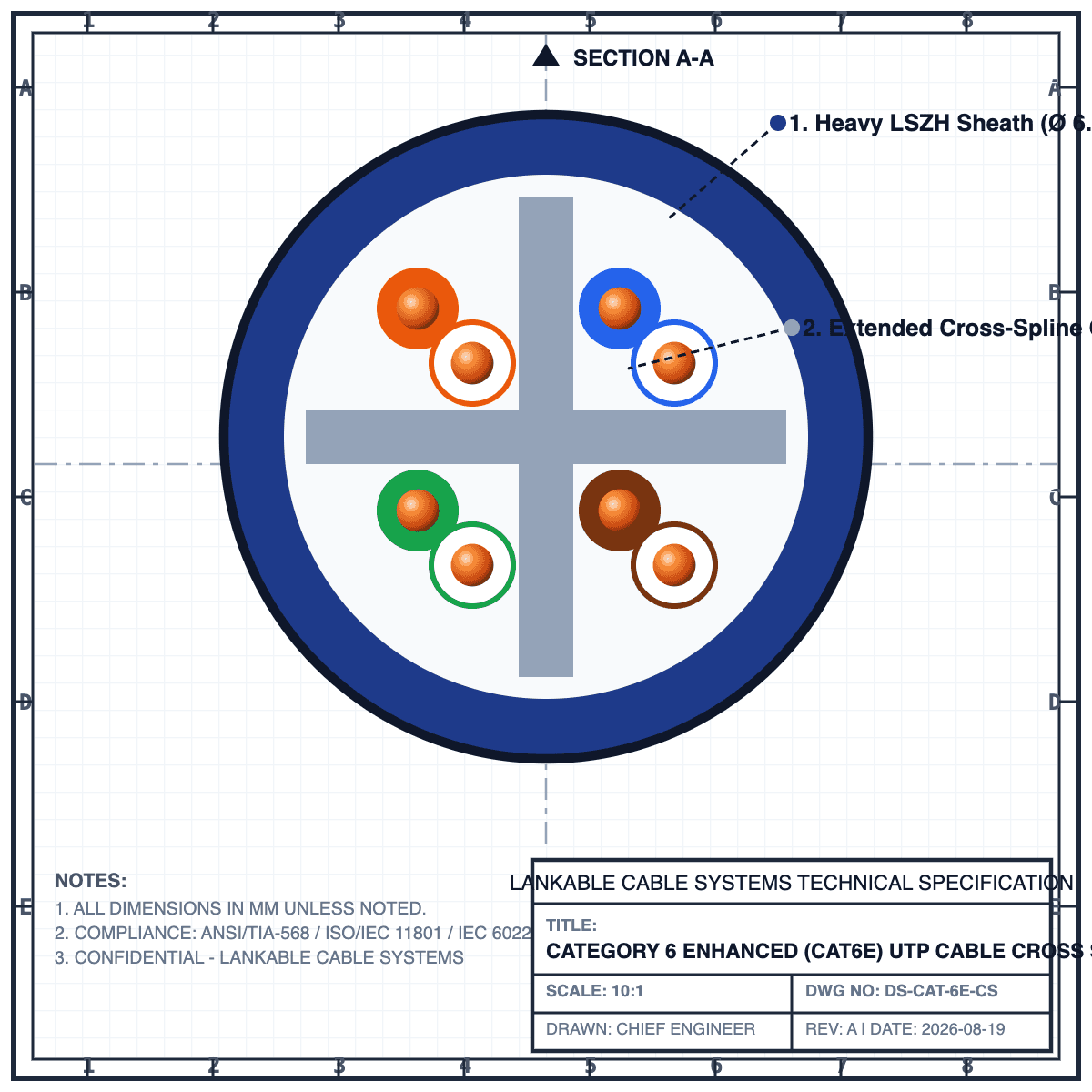

Internal Shielding & Core Layout

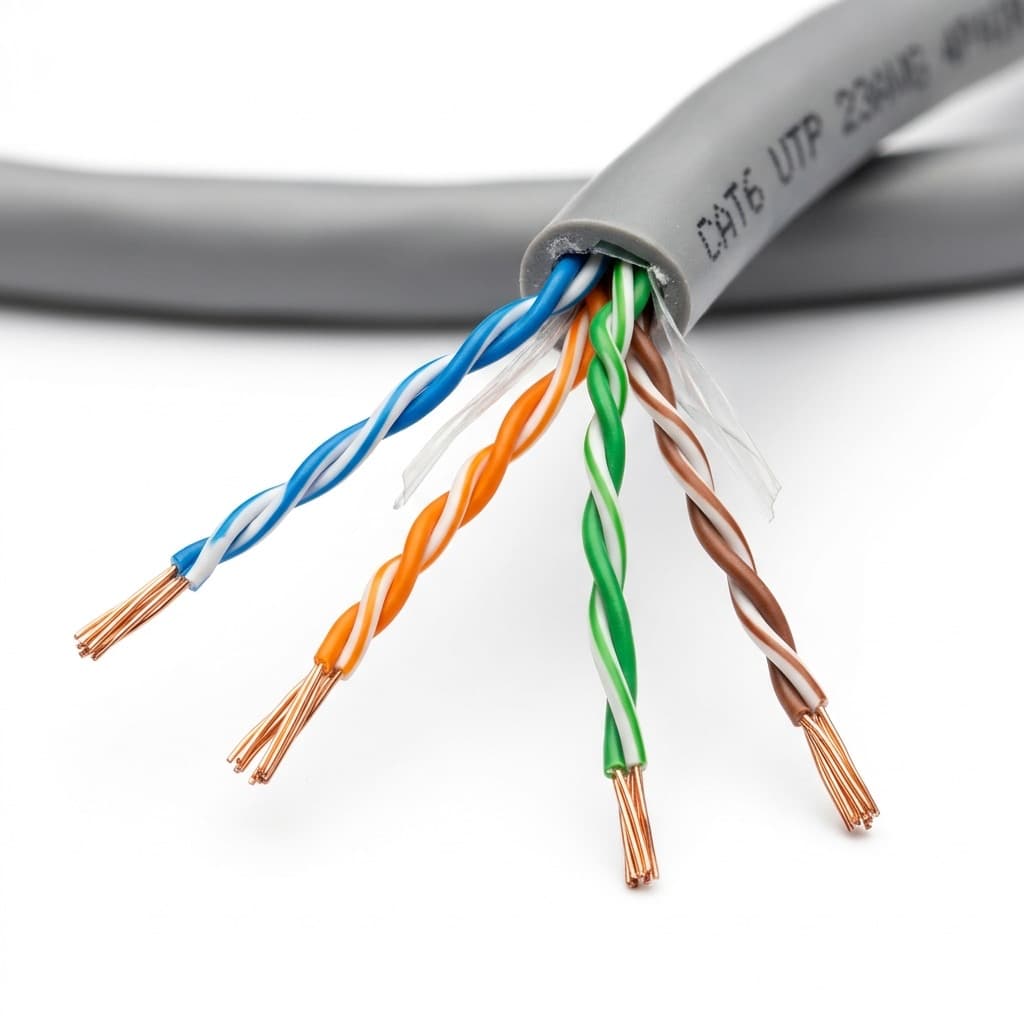

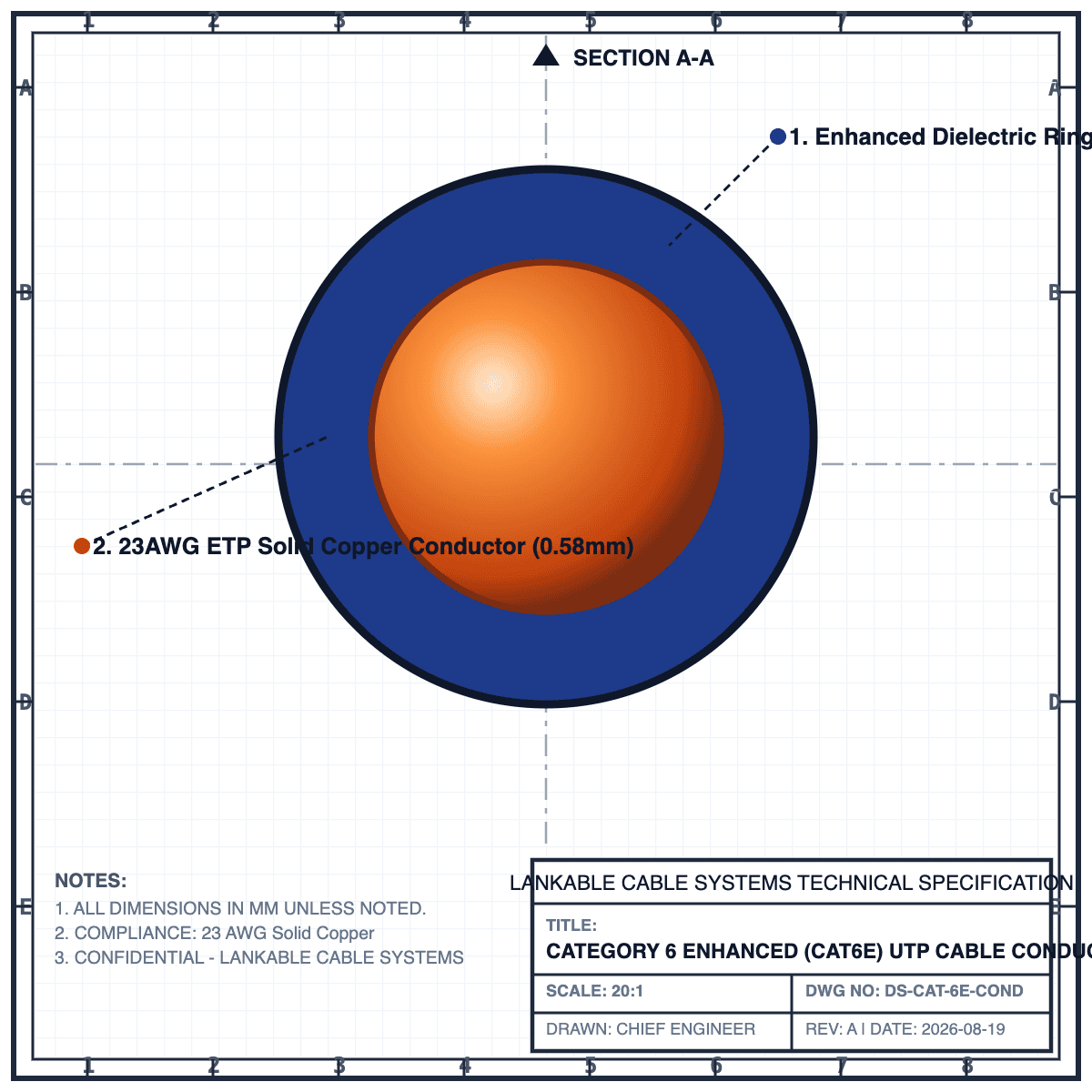

Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid copper conductors
- Optimized twist ratios for low attenuation
- High performance cross spline separator
- LSZH flame retardant sheath
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Bandwidth
- 500 MHz
- Shielding
- U/UTP (Unshielded)
- Standard Packaging
- 305m easy pull box
- MOQ Quantity
- 1,000 Meters
- Temperature Range
- -25°C to +75°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
