MOQ: 1,000 MetersLANKABLE CAT5e LAN Cables
High-bandwidth structured copper communication cable designed for high-speed local area networks and database telemetry systems. Features double-shielding for optimal crosstalk reduction.
Visual Render
External Sheathing & Lay Layout

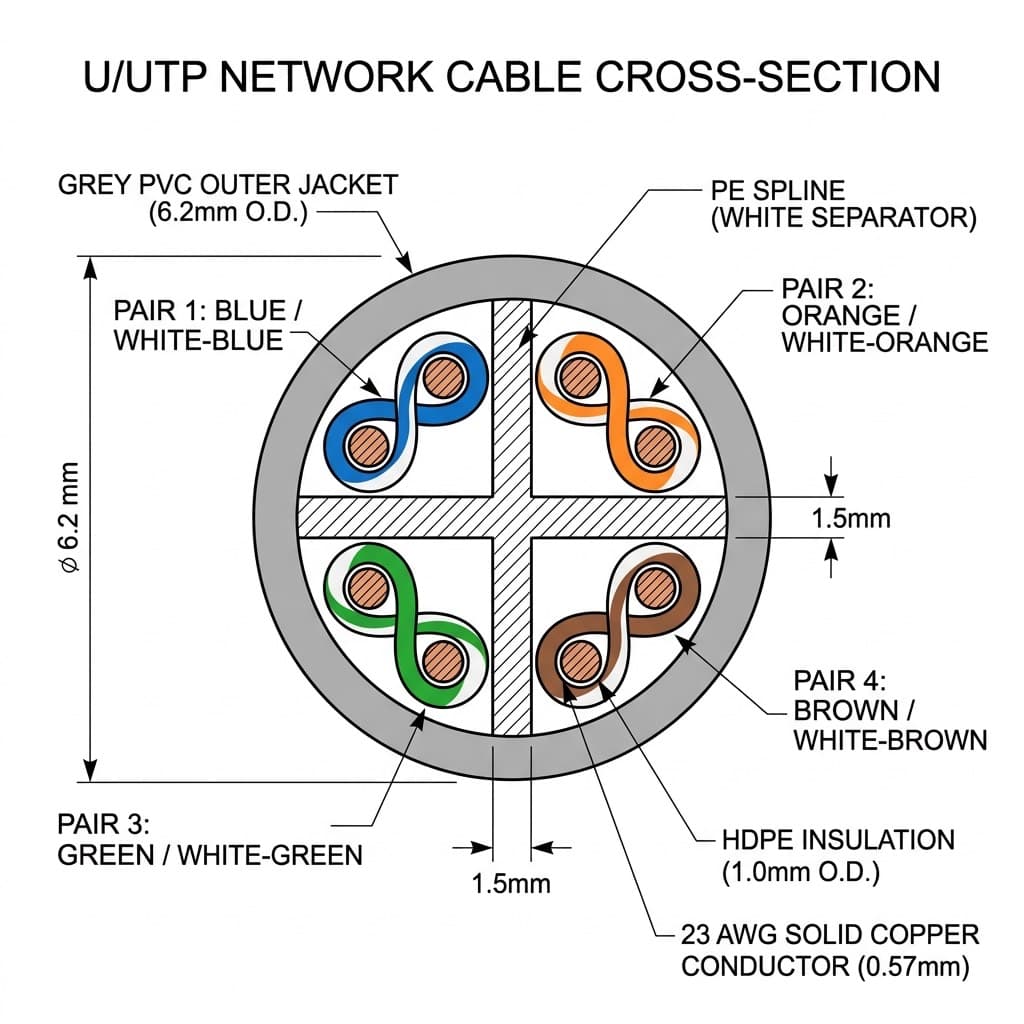

CAD Cross-Section
Internal Shielding & Core Layout

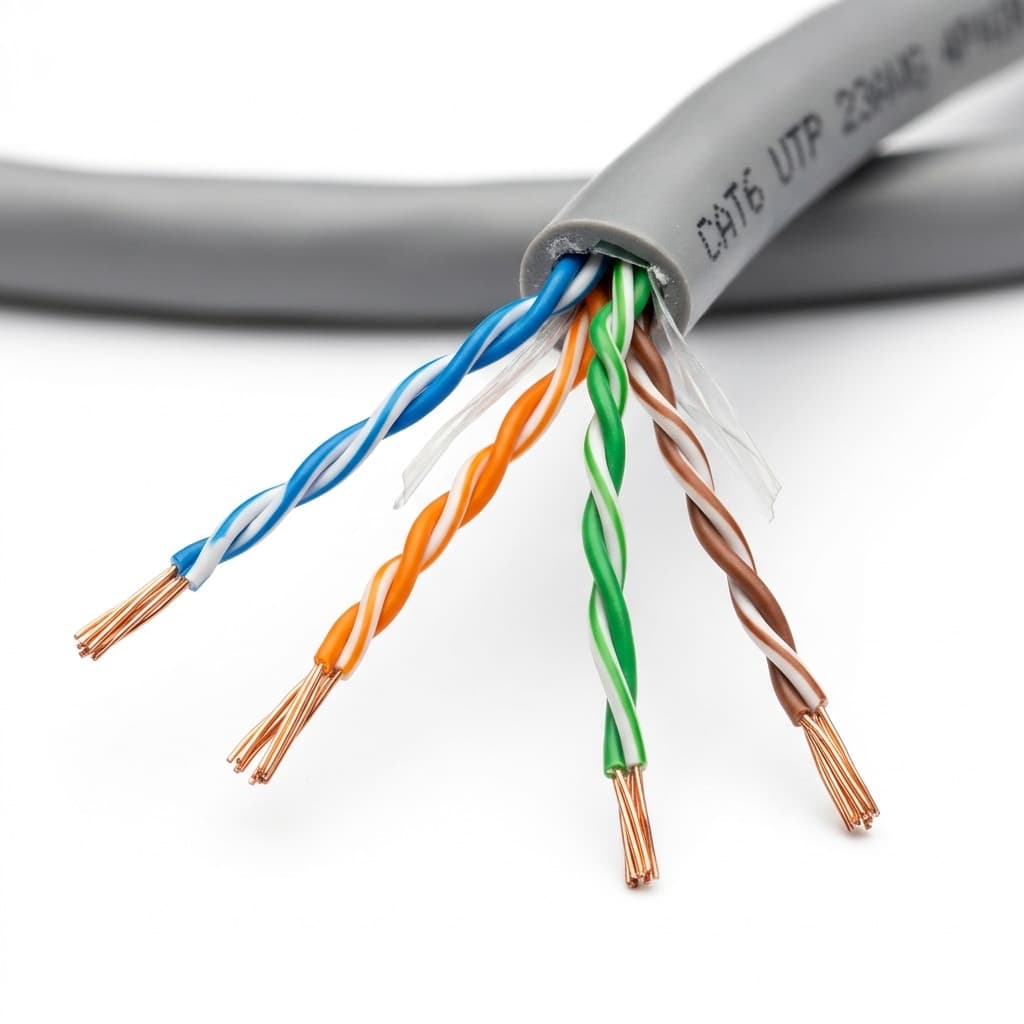

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- High-speed data transmission support
- Twisted pair configuration to minimize crosstalk
- Low attenuation and signal loss over long distances
- Flame-retardant outer sheath for fire safety
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- Flame-Retardant PVC (FR-PVC)
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
- Voltage Rating
- 1100 V (1.1 kV)
- Temperature Range
- -15°C to +70°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
