MOQ: 1,000 MetersCommunication Cables (range)
Specialized cables designed to transmit data, voice, or video signals between devices, short or long distances.
Conductor Dimensioning
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
↓
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
↑
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
← Lower AWG (Thicker Conductor / More Power)Higher AWG (Thinner Conductor / More Flex) →
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Diameter: 0.574 mmResistance: < 7.3 Ω/100mPoE Power: PoE++ (90W+)Max Distance: 100 Meters
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures

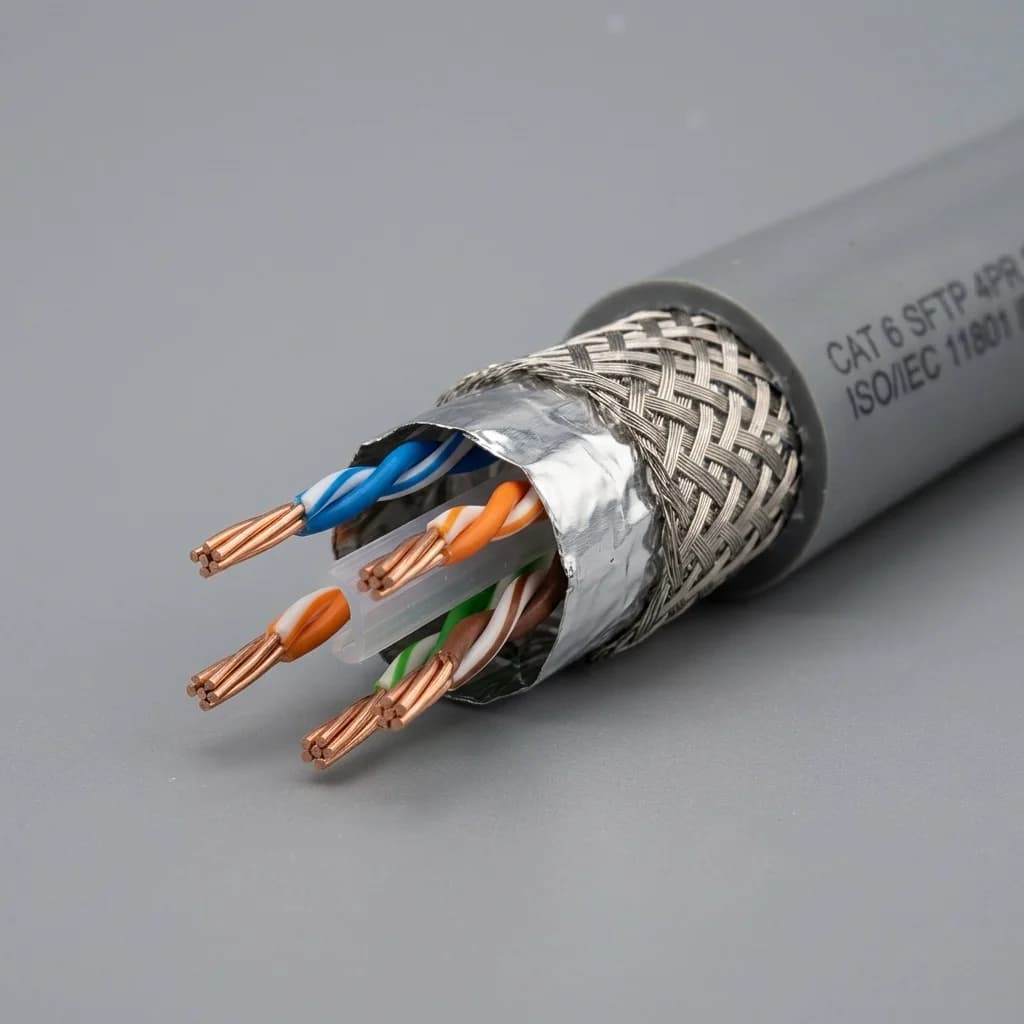

Visual Render
External Sheathing & Lay Layout

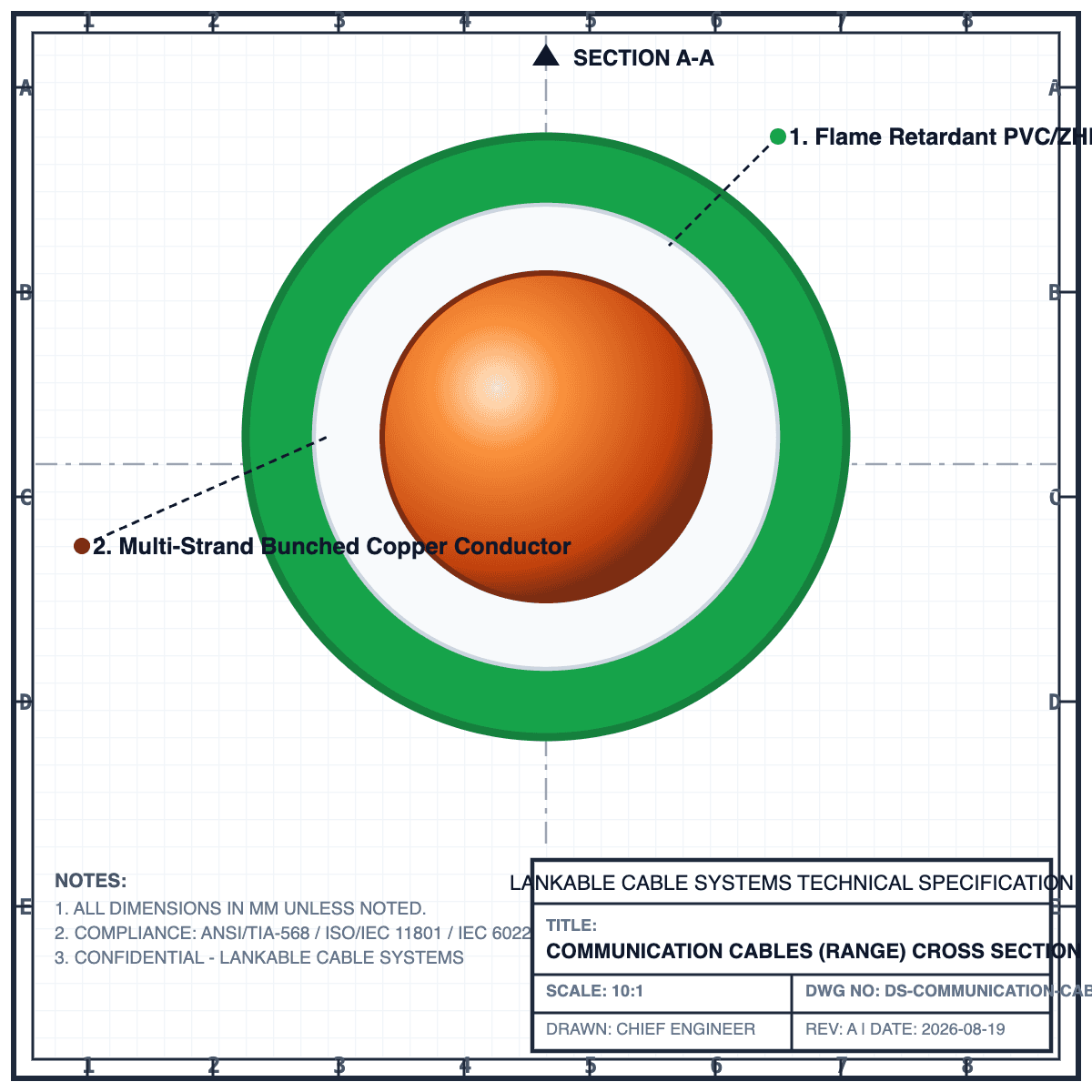

CAD Cross-Section
Internal Shielding & Core Layout

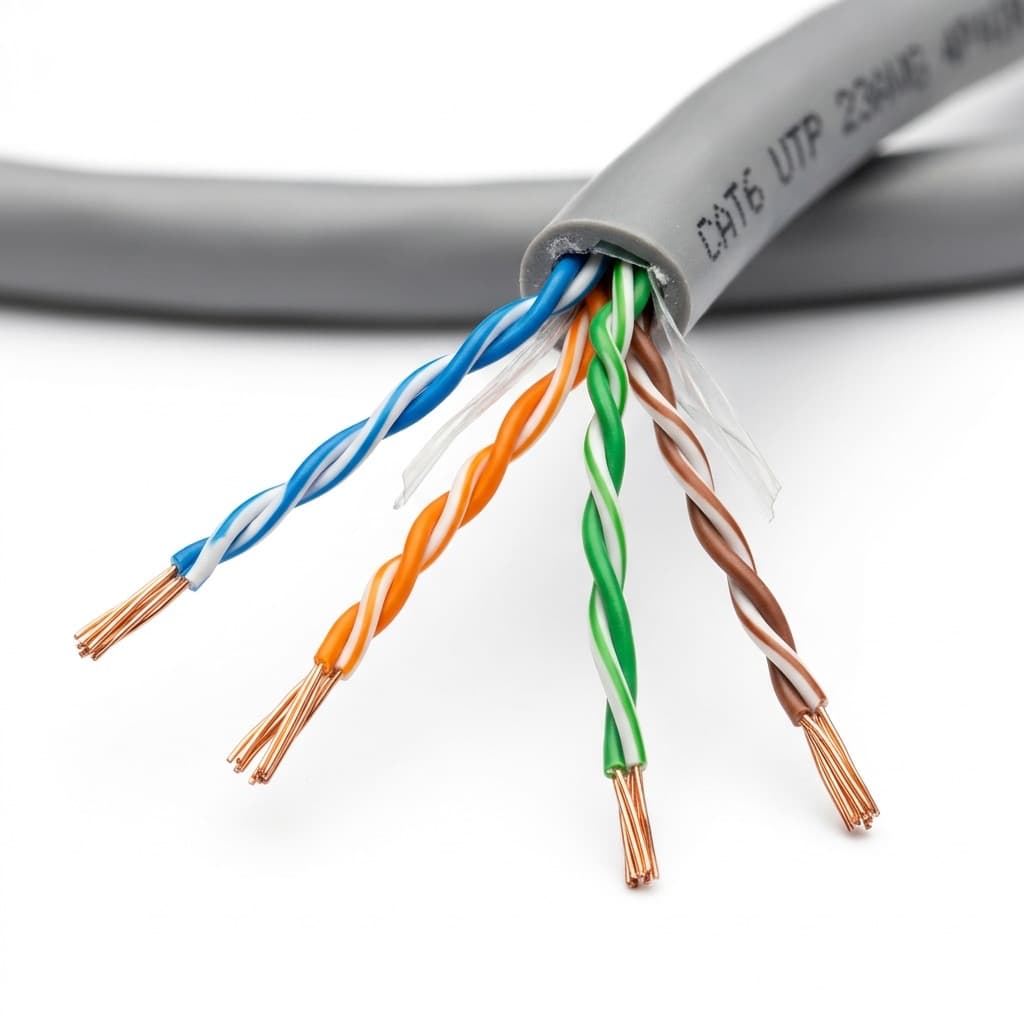

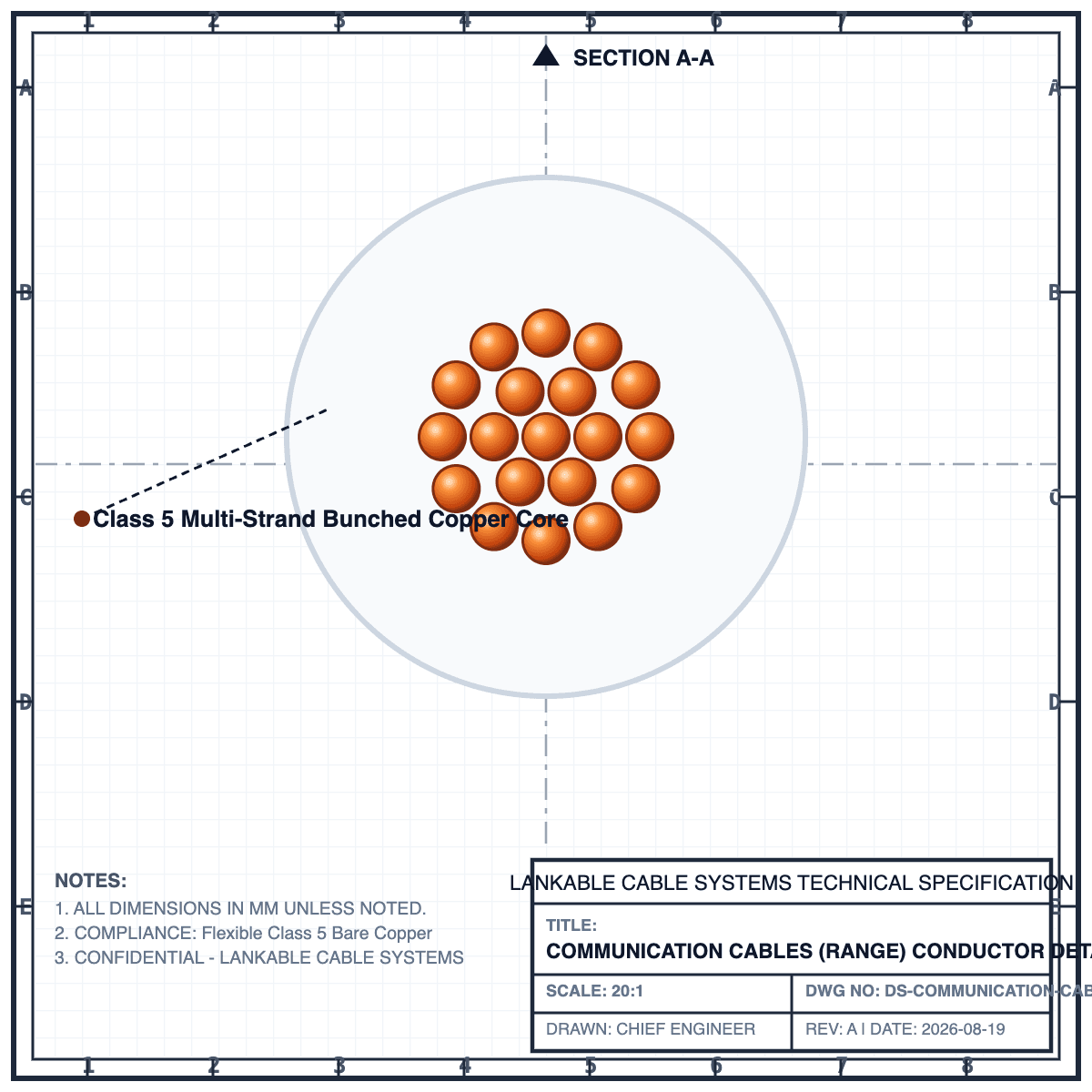

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- High-speed data transmission support
- Twisted pair configuration to minimize crosstalk
- Low attenuation and signal loss over long distances
- Flame-retardant outer sheath for fire safety
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation
- Flame-Retardant PVC (FR-PVC)
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
- Voltage Rating
- 1100 V (1.1 kV)
- Temperature Range
- -15°C to +70°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
