DC Solar Cables
DS-SPE-DC-SOLAR-CABLES-01 | TECHNICAL DATASHEET
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-SPE-DC-SOLAR-CABLES-01 | Page 01
DC Solar Cables
DC Solar Cables
TUV/EN certified DC solar cables engineered for outdoor PV solar panels. Outfitted with cross-linked halogen-free insulation (XLPE) providing 25+ years of UV and weather resistance.
Product Build Up (Construction)
Visual Render
External Sheathing

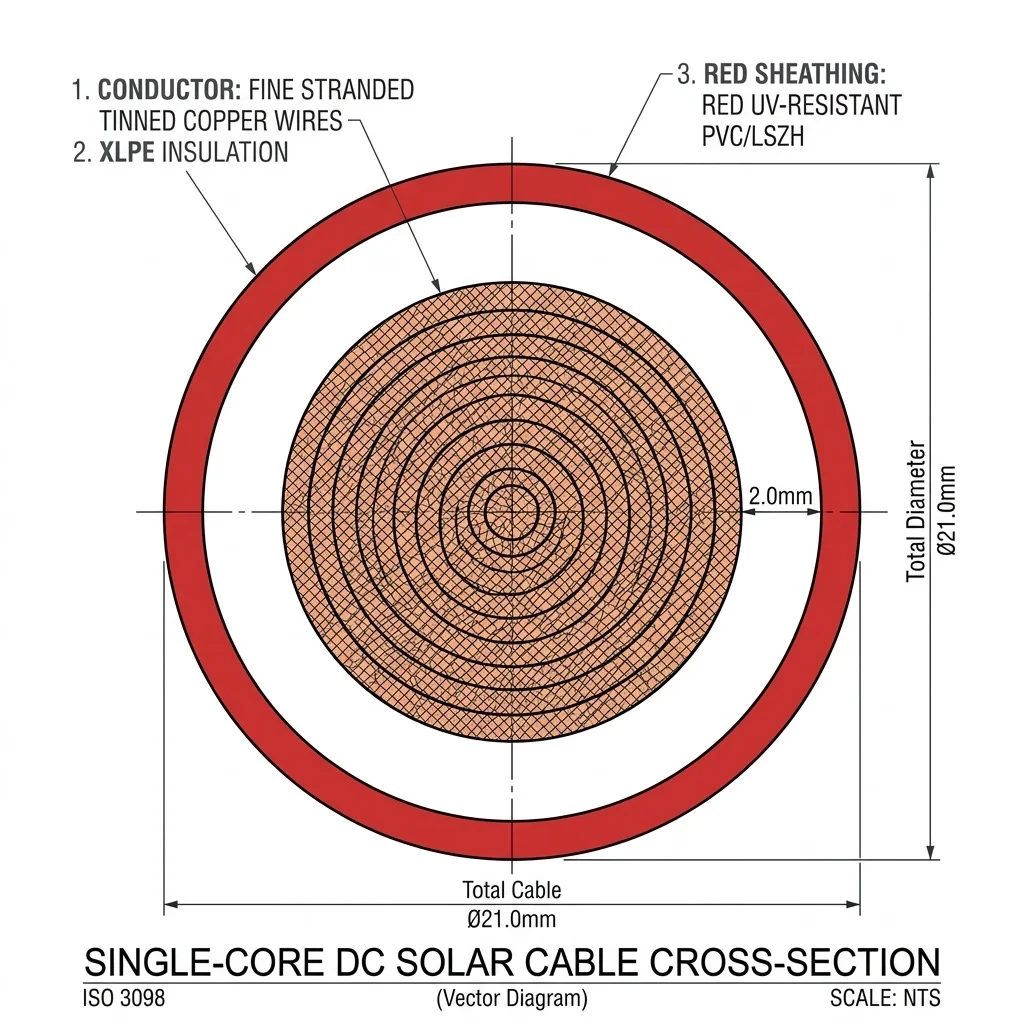

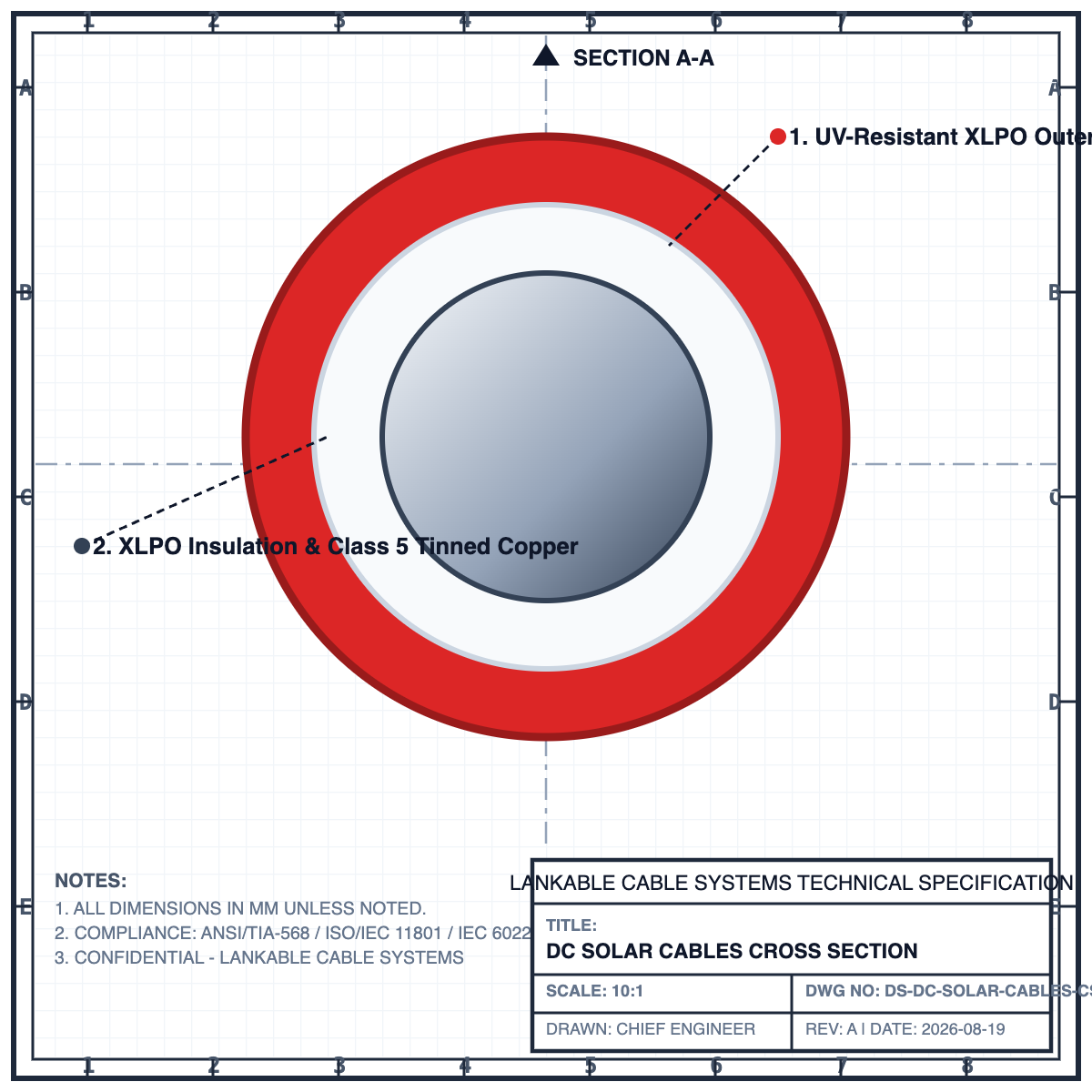

CAD Cross-Section
Internal Core Layout

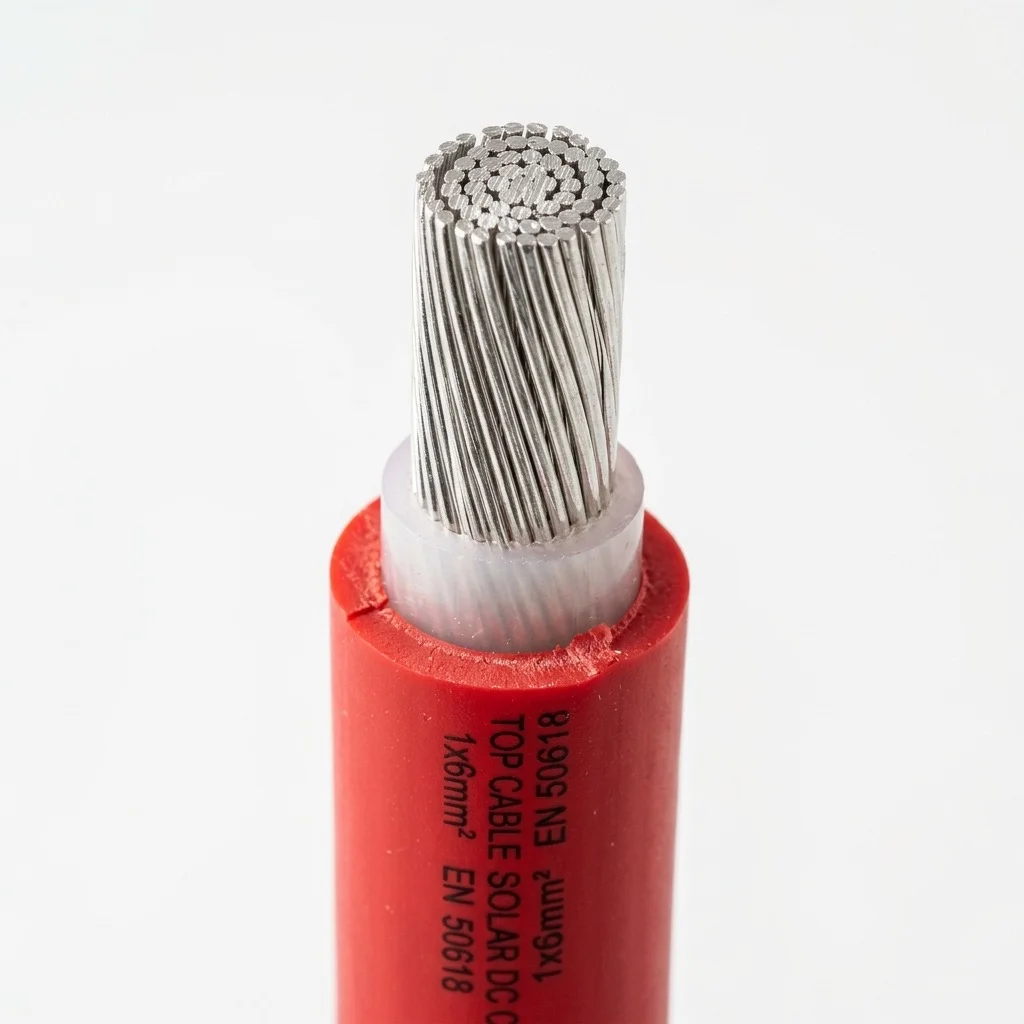

Conductor Detail
Metallurgy Gauge
Key Features
- •Class 5/6 flexible conductor stranding for dynamic bending
- •Excellent resistance to oils, chemicals, and industrial acids
- •High shielding coverage for superior noise suppression
- •Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Dimension Characteristics
| Nominal Area (sq mm) | Conductor Strands | Nominal Outer Diameter | Current carrying capacity |
|---|---|---|---|
| 4.0 sq mm (Standard) | 56 x 0.3 mm Tinned Cu | 5.8 mm | 55 Amps |
| 6.0 sq mm (Heavy Duty) | 84 x 0.3 mm Tinned Cu | 6.6 mm | 70 Amps |
| 10.0 sq mm (Commercial) | 142 x 0.3 mm Tinned Cu | 8.2 mm | 98 Amps |
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 01
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-SPE-DC-SOLAR-CABLES-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Conductor Metallurgy
- Class 5 High-Conductivity Flexible Bare Copper
- Insulation Compound
- XLPE (Cross-linked Polyethylene)
- Flame Retardant Properties
- Self-extinguishing FR Grade
- Core Identification
- Red, Yellow, Blue, Black, Green/Yellow (Earth)
- Sheath Material
- None (Single Core)
Electrical Parameters
- Voltage Rating (Uo/U)
- 600/1000 V AC (1.8 kV DC)
- Test Voltage
- 3000 V AC for 5 minutes
- Insulation Resistance
- > 100 MΩ·km @ 20°C
- Max. Operating Temp
- 90°C
- Max. Short Circuit Temp
- 160°C (for PVC) / 250°C (for XLPE)
Mechanical & Thermal
- Bending Radius (Fixed)
- 6 x Outer Diameter
- Bending Radius (Flexing)
- 10 x Outer Diameter
- Abrasion Resistance
- Excellent
- Toxicity Index
- N/A
- Oxygen & Temp Index
- Oxygen Index > 21%
Compliance & Quality
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1, IS 10810 (Part 53)
- Certifications
- CE, RoHS Compliant, ISO 9001:2015
- Quality Seal
- 100% Spark Tested & Verified
CE compliantRoHS certifiedISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
