LANKABLE FLRY-A Cable
DS-IND-FLRY-A-01 | TECHNICAL DATASHEET
LANKABLEWIRE & CABLE SYSTEMS
Technical Datasheet
DS-IND-FLRY-A-01 | Page 01
Automotive Cable Single Core
LANKABLE FLRY-A Cable
Fine-wire, highly flexible automotive cable with soft-annealed electrolytic copper conductor and soft-PVC insulation per ISO 6722-1 Class B. Flame retardant to EN 60332-1-2, suitable for both low and high temperature vehicle wiring.
Product Build Up (Construction)
Visual Render
External Sheathing

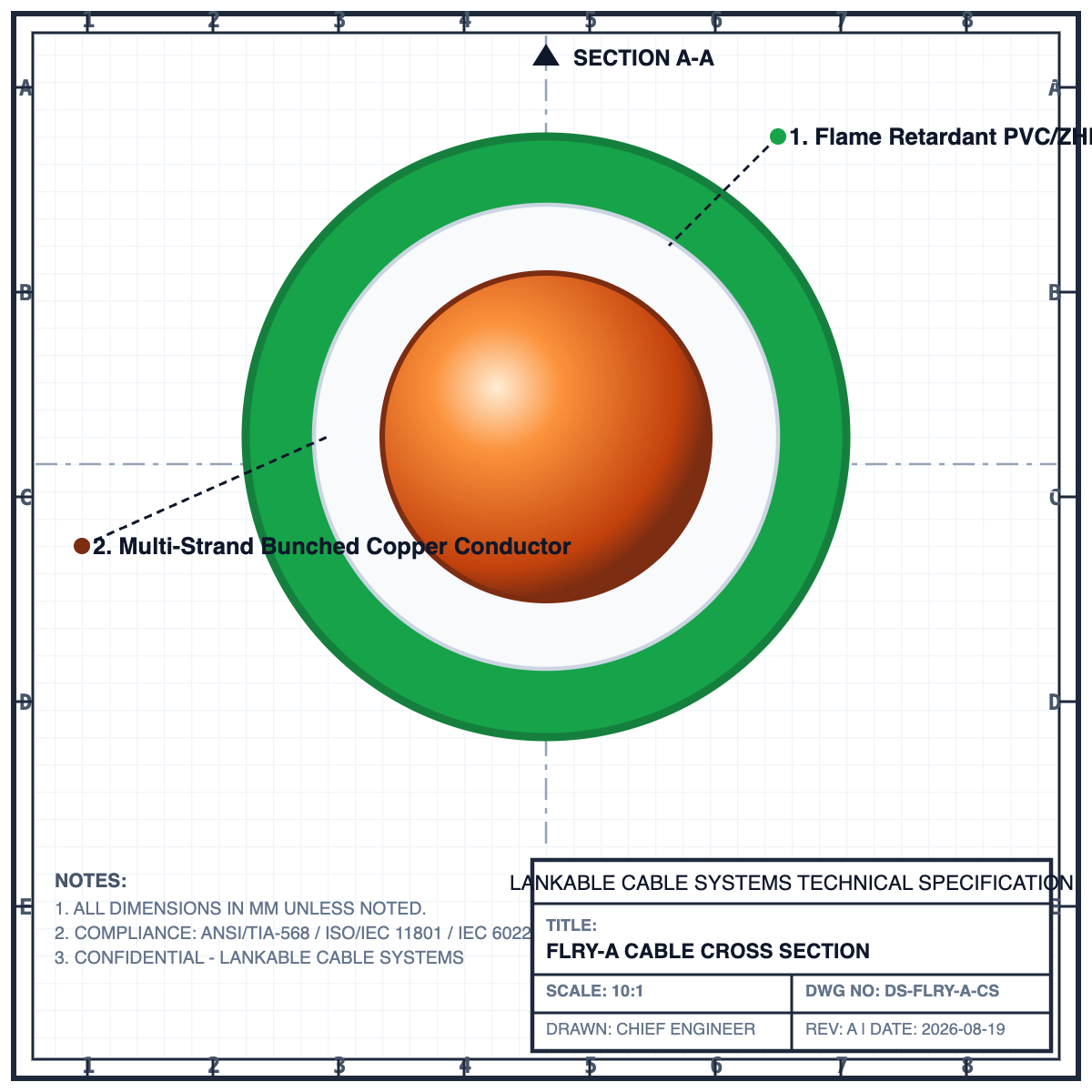

CAD Cross-Section
Internal Core Layout

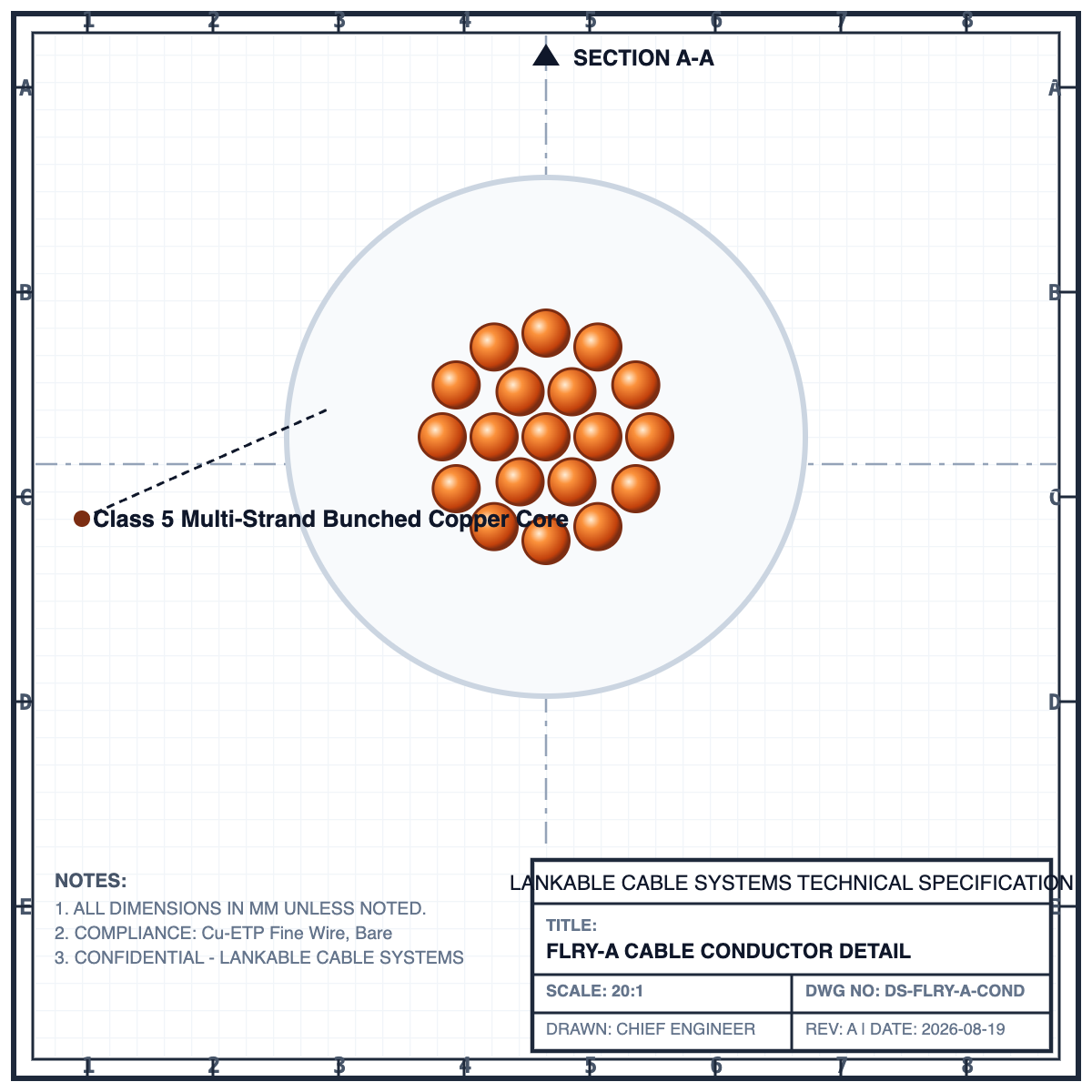

Conductor Detail
Metallurgy Gauge
Key Features
- •Cu-ETP fine wire bare copper conductor
- •Soft-PVC thin-wall insulation per ISO 6722-1 Class B
- •60V DC / 25V AC voltage rating, withstanding 3,000 hours at 105°C
- •Lead-free PVC with excellent petrol and chemical resistance
Applications
Automotive body and engine-bay wiring harnessesApplications requiring tight bend radius and vibration resistance12V and 24V vehicle electrical systemsPetrol, chemical, and abrasion-exposed routing
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 01
LANKABLEWIRE & CABLE SYSTEMS
Technical Datasheet
DS-IND-FLRY-A-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Conductor Metallurgy
- Class 2 Stranded Bare Copper / Aluminum
- Insulation Compound
- PVC / XLPE Insulation
- Outer Sheath
- FR-PVC (Flame Retardant PVC)
- Armouring
- Unarmoured
Electrical Parameters
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Operating Temperature
- Max. 70°C (PVC) / 90°C (XLPE)
Mechanical & Thermal
- Bending Radius (Fixed)
- 12 x Outer Diameter (Armoured)
- Flame Retardancy
- IEC 60332-1-2
- Short Circuit Temp
- 160°C (for PVC) / 250°C (for XLPE)
Compliance & Quality
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Quality Certs
- CE, RoHS Compliant, ISO 9001
CE compliantRoHS certifiedISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
Sales & Sales Head Office
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Email: sales@lankable.com
Phone: +91 99500 52179
Web: www.lankable.com
Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
