MOQ: 2,000 MetersLANKABLE FLRY-B Cable
Fine-wire, highly flexible automotive cable — the thin-wall counterpart to FLRY-A — with soft-annealed electrolytic copper conductor and soft-PVC insulation per ISO 6722-1 Class B, for space- and weight-constrained harness routing.
Visual Render
External Sheathing & Lay Layout

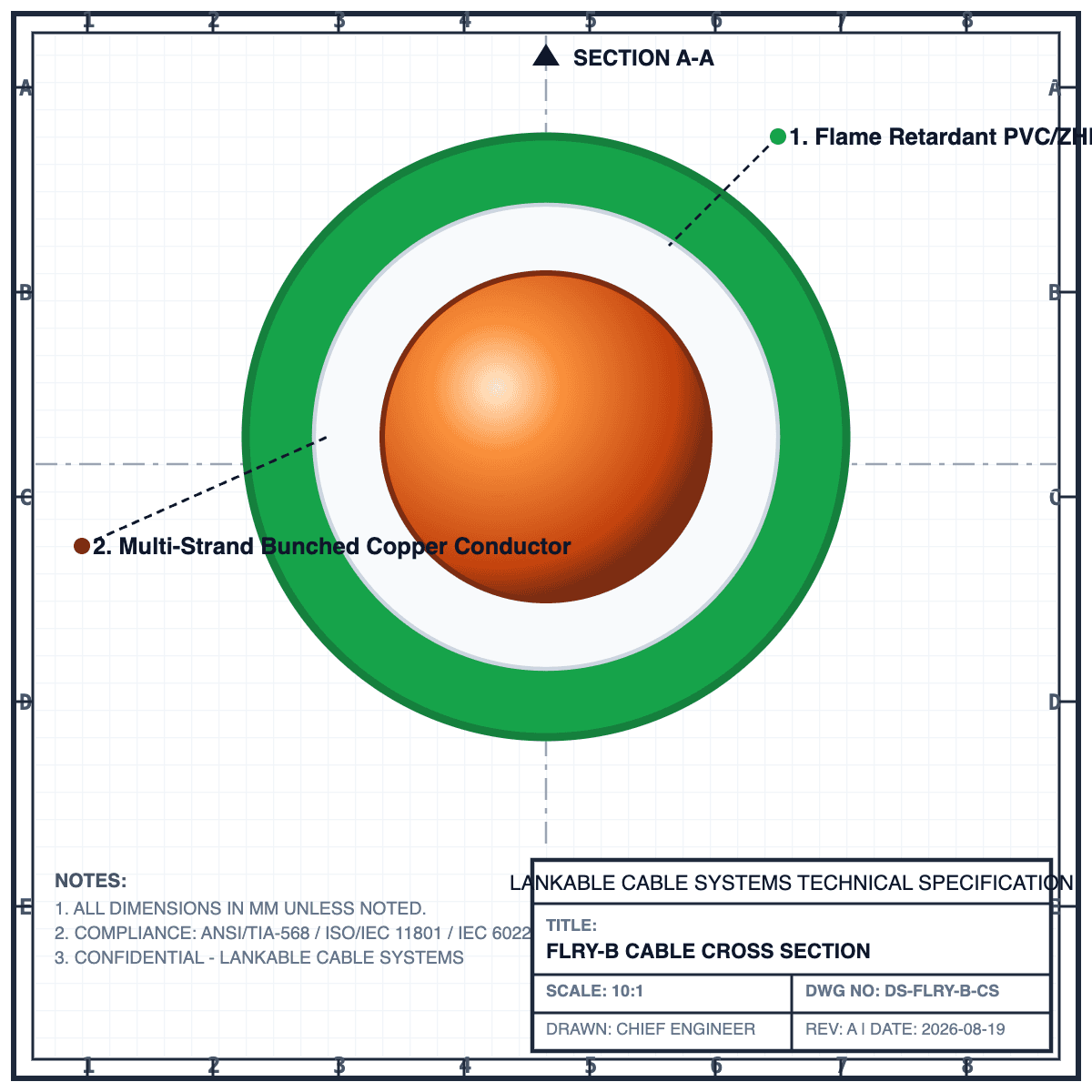

CAD Cross-Section
Internal Shielding & Core Layout

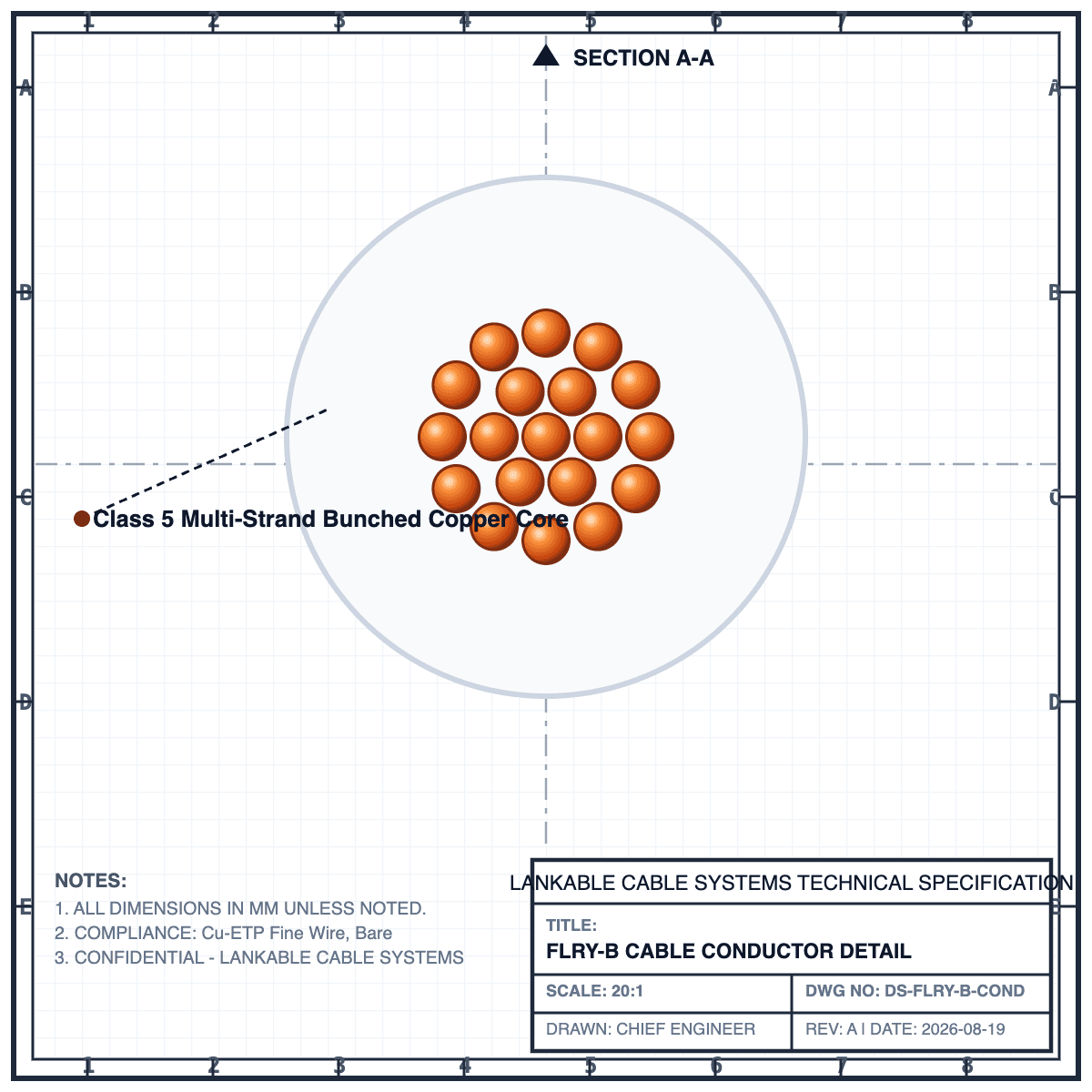

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- Cu-ETP fine wire bare copper conductor with fine-wire bunching
- Soft-PVC thin-wall insulation per ISO 6722-1 Class B
- Weight-critical and space-constrained automotive routing
- Lead-free PVC with excellent chemical and abrasion resistance
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Cu-ETP Fine Wire, Bare
- Insulation
- Soft-PVC (ISO 6722-1 Class B)
- Voltage Rating
- 60V DC / 25V AC
- Temperature Range
- -20°C to +105°C
- Flame Performance
- Flame Retardant per EN 60332-1-2
- Lead Free
- Yes
- MOQ Quantity
- 2,000 Meters
- Standard Packaging
- Reels / Coils
