MOQ: 1,000 MetersH07V-K Cable
Flexible Class 5 stranded copper conductor with PVC insulation to DIN VDE 0281, for internal wiring of switch control, relay and instrumentation panels, static appliances, and motor starter/controller circuits.
Visual Render
External Sheathing & Lay Layout

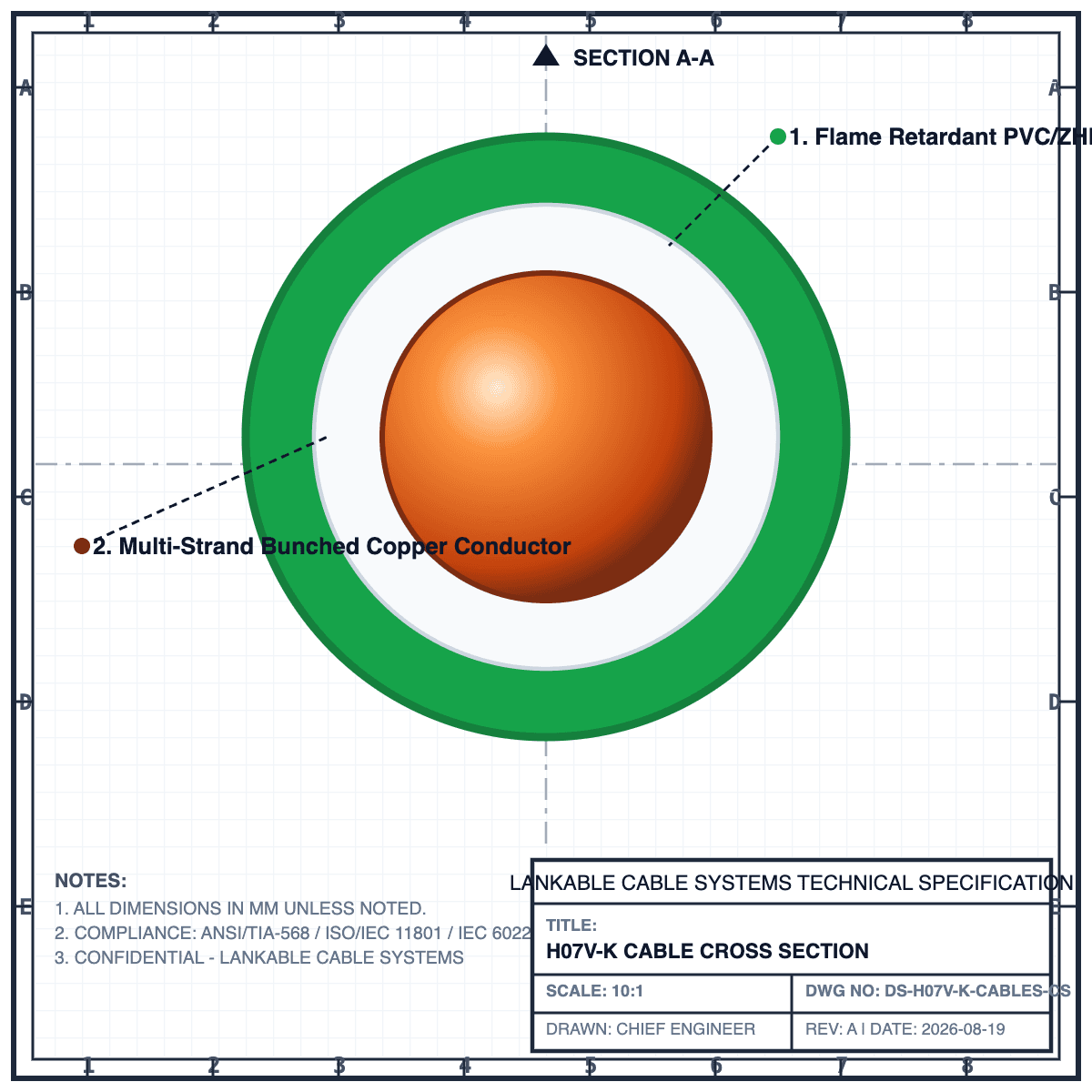

CAD Cross-Section
Internal Shielding & Core Layout

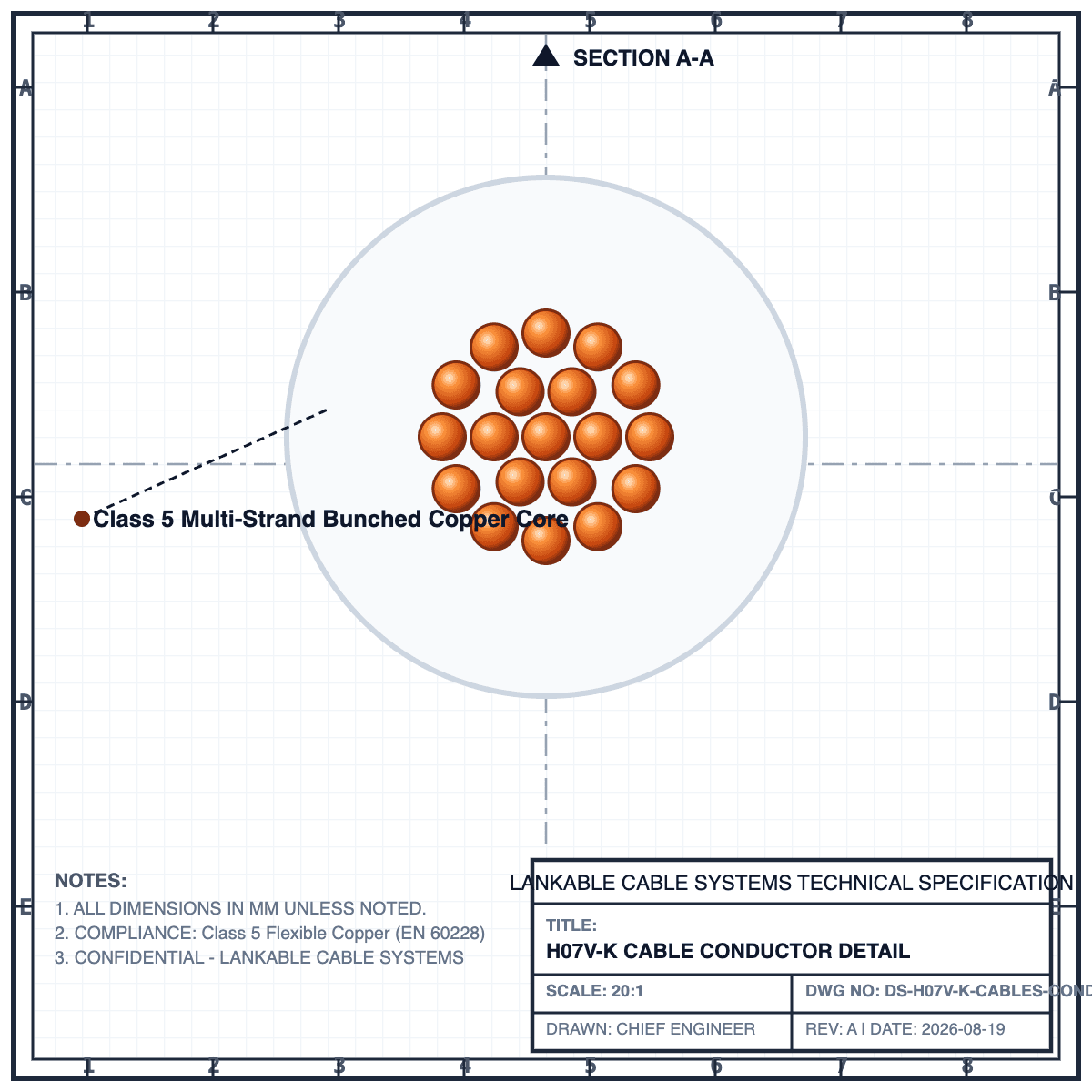

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- Flexible Class 5 stranded copper conductor per EN 60228
- PVC insulation to DIN VDE 0281-1, self-extinguishing
- 450/750 V voltage rating with -30°C to +70°C temperature range
- Excellent bending radius (4 x OD minimum)
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Class 5 Flexible Copper (EN 60228)
- Insulation
- PVC (DIN VDE 0281-1)
- Voltage Rating
- 450 / 750 V
- Temperature Range
- -30°C to +70°C
- Bending Radius
- 4 × OD (minimum)
- Flame Performance
- Self-extinguishing per DIN VDE 0482-332-1-2
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
