MOQ: 1,000 MetersIEC Single-Core Cable
Flexible PVC insulated single-core cable manufactured to IEC 60227-08, rated 300/500V and up to 90°C, designed for indoor fixed installation in dry locations, panels, and switchboards.
Visual Render
External Sheathing & Lay Layout

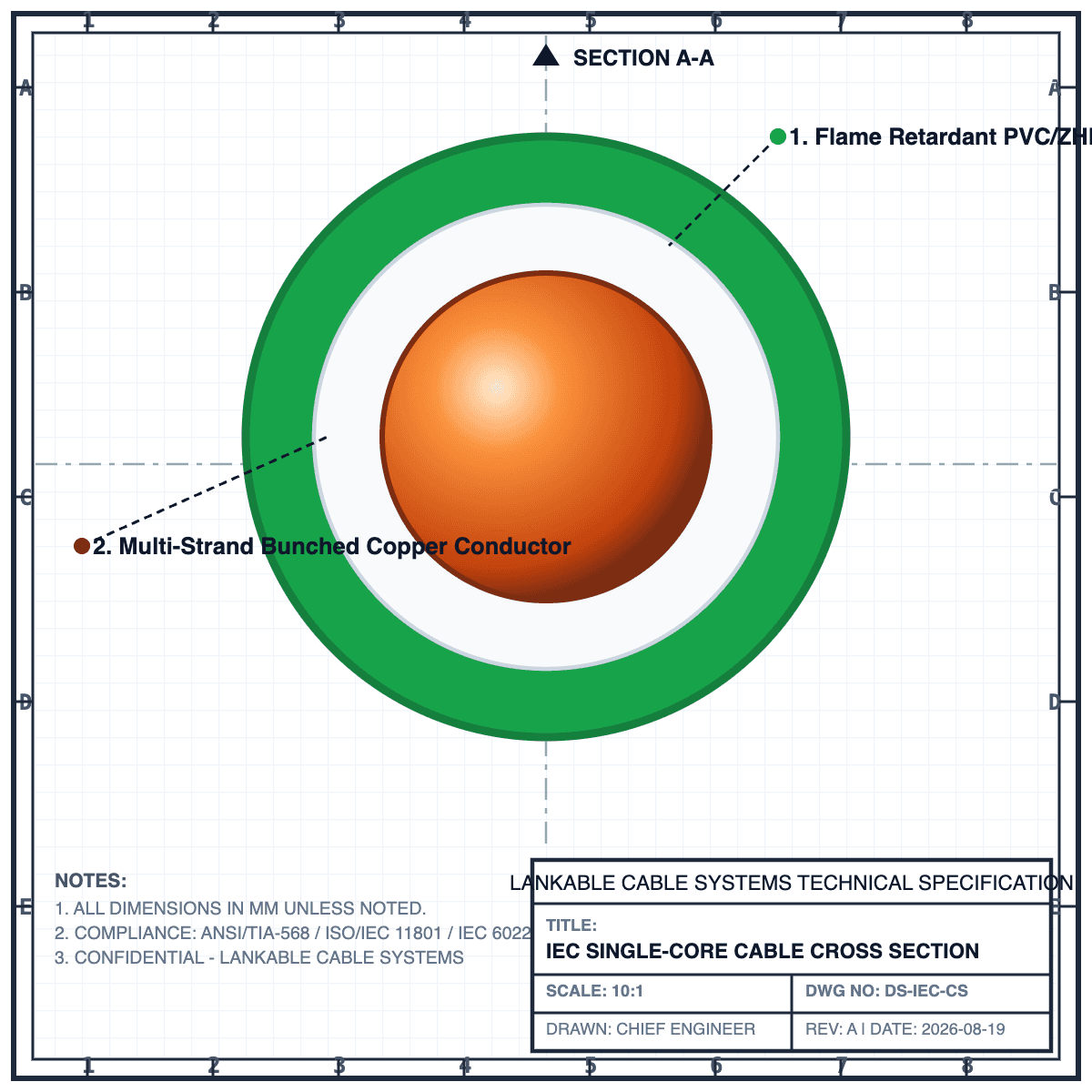

CAD Cross-Section
Internal Shielding & Core Layout

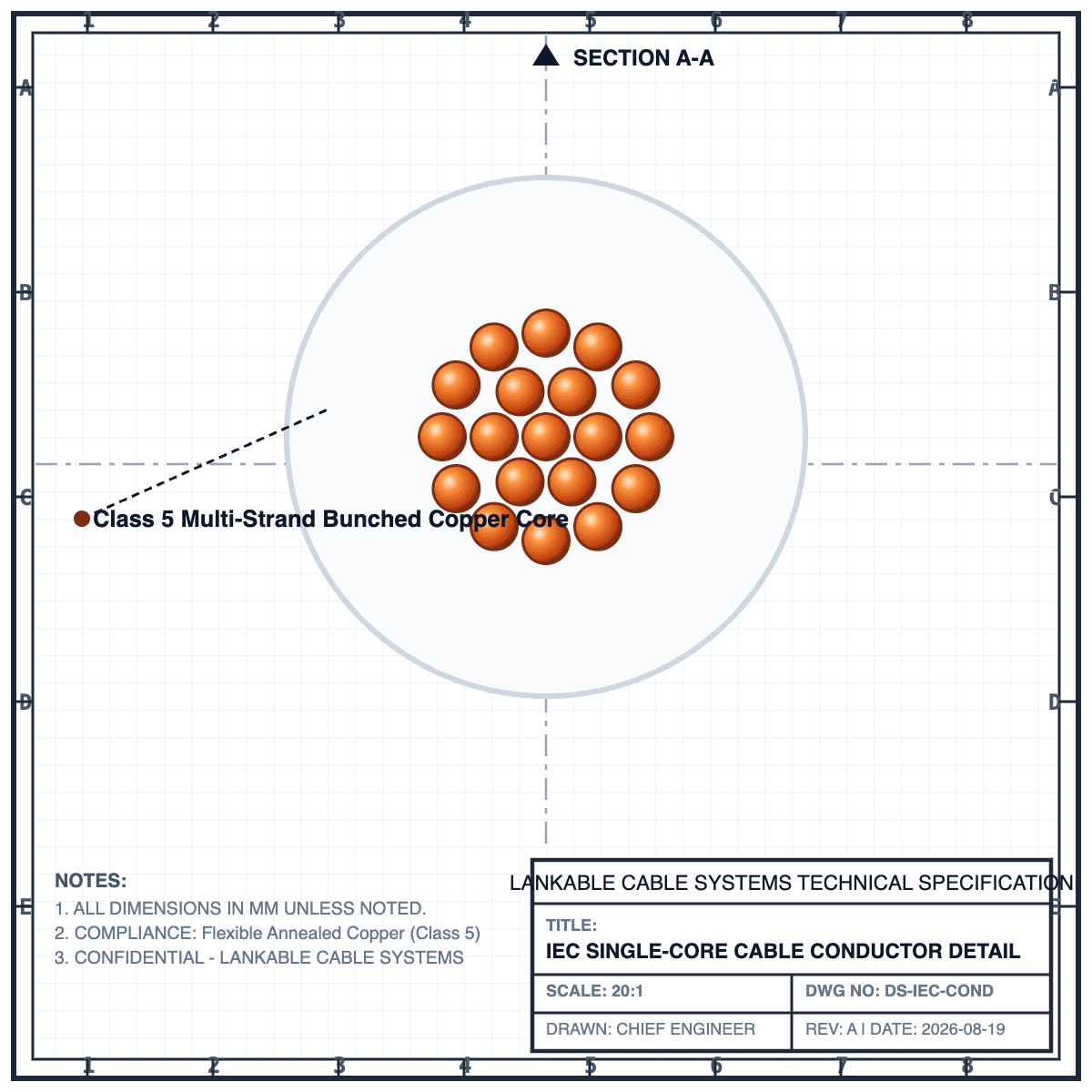

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- Flexible Class 5 stranded copper conductor per IEC 60228
- Flame-retardant PVC insulation compliant with IEC 60227-08
- Rated voltage of 300/500 V with 90°C maximum temperature rating
- Passes 2000V test voltage with excellent current carrying capacity
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Flexible Annealed Copper (Class 5)
- Insulation
- Polyvinyl Chloride (PVC)
- Voltage Rating
- 300/500 V
- Temperature Rating
- Up to 90°C
- Reference Standard
- IEC 60227-08
- Test Voltage
- 2,000 V
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
