Armored Cables

IS 7098 XLPE Insulated Power Cable

Cross-linked polyethylene (XLPE) insulated and PVC sheathed power cable manufactured in accordance with IS 7098 (Part 1). Suitable for electrical installation, power distribution networks, and industrial utility grids up to 1100V.

Product Build Up (Construction)

Visual Render

External Sheathing

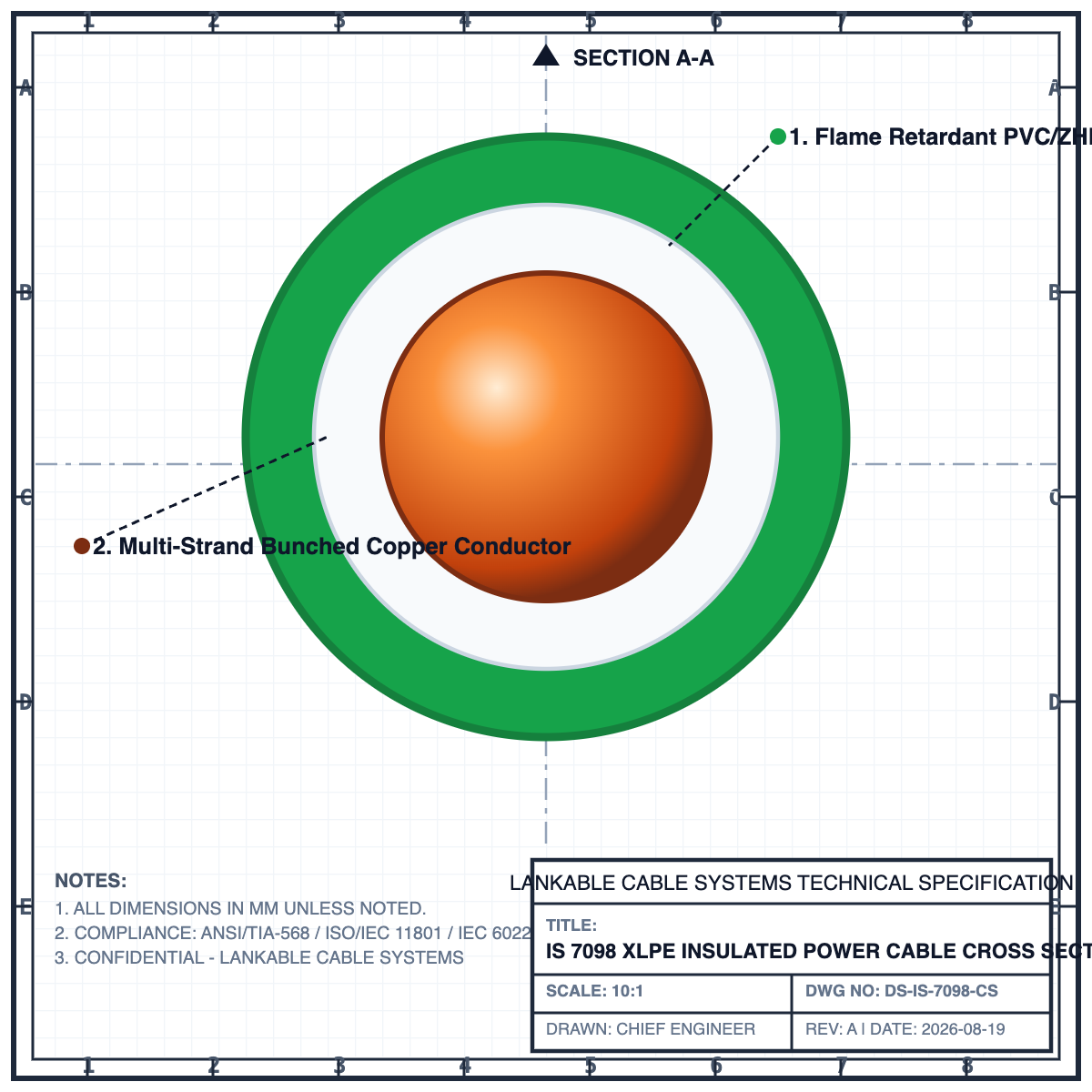

CAD Cross-Section

Internal Core Layout

Conductor Detail

Metallurgy Gauge

Key Features

•Cross-linked polyethylene (XLPE) insulation for superior thermal efficiency
•Galvanized steel wire or tape armored for mechanical protection
•Excellent resistance to moisture, chemicals, and mechanical stress
•Manufactured in compliance with IS 7098 Part 1 standards

Applications

Power distribution grids and substationsIndustrial plant power utility cablingUnderground mains distribution loops

LɅNKɅBLECONNECTING POSSIBILITIES

Technical Datasheet

DS-POW-IS-7098-01 | Page 02

Detailed Engineering Specifications

Materials & Build

Conductor Metallurgy: Class 2 Stranded Bare Copper / Aluminum
Insulation Compound: PVC / XLPE Insulation
Outer Sheath: FR-PVC (Flame Retardant PVC)
Armouring: Unarmoured

Electrical Parameters

Voltage Rating: 1100 V (1.1 kV)
Test Voltage: 3000 V AC
Operating Temperature: Max. 70°C (PVC) / 90°C (XLPE)

Mechanical & Thermal

Bending Radius (Fixed): 12 x Outer Diameter (Armoured)
Flame Retardancy: IEC 60332-1-2
Short Circuit Temp: 160°C (for PVC) / 250°C (for XLPE)

Compliance & Quality

Standards: IS 7098 (Part-1), IEC 60502-1
Quality Certs: CE, RoHS Compliant, ISO 9001

CE compliantRoHS certifiedISO 9001

Quality Assurance Seal

100% In-house Tested & Certified
