LT (Low Tension) Aluminum Armored Cables
DS-POW-LT-LOW-TENSION-ALUMINUM-ARMORED-CABLES-01 | TECHNICAL DATASHEET
Technical Datasheet
DS-POW-LT-LOW-TENSION-ALUMINUM-ARMORED-CABLES-01 | Page 01
LT (Low Tension) Aluminum Armored Cables
Low tension armored power and control cable designed for heavy industrial installations, direct underground burial, and outdoor electrical networks. Corrugated steel/aluminum wire armouring provides superior crush and mechanical protection.

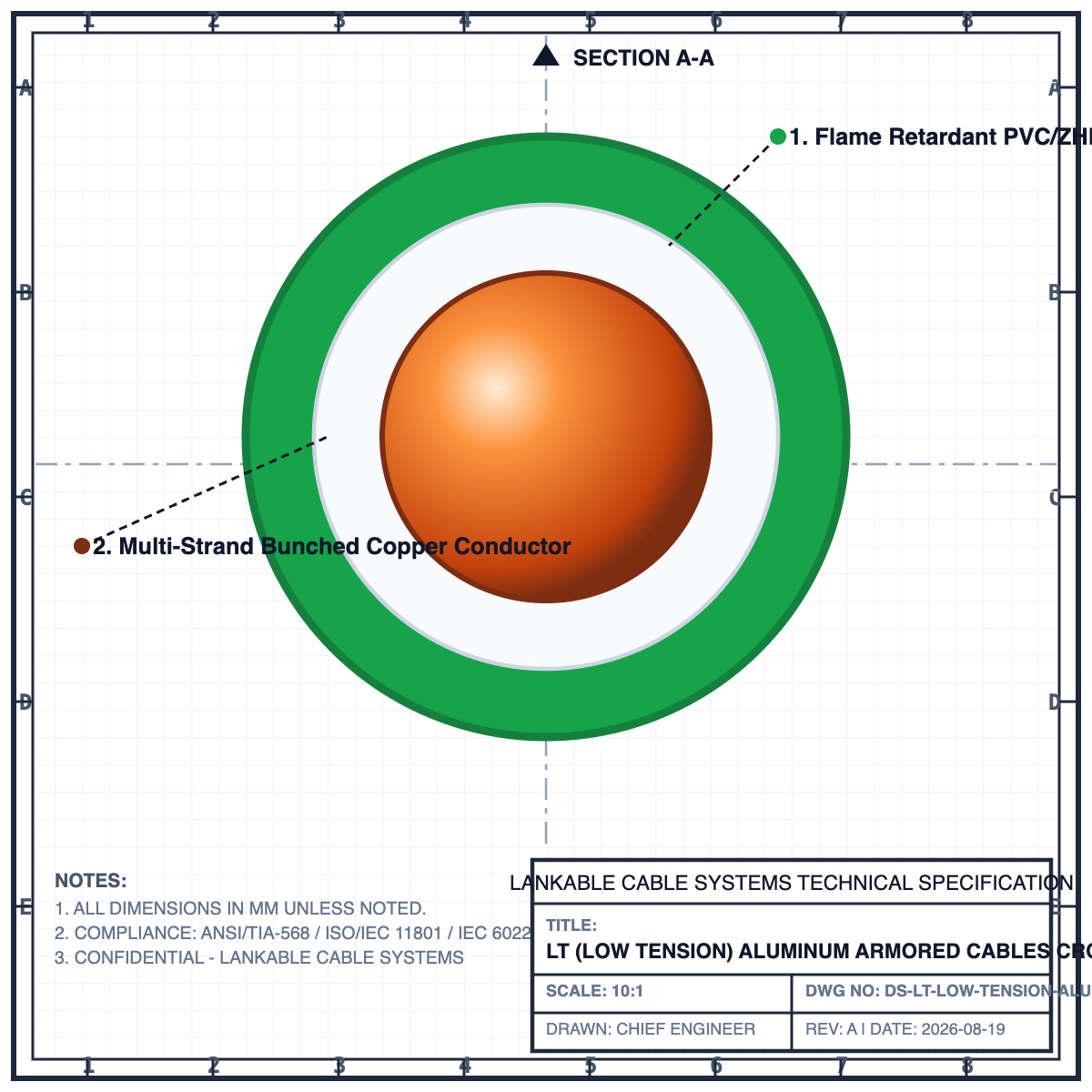

Product Build Up (Construction)

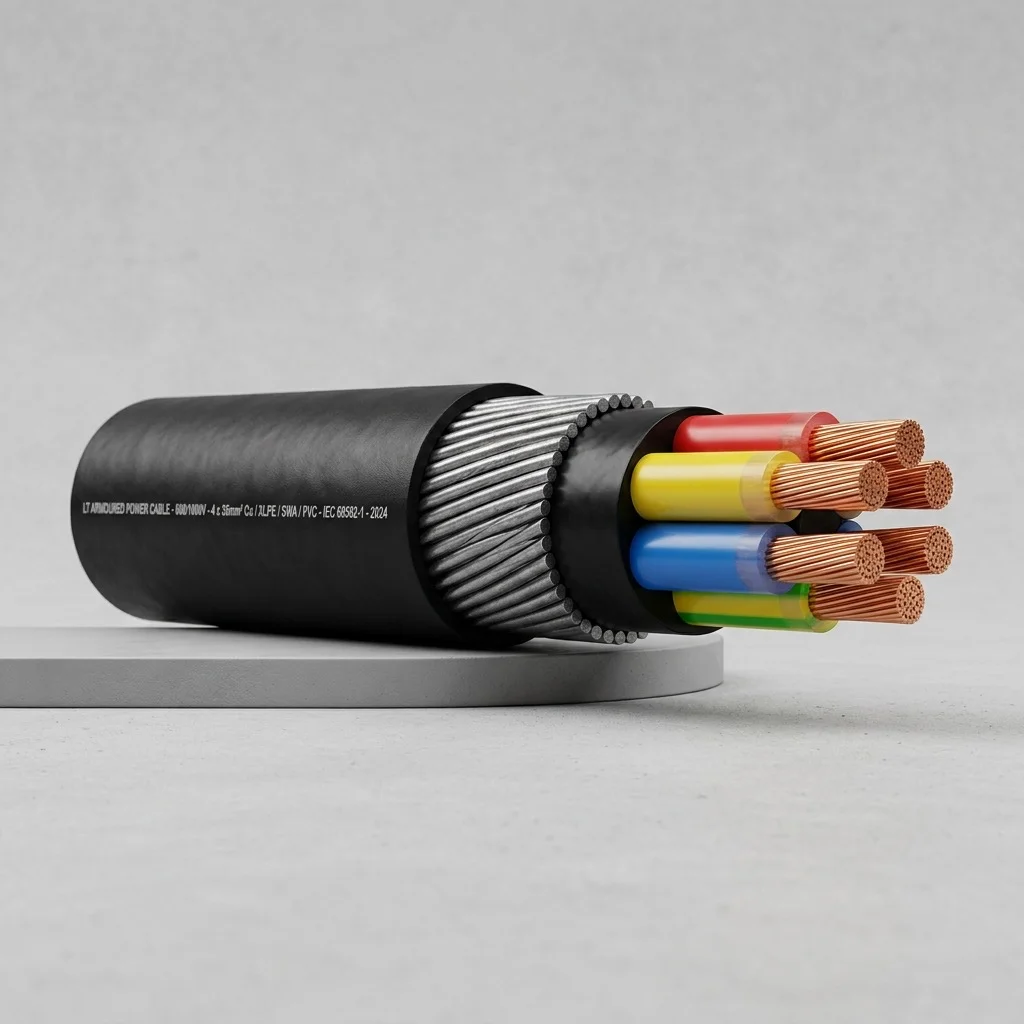

External Sheathing

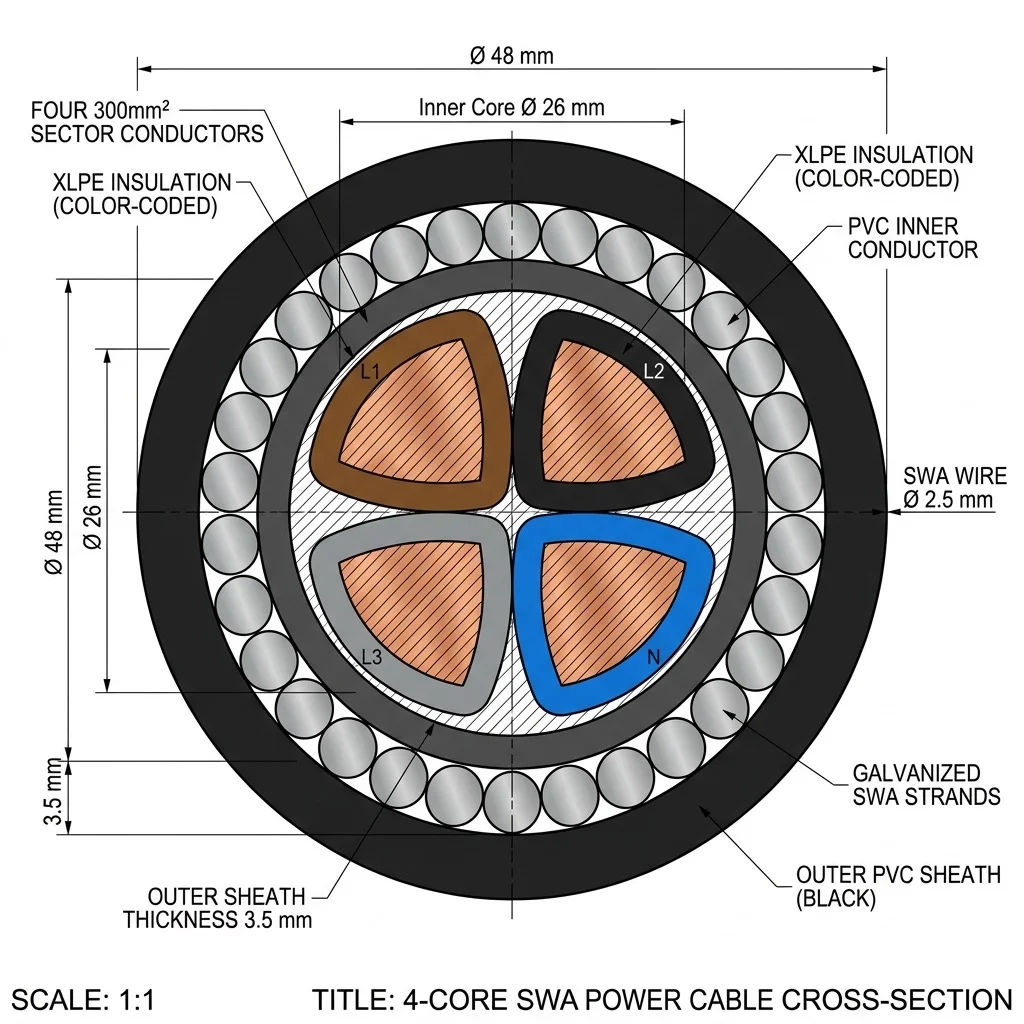

Internal Core Layout

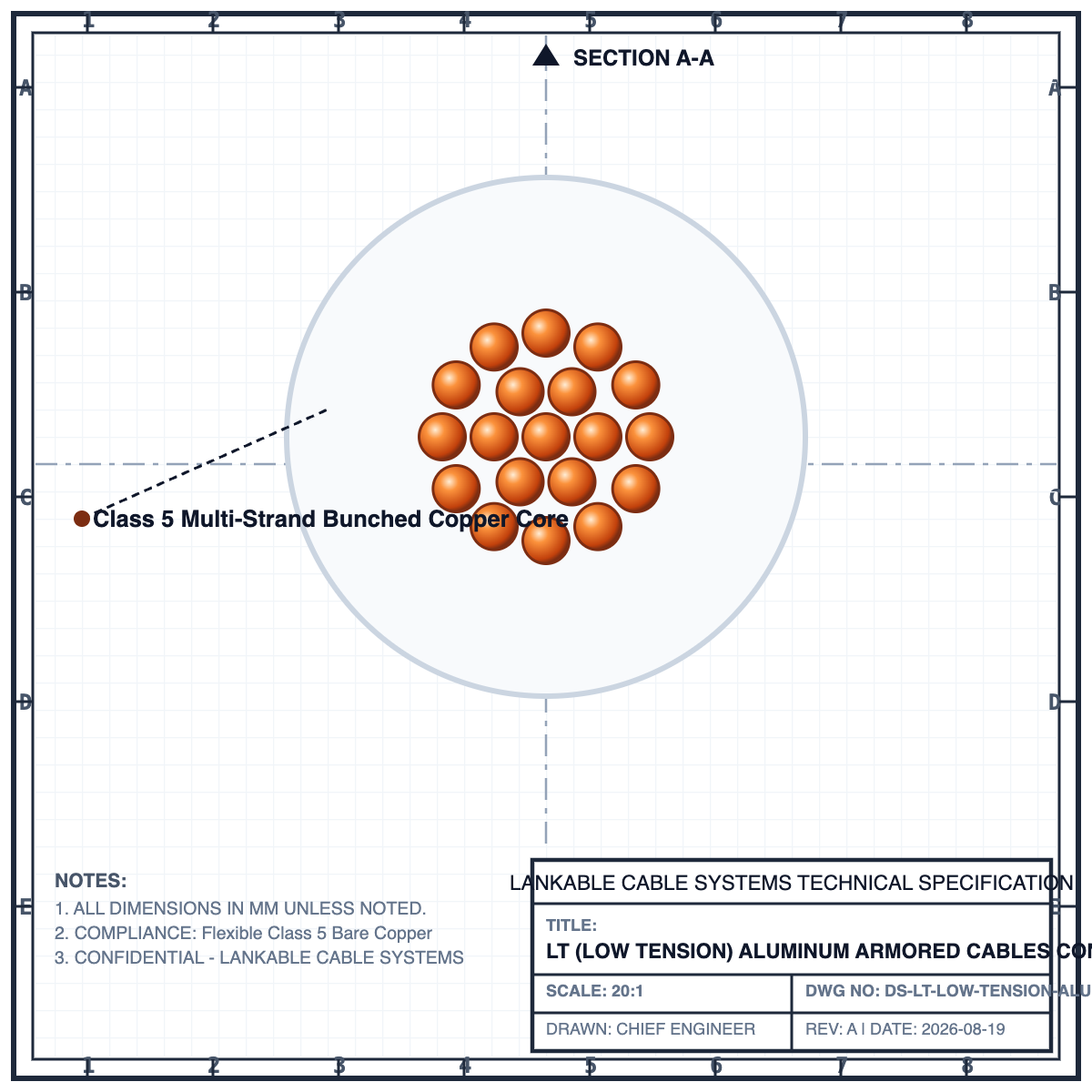

Metallurgy Gauge
Key Features
- •High dielectric insulation strength
- •Corrosion-resistant copper/aluminum conductors
- •Self-extinguishing, flame-retardant outer sheathing
- •Designed to carry high current loads with minimum power loss
Applications
Technical Datasheet
DS-POW-LT-LOW-TENSION-ALUMINUM-ARMORED-CABLES-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Conductor Metallurgy
- Class 2 Stranded Bare Copper / Aluminum
- Insulation Compound
- PVC / XLPE Insulation
- Outer Sheath
- FR-PVC (Flame Retardant PVC)
- Armouring
- Unarmoured
Electrical Parameters
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Operating Temperature
- Max. 70°C (PVC) / 90°C (XLPE)
Mechanical & Thermal
- Bending Radius (Fixed)
- 12 x Outer Diameter (Armoured)
- Flame Retardancy
- IEC 60332-1-2
- Short Circuit Temp
- 160°C (for PVC) / 250°C (for XLPE)
Compliance & Quality
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Quality Certs
- CE, RoHS Compliant, ISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
Sales & Sales Head Office
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Email: sales@lankable.com
Phone: +91 99500 52179
Web: www.lankable.com
Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
