MOQ: 1,000 MetersLANKABLE Multi-strand Copper Wires
High-conductivity PVC insulated wire designed for residential and commercial housing electrification. Manufactured with 99.97% pure electrolytic grade copper to ensure minimal power loss and safety.
Visual Render
External Sheathing & Lay Layout

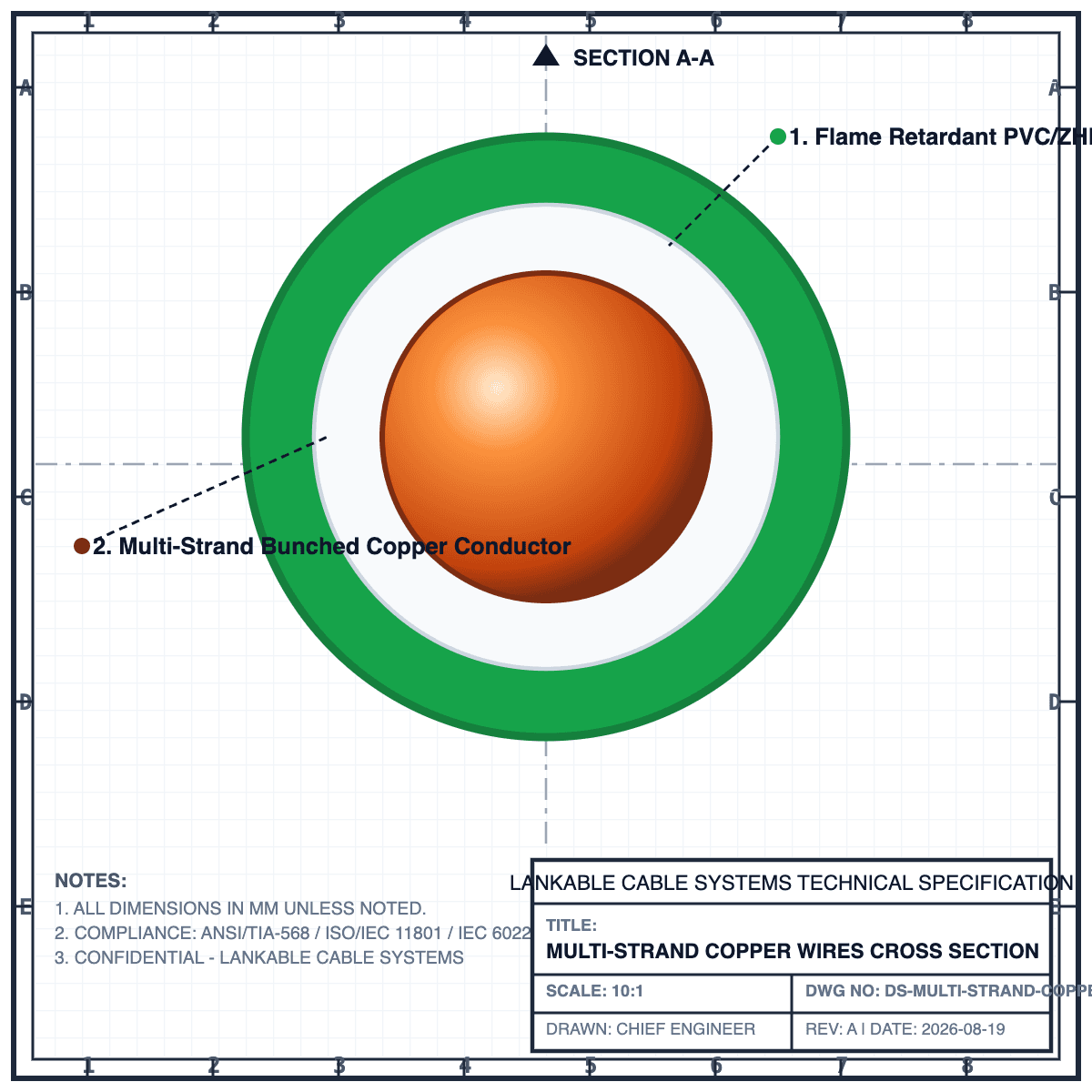

CAD Cross-Section
Internal Shielding & Core Layout
Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- High dielectric insulation strength
- Corrosion-resistant copper/aluminum conductors
- Self-extinguishing, flame-retardant outer sheathing
- Designed to carry high current loads with minimum power loss
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Flexible Class 5 Bare Copper
- Insulation
- Flame-Retardant PVC (FR-PVC)
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
- Voltage Rating
- 1100V (1.1kV)
- Temperature Range
- -15°C to +70°C
- Conductor Layout
- 36 Strands x 0.3 mm
- Cross Sectional Area
- 2.5 sq mm
- Current Rating (in Conduit)
- 20 Amps
- Max DC Resistance @ 20°C
- 7.41 Ω/km
