MOQ: 2,000 MetersOutdoor SSFTP Cable

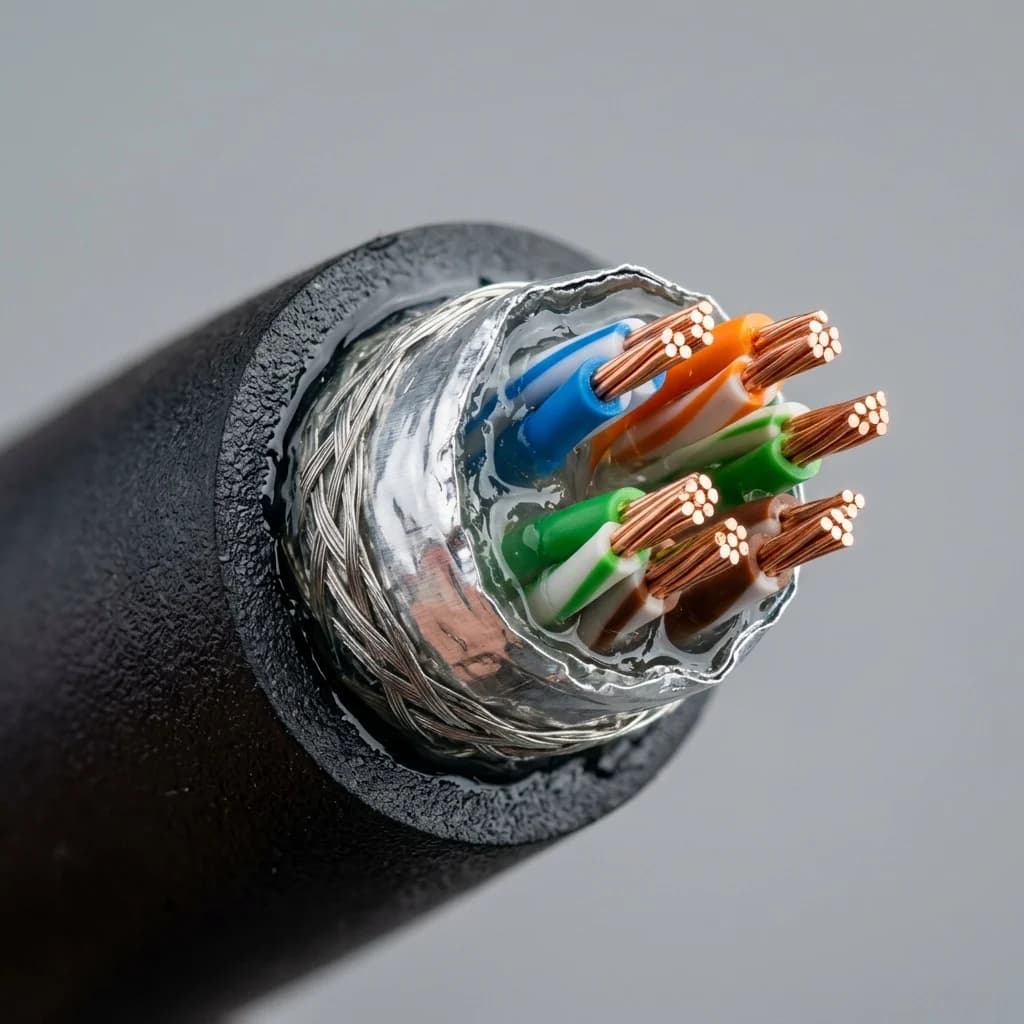

Double-shielded, heavy-duty outdoor Cat 6A SFTP cable. Features individual foil-screened pairs and an overall tinned copper braid for high-throughput networks.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures
External Sheathing & Lay Layout

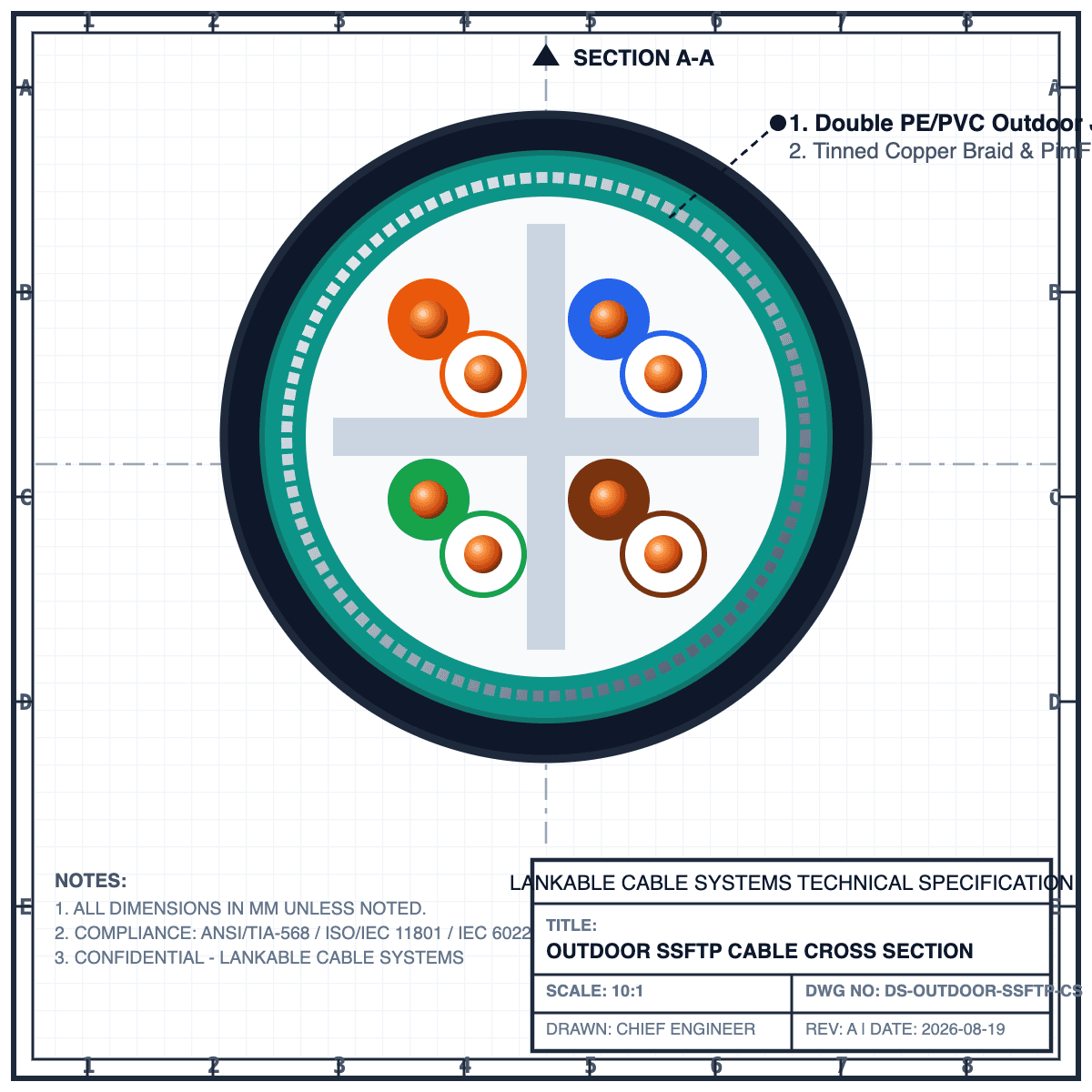

Internal Shielding & Core Layout

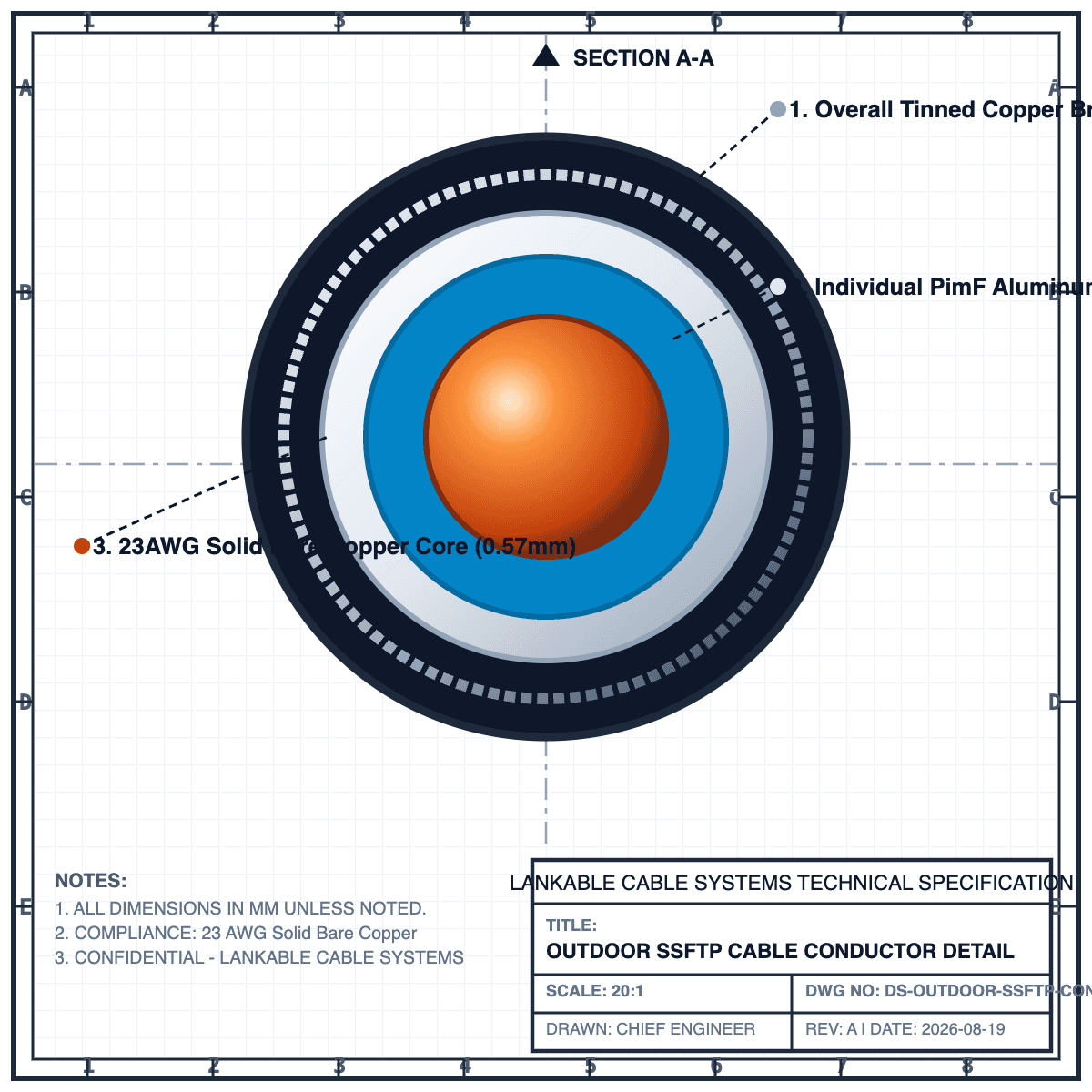

Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid bare copper
- Individual foil shield on pairs + overall copper braid
- Double HDPE black outer jacket for weathering
- Water-blocking dry core wrapping
- MOQ: 2,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Shielding
- S/FTP (Braid screen + foil pairs)
- Bandwidth
- 500 MHz (Category 6A)
- Jacket Material
- Weather-proof HDPE
- MOQ Quantity
- 2,000 Meters
- Temperature Range
- -50°C to +85°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
