MOQ: 2,000 MetersOutdoor UTP Cable
Weather-resistant, UV-proof outdoor Cat 6 UTP cable. Built with a tough HDPE jacket and water-blocking gel to survive climate extremes without conduit protection.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures

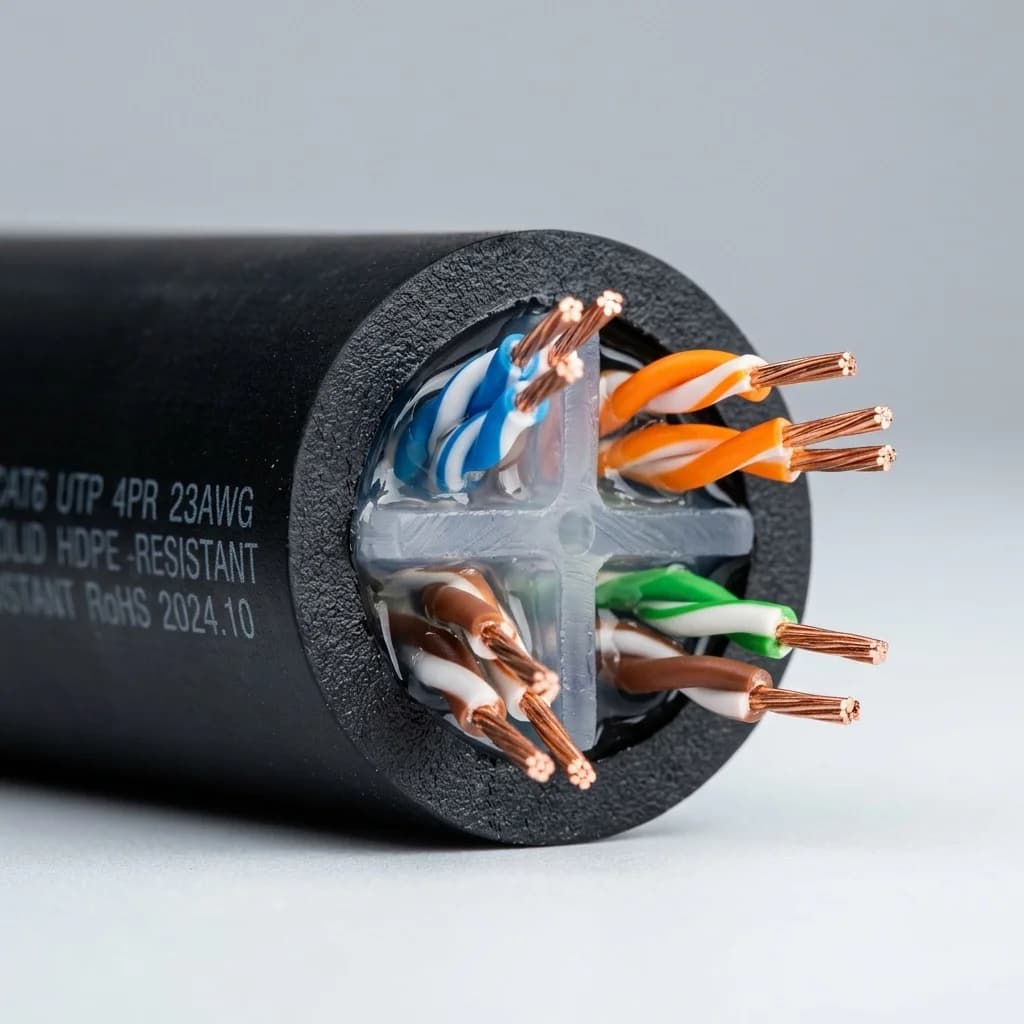

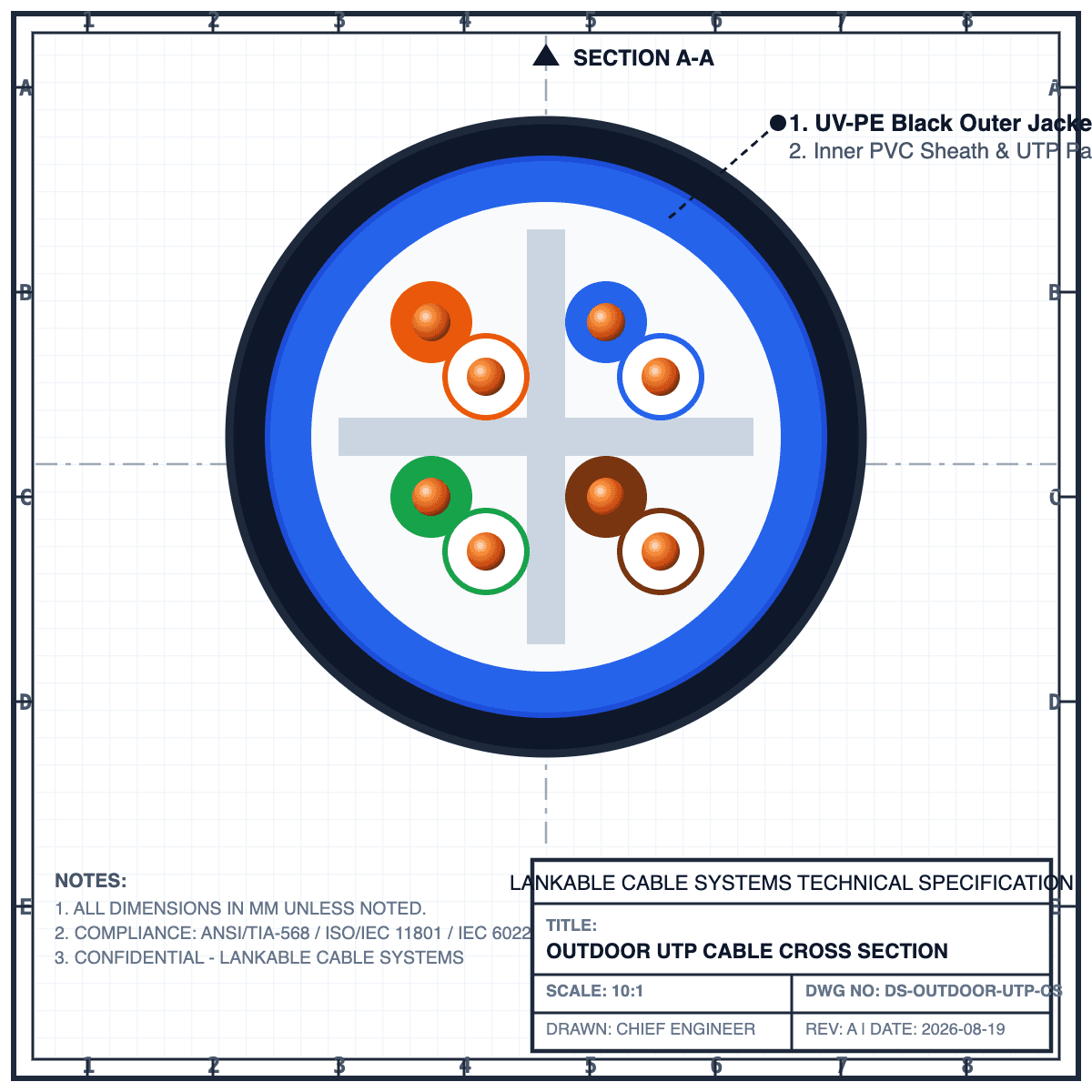

External Sheathing & Lay Layout

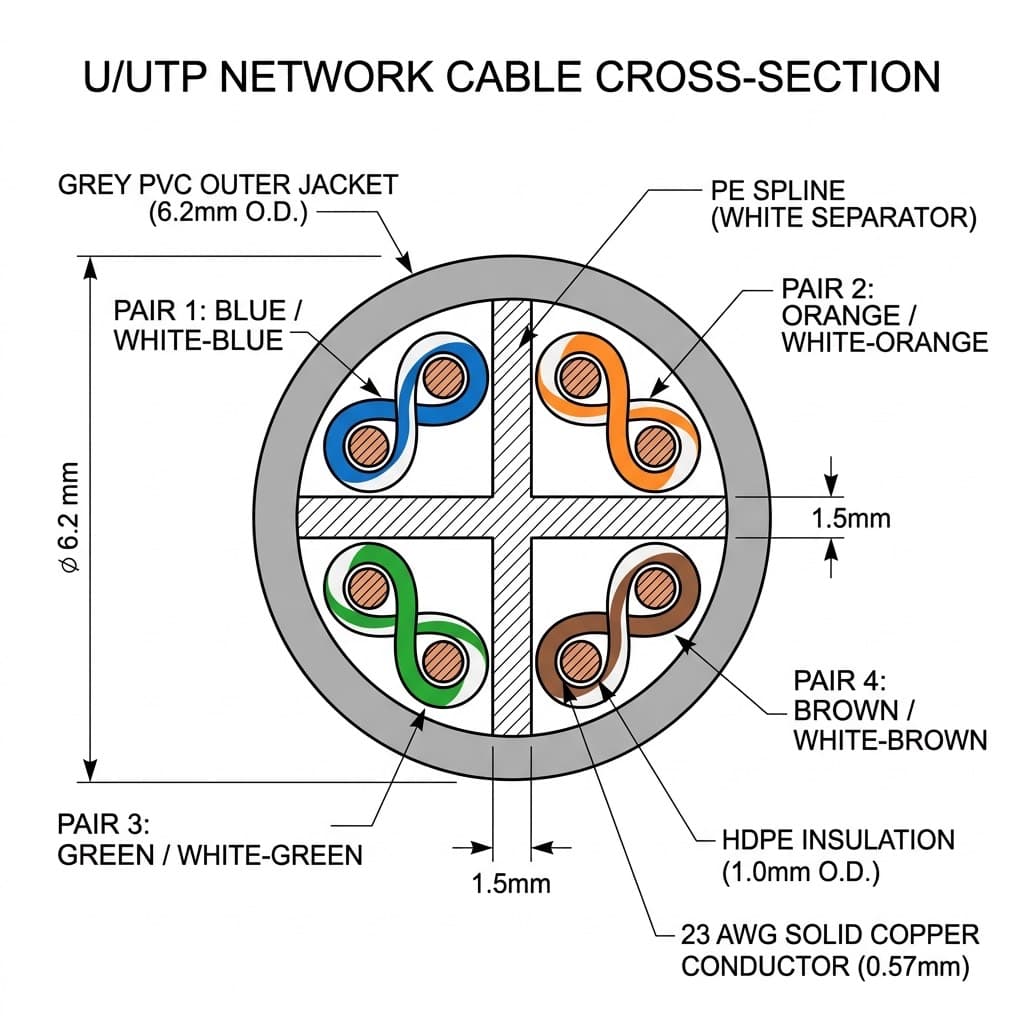

Internal Shielding & Core Layout

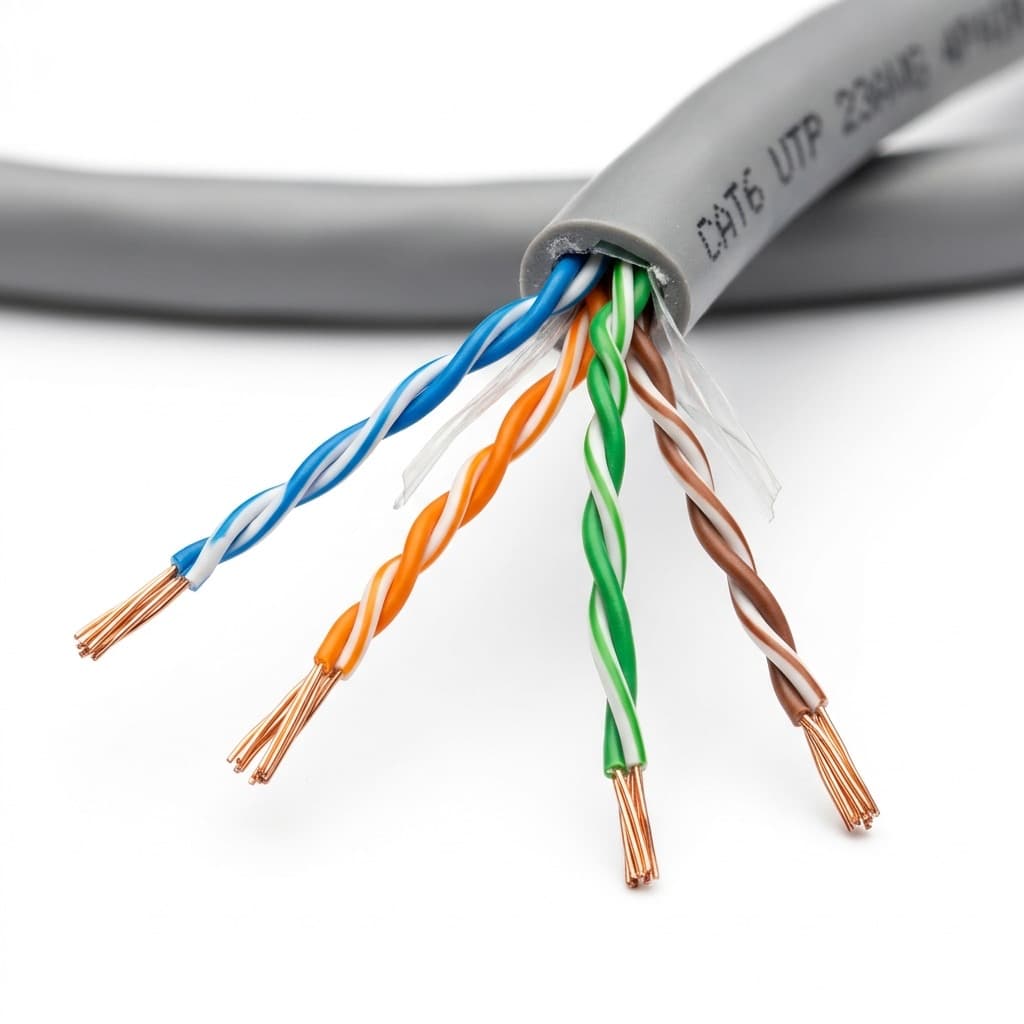

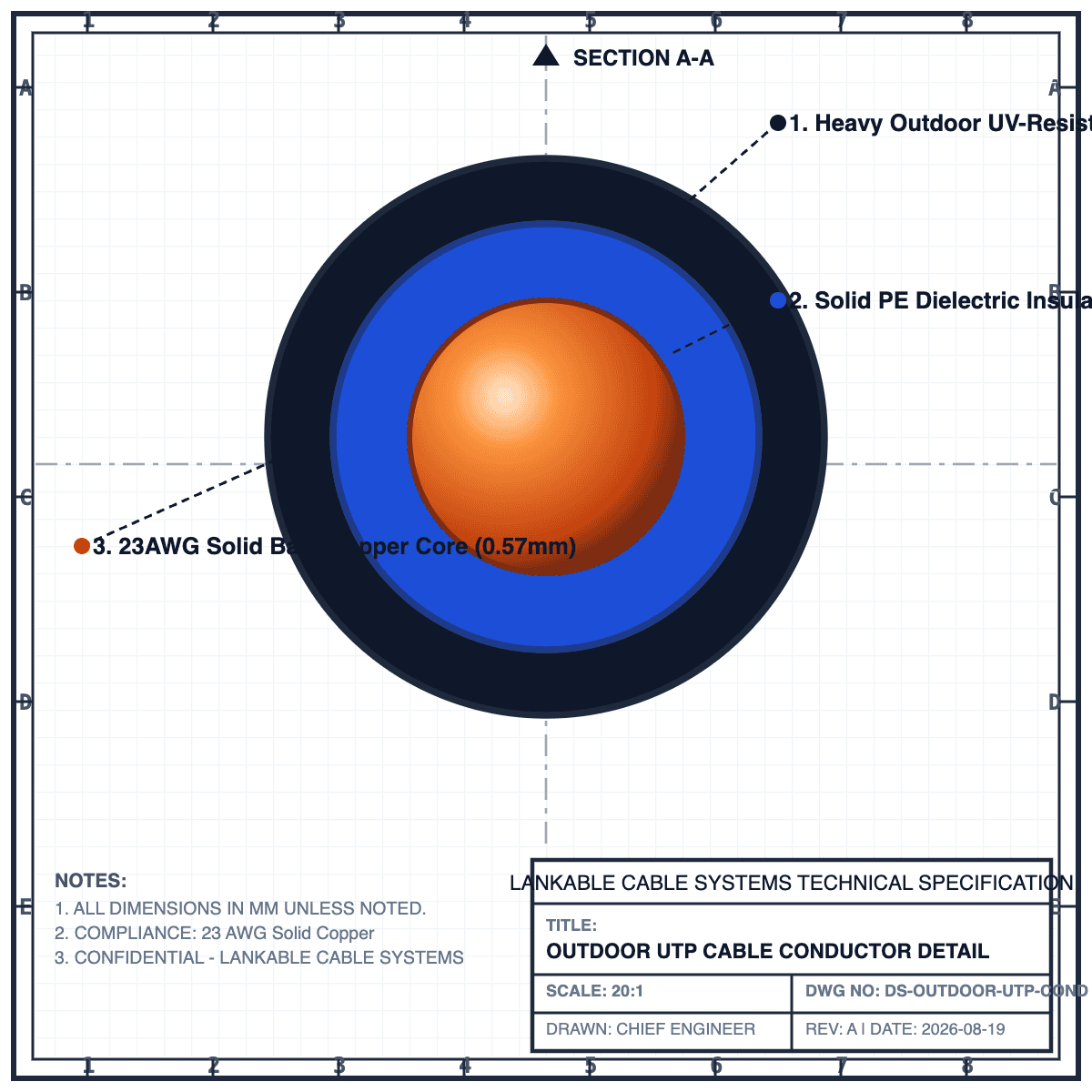

Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid copper conductors
- Weather and UV-resistant HDPE jacket
- Water-blocking gel-filled core or swellable tape
- Internal spine separator
- MOQ: 2,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Jacket Material
- Black HDPE (UV Proof)
- Water Protection
- Water-blocking gel core
- Tensile Strength
- 1,500 N
- MOQ Quantity
- 2,000 Meters
- Temperature Range
- -40°C to +80°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
