LANKABLE RG-6 Coaxial Cable
DS-COP-RG-6-COAXIAL-CABLE-01 | REV 2026
LANKABLE
High-Performance Wire & Cable Systems
Technical Datasheet
DS-COP-RG-6-COAXIAL-CABLE-01
Revision: 2026.07
LANKABLE RG-6 Coaxial Cable
RG-6 coaxial cable for television, satellite, CCTV and broadband distribution. Construction options are selected against the required impedance, shielding and installation environment.
Product-declared specifications
Values not listed are available on request.
- Cable Type
- RG-6 Coaxial Cable
- Nominal Impedance
- 75 ohm
- Conductor Material
- Solid Copper option
- Construction

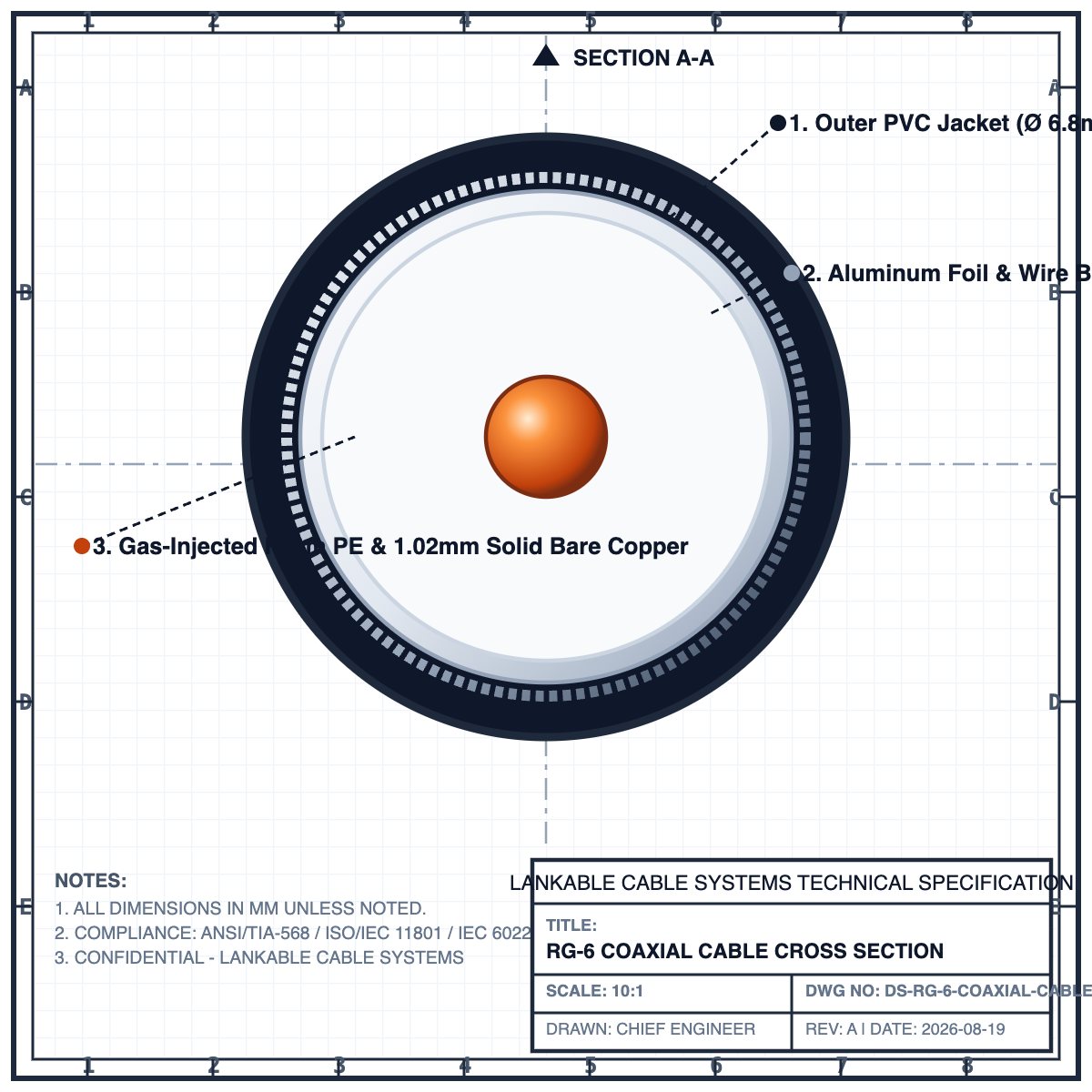

- Centre conductor / dielectric / shielding / outer jacket
- Jacket Material
- PVC (standard option)
- Flame Performance
- Applicable test requirement to be confirmed
- MOQ Quantity
- Available on request
External Sheathing
Internal Core Layout
Metallurgy Gauge
Key Features
- •Coaxial construction: centre conductor, dielectric, shield and outer jacket
- •Solid copper conductor option available for specified applications
- •Shielding and jacket construction selected against project requirements
- •PVC jacket standard option; custom construction subject to technical review
Applications
- ✓Television distribution
- ✓Satellite installations
- ✓CCTV systems
- ✓Broadband distribution
Conductor Sizing & Structural Options
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
| AWG 26 (Patch/Stranded 0.40mm) | 5.2 mm | < 14.5 Ω/100m | 65% |
Detailed Engineering Specifications
Materials & Construction
- Conductor Material
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation Material
- High-Density Polyethylene (HDPE)
- Shielding Type
- U/UTP (Unshielded)
- Rip Cord
- High-Tensile Polyester Rip Cord
- Outer Jacket
- Flame-Retardant PVC (FR-PVC) Grey / LSZH
Electrical Properties
- Bandwidth
- 100 MHz
- Characteristic Impedance
- 100 ± 15 Ω (1 to 100 MHz)
- Conductor DC Resistance
- < 9.38 Ω/100m @ 20°C
- Velocity of Propagation
- 67%
- Mutual Capacitance
- Nom. 48 pF/m
- Operating Voltage
- 300 V max.
Mechanical & Thermal
- Bending Radius (Fixed)
- 4 x Outer Diameter
- Bending Radius (Flexing)
- 8 x Outer Diameter
- Temperature Range
- -20°C to +70°C
- Installation Tension
- Max. 110 N
- Nominal Outer Diameter
- 5.4 mm
Standards & Compliance
- International Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
- Environmental Standards
- RoHS Compliant, REACH Approved
- Certification Marks
- CE, UL 2835, ISO 9001:2015
Quality Assurance Seal
100% In-house Tested & Certified
Every batch is scanned on high-frequency network analyzers & stress chambers.
Factory & Sales Head Office
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Email: sales@lankable.com
Phone: +91 99500 52179
Web: www.lankable.in
Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
