Single-Mode Armored Fiber Optic Cable

DS-FIB-SINGLE-MODE-ARMORED-FIBER-OPTIC-CABLE-01 | TECHNICAL DATASHEET

LɅNKɅBLECONNECTING POSSIBILITIES

Technical Datasheet

DS-FIB-SINGLE-MODE-ARMORED-FIBER-OPTIC-CABLE-01 | Page 01

Armored Fiber

Single-Mode Armored Fiber Optic Cable

High-core count G.652.D single-mode fiber optic cable encased in corrugated steel tape armor and double PE jacket for direct burial and harsh outdoor conditions.

Product Build Up (Construction)

Visual Render
External View

External Sheathing

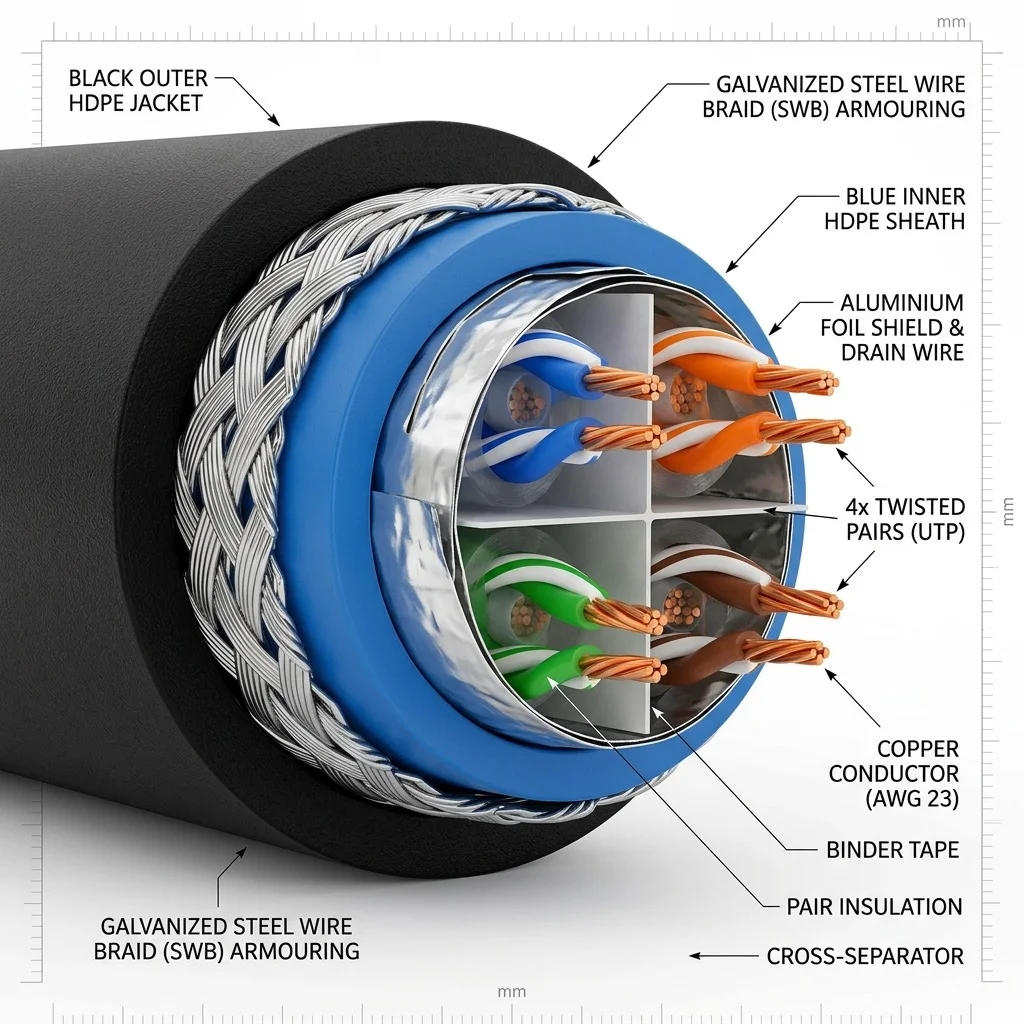

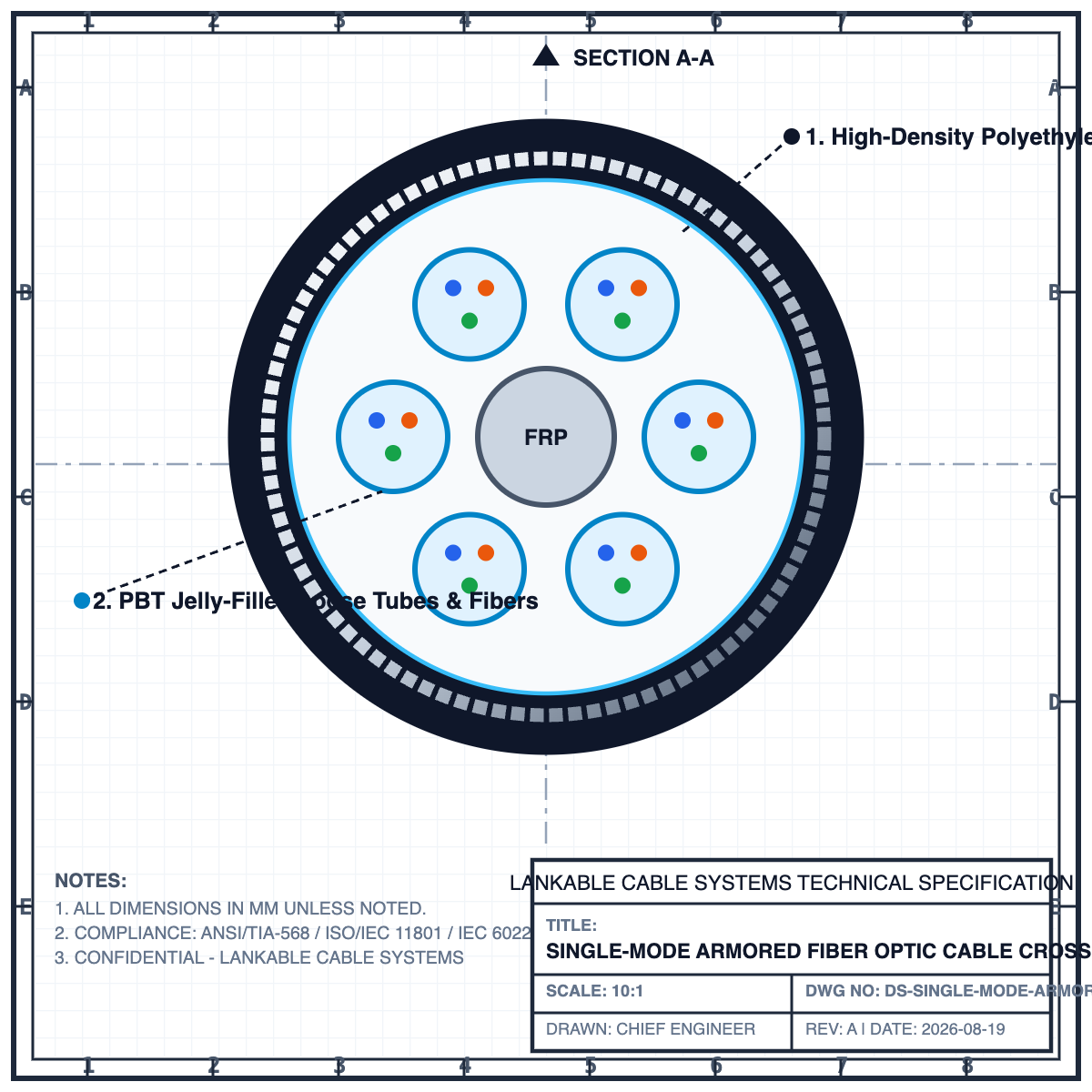

CAD Cross-Section
CAD Cross Section

Internal Core Layout

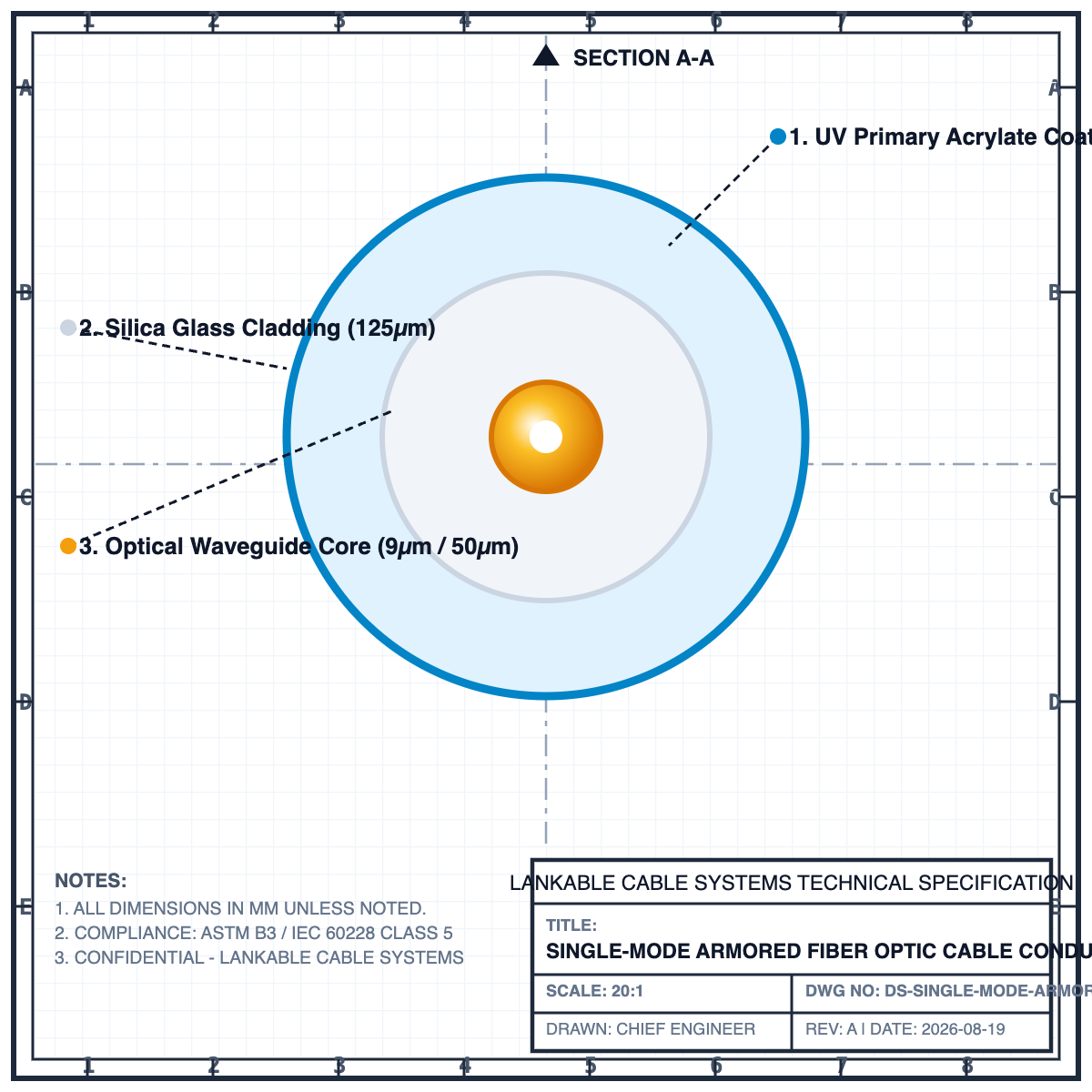

Conductor Detail
Conductor Detail

Metallurgy Gauge

Key Features

  • •Corrugated steel tape (CST) armoring for rodent & crush protection
  • •Water-blocking gel-filled central tube layout
  • •Low attenuation OS2 single-mode optical core
  • •UV and moisture resistant dual high-density polyethylene sheath

Applications

Direct Burial ISP NetworksInter-Building Campus BackbonesMetropolitan Optical RingsIndustrial Field Telemetry

Dimension Characteristics

Fiber CountNominal ODNominal WeightMax Tensile Load
6 Core8.2 mm75 kg/km1500 N
12 Core (Recommended)8.5 mm82 kg/km1500 N
24 Core9.2 mm95 kg/km1500 N
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 01
LɅNKɅBLECONNECTING POSSIBILITIES

Technical Datasheet

DS-FIB-SINGLE-MODE-ARMORED-FIBER-OPTIC-CABLE-01 | Page 02

Detailed Engineering Specifications

Materials & Build

Fiber Type
Single-Mode G.652.D / G.657.A1
Strength Member
FRP Strength Member + Steel Wire
Armouring
Corrugated Steel Tape Armour
Outer Jacket
LSZH (Low Smoke Zero Halogen) / UVPE Black

Electrical Parameters

Attenuation @ 1310nm
≤ 0.36 dB/km (SM)
Attenuation @ 1550nm
≤ 0.22 dB/km (SM)
Attenuation @ 850nm
≤ 3.0 dB/km (MM)
Core/Cladding OD
9.2 / 125.0 ± 1.0 µm (SM) or 50.0 / 125.0 ± 2.5 µm (MM)

Mechanical & Thermal

Bending Radius (Fixed)
10 x Cable OD
Bending Radius (Dynamic)
20 x Cable OD
Crush Resistance
1000 N/100mm
Tensile Strength (ST)
1500 N

Compliance & Quality

ITU Standards
ITU-T G.652.D / G.657.A1 or ITU-T G.651.1
Test Standards
IEC 60793, IEC 60794-1-2
Flame Rating
IEC 60332-1 / UL 1666 (OFNR)
Environmental
RoHS & REACH Compliant
CE compliantRoHS certifiedISO 9001

Quality Assurance Seal

100% In-house Tested & Certified

Sales & Sales Head Office

Sitapura Industrial Area, Jaipur, Rajasthan 302022, India

Email: sales@lankable.com

Phone: +91 99500 52179

Web: www.lankable.com

Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
