MOQ: 1,000 MetersLANKABLE Stranded Copper Wire
In-house facility of copper drawing, converting copper rods (8mm) to fine gauges; hot dipped tinning process.

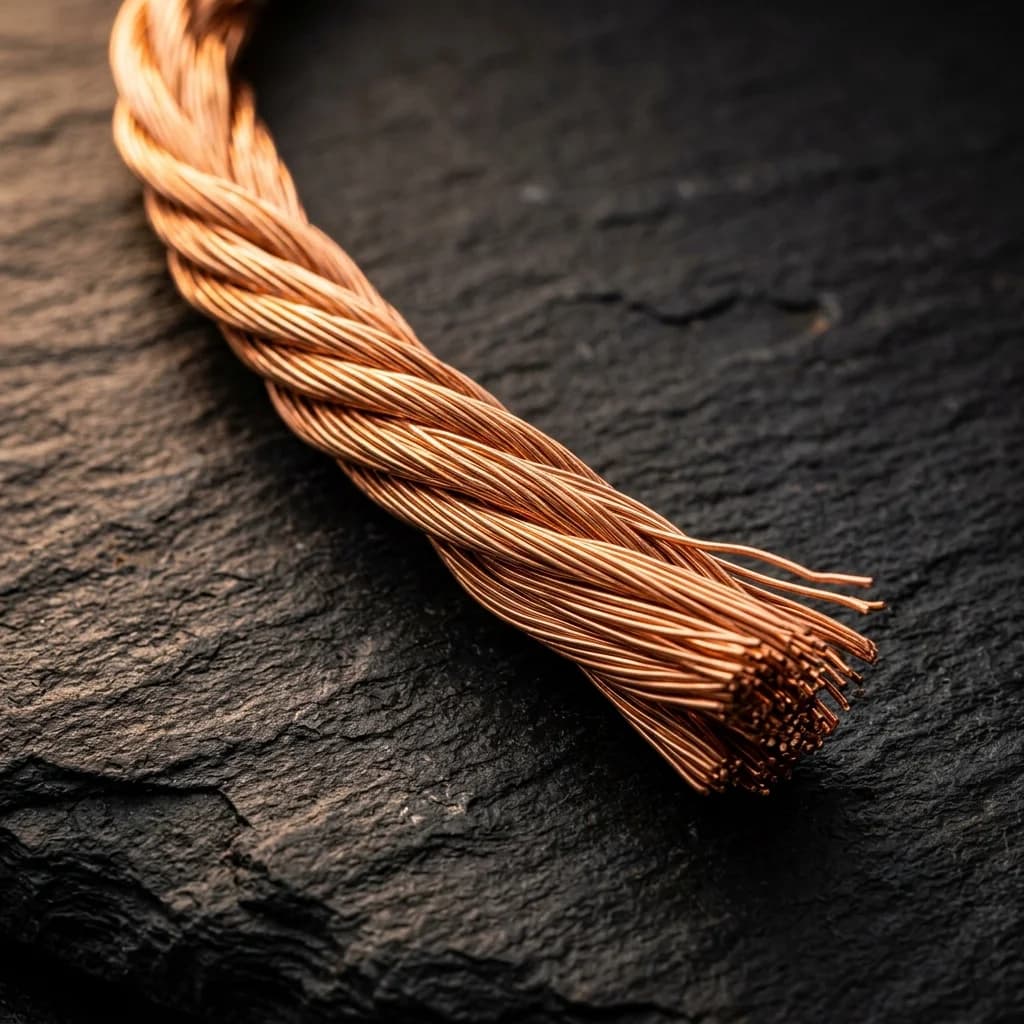

Visual Render
External Sheathing & Lay Layout

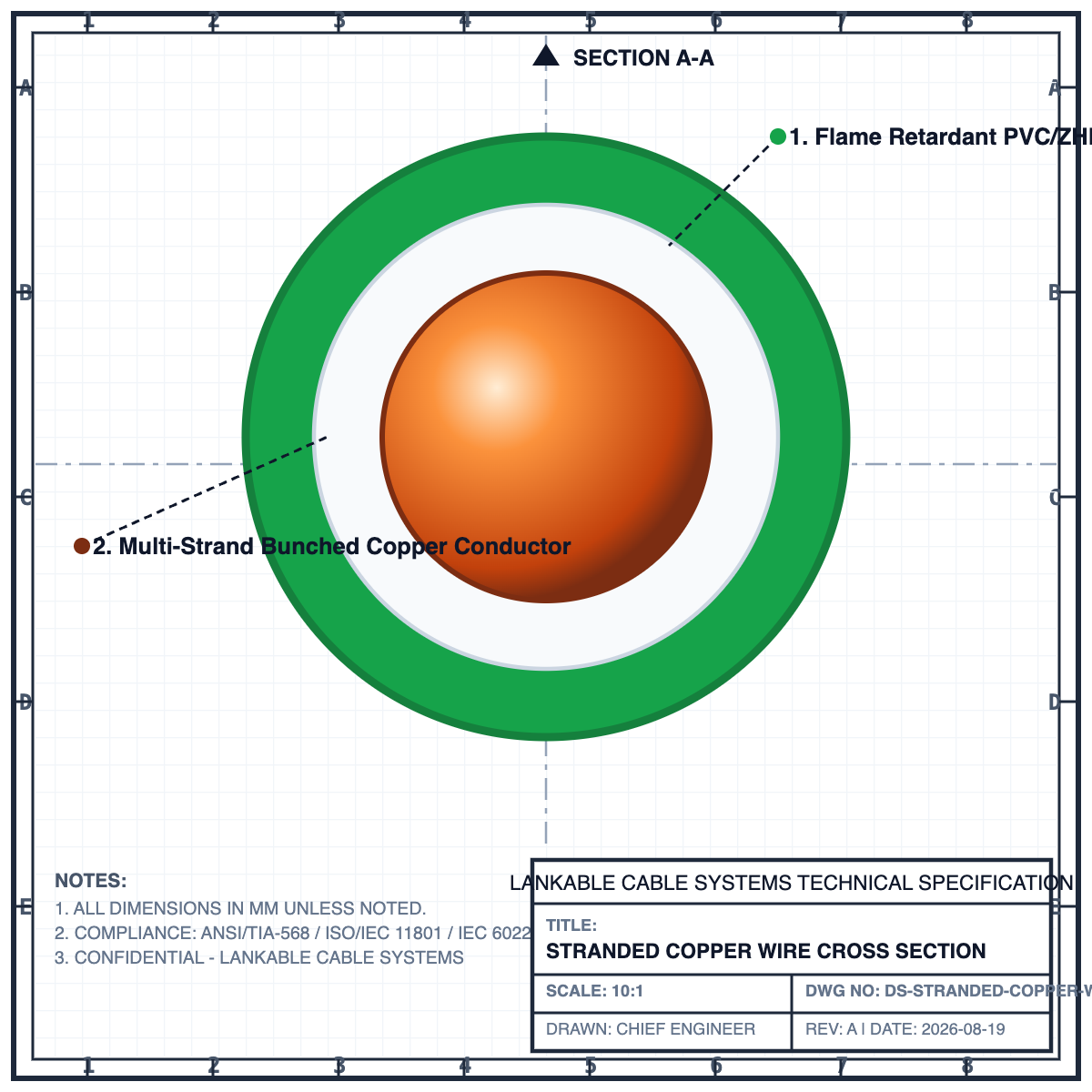

CAD Cross-Section
Internal Shielding & Core Layout
Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- 99.97% high-purity electrolytic grade copper
- Uniform conductor gauge and diameter tolerances
- High electrical conductivity exceeding 101% IACS
- Annealed soft temper for outstanding winding flexibility
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 99.97% Pure Electrolytic Annealed Copper
- Insulation
- None (Bare Wire)
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
- Conductivity
- > 101% IACS
- Class / Type
- Drawn Copper Wire
- Voltage Rating
- 1100V (1.1kV)
- Conductor Layout
- 36 Strands x 0.3 mm
- Cross Sectional Area
- 2.5 sq mm
- Current Rating (in Conduit)
- 20 Amps
- Max DC Resistance @ 20°C
- 7.41 Ω/km
