Submersible Flat Cables
DS-SPE-SUBMERSIBLE-FLAT-CABLES-01 | TECHNICAL DATASHEET
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-SPE-SUBMERSIBLE-FLAT-CABLES-01 | Page 01
Agricultural Cables
Submersible Flat Cables
Specialized water-resistant flat cables engineered to connect submersible water pump motors under severe moisture conditions. Features high-quality water-impermeable insulation sheathing.
Product Build Up (Construction)

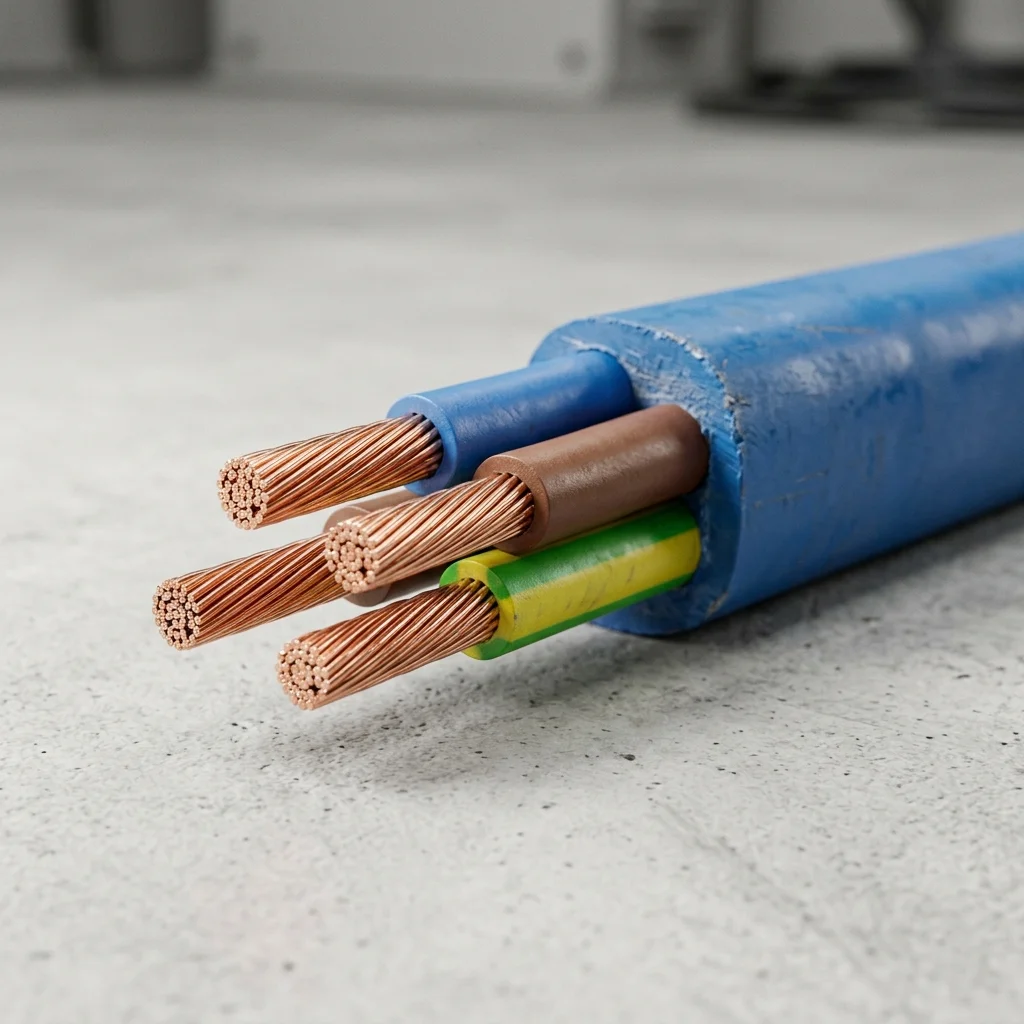

Visual Render
External Sheathing

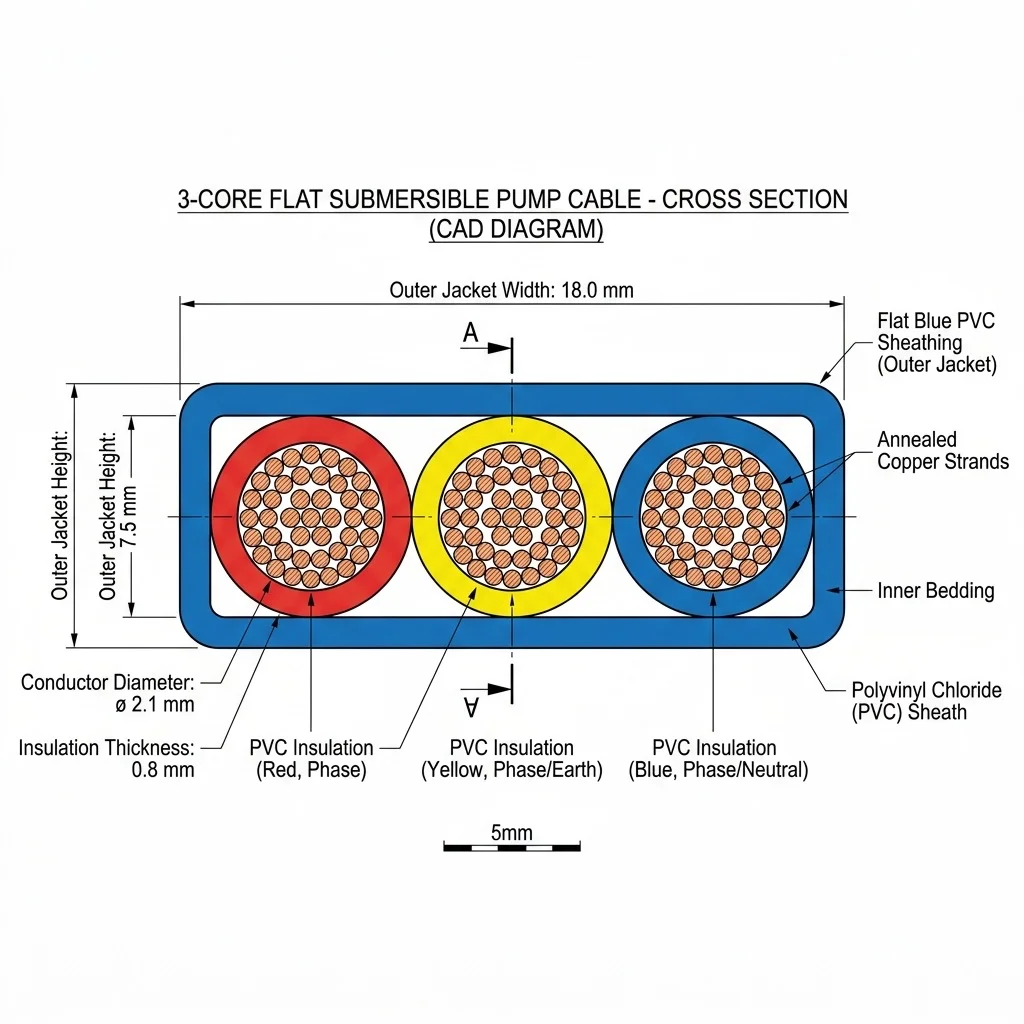

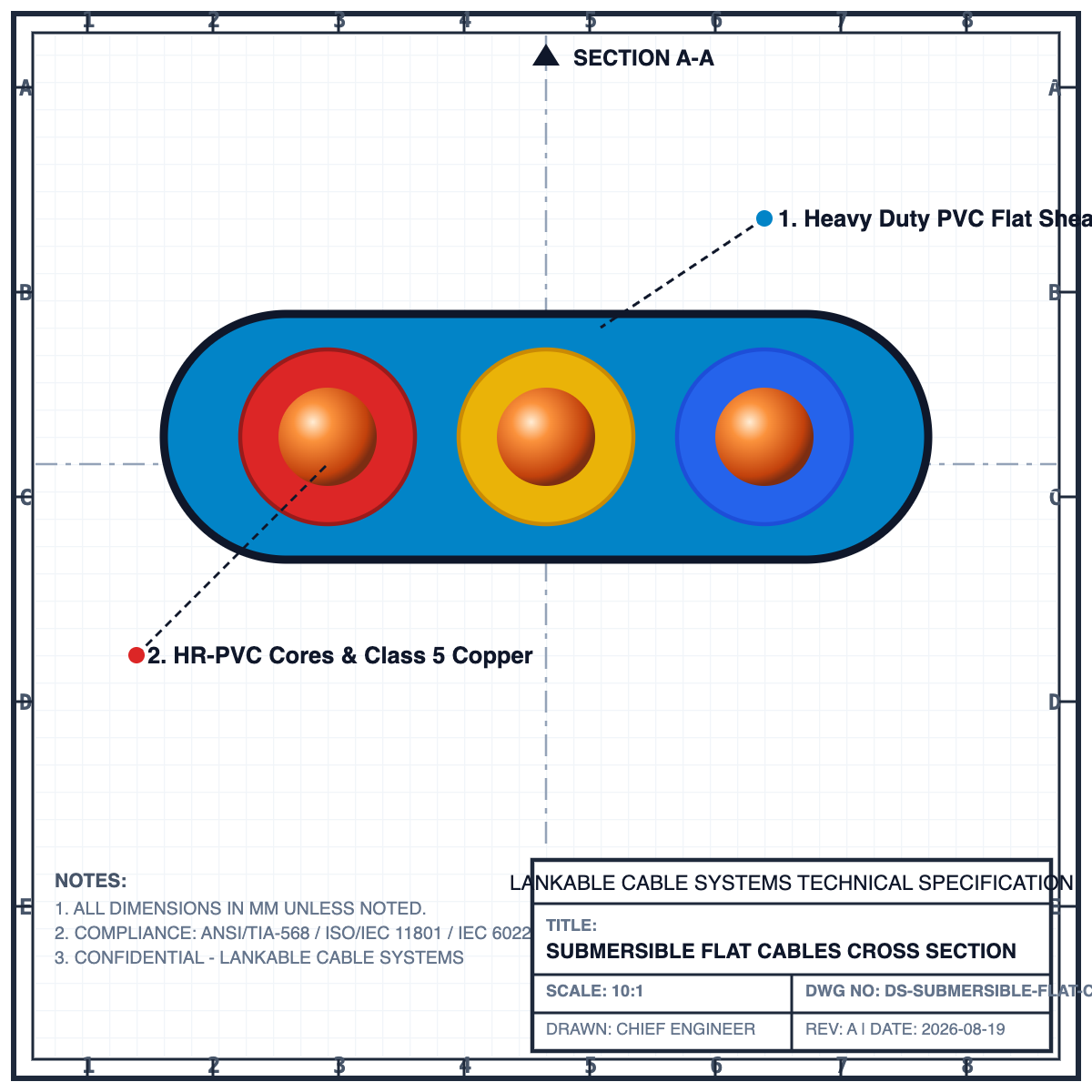

CAD Cross-Section
Internal Core Layout
Conductor Detail
Metallurgy Gauge
Key Features
- •Class 5/6 flexible conductor stranding for dynamic bending
- •Excellent resistance to oils, chemicals, and industrial acids
- •High shielding coverage for superior noise suppression
- •Tested for continuity and high-voltage insulation stability
Applications
CNC machine automation panelsAppliance motor wiringSwitchboard control instrumentationIndustrial sensor networks
Dimension Characteristics
| Core Configuration | Nominal Area | Current Rating | Nominal Outer Dimensions |
|---|---|---|---|
| 3 Core Flat | 1.5 sq mm | 16 Amps | 5.0 mm x 11.2 mm |
| 3 Core Flat (Recommended) | 2.5 sq mm | 22 Amps | 5.8 mm x 13.0 mm |
| 3 Core Flat | 4.0 sq mm | 29 Amps | 6.6 mm x 15.2 mm |
| 3 Core Flat | 6.0 sq mm | 37 Amps | 7.5 mm x 17.5 mm |
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 01
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-SPE-SUBMERSIBLE-FLAT-CABLES-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Conductor Metallurgy
- Class 5 High-Conductivity Flexible Bare Copper
- Insulation Compound
- FR-PVC (Flame Retardant PVC)
- Flame Retardant Properties
- Self-extinguishing FR Grade
- Core Identification
- Red, Yellow, Blue, Black, Green/Yellow (Earth)
- Sheath Material
- None (Single Core)
Electrical Parameters
- Voltage Rating (Uo/U)
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC for 5 minutes
- Insulation Resistance
- > 100 MΩ·km @ 20°C
- Max. Operating Temp
- 70°C (Continuous)
- Max. Short Circuit Temp
- 160°C (for PVC) / 250°C (for XLPE)
Mechanical & Thermal
- Bending Radius (Fixed)
- 6 x Outer Diameter
- Bending Radius (Flexing)
- 10 x Outer Diameter
- Abrasion Resistance
- Excellent
- Toxicity Index
- N/A
- Oxygen & Temp Index
- Oxygen Index > 21%
Compliance & Quality
- National Standard
- IS 694:2010 (Quality Assured)
- Flame Standards
- IEC 60332-1, IS 10810 (Part 53)
- Certifications
- CE, RoHS Compliant, ISO 9001:2015
- Quality Seal
- 100% Spark Tested & Verified
CE compliantRoHS certifiedISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
Sales & Sales Head Office
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Email: sales@lankable.com
Phone: +91 99500 52179
Web: www.lankable.com
Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
