fibre
MOQ: 1,000 MetersTactical Ruggedized Fiber Optic Cable
Military-grade, crush-proof polyurethane jacketed fiber optic cable built for temporary field deployment, broadcast vans, and defence links.
Visual Render
External Sheathing & Lay Layout

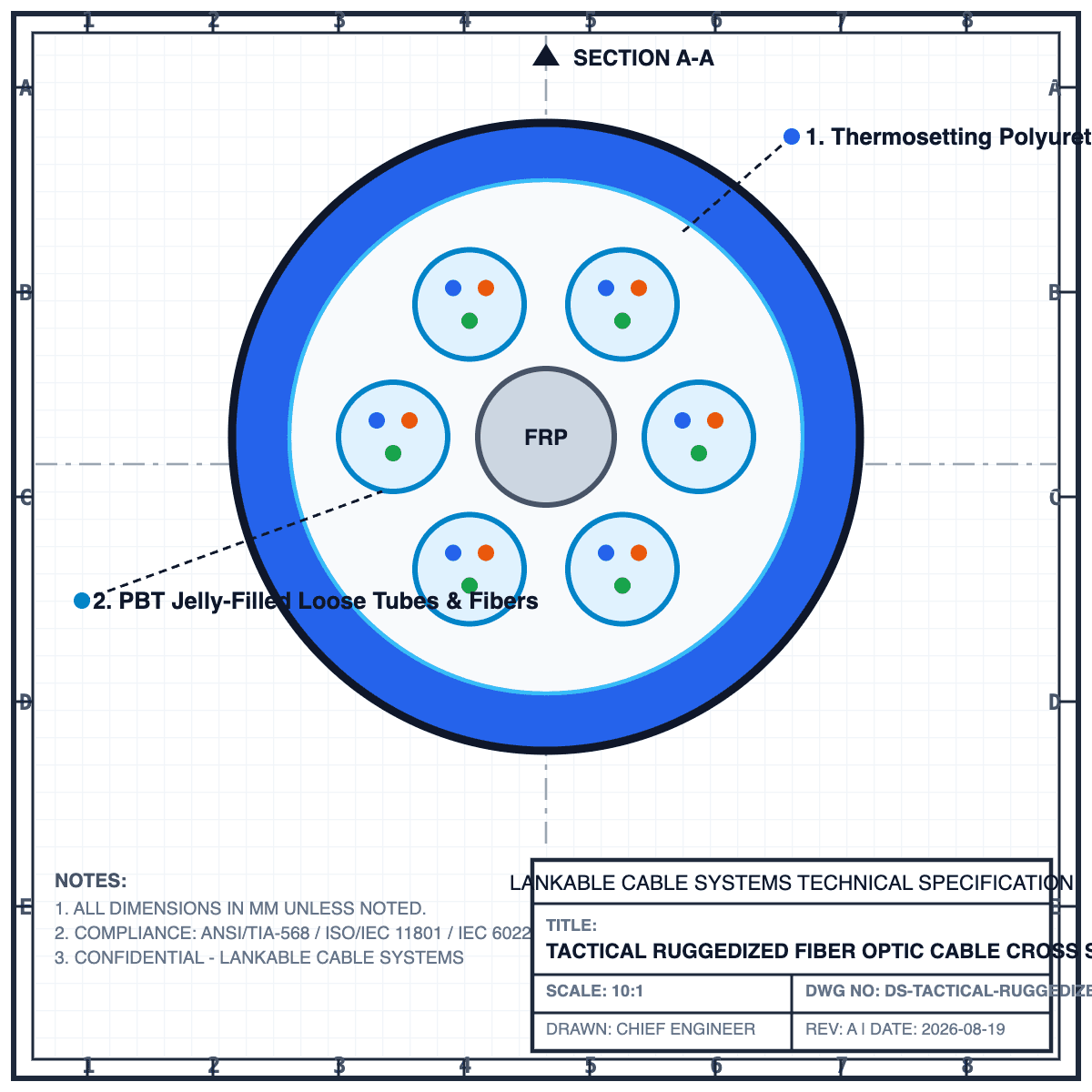

CAD Cross-Section
Internal Shielding & Core Layout
Connector & Core Specs
Core Type:OS2 Single-Mode / OM3 Multi-Mode
Connectors:LC, SC, FC, ST, MPO
Buffering:Tight Buffered / Loose Tube
Strength Member:Kevlar Yarn / Glass Yarn
Fiber Buffering & Connector Compatibility
Key Features
- Abrasion and chemical resistant polyurethane outer sheath
- High-tensile aramid yarn strength member core
- Flexible tight-buffered fiber construction
- Repeated deploy and retrieve capability for field broadcast/defence
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Fiber Type
- OS2 Single-Mode / OM3 Multi-Mode
- Core Count
- 24 Cores
- Outer Sheath
- Thermosetting Polyurethane (TPU)
- Crush Resistance
- 3000 N/100mm
- MOQ Quantity
- 1,000 Meters
- Nominal Outer Diameter
- 9.8 mm
- Max Tensile Strength
- 1500 N
- Min Bend Radius (Installation)
- 200 mm
