MOQ: 1,000 MetersUL 1007 Appliance Wiring Material
UL Recognized AWM Style 1007 hook-up wire for internal wiring of electrical and electronic equipment. Available with stranded or solid bare/tinned copper conductor and PVC insulation, passing VW-1 vertical flame and FT-1 flame tests.

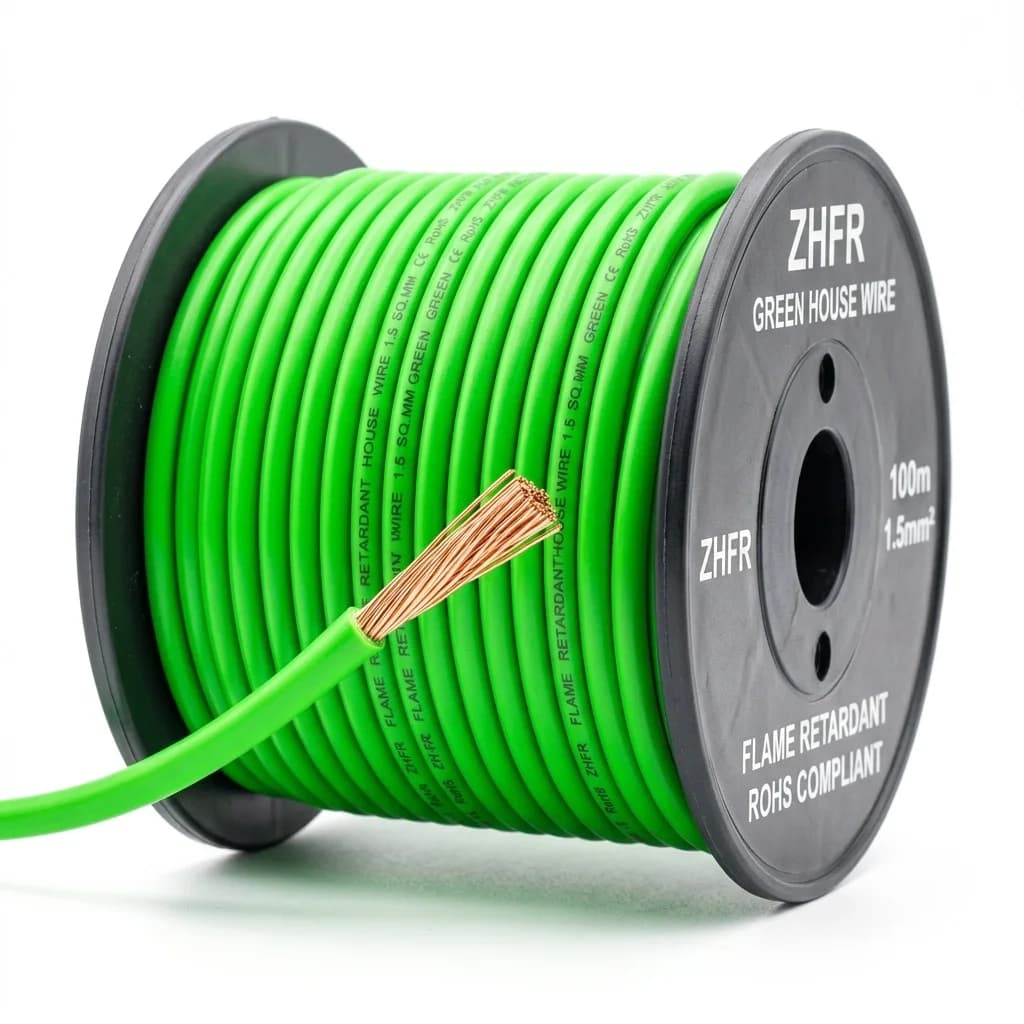

Visual Render
External Sheathing & Lay Layout
CAD Cross-Section
Internal Shielding & Core Layout
Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- UL Recognized AWM Style 1007 & CSA AWM I A/B, TR-64
- 300 V voltage rating with -10°C to +80°C temperature range
- Passes VW-1 vertical flame and FT-1 flame tests
- Available in stranded or solid bare/tinned copper construction
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Bare / Tinned Copper (ABC / ATC)
- Insulation
- PVC
- Voltage Rating
- 300 V
- Temperature Range
- -10°C to +80°C
- Elongation
- 200–220%
- Flame Performance
- VW-1 / FT-1
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
