MOQ: 1,000 MetersUL 1015 Appliance Wiring Material
UL Recognized AWM Style 1015 hook-up wire for internal wiring of electrical and electronic equipment, rated to a higher 105°C than Style 1007. Available with stranded or solid bare/tinned copper conductor, passing VW-1 vertical flame test and CSA TEW/AWM.

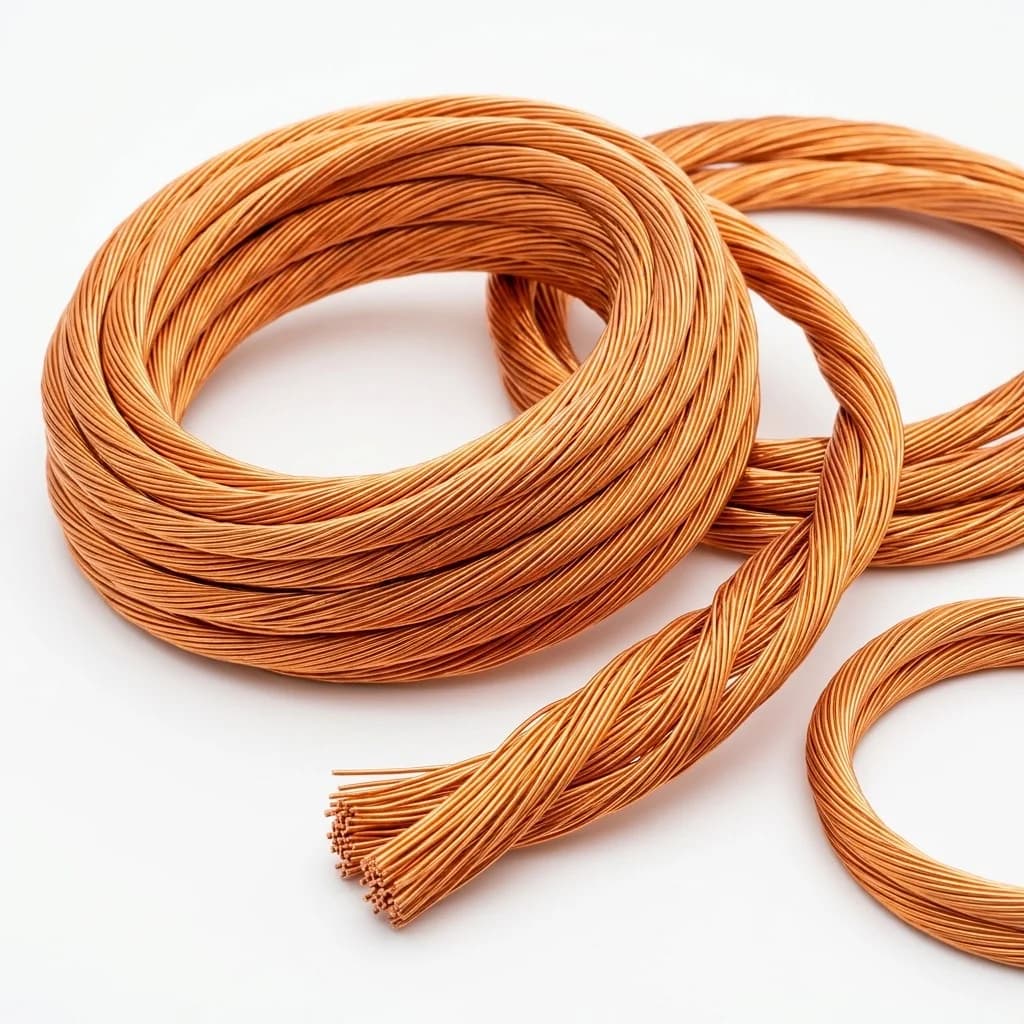

Visual Render
External Sheathing & Lay Layout
CAD Cross-Section
Internal Shielding & Core Layout
Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- UL Recognized AWM Style 1015 & CSA TEW / AWM compliance
- 600 V voltage rating with broad -40°C to +105°C temperature range
- Passes VW-1 vertical flame test
- Stranded or solid bare/tinned copper conductor options
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Bare / Tinned Copper (ABC / ATC)
- Insulation
- PVC
- Voltage Rating
- 600 V
- Temperature Range
- -40°C to +105°C
- Elongation
- 200–220%
- Flame Performance
- VW-1 Vertical Flame
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
