Technical Datasheet

DS-IND-UL-10269-01 | Page 01

Appliance Wiring Materials

UL 10269 Single-Conductor Cable

UL Style 10269 single-conductor cable with extruded PVC insulation, rated 80/90/105°C at 1000 Vac / 1250 Vdc with horizontal flame performance and optional oil-resistant rating, for internal wiring of appliances.

Product Build Up (Construction)

Visual Render

External Sheathing

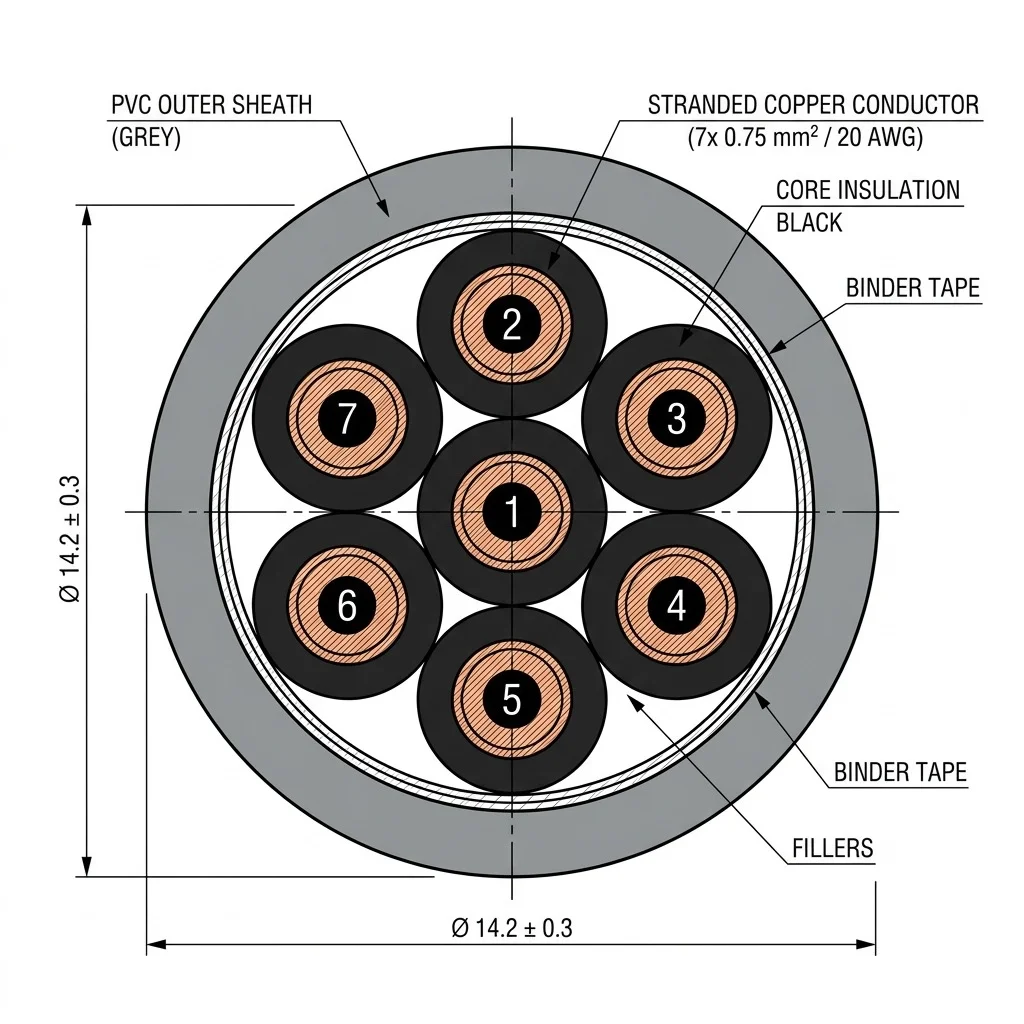

CAD Cross-Section

Internal Core Layout

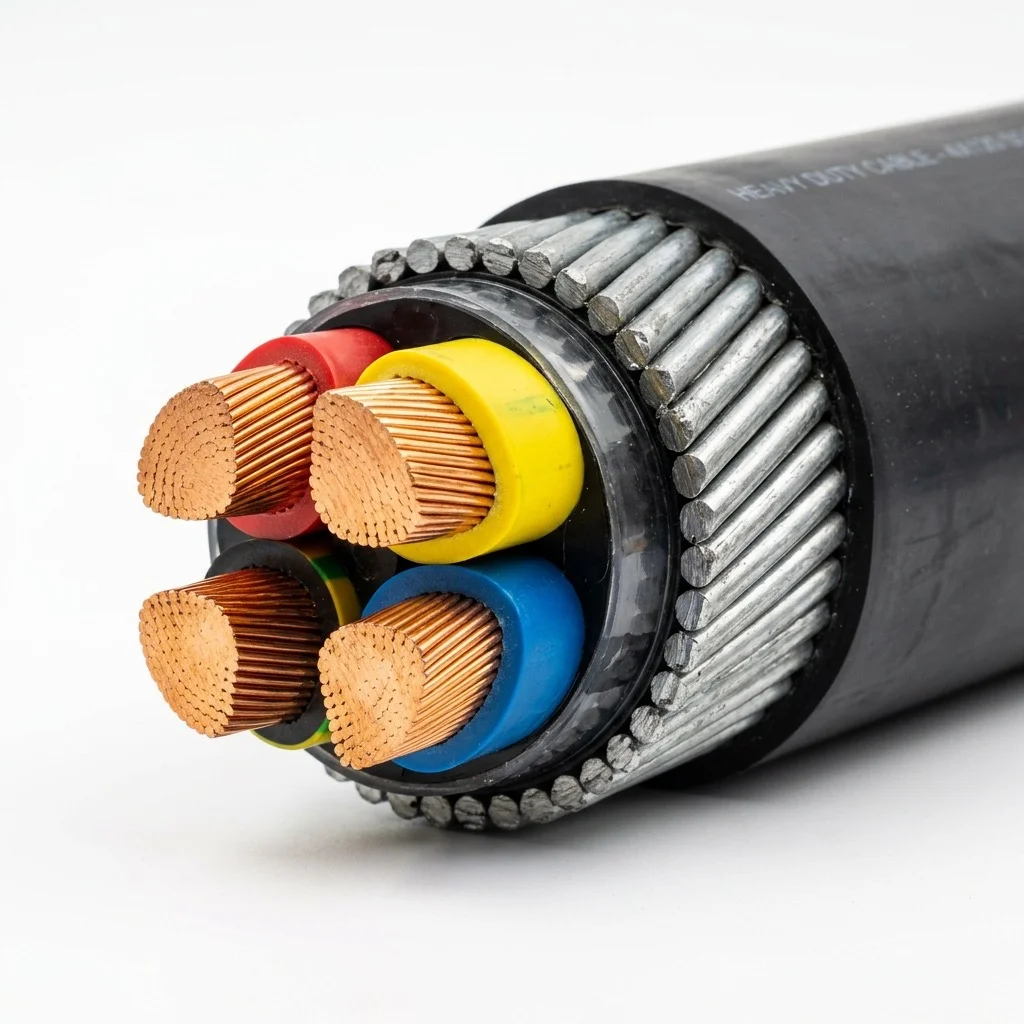

Conductor Detail

Metallurgy Gauge

Key Features

•UL Style 10269 & UL 758 compliance
•High voltage rating of 1000 Vac / 1250 Vdc
•Rated up to 105°C with optional oil-resistant designation
•Passes horizontal flame tests

Applications

Internal wiring of appliancesOil-exposed wiring (60°C or 80°C oil-resistant option)3,500V peak electronic-use applicationsWide-range conductor sizing from signal to power wiring

BHAGYADEEPCABLES PVT. LTD.

Technical Datasheet

DS-IND-UL-10269-01 | Page 02

Detailed Engineering Specifications

Materials & Build

Conductor Metallurgy: Class 2 Stranded Bare Copper / Aluminum
Insulation Compound: PVC / XLPE Insulation
Outer Sheath: FR-PVC (Flame Retardant PVC)
Armouring: Unarmoured

Electrical Parameters

Voltage Rating: 1100 V (1.1 kV)
Test Voltage: 3000 V AC
Operating Temperature: Max. 70°C (PVC) / 90°C (XLPE)

Mechanical & Thermal

Bending Radius (Fixed): 12 x Outer Diameter (Armoured)
Flame Retardancy: IEC 60332-1-2
Short Circuit Temp: 160°C (for PVC) / 250°C (for XLPE)

Compliance & Quality

Standards: IS 1554 (Part-1), IEC 60502-1
Quality Certs: CE, RoHS Compliant, ISO 9001

CE compliantRoHS certifiedISO 9001

Quality Assurance Seal

100% In-house Tested & Certified
