Technical Datasheet

DS-IND-UL-1061-01 | Page 01

Appliance Wiring Materials

UL 1061 Appliance Wiring Material

UL Recognized AWM Style 1061 hook-up wire using semi-rigid PVC (SR-PVC) insulation for internal wiring of electrical and electronic equipment, with stranded or solid bare/tinned copper conductor, per CSA Type II SR-PVC.

Product Build Up (Construction)

Visual Render

External Sheathing

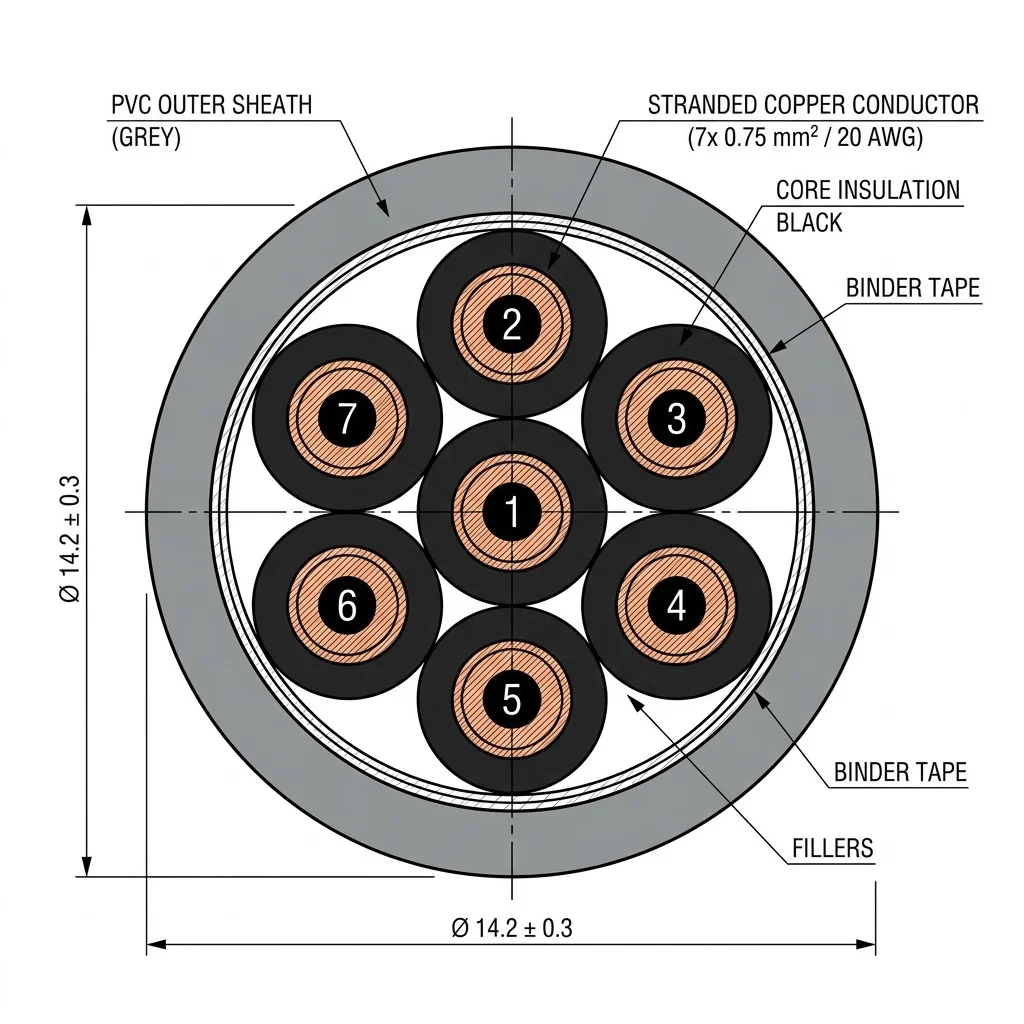

CAD Cross-Section

Internal Core Layout

Conductor Detail

Metallurgy Gauge

Key Features

•UL Recognized AWM Style 1061 & CSA AWM I A/B compliance
•300 V voltage rating with -10°C to +80°C temperature range
•Passes VW-1 vertical flame test
•Semi-rigid PVC (SR-PVC) insulation for dimensional stability

Applications

Internal wiring of electrical and electronic equipmentApplications needing a firmer, semi-rigid insulation wallPanel and meter wiring requiring dimensional stabilityGeneral-purpose hook-up wiring

BHAGYADEEPCABLES PVT. LTD.

Technical Datasheet

DS-IND-UL-1061-01 | Page 02

Detailed Engineering Specifications

Materials & Build

Conductor Metallurgy: Class 2 Stranded Bare Copper / Aluminum
Insulation Compound: PVC / XLPE Insulation
Outer Sheath: FR-PVC (Flame Retardant PVC)
Armouring: Unarmoured

Electrical Parameters

Voltage Rating: 1100 V (1.1 kV)
Test Voltage: 3000 V AC
Operating Temperature: Max. 70°C (PVC) / 90°C (XLPE)

Mechanical & Thermal

Bending Radius (Fixed): 12 x Outer Diameter (Armoured)
Flame Retardancy: IEC 60332-1-2
Short Circuit Temp: 160°C (for PVC) / 250°C (for XLPE)

Compliance & Quality

Standards: IS 1554 (Part-1), IEC 60502-1
Quality Certs: CE, RoHS Compliant, ISO 9001

CE compliantRoHS certifiedISO 9001

Quality Assurance Seal

100% In-house Tested & Certified

Sales & Sales Head Office

Industrial Area, Jaipur, Rajasthan, India

Email: sales@bhagyadeepcables.com

Phone: +91 99500 52179

Web: www.bhagyadeepcables.com

Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
