Technical Datasheet

DS-IND-UL-1110-01 | Page 01

Appliance Wiring Materials

UL 1110 Single-Conductor Cable

UL Style 1110 single-conductor cable using a non-integral extruded PVC jacket over PVC-insulated core, rated 105°C at 300 Vac / 600 Vdc with horizontal flame performance, for internal appliance wiring.

Product Build Up (Construction)

Visual Render

External Sheathing

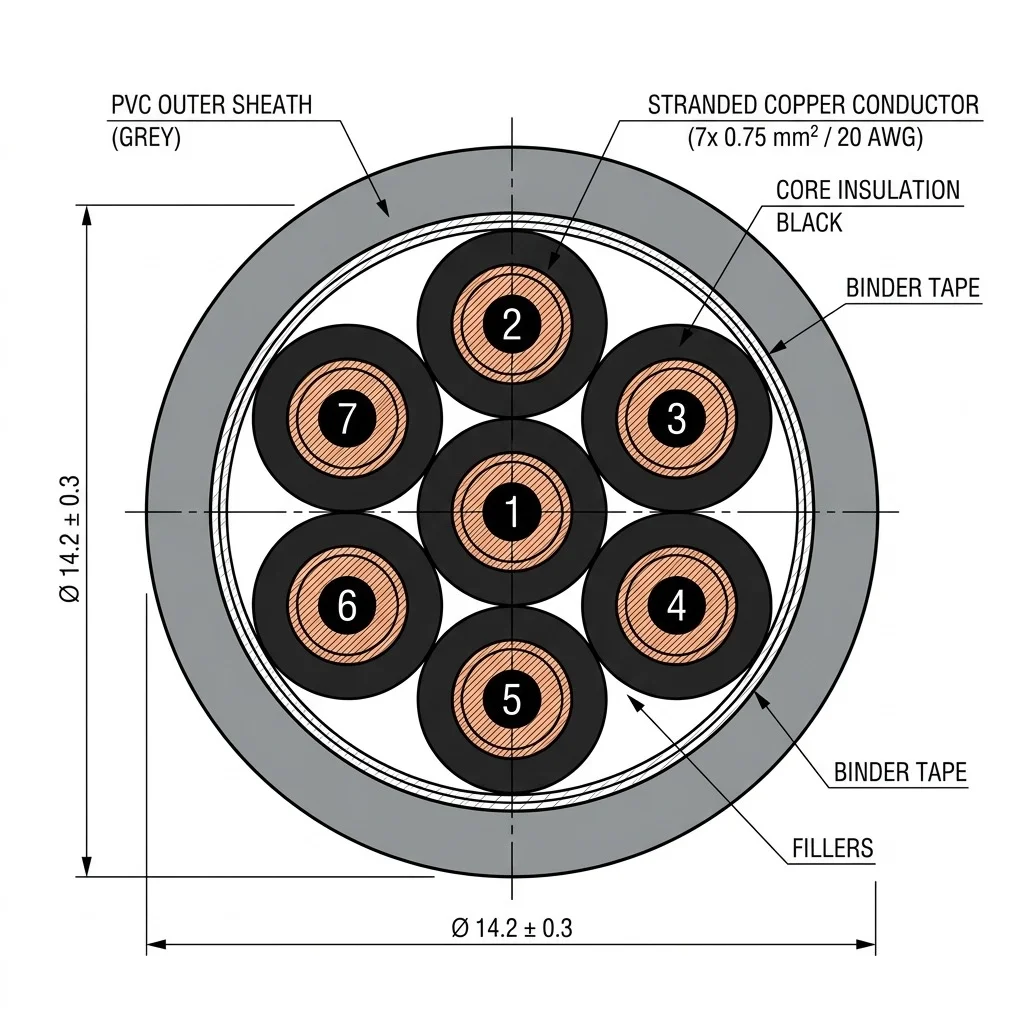

CAD Cross-Section

Internal Core Layout

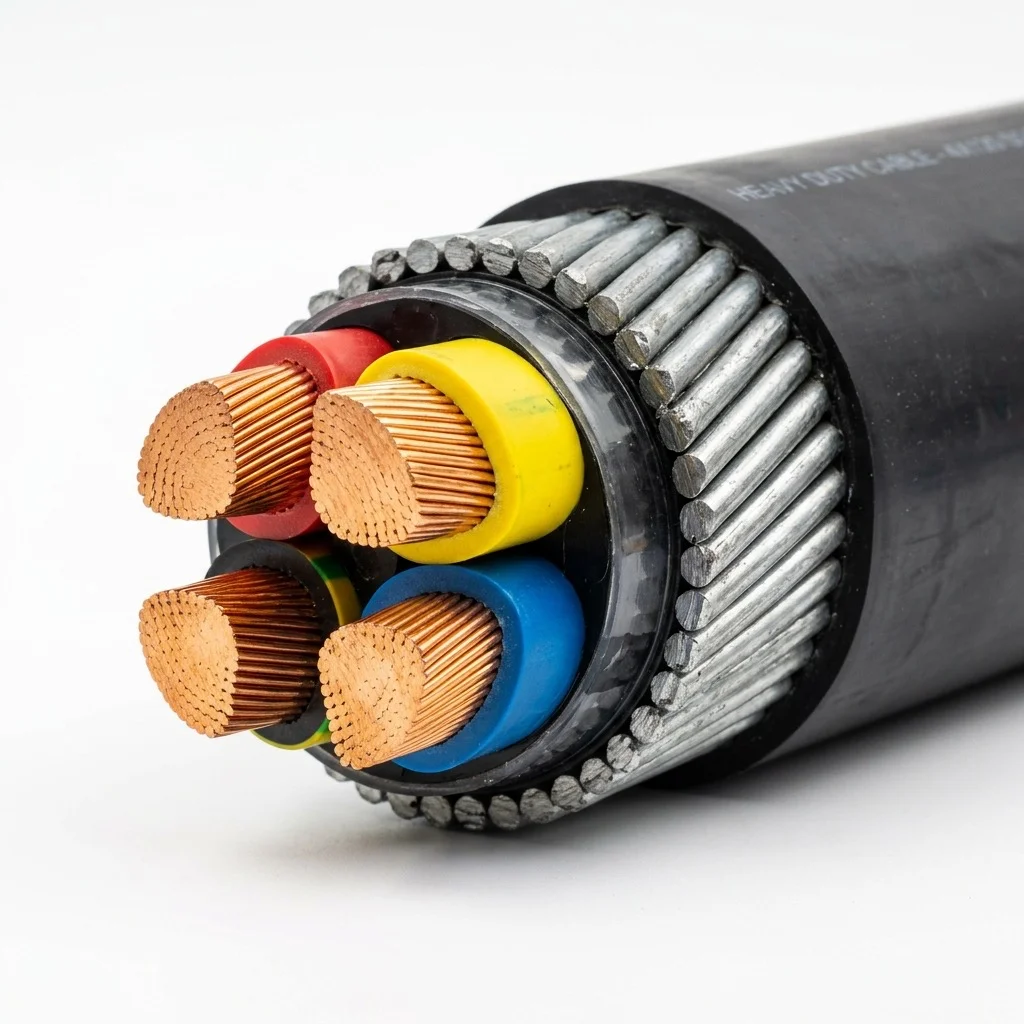

Conductor Detail

Metallurgy Gauge

Key Features

•UL Style 1110 & UL 758 compliance
•300 Vac / 600 Vdc rating with 105°C temperature rating
•Non-integral extruded PVC jacket over PVC core
•Passes horizontal flame performance tests

Applications

Internal wiring of appliances and equipmentApplications requiring a non-integral jacket construction105°C-rated control and signal wiringEquipment requiring optional overall shielding

BHAGYADEEPCABLES PVT. LTD.

Technical Datasheet

DS-IND-UL-1110-01 | Page 02

Detailed Engineering Specifications

Materials & Build

Conductor Metallurgy: Class 2 Stranded Bare Copper / Aluminum
Insulation Compound: PVC / XLPE Insulation
Outer Sheath: FR-PVC (Flame Retardant PVC)
Armouring: Unarmoured

Electrical Parameters

Voltage Rating: 1100 V (1.1 kV)
Test Voltage: 3000 V AC
Operating Temperature: Max. 70°C (PVC) / 90°C (XLPE)

Mechanical & Thermal

Bending Radius (Fixed): 12 x Outer Diameter (Armoured)
Flame Retardancy: IEC 60332-1-2
Short Circuit Temp: 160°C (for PVC) / 250°C (for XLPE)

Compliance & Quality

Standards: IS 1554 (Part-1), IEC 60502-1
Quality Certs: CE, RoHS Compliant, ISO 9001

CE compliantRoHS certifiedISO 9001

Quality Assurance Seal

100% In-house Tested & Certified

Sales & Sales Head Office

Industrial Area, Jaipur, Rajasthan, India

Email: sales@bhagyadeepcables.com

Phone: +91 99500 52179

Web: www.bhagyadeepcables.com

Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
