UL 1569 Appliance Wiring Material
DS-IND-UL-1569-01 | TECHNICAL DATASHEET
BHAGYADEEPCABLES PVT. LTD.
Technical Datasheet
DS-IND-UL-1569-01 | Page 01
Appliance Wiring Materials
UL 1569 Appliance Wiring Material
UL Recognized AWM Style 1569 hook-up wire for internal wiring of electrical and electronic equipment, covering 30–2 AWG, passing VW-1 vertical test and FT-1 flame test on all sizes, with CSA AWM I A/B, TR-64 dual recognition.
Product Build Up (Construction)
Visual Render
External Sheathing

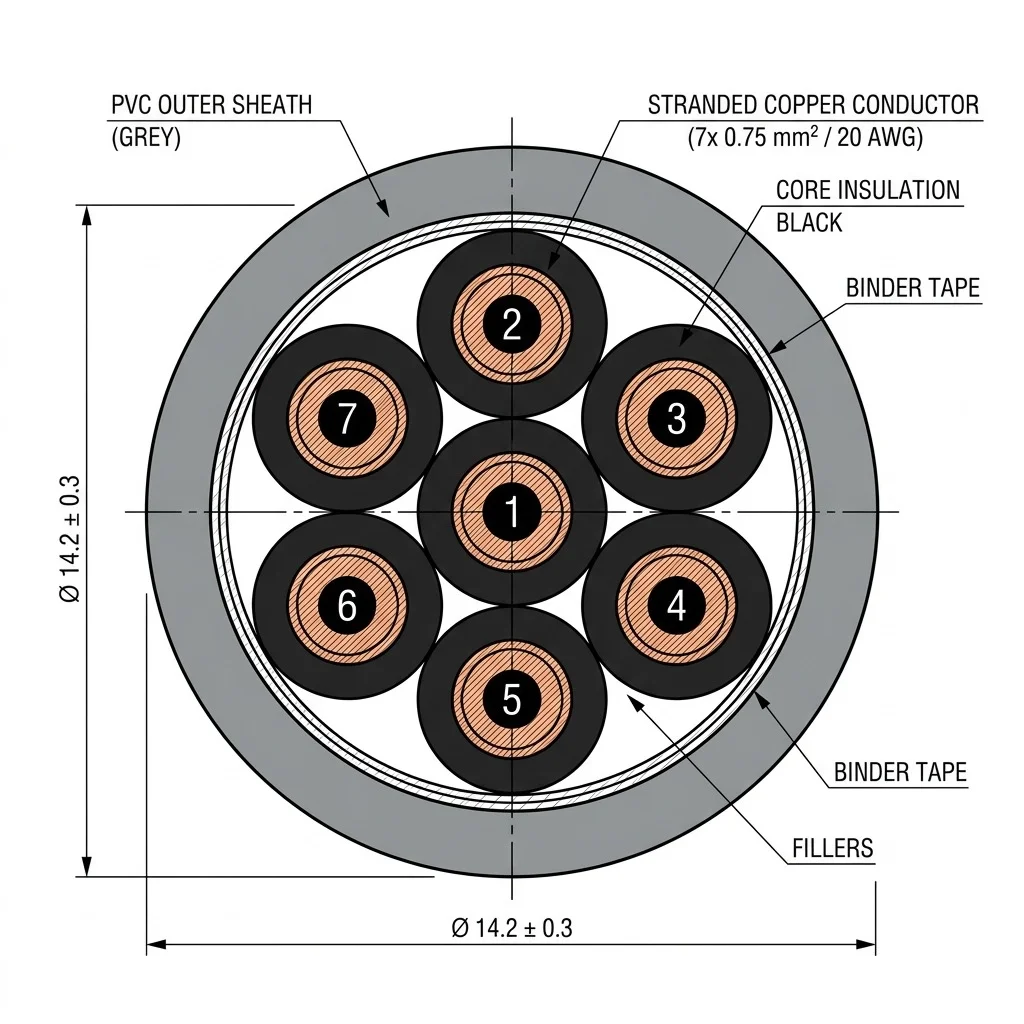

CAD Cross-Section
Internal Core Layout
Conductor Detail
Metallurgy Gauge
Key Features
- •UL Recognized AWM Style 1569 & CSA AWM I A/B, TR-64 compliance
- •300 V voltage rating with -10°C to +105°C temperature range
- •Passes VW-1 vertical flame and FT-1 flame tests across all sizes
- •Stranded or solid bare/tinned copper conductor options
Applications
Internal wiring of electrical and electronic equipmentApplications spanning fine signal wire (30 AWG) to power feeder gaugesEquipment needing FT-1 flame rating across all sizesCSA AWM I A/B, TR-64 dual-recognition applications
© 2026 BHAGYADEEP CABLES PVT. LTD. | Reliable Connectivity. Engineered for Performance.Page 01
BHAGYADEEPCABLES PVT. LTD.
Technical Datasheet
DS-IND-UL-1569-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Conductor Metallurgy
- Class 2 Stranded Bare Copper / Aluminum
- Insulation Compound
- PVC / XLPE Insulation
- Outer Sheath
- FR-PVC (Flame Retardant PVC)
- Armouring
- Unarmoured
Electrical Parameters
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Operating Temperature
- Max. 70°C (PVC) / 90°C (XLPE)
Mechanical & Thermal
- Bending Radius (Fixed)
- 12 x Outer Diameter (Armoured)
- Flame Retardancy
- IEC 60332-1-2
- Short Circuit Temp
- 160°C (for PVC) / 250°C (for XLPE)
Compliance & Quality
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Quality Certs
- CE, RoHS Compliant, ISO 9001
CE compliantRoHS certifiedISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
