Technical Datasheet

DS-POW-XLPE-INSULATED-ARMOURED-CABLES-01 | Page 01

Armored Cables

XLPE Insulated Armoured Cables

Low tension armored power and control cable designed for heavy industrial installations, direct underground burial, and outdoor electrical networks. Corrugated steel/aluminum wire armouring provides superior crush and mechanical protection.

Product Build Up (Construction)

Visual Render

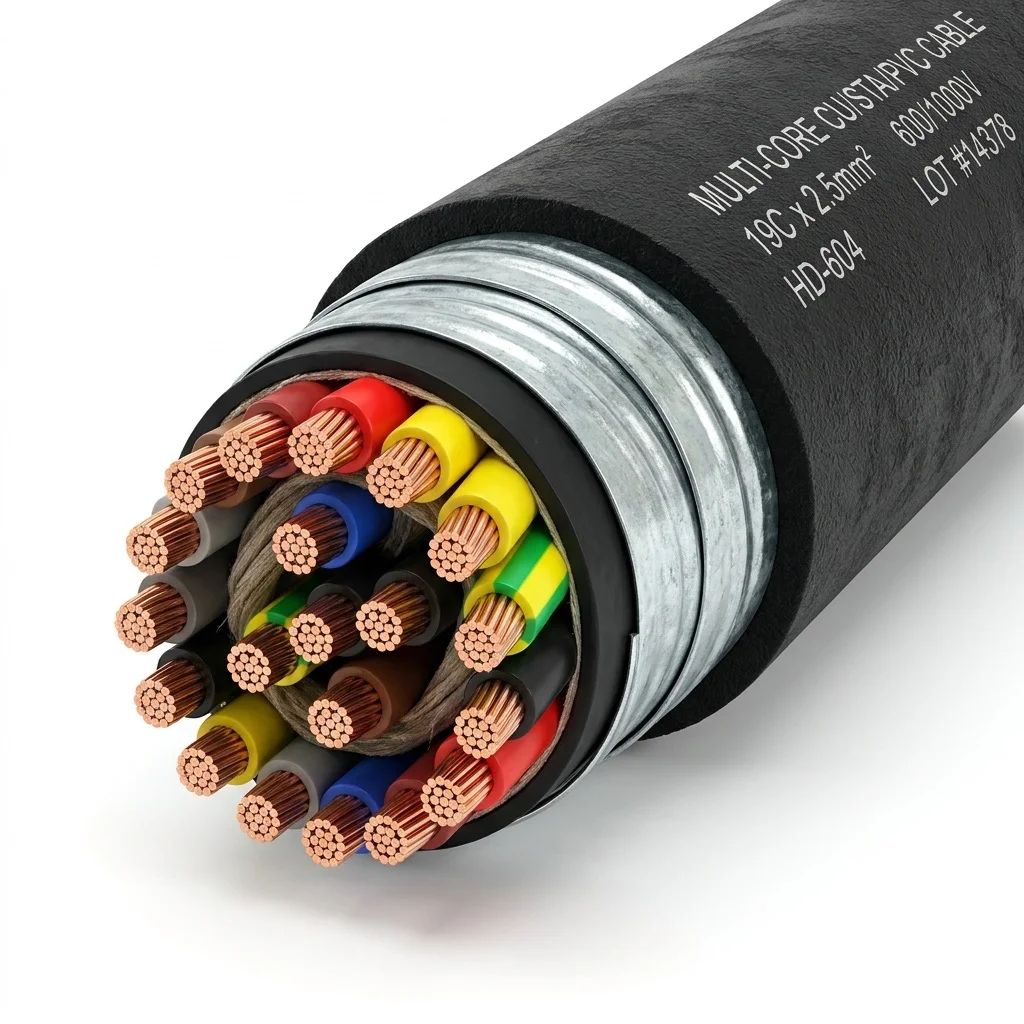

External Sheathing

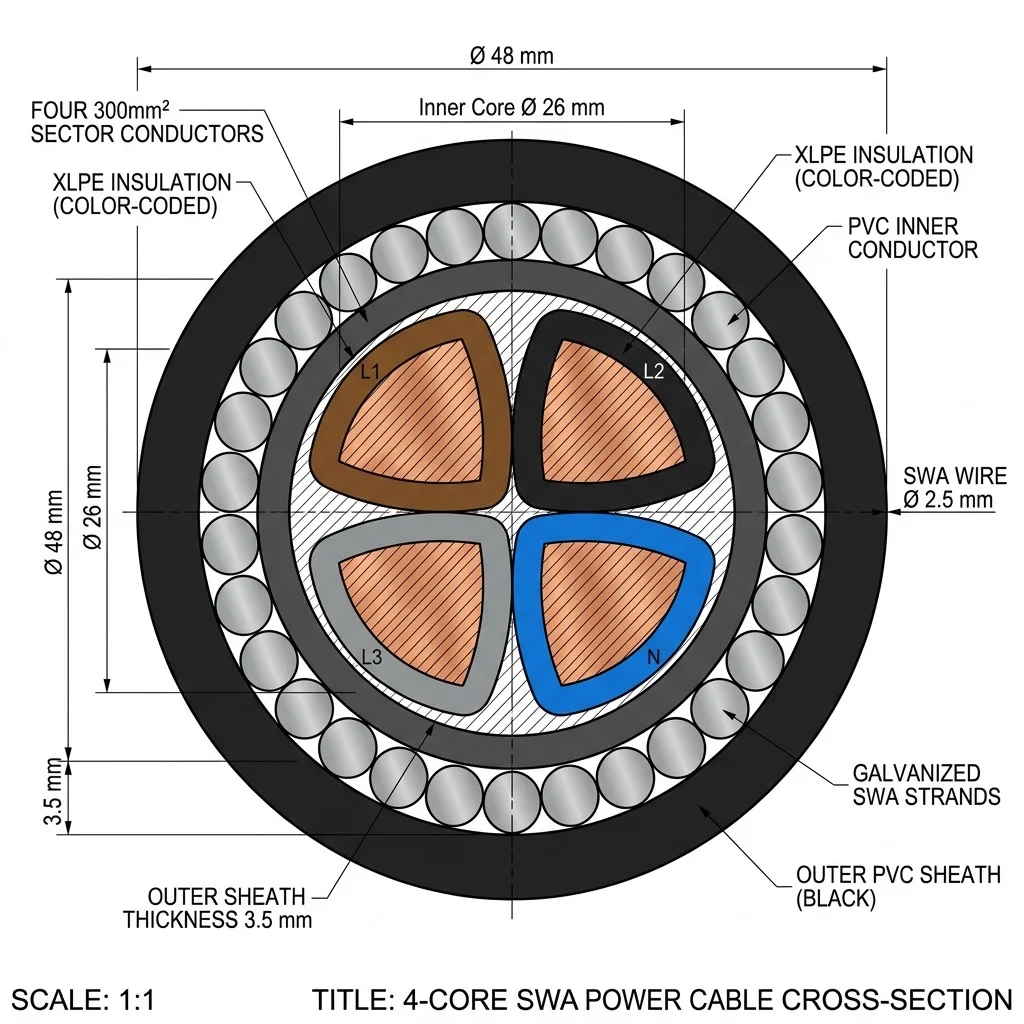

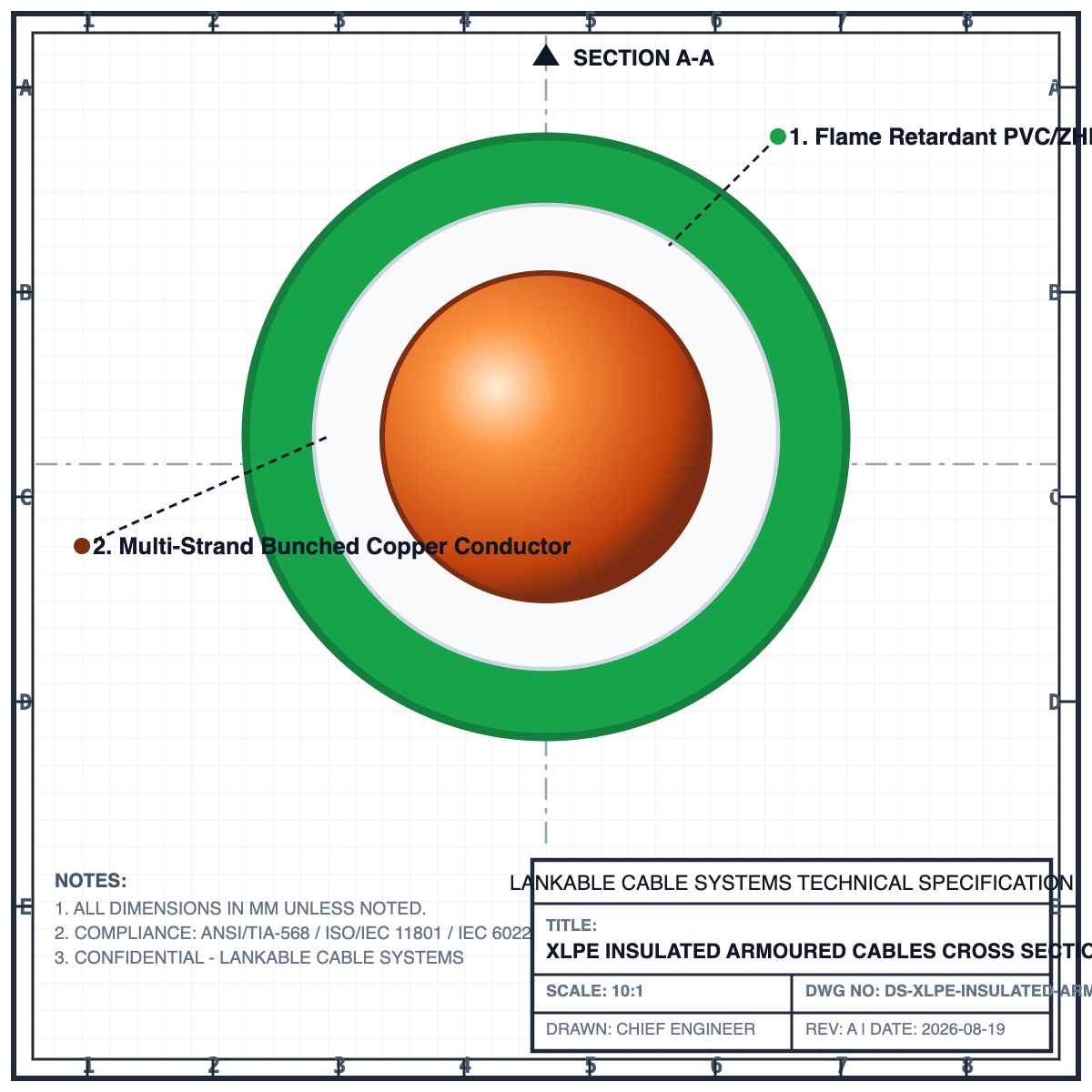

CAD Cross-Section

Internal Core Layout

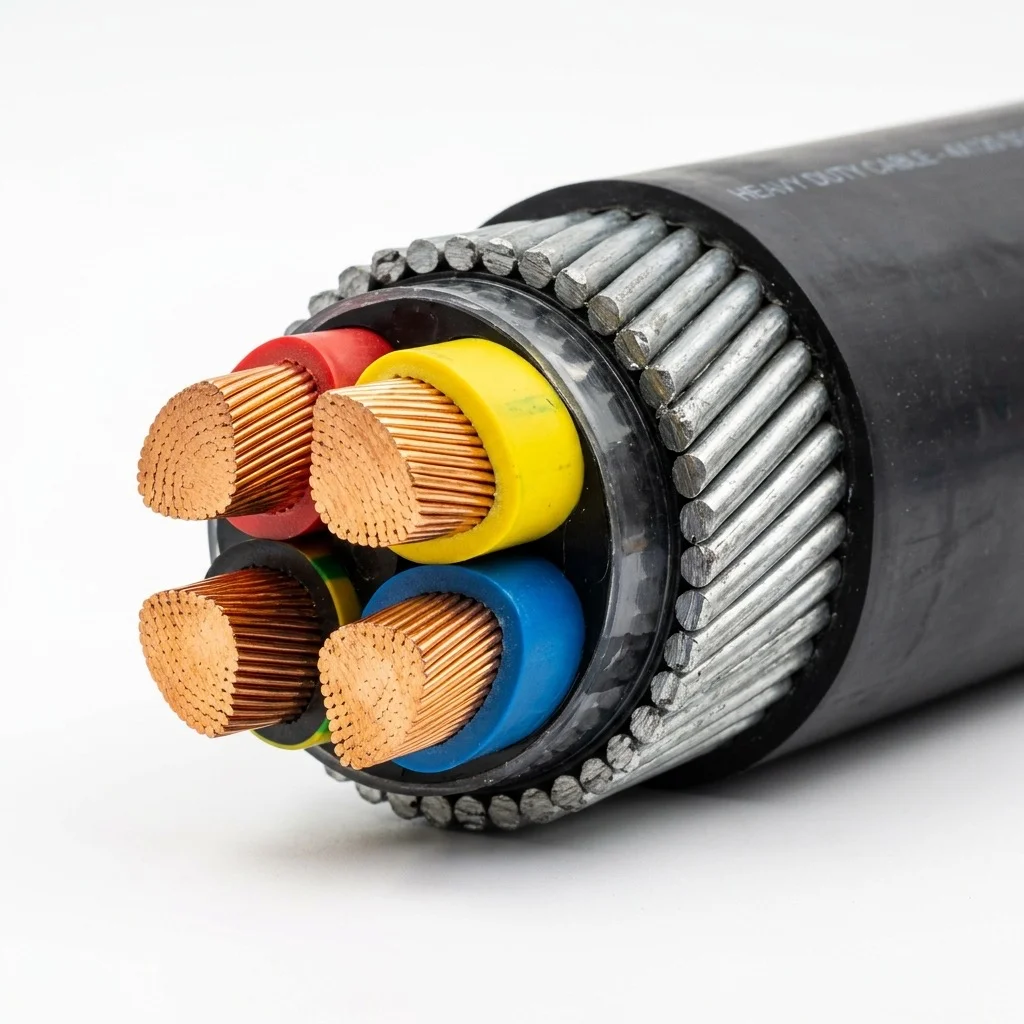

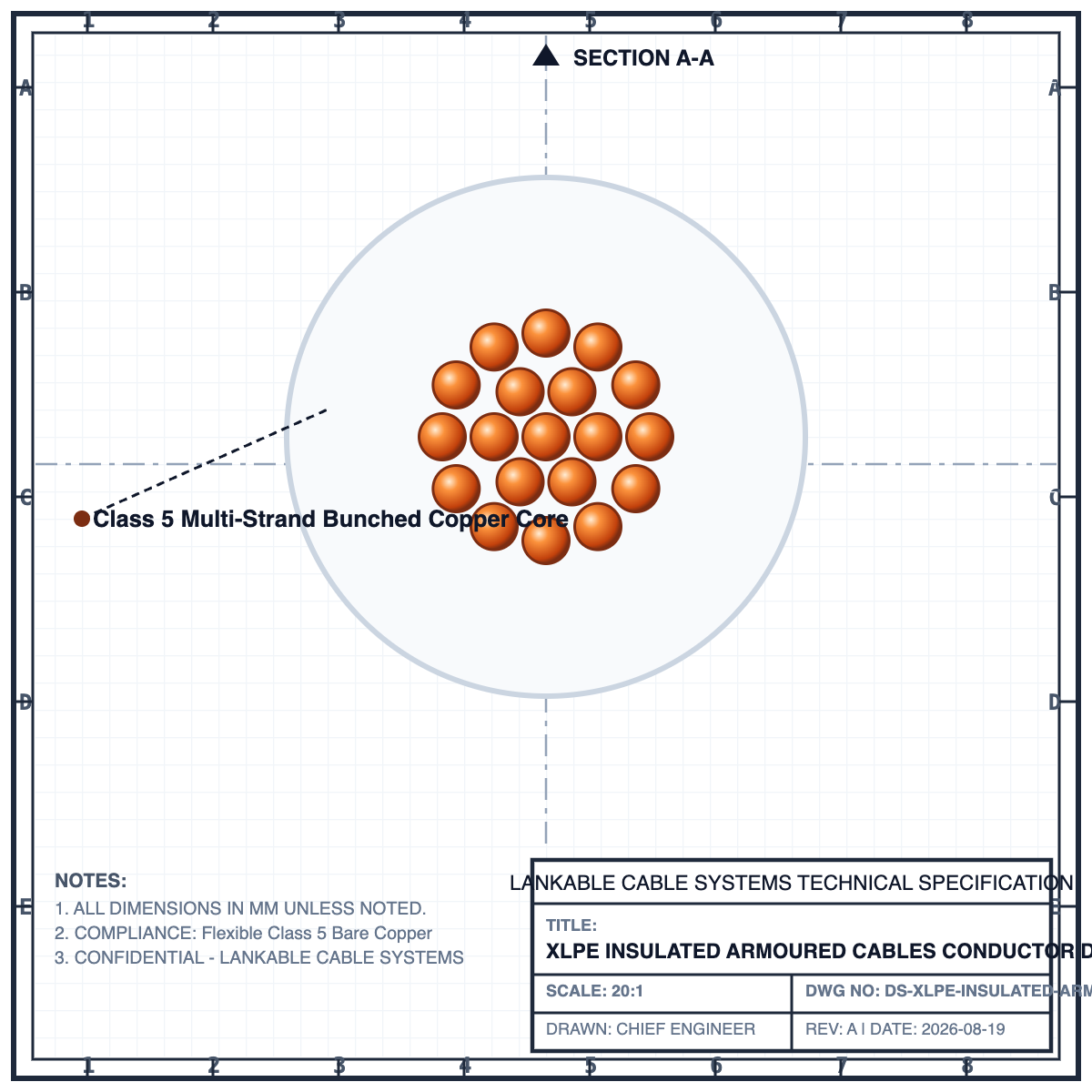

Conductor Detail

Metallurgy Gauge

Key Features

•High dielectric insulation strength
•Corrosion-resistant copper/aluminum conductors
•Self-extinguishing, flame-retardant outer sheathing
•Designed to carry high current loads with minimum power loss

Applications

Residential building electrificationPower sub-station gridsHeavy machine electricity feedsOutdoor streetlighting grids

LɅNKɅBLECONNECTING POSSIBILITIES

Technical Datasheet

DS-POW-XLPE-INSULATED-ARMOURED-CABLES-01 | Page 02

Detailed Engineering Specifications

Materials & Build

Conductor Metallurgy: Class 2 Stranded Bare Copper / Aluminum
Insulation Compound: PVC / XLPE Insulation
Outer Sheath: FR-PVC (Flame Retardant PVC)
Armouring: Galvanized Steel SWA / Tape

Electrical Parameters

Voltage Rating: 1100 V (1.1 kV)
Test Voltage: 3000 V AC
Operating Temperature: Max. 70°C (PVC) / 90°C (XLPE)

Mechanical & Thermal

Bending Radius (Fixed): 12 x Outer Diameter (Armoured)
Flame Retardancy: IEC 60332-1-2
Short Circuit Temp: 160°C (for PVC) / 250°C (for XLPE)

Compliance & Quality

Standards: IS 1554 (Part-1), IEC 60502-1
Quality Certs: CE, RoHS Compliant, ISO 9001

CE compliantRoHS certifiedISO 9001

Quality Assurance Seal

100% In-house Tested & Certified

Sales & Sales Head Office

Sitapura Industrial Area, Jaipur, Rajasthan 302022, India

Email: sales@lankable.com

Phone: +91 99500 52179

Web: www.lankable.com

Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
