MOQ: 2,000 MetersAVSS Cable
PVC-insulated single-core automotive cable for low-voltage circuits in automobiles, vehicles, and motorcycles, with bare Cu-ETP copper conductor per JIS 3120 and PVC insulation compliant with JASO D 611-94.

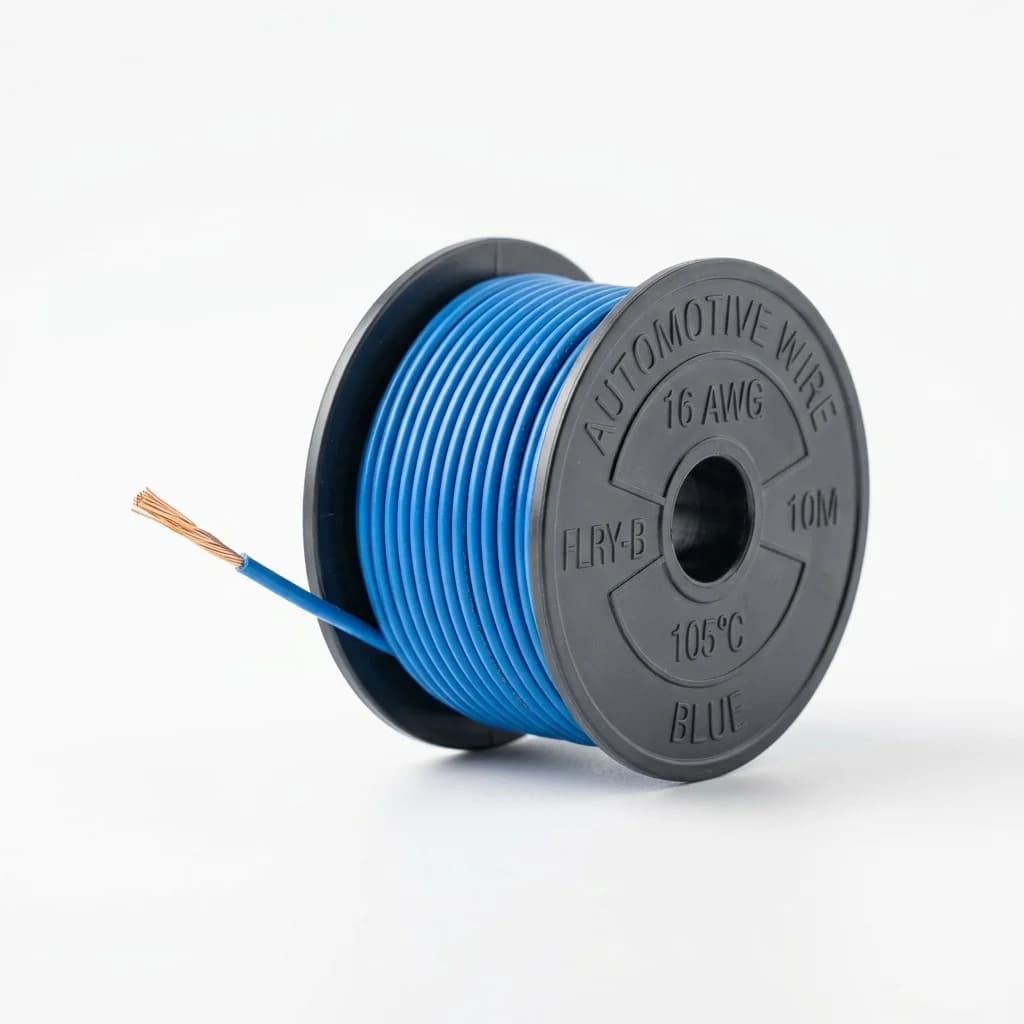

Visual Render
External Sheathing & Lay Layout

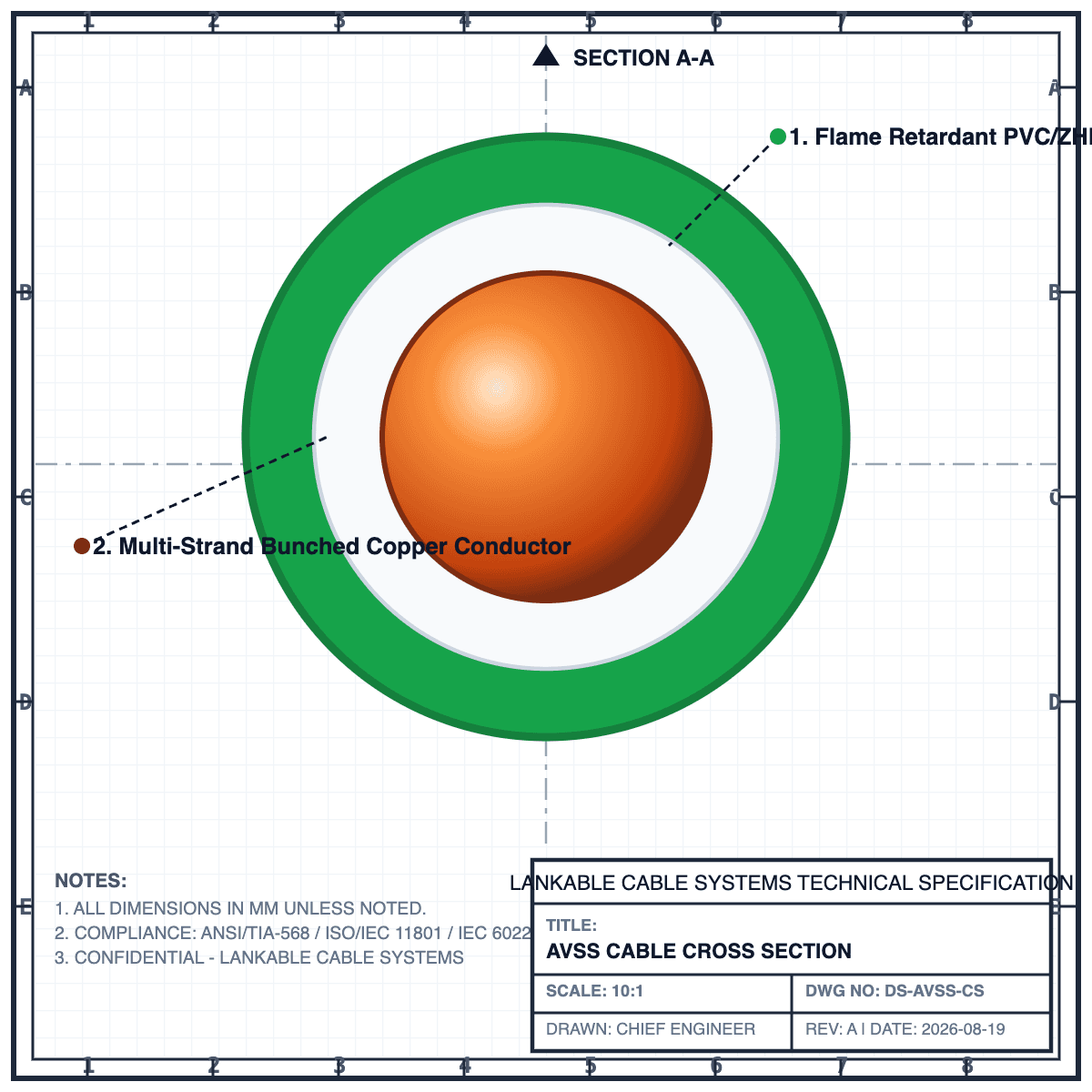

CAD Cross-Section
Internal Shielding & Core Layout

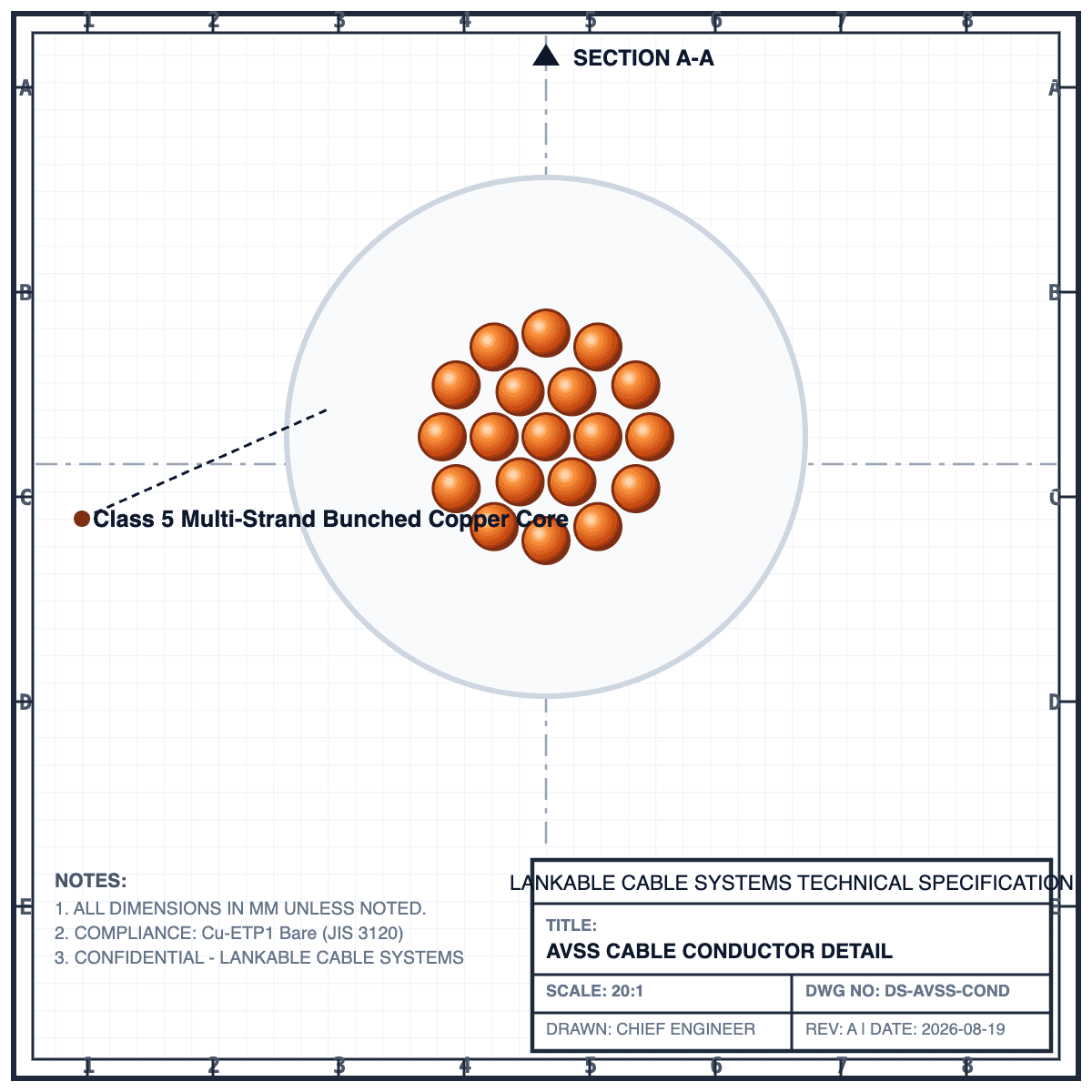

Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- Bare Cu-ETP copper conductor per JIS 3120
- Thin-wall PVC insulation per JASO D 611-94
- Rated for low-voltage circuits in cars and motorcycles
- Supports flexible stranded and flexible finer-strand conductor formats
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Cu-ETP1 Bare (JIS 3120)
- Insulation
- PVC (JASO D 611-94)
- Voltage Rating
- Low Voltage (60V DC / 25V AC)
- Temperature Range
- -40°C to +85°C
- Intermittent Temperature
- 120°C
- MOQ Quantity
- 2,000 Meters
- Standard Packaging
- Reels / Coils
