MOQ: 1,000 MetersCat 5e Cable
Enhanced Category 5e LAN cable supporting Gigabit Ethernet rates. Engineered with tight twist layouts to reduce crosstalk and ensure signal integrity.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures

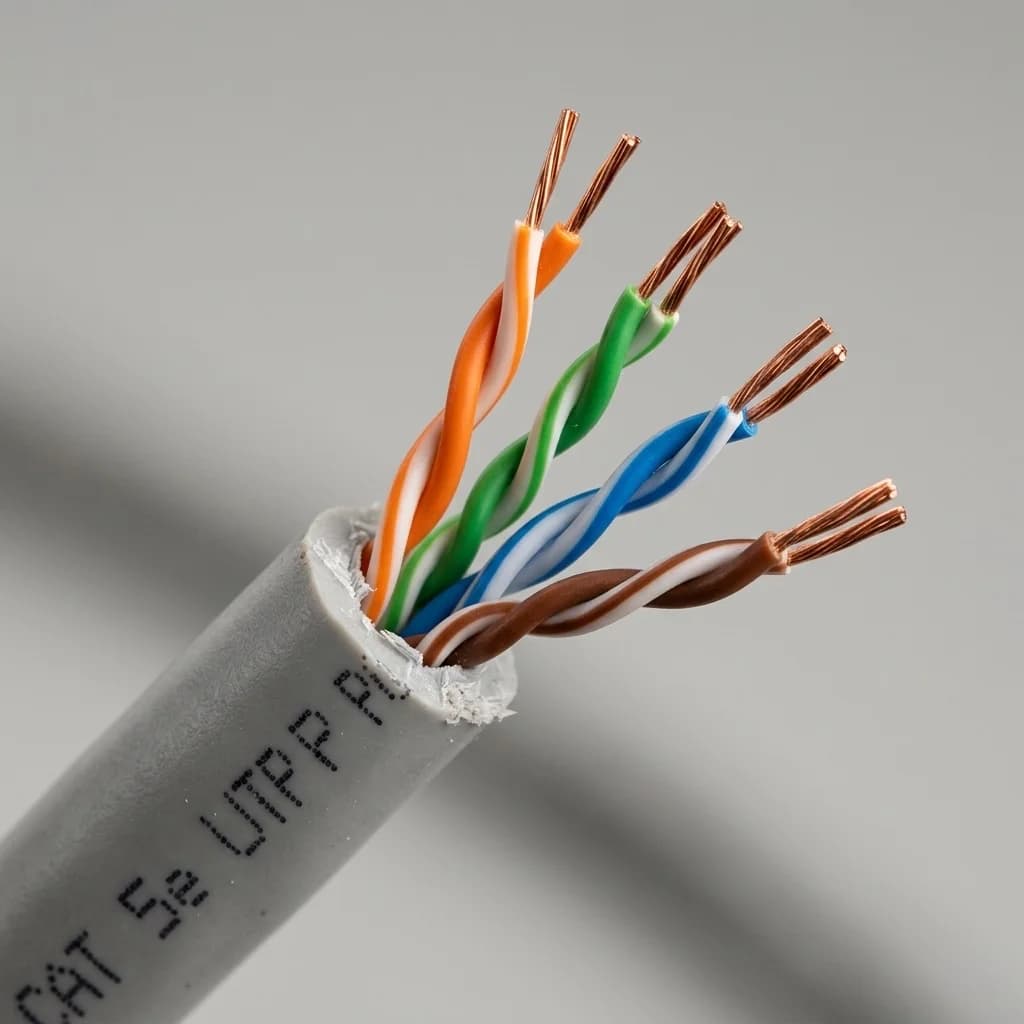

External Sheathing & Lay Layout

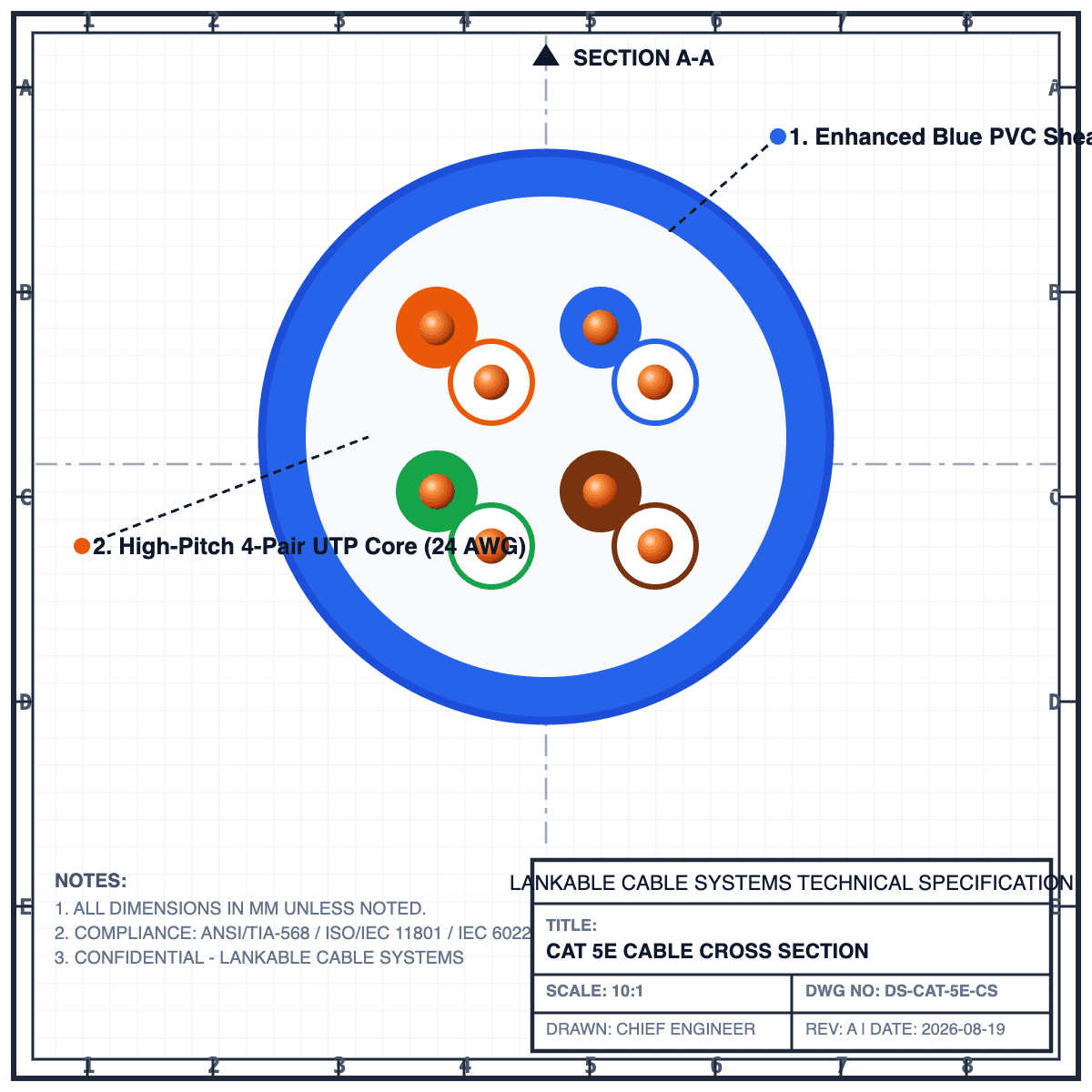

Internal Shielding & Core Layout

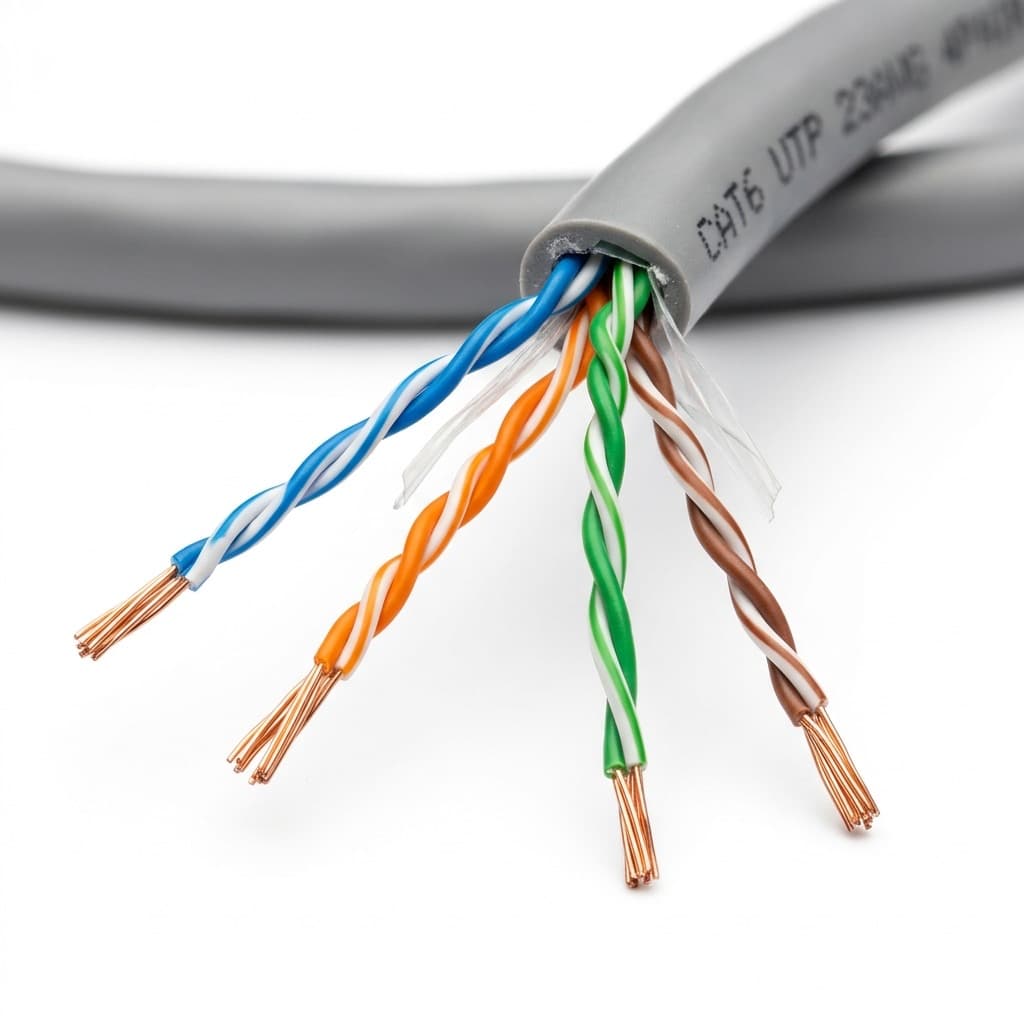

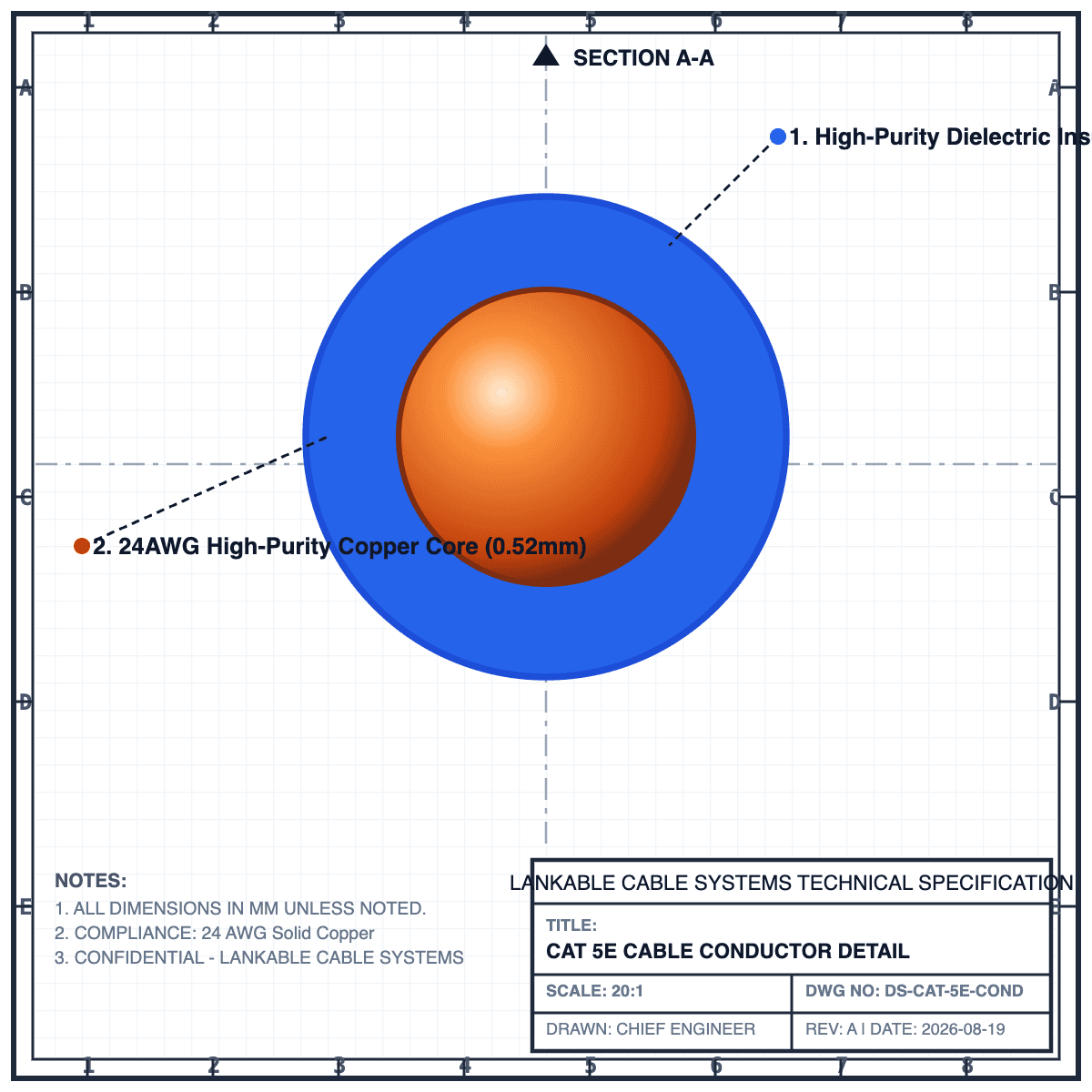

Conductor Metallurgy & Core Gauge
Key Features
- 24 AWG solid copper conductors
- Gigabit Ethernet support up to 100m
- Low smoke zero halogen (LSZH) jacket option
- Exceeds ANSI/TIA-568.2-D specifications
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Bandwidth
- 100 MHz (Tested to 150MHz)
- Shielding
- U/UTP (Unshielded)
- Standard Packaging
- 305m Pull Box
- MOQ Quantity
- 1,000 Meters
- Temperature Range
- -20°C to +75°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
