Cat 5e Cable
DS-COP-CAT-5E-01 | TECHNICAL DATASHEET
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-COP-CAT-5E-01 | Page 01
LAN Copper Cables
Cat 5e Cable
Enhanced Category 5e LAN cable supporting Gigabit Ethernet rates. Engineered with tight twist layouts to reduce crosstalk and ensure signal integrity.
Product Build Up (Construction)
Visual Render
External Sheathing

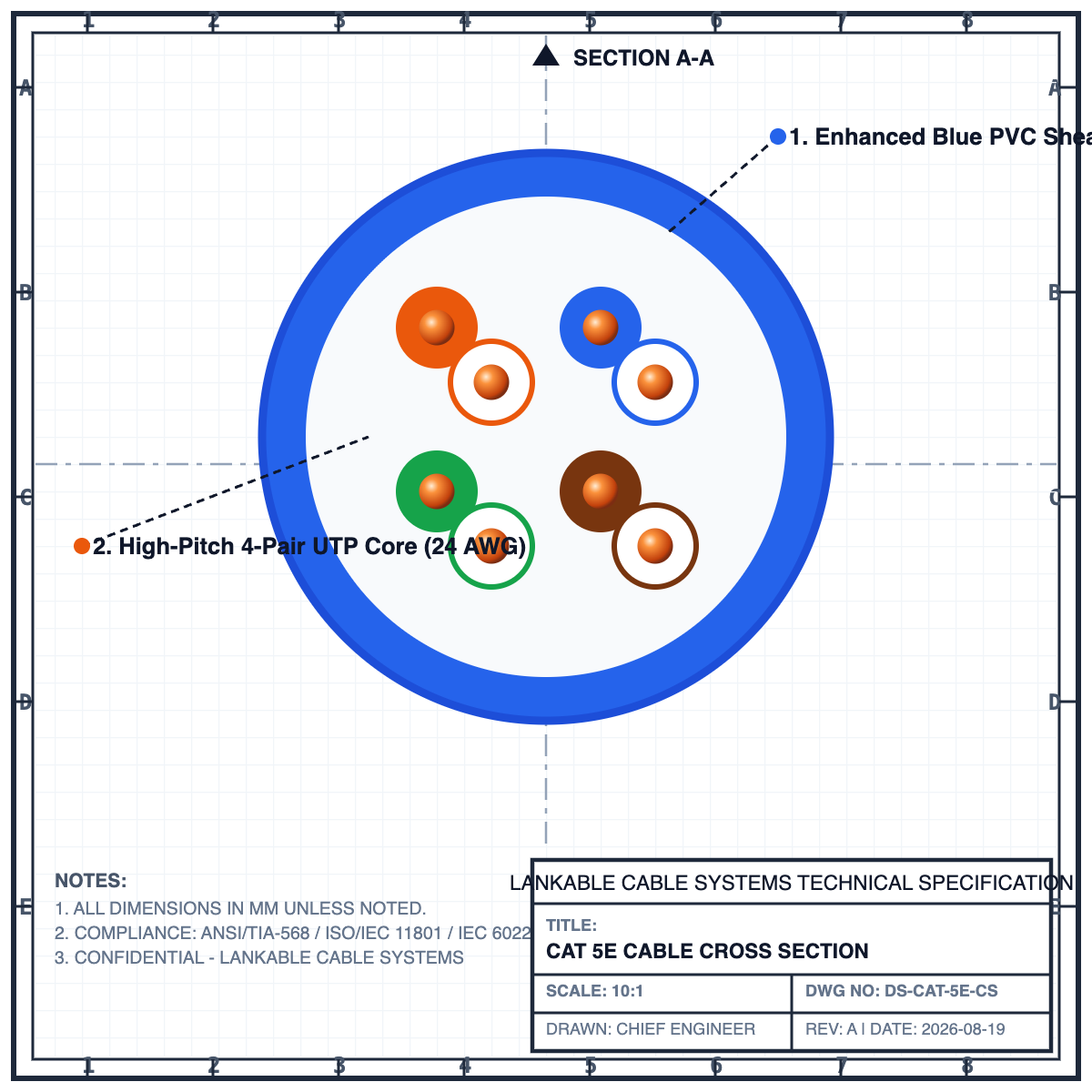

CAD Cross-Section
Internal Core Layout

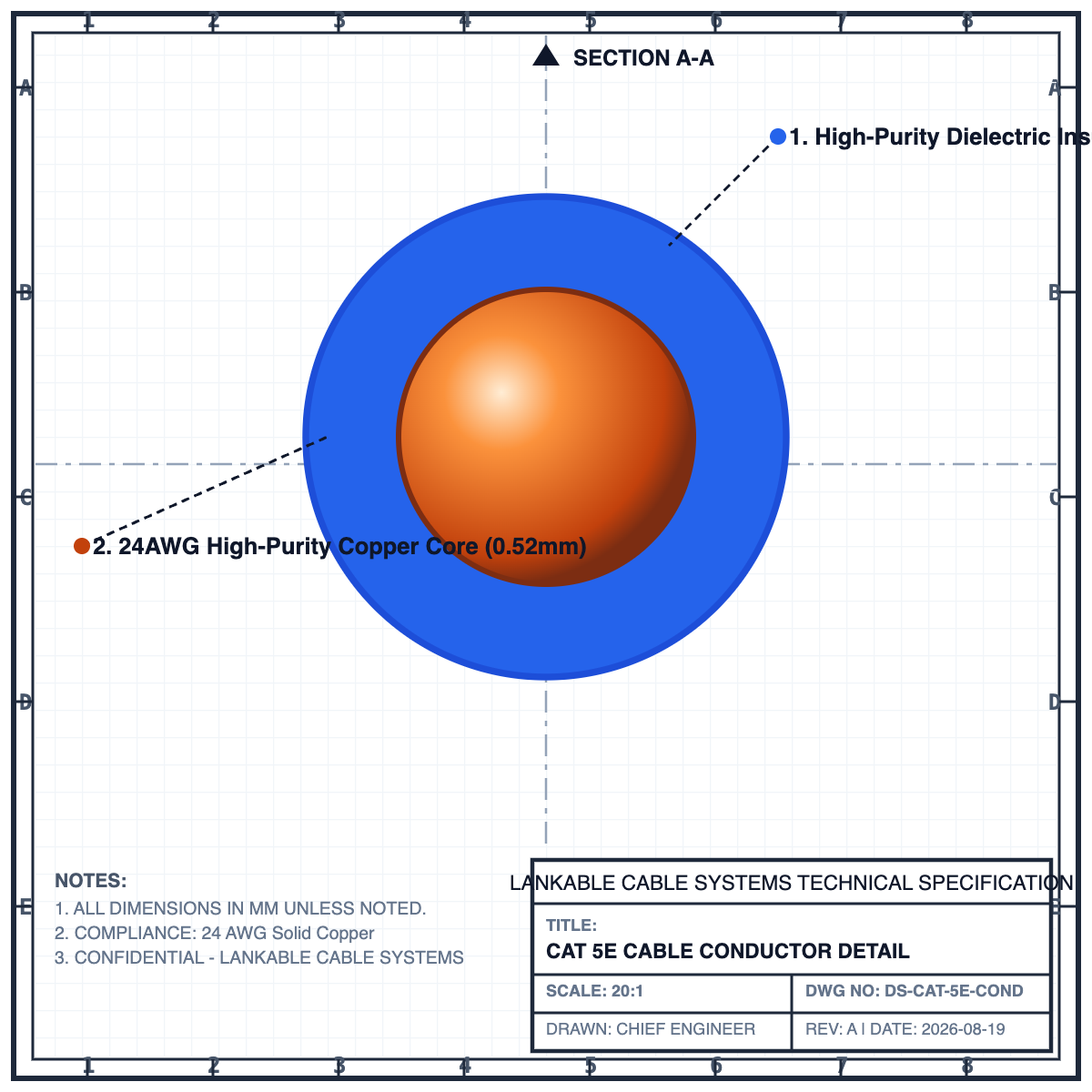

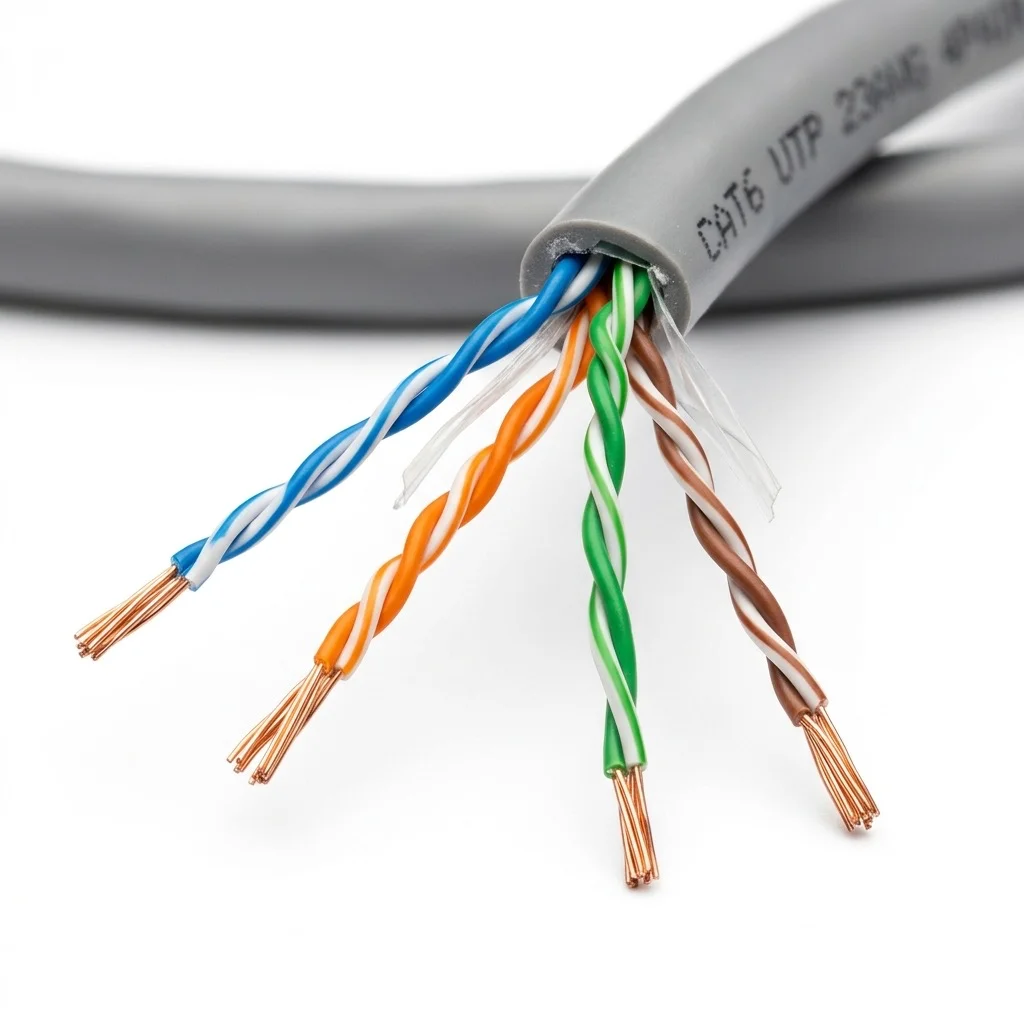

Conductor Detail
Metallurgy Gauge
Key Features
- •24 AWG solid copper conductors
- •Gigabit Ethernet support up to 100m
- •Low smoke zero halogen (LSZH) jacket option
- •Exceeds ANSI/TIA-568.2-D specifications
Applications
Gigabit Ethernet (1000BASE-T)PoE (Power over Ethernet)Residential Structured WiringEnterprise Networks
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
| AWG 26 (Patch/Stranded 0.40mm) | 5.2 mm | < 14.5 Ω/100m | 65% |
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 01
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-COP-CAT-5E-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Conductor Material
- 24 AWG (0.51 mm) Solid Bare Copper
- Insulation Material
- High-Density Polyethylene (HDPE)
- Shielding Type
- U/UTP (Unshielded)
- Rip Cord
- High-Tensile Polyester Rip Cord
- Outer Jacket
- Flame-Retardant PVC Grey / LSZH
Electrical Parameters
- Bandwidth
- 100 MHz
- Characteristic Impedance
- 100 ± 15 Ω (1 to 100 MHz)
- Conductor DC Resistance
- < 9.38 Ω/100m @ 20°C
- Velocity of Propagation
- 67%
- Mutual Capacitance
- Nom. 48 pF/m
- Operating Voltage
- 300 V max.
Mechanical & Thermal
- Bending Radius (Fixed)
- 4 x Outer Diameter
- Bending Radius (Flexing)
- 8 x Outer Diameter
- Temperature Range
- -20°C to +70°C
- Installation Tension
- Max. 110 N
- Nominal Outer Diameter
- 5.4 mm
Compliance & Quality
- International Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
- Environmental Standards
- RoHS Compliant, REACH Approved
- Certification Marks
- CE, UL 2835, ISO 9001:2015
CE compliantRoHS certifiedISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
Sales & Sales Head Office
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Email: sales@lankable.com
Phone: +91 99500 52179
Web: www.lankable.com
Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
© 2026 LANKABLE
