MOQ: 1,000 MetersIS 1554 PVC Insulated Heavy Duty Cable
Heavy-duty PVC insulated electric power and control cable manufactured per IS 1554 (Part 1). Engineered for industrial wiring systems, power distribution networks, and control circuits rated up to 1100V.

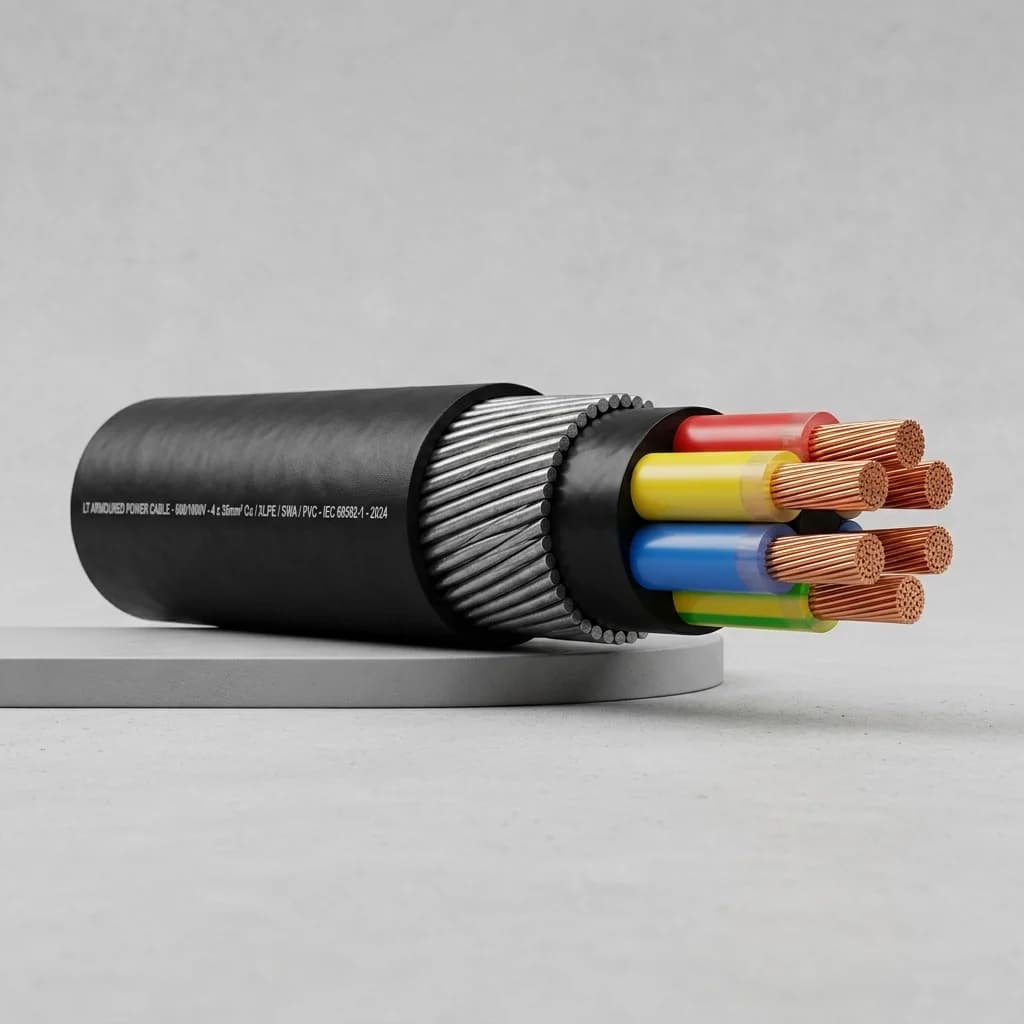

Visual Render
External Sheathing & Lay Layout

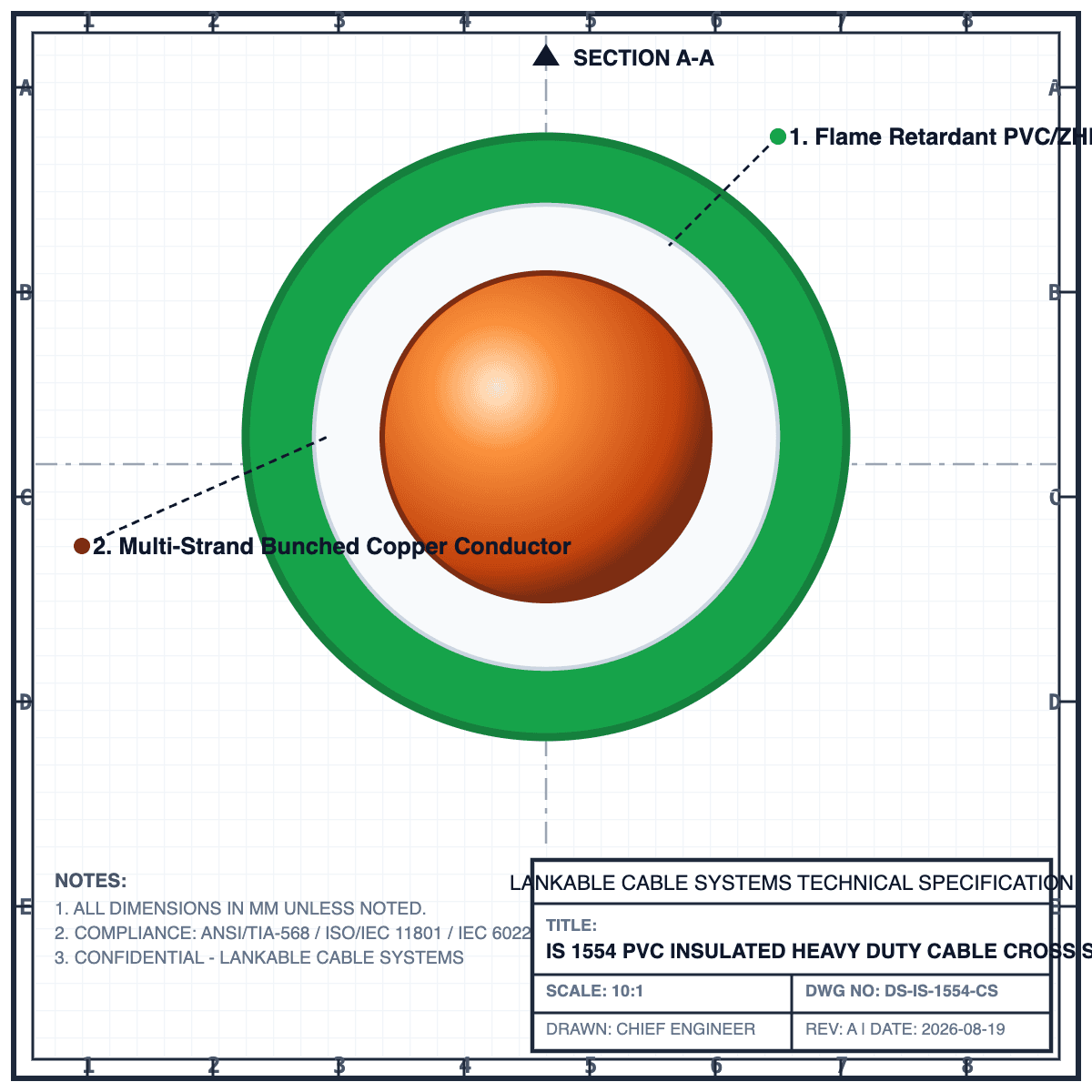

CAD Cross-Section
Internal Shielding & Core Layout
Core & Insulation Details
Voltage Grade:1100 V (1.1 kV)
Conductor:High Conductivity EC Copper
Insulation:Polyvinyl Chloride (PVC)
Armour Type:SWA / Unarmoured
Insulation Compound & Armour Specification
Key Features
- Heavy-duty PVC insulation with superior chemical resistance
- Steel wire/strip armored options for high impact protection
- Flame-retardant outer sheath preventing fire propagation
- Compliant with Indian Standard IS 1554 (Part 1) specifications
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- High-Conductivity Copper or Aluminum
- Insulation
- Polyvinyl Chloride (PVC)
- Standard
- IS 1554 (Part 1)
- Voltage Rating
- 1100 V (1.1 kV)
- Flame Performance
- Flame Retardant (FR)
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Wooden Drums
