Technical Datasheet

DS-POW-IS-1554-01 | Page 01

Armored Cables

IS 1554 PVC Insulated Heavy Duty Cable

Heavy-duty PVC insulated electric power and control cable manufactured per IS 1554 (Part 1). Engineered for industrial wiring systems, power distribution networks, and control circuits rated up to 1100V.

Product Build Up (Construction)

Visual Render

External Sheathing

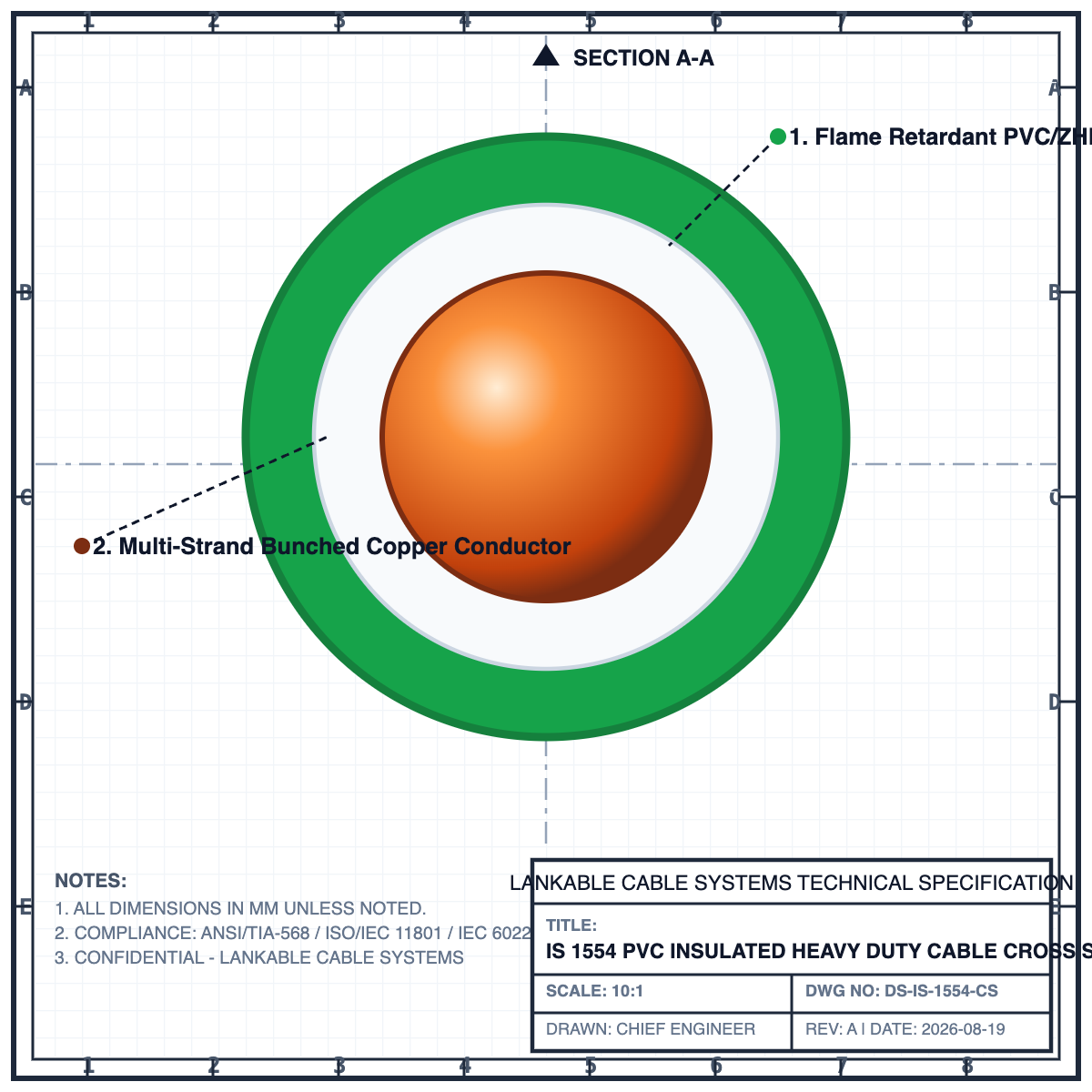

CAD Cross-Section

Internal Core Layout

Conductor Detail

Metallurgy Gauge

Key Features

•Heavy-duty PVC insulation with superior chemical resistance
•Steel wire/strip armored options for high impact protection
•Flame-retardant outer sheath preventing fire propagation
•Compliant with Indian Standard IS 1554 (Part 1) specifications

Applications

Industrial control and automation systemsSubstation wiring and power distribution linesUnderground trench installation or conduit wiring

LɅNKɅBLECONNECTING POSSIBILITIES

Technical Datasheet

DS-POW-IS-1554-01 | Page 02

Detailed Engineering Specifications

Materials & Build

Conductor Metallurgy: Class 2 Stranded Bare Copper / Aluminum
Insulation Compound: PVC / XLPE Insulation
Outer Sheath: FR-PVC (Flame Retardant PVC)
Armouring: Unarmoured

Electrical Parameters

Voltage Rating: 1100 V (1.1 kV)
Test Voltage: 3000 V AC
Operating Temperature: Max. 70°C (PVC) / 90°C (XLPE)

Mechanical & Thermal

Bending Radius (Fixed): 12 x Outer Diameter (Armoured)
Flame Retardancy: IEC 60332-1-2
Short Circuit Temp: 160°C (for PVC) / 250°C (for XLPE)

Compliance & Quality

Standards: IS 1554 (Part-1), IEC 60502-1
Quality Certs: CE, RoHS Compliant, ISO 9001

CE compliantRoHS certifiedISO 9001

Quality Assurance Seal

100% In-house Tested & Certified

Sales & Sales Head Office

Sitapura Industrial Area, Jaipur, Rajasthan 302022, India

Email: sales@lankable.com

Phone: +91 99500 52179

Web: www.lankable.com

Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
