MOQ: 1,000 MetersLSZH H07Z-K Cable
Halogen-free, low smoke zero halogen (LSZH) single-core flexible cable to BS EN 50525-3-41, for installation in dry environments including lighting fixtures, plaster and closed ducting, switchboards, and rail-coach wiring.
Visual Render
External Sheathing & Lay Layout

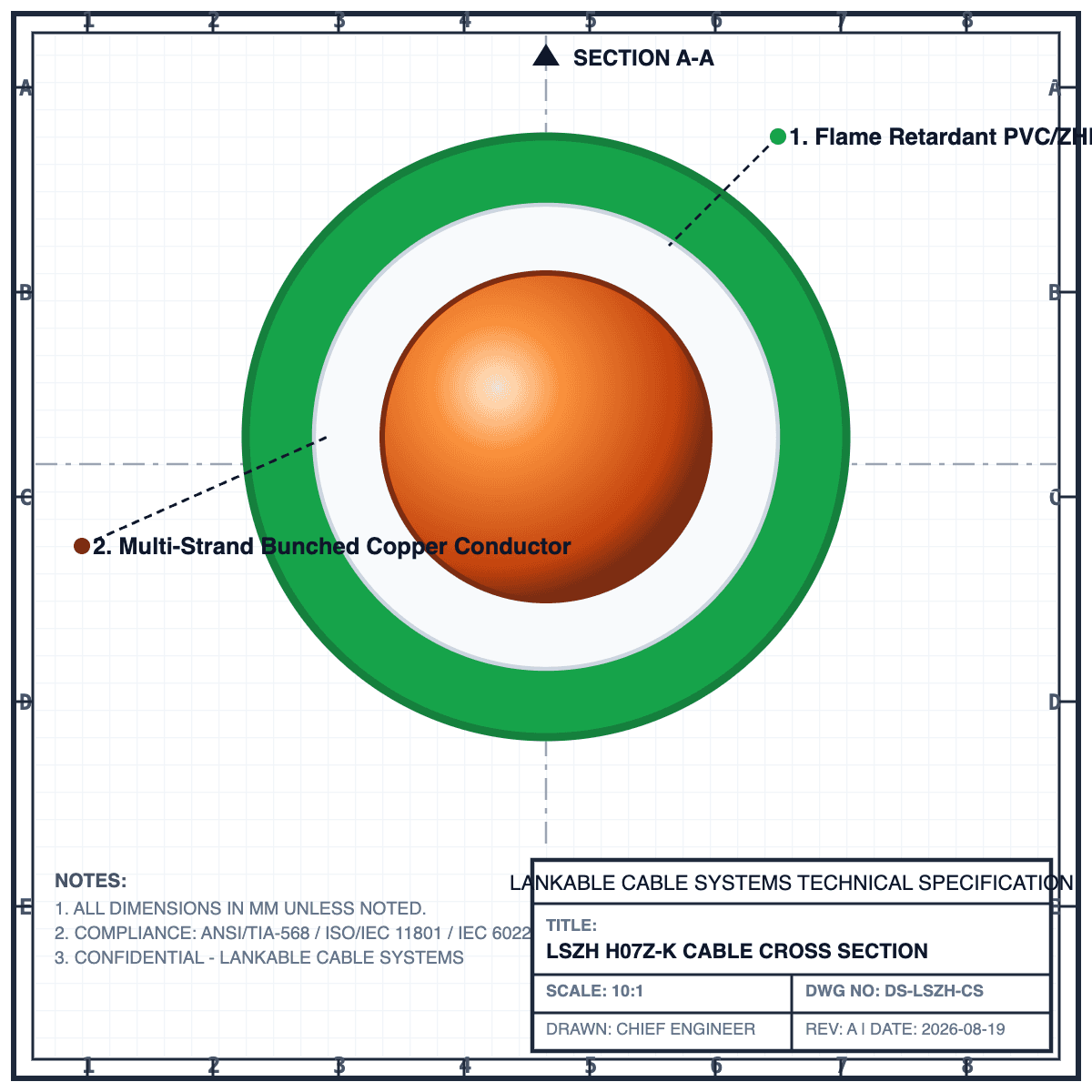

CAD Cross-Section
Internal Shielding & Core Layout
Core & Insulation Details
Voltage Grade:300/500V (H05Z-K) / 450/750V (H07Z-K)
Conductor:High Conductivity EC Copper
Insulation:Cross-Linked Polyolefin (EN 50363-5)
Armour Type:SWA / Unarmoured
Insulation Compound & Armour Specification
Key Features
- Class 5 flexible plain or metal coated copper conductor (EN 60228)
- Cross-Linked Polyolefin insulation per EN 50363-5
- H05Z-K (300/500V) and H07Z-K (450/750V) voltage designations
- Halogen-free, low smoke emission in case of fire
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- Class 5 Flexible, Plain/Metal Coated (EN 60228)
- Insulation
- Cross-Linked Polyolefin (EN 50363-5)
- Voltage Rating
- 300/500V (H05Z-K) / 450/750V (H07Z-K)
- Temperature Range
- -15°C to +90°C
- Bending Radius
- 4x OD (<=8mm) / 5x OD (8-12mm) / 6x OD (>12mm)
- Test Voltage
- 2500 V
- MOQ Quantity
- 1,000 Meters
- Standard Packaging
- Spools / Coils
