LSZH H07Z-K Cable
DS-POW-LSZH-01 | TECHNICAL DATASHEET
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-POW-LSZH-01 | Page 01
Building Wires (India)
LSZH H07Z-K Cable
Halogen-free, low smoke zero halogen (LSZH) single-core flexible cable to BS EN 50525-3-41, for installation in dry environments including lighting fixtures, plaster and closed ducting, switchboards, and rail-coach wiring.
Product Build Up (Construction)
Visual Render
External Sheathing

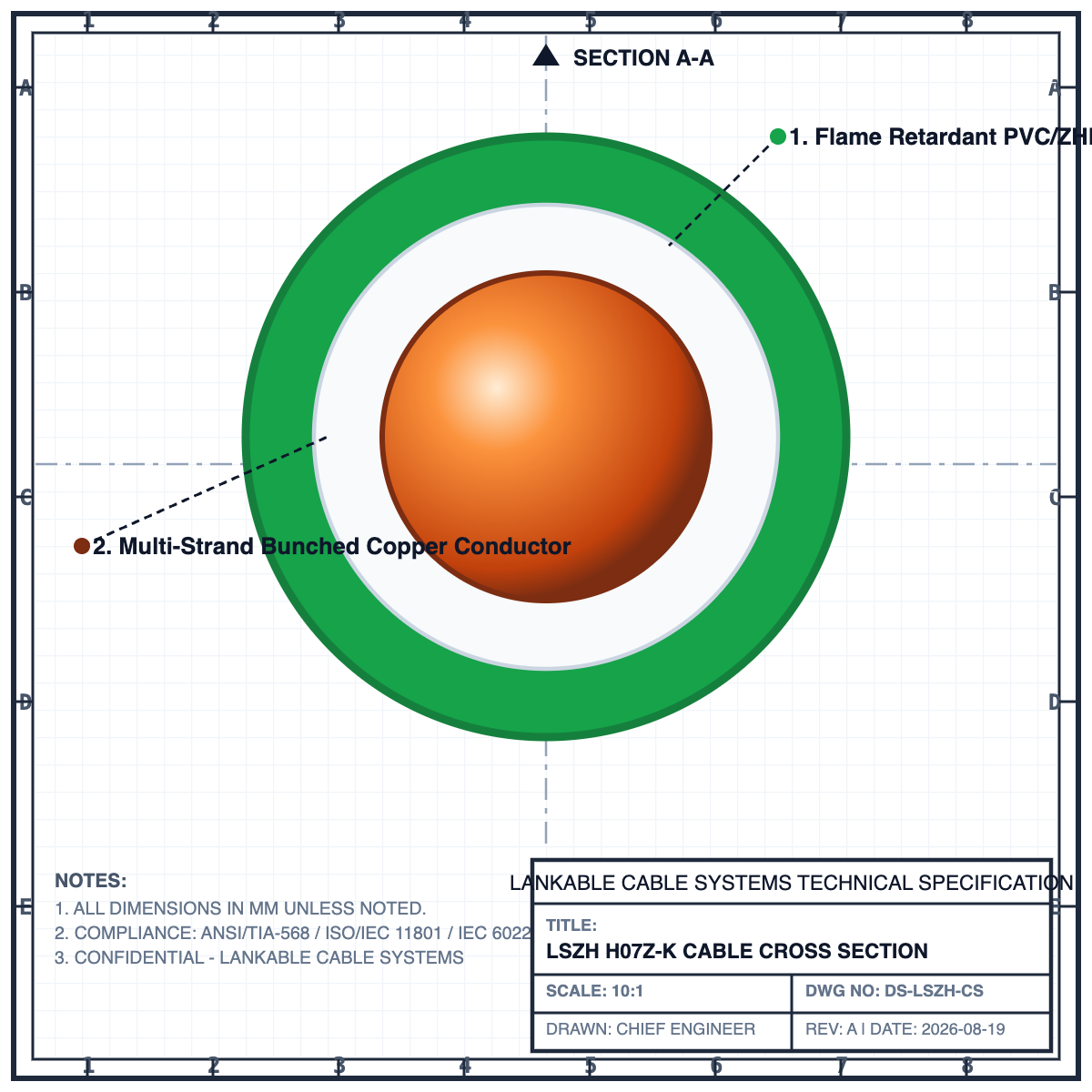

CAD Cross-Section
Internal Core Layout

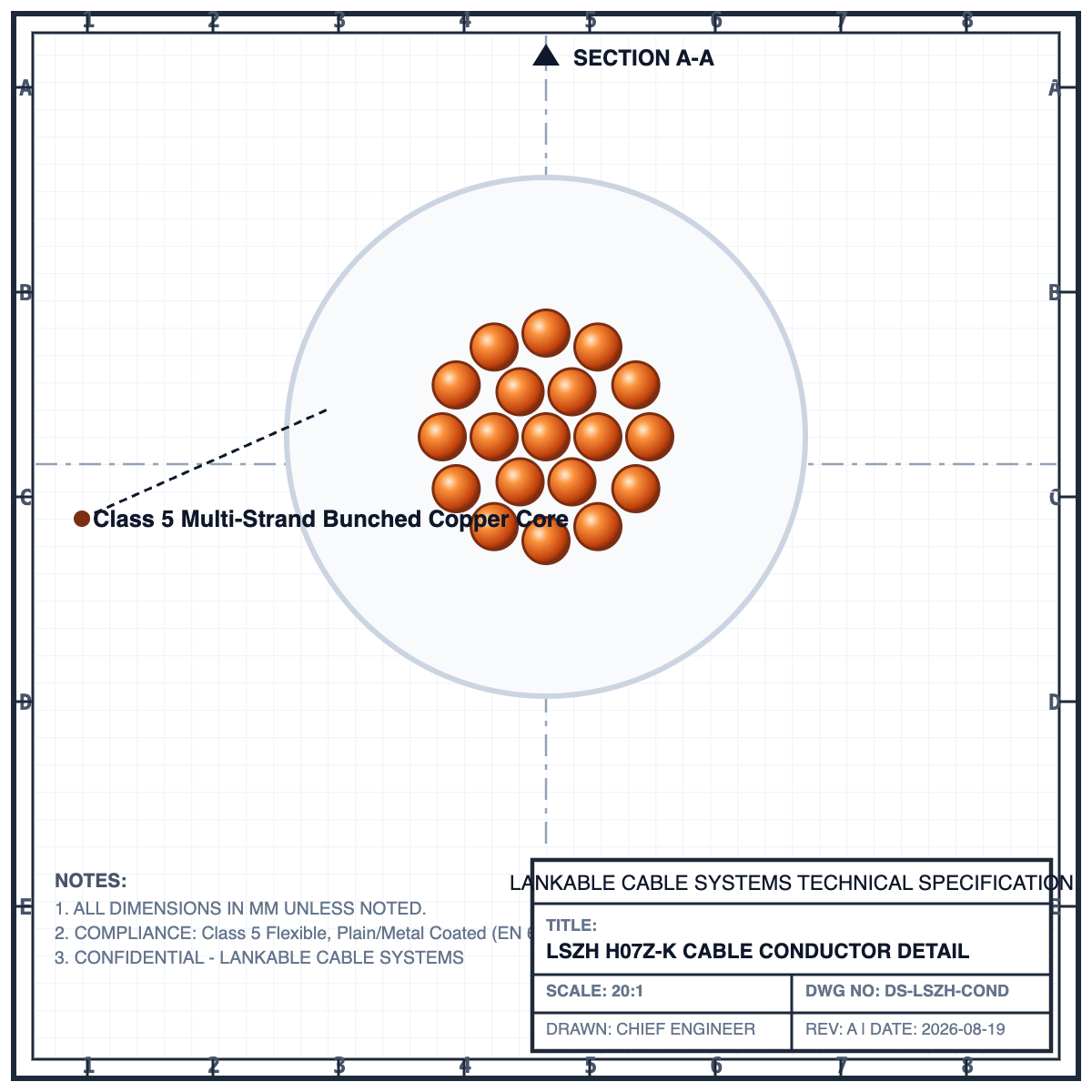

Conductor Detail
Metallurgy Gauge
Key Features
- •Class 5 flexible plain or metal coated copper conductor (EN 60228)
- •Cross-Linked Polyolefin insulation per EN 50363-5
- •H05Z-K (300/500V) and H07Z-K (450/750V) voltage designations
- •Halogen-free, low smoke emission in case of fire
Applications
Lighting fixture wiring in dry environmentsInstallation on, in, or beneath plaster; closed ductingSwitchboard & distributor internal wiringRail-coach wiring (up to 900V against ground)
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 01
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-POW-LSZH-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Conductor Metallurgy
- Class 2 Stranded Bare Copper / Aluminum
- Insulation Compound
- PVC / XLPE Insulation
- Outer Sheath
- FR-PVC (Flame Retardant PVC)
- Armouring
- Unarmoured
Electrical Parameters
- Voltage Rating
- 1100 V (1.1 kV)
- Test Voltage
- 3000 V AC
- Operating Temperature
- Max. 70°C (PVC) / 90°C (XLPE)
Mechanical & Thermal
- Bending Radius (Fixed)
- 12 x Outer Diameter (Armoured)
- Flame Retardancy
- IEC 60332-1-2
- Short Circuit Temp
- 160°C (for PVC) / 250°C (for XLPE)
Compliance & Quality
- Standards
- IS 1554 (Part-1), IEC 60502-1
- Quality Certs
- CE, RoHS Compliant, ISO 9001
CE compliantRoHS certifiedISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
Sales & Sales Head Office
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Email: sales@lankable.com
Phone: +91 99500 52179
Web: www.lankable.com
Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
