MOQ: 1,000 MetersLANKABLE Multi-Mode OM3/OM4 Fiber Optic Cable
Laser-optimized 50/125µm OM3/OM4 multi-mode fiber cable designed for 10G, 40G, and 100G high-density data center backbone backbones.

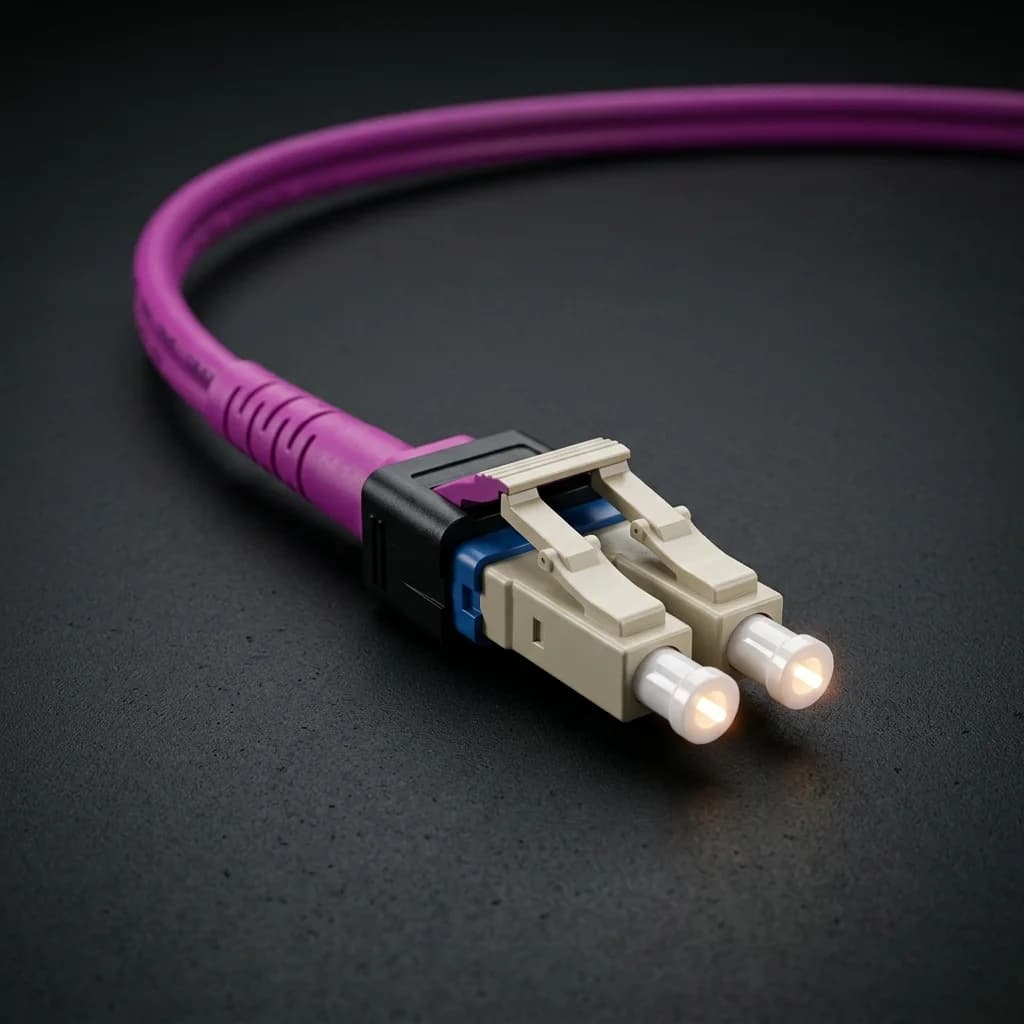

Visual Render
External Sheathing & Lay Layout

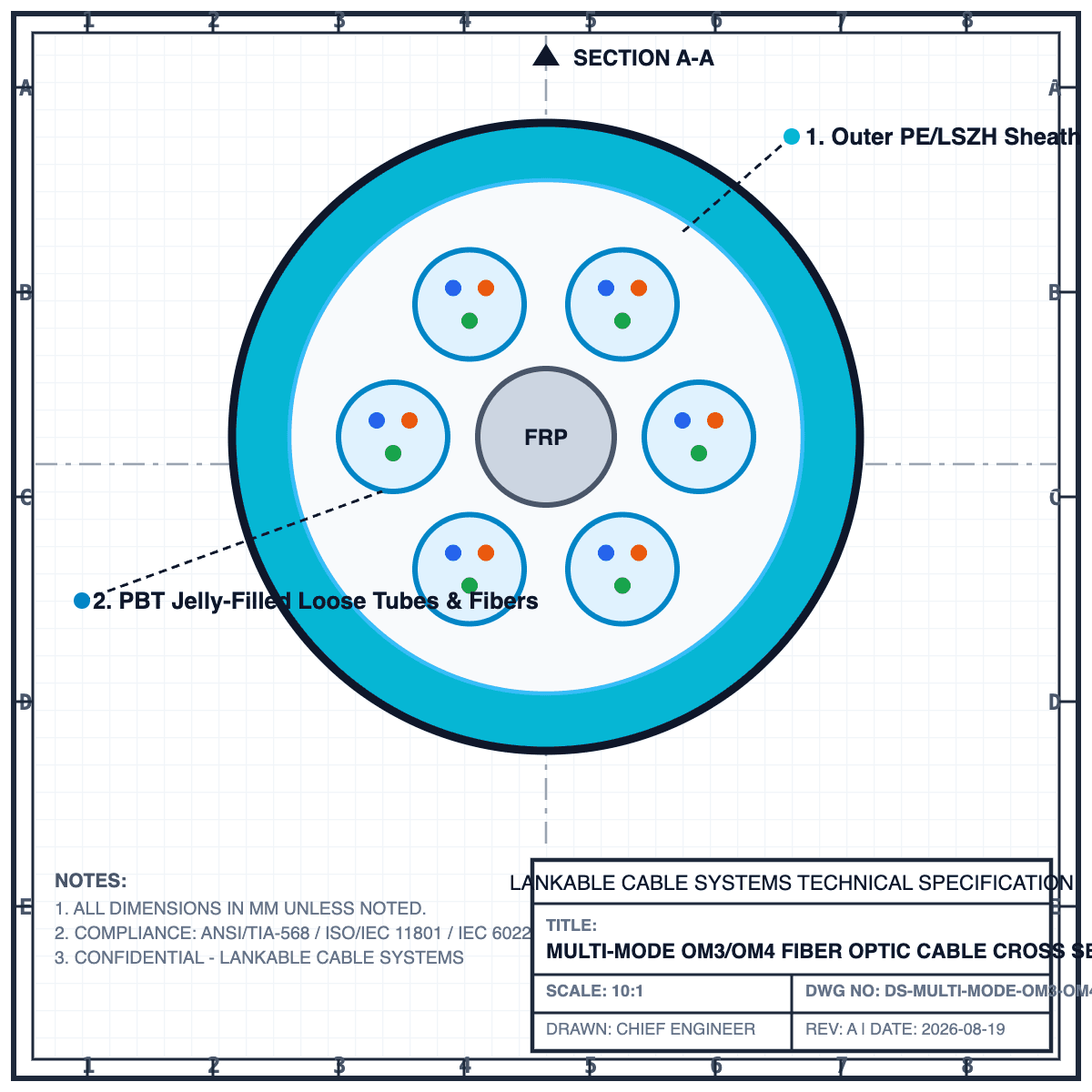

CAD Cross-Section
Internal Shielding & Core Layout
Conductor Detail
Conductor Metallurgy & Core Gauge
Key Features
- 50/125µm laser-optimized multi-mode fiber (OM3/OM4)
- Low Smoke Zero Halogen (LSZH) flame retardant sheath
- Supports 40G and 100G Ethernet up to 150m
- High-density multi-tube compact construction
- MOQ: 1,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Fiber Type
- OM3 / OM4 Multi-Mode (50/125µm)
- Core Count
- 24 Cores
- Jacket Rating
- LSZH Flame Retardant
- Bandwidth
- 4700 MHz·km @ 850nm
- MOQ Quantity
- 1,000 Meters
- Nominal Outer Diameter
- 9.8 mm
- Max Tensile Strength
- 1500 N
- Min Bend Radius (Installation)
- 200 mm
Factory Inquiry & RFQ
Request Factory Quotation
Add items to your inquiry list to build a custom bulk quotation request with volume-based tier discounts.
