Multi-Mode OM3/OM4 Fiber Optic Cable
DS-FIB-MULTI-MODE-OM3-OM4-FIBER-OPTIC-CABLE-01 | TECHNICAL DATASHEET
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-FIB-MULTI-MODE-OM3-OM4-FIBER-OPTIC-CABLE-01 | Page 01
Multi-Mode Fiber
Multi-Mode OM3/OM4 Fiber Optic Cable
Laser-optimized 50/125µm OM3/OM4 multi-mode fiber cable designed for 10G, 40G, and 100G high-density data center backbone backbones.
Product Build Up (Construction)

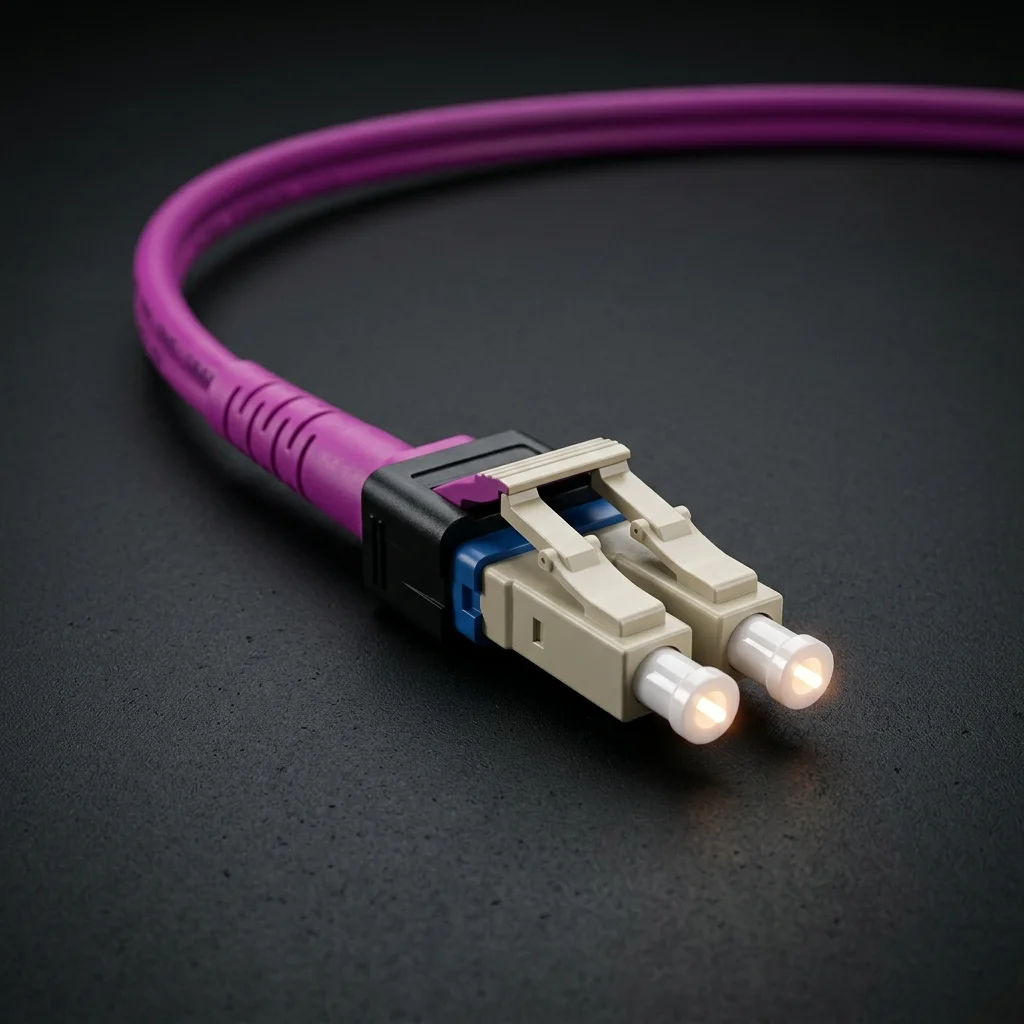

Visual Render
External Sheathing

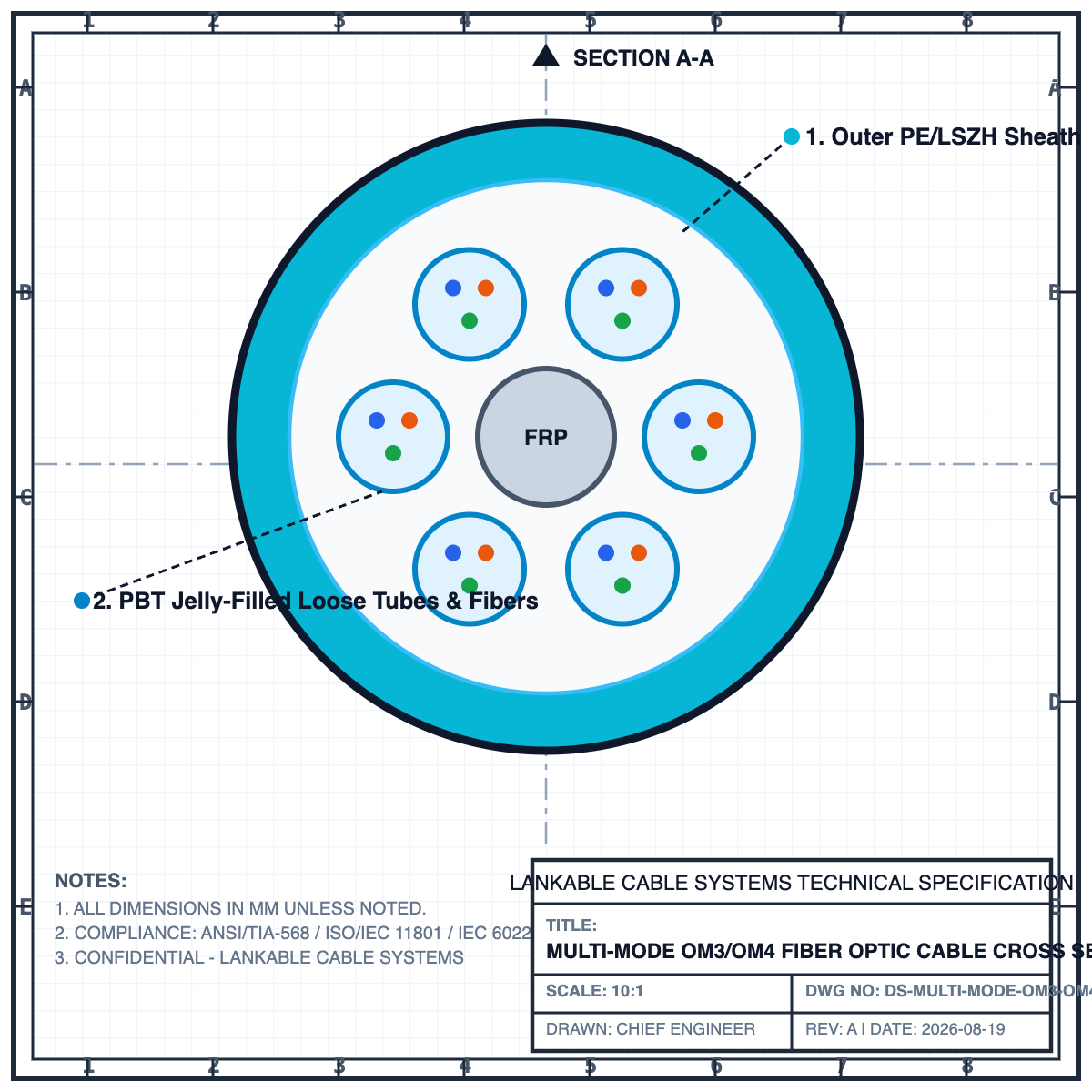

CAD Cross-Section
Internal Core Layout

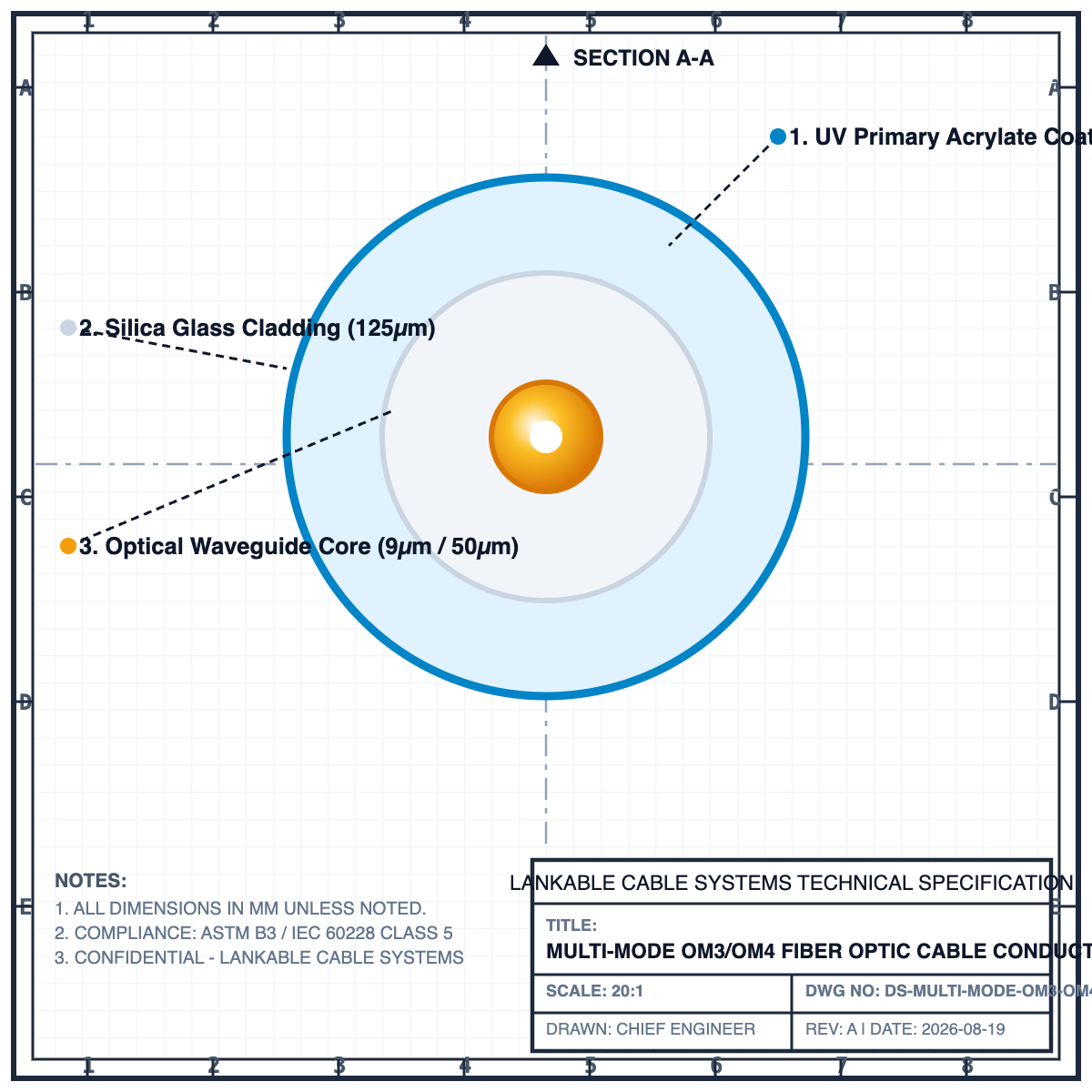

Conductor Detail
Metallurgy Gauge
Key Features
- •50/125µm laser-optimized multi-mode fiber (OM3/OM4)
- •Low Smoke Zero Halogen (LSZH) flame retardant sheath
- •Supports 40G and 100G Ethernet up to 150m
- •High-density multi-tube compact construction
Applications
Datacenter SAN & Server CabinetsEnterprise High-Speed Backbones10G/40G Switch AggregationHyperscale Cloud Architecture
Dimension Characteristics
| Fiber Count | Nominal OD | Nominal Weight | Max Tensile Load |
|---|---|---|---|
| 6 Core | 5.8 mm | 28 kg/km | 600 N |
| 12 Core (Recommended) | 6.2 mm | 32 kg/km | 600 N |
| 24 Core | 7.0 mm | 40 kg/km | 600 N |
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 01
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-FIB-MULTI-MODE-OM3-OM4-FIBER-OPTIC-CABLE-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Fiber Type
- Multi-Mode OM3/OM4 (50/125 µm)
- Strength Member
- Aramid Yarn (Kevlar) / FRP
- Armouring
- None (All-Dielectric)
- Outer Jacket
- LSZH (Low Smoke Zero Halogen) / UVPE Black
Electrical Parameters
- Attenuation @ 1310nm
- ≤ 0.36 dB/km (SM)
- Attenuation @ 1550nm
- ≤ 0.22 dB/km (SM)
- Attenuation @ 850nm
- ≤ 3.0 dB/km (MM)
- Core/Cladding OD
- 9.2 / 125.0 ± 1.0 µm (SM) or 50.0 / 125.0 ± 2.5 µm (MM)
Mechanical & Thermal
- Bending Radius (Fixed)
- 10 x Cable OD
- Bending Radius (Dynamic)
- 20 x Cable OD
- Crush Resistance
- 300 N/100mm
- Tensile Strength (ST)
- 600 N
Compliance & Quality
- ITU Standards
- ITU-T G.652.D / G.657.A1 or ITU-T G.651.1
- Test Standards
- IEC 60793, IEC 60794-1-2
- Flame Rating
- IEC 60332-1 / UL 1666 (OFNR)
- Environmental
- RoHS & REACH Compliant
CE compliantRoHS certifiedISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
Sales & Sales Head Office
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Email: sales@lankable.com
Phone: +91 99500 52179
Web: www.lankable.com
Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
