MOQ: 2,000 MetersOutdoor FTP Cable
Foil shielded outdoor Category 6 cable. Keeps signals clean and isolates noise in high-power substation towers, cellular towers, and outdoor arrays.
AWG (American Wire Gauge)
Understand what AWG means and choose the right cable size for your application in seconds.
Quick Conductor Rule
Lower AWG Number
Thicker copper core • Less resistance • High power (PoE++)
Higher AWG Number
Thinner copper core • More flexible • Easier patch routing
23 AWG
Thickest CopperThicker copper core yields the lowest resistance, enabling full 100m structural links and high-wattage power delivery.
Target Deployments
- ✓PoE++ (90W+) & 10G Base-T
- ✓Long distance backhauls
- ✓Lowest thermal emissions
- ✓Data Center structures

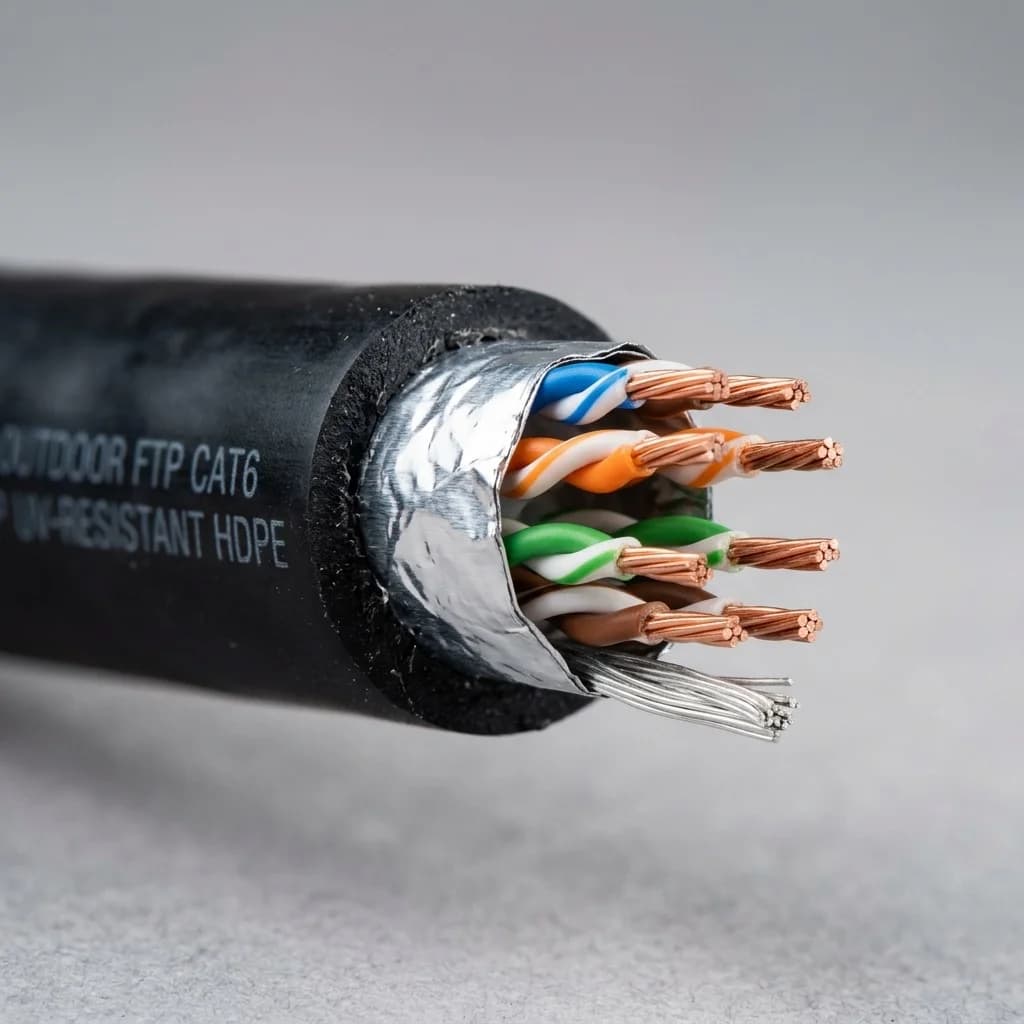

External Sheathing & Lay Layout

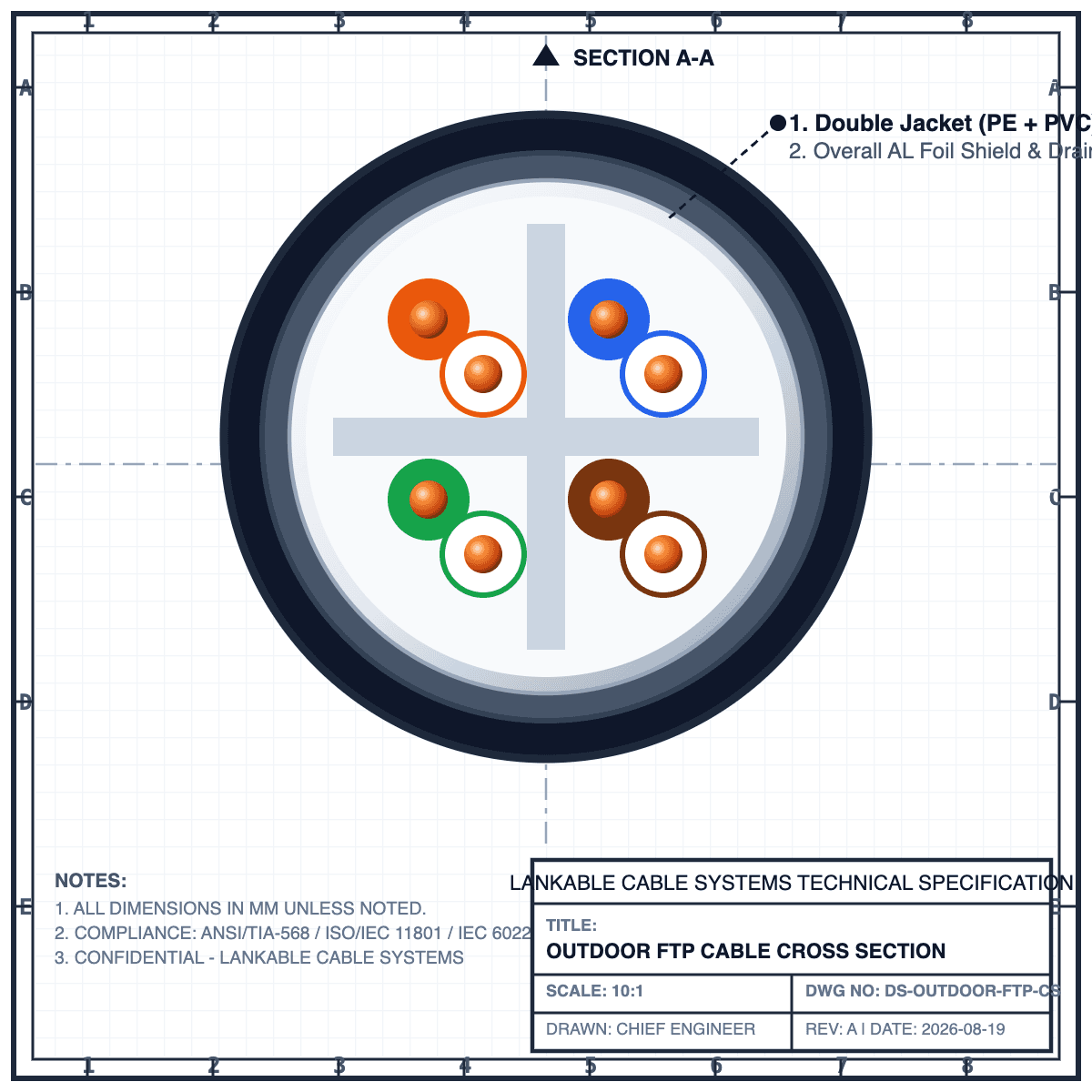

Internal Shielding & Core Layout

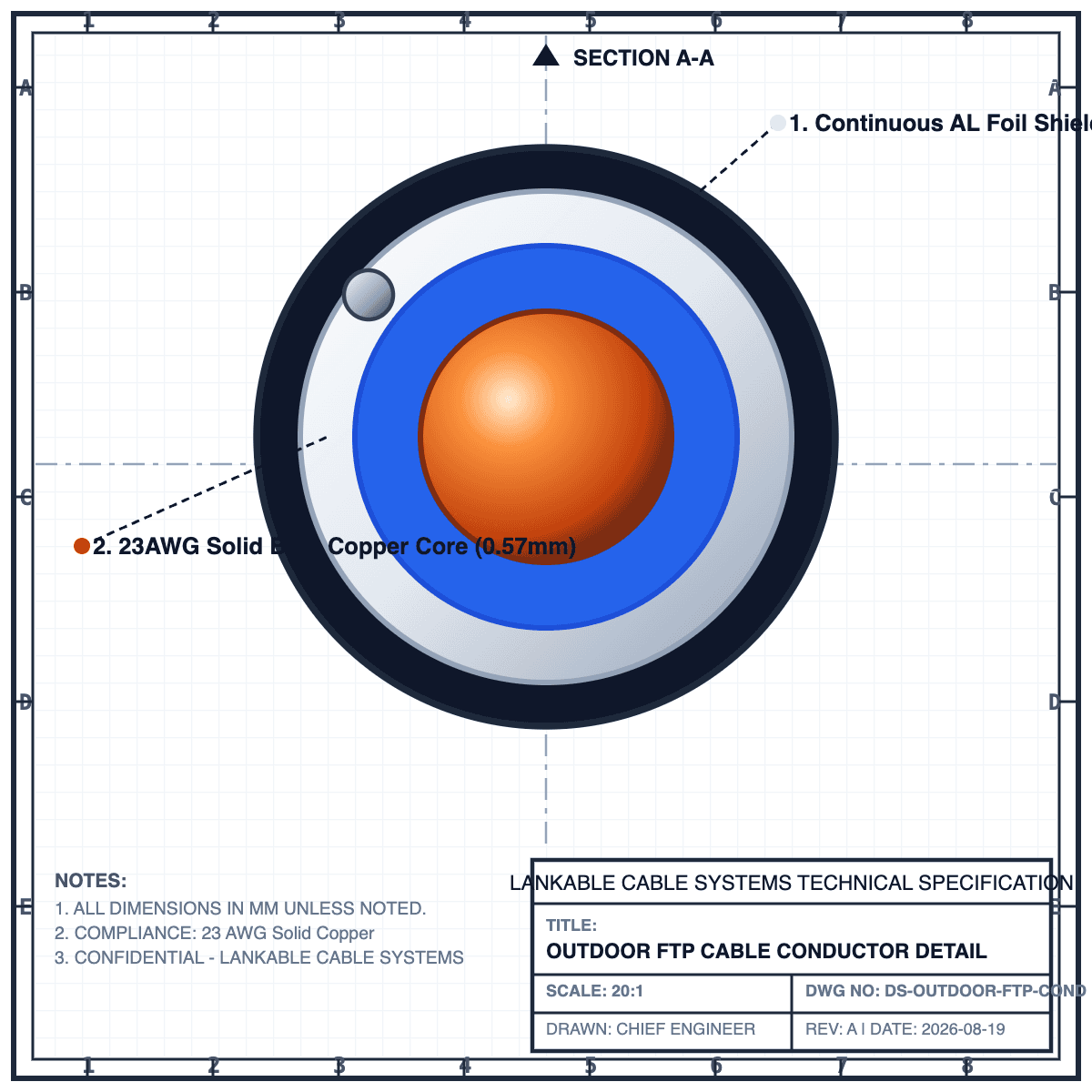

Conductor Metallurgy & Core Gauge
Key Features
- 23 AWG solid copper conductors
- Continuous aluminum foil shield wrap with drain wire
- UV-proof, black HDPE outer jacket
- Water-blocking dry core tape
- MOQ: 2,000 Meters minimum
* Conductor configurations and structural specs update dynamically below. MOQ requirements apply.
Technical Specifications (Selected Size)
- Conductor
- 23 AWG (0.57 mm) Solid Bare Copper
- Shielding
- F/UTP Foil Shielded
- Jacket Material
- UV-resistant HDPE
- Water Protection
- Dry water-blocking tape
- MOQ Quantity
- 2,000 Meters
- Temperature Range
- -45°C to +80°C
- Nominal Outer Diameter
- 6.2 mm
- Conductor DC Resistance
- < 7.30 Ω/100m
- Velocity of Propagation
- 69%
