Outdoor FTP Cable
DS-COP-OUTDOOR-FTP-01 | TECHNICAL DATASHEET
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-COP-OUTDOOR-FTP-01 | Page 01
Outdoor Cables
Outdoor FTP Cable
Foil shielded outdoor Category 6 cable. Keeps signals clean and isolates noise in high-power substation towers, cellular towers, and outdoor arrays.
Product Build Up (Construction)
Visual Render
External Sheathing

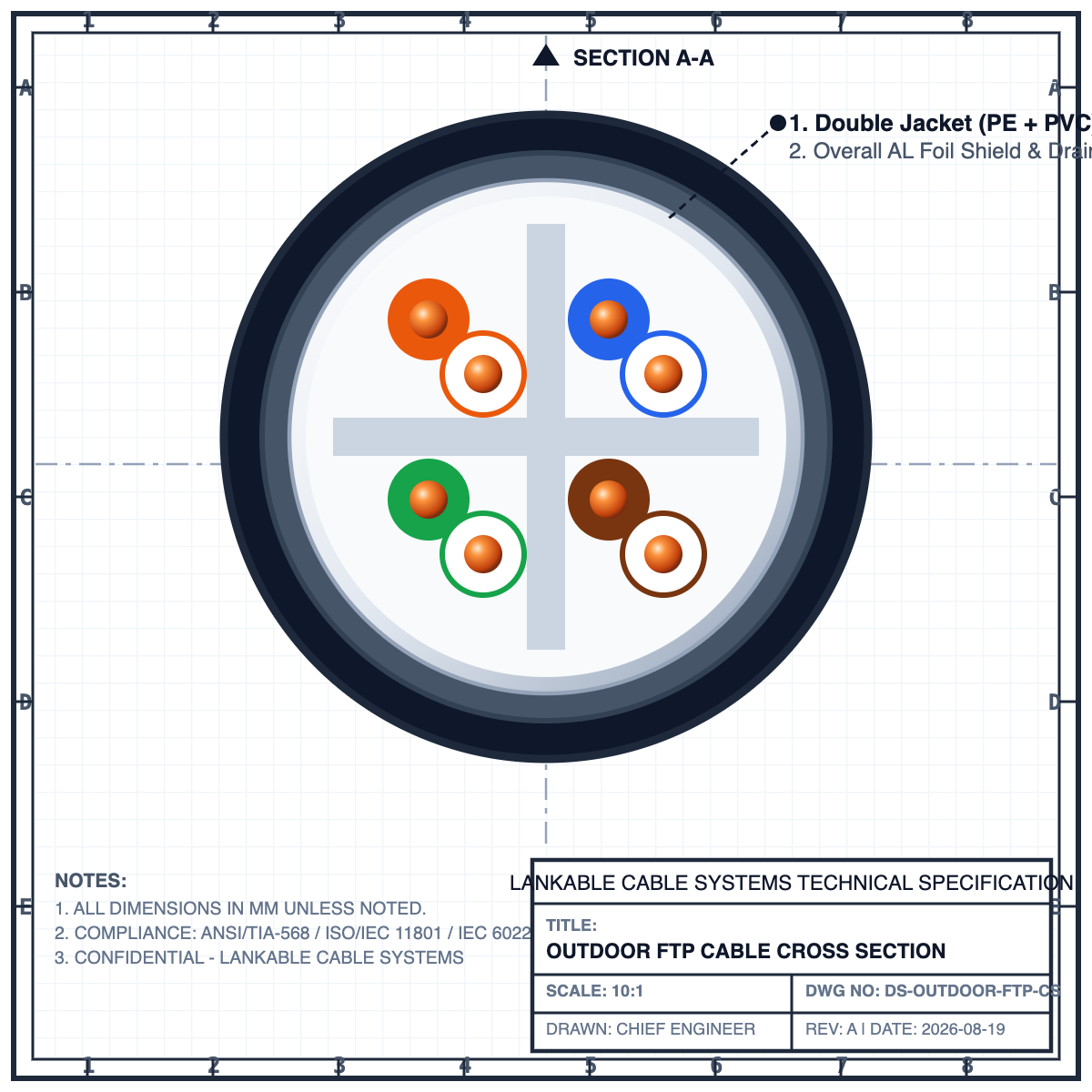

CAD Cross-Section
Internal Core Layout

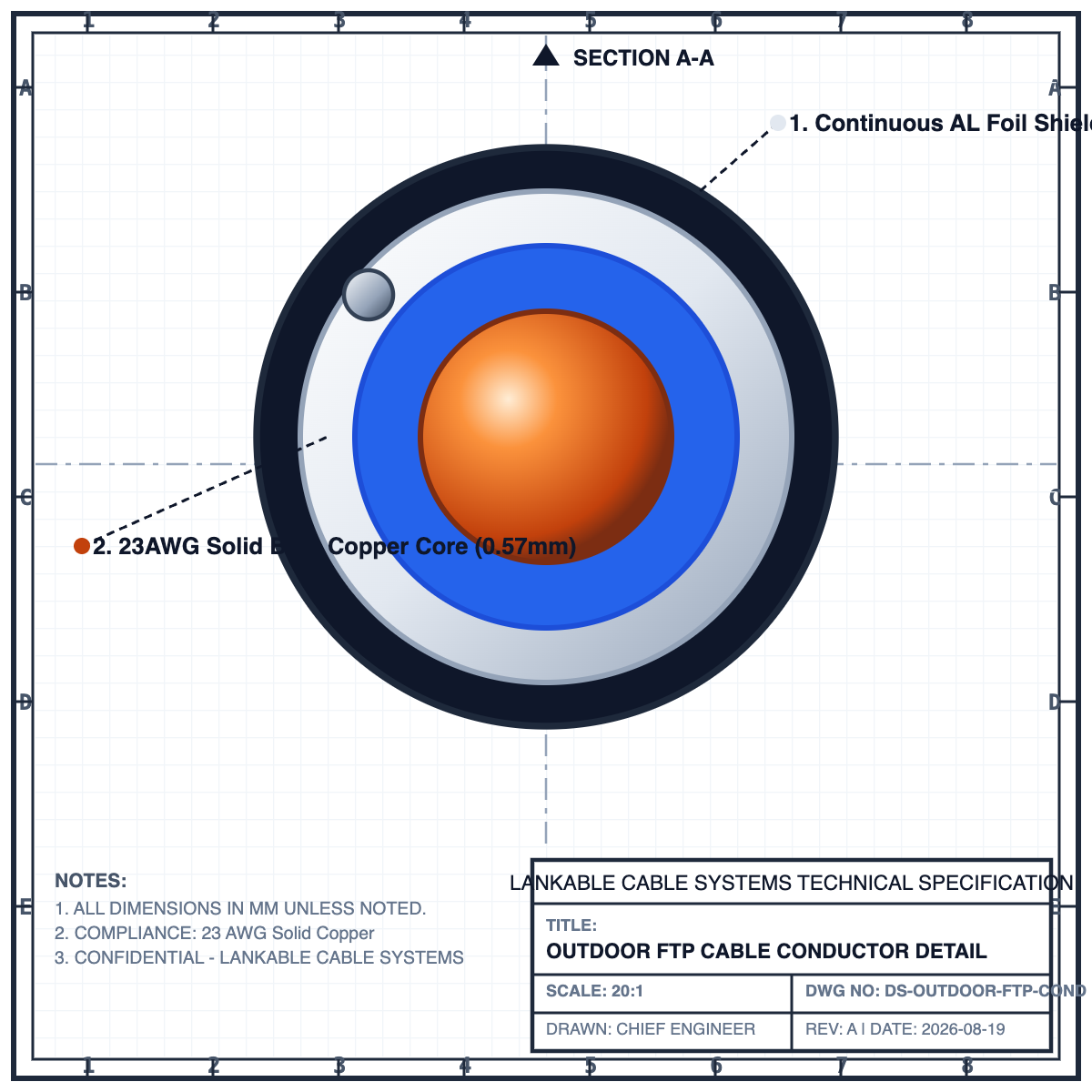

Conductor Detail
Metallurgy Gauge
Key Features
- •23 AWG solid copper conductors
- •Continuous aluminum foil shield wrap with drain wire
- •UV-proof, black HDPE outer jacket
- •Water-blocking dry core tape
Applications
Cellular Base StationsWireless Access Points on TowersSubstation AutomationHigh-EMI Outdoor Environments
Dimension Characteristics
| Conductor Size / Standard | Nominal OD | Conductor DC Resistance | Velocity of Propagation |
|---|---|---|---|
| AWG 23 (Solid 0.57mm Conductor - Rec.) | 6.2 mm | < 7.30 Ω/100m | 69% |
| AWG 24 (Solid 0.51mm Conductor) | 5.8 mm | < 9.38 Ω/100m | 67% |
| AWG 25 (Solid 0.455mm Conductor) | 5.5 mm | < 12.2 Ω/100m | 66% |
| AWG 26 (Patch/Stranded 0.40mm) | 5.2 mm | < 14.5 Ω/100m | 65% |
© 2026 LANKABLE | High-Performance Wire & Cable SystemsPage 01
LɅNKɅBLECONNECTING POSSIBILITIES
Technical Datasheet
DS-COP-OUTDOOR-FTP-01 | Page 02
Detailed Engineering Specifications
Materials & Build
- Conductor Material
- 23 AWG (0.57 mm) Solid Bare Copper
- Insulation Material
- High-Density Polyethylene (HDPE)
- Shielding Type
- F/UTP Foil Shielded
- Drain Wire
- Tinned Stranded Copper
- Rip Cord
- High-Tensile Polyester Rip Cord
- Outer Jacket
- UV-Resistant PE Black
Electrical Parameters
- Bandwidth
- 250 MHz
- Characteristic Impedance
- 100 ± 15 Ω (1 to 100 MHz)
- Conductor DC Resistance
- < 7.30 Ω/100m @ 20°C
- Velocity of Propagation
- 69%
- Mutual Capacitance
- Nom. 48 pF/m
- Operating Voltage
- 300 V max.
Mechanical & Thermal
- Bending Radius (Fixed)
- 4 x Outer Diameter
- Bending Radius (Flexing)
- 8 x Outer Diameter
- Temperature Range
- -20°C to +70°C
- Installation Tension
- Max. 110 N
- Nominal Outer Diameter
- 6.8 mm
Compliance & Quality
- International Standards
- ANSI/TIA-568-C.2, ISO/IEC 11801
- Flame Retardancy
- IEC 60332-1-2 / UL 1581 VW-1
- Environmental Standards
- RoHS Compliant, REACH Approved
- Certification Marks
- CE, UL 2835, ISO 9001:2015
CE compliantRoHS certifiedISO 9001
Quality Assurance Seal
100% In-house Tested & Certified
Sales & Sales Head Office
Sitapura Industrial Area, Jaipur, Rajasthan 302022, India
Email: sales@lankable.com
Phone: +91 99500 52179
Web: www.lankable.com
Disclaimer: Specifications are subject to change without notice. All dimensions, weights, and electrical properties are nominal values.
